Saramonic UwMic9S Kit 1

BD 114.00 VAT INC

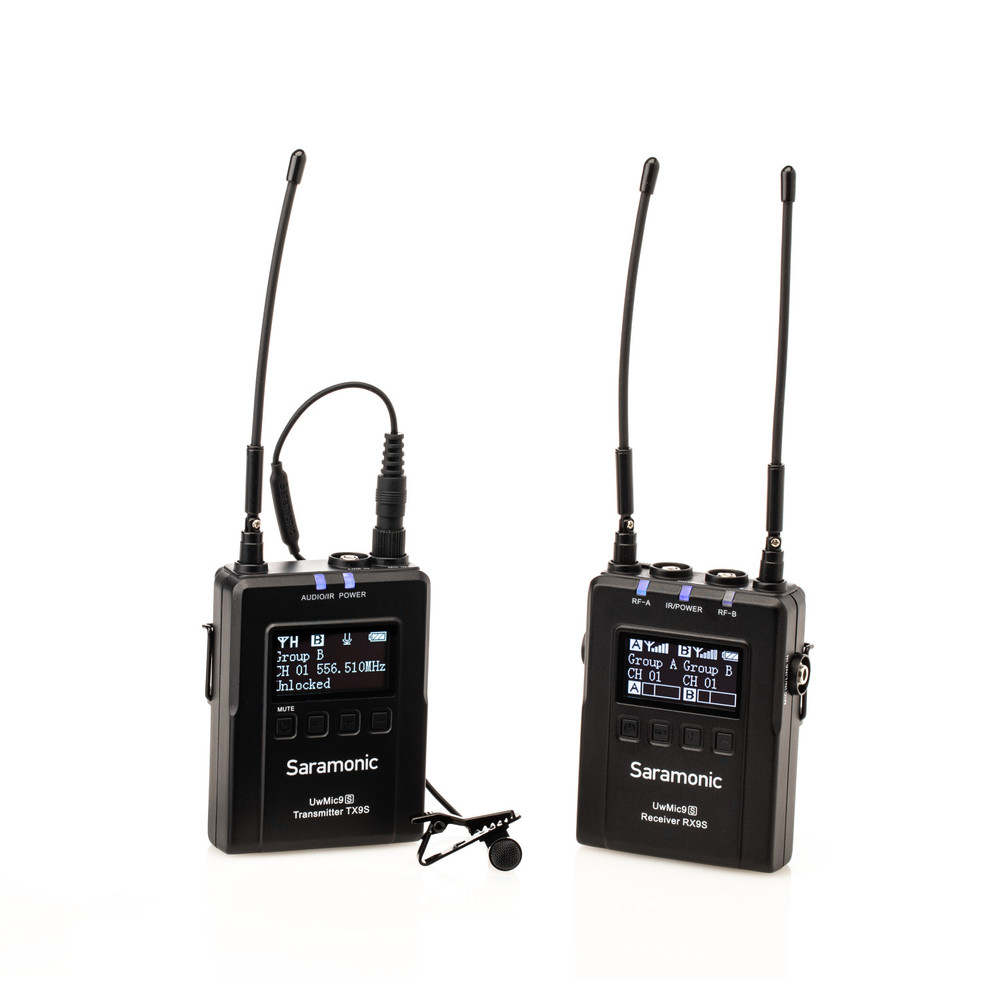

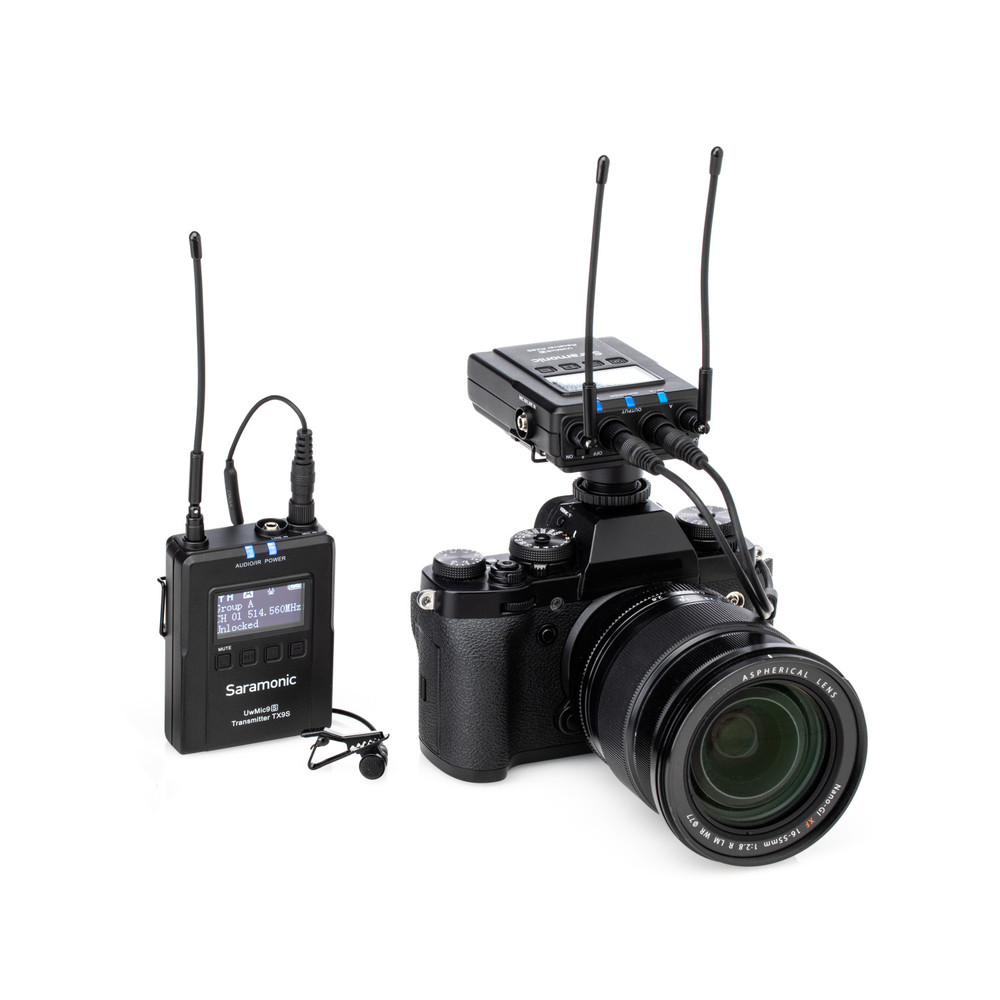

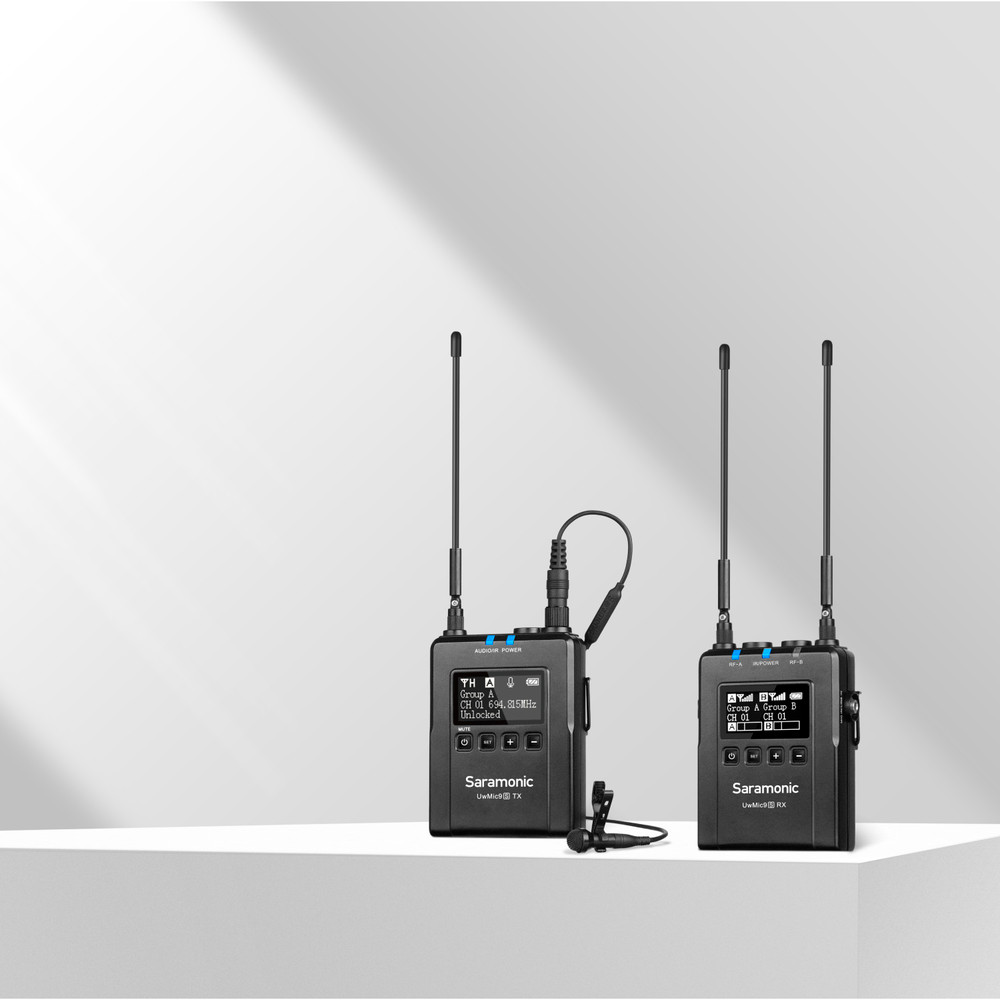

Saramonic UwMic9S Kit 1 is a professional and powerful, advanced dual-channel, camera-mountable UHF wireless lavalier system that delivers premium, broadcast-quality sound. It enables you to use up to two wireless transmitters with a single compact receiver by adding an additional transmitter (sold separately). Perfect for all types of cameras, recorders, mixers and interfaces with either 3.5mm or XLR microphone inputs. Ideal for capturing interviews, film dialog, field recording, broadcast TV, news gathering, vlogging, YouTube videos and so much more. Every component features sturdy, yet lightweight metal construction and the entire system is neatly packaged in a rugged, watertight and impact-proof hardcase. The UwMic9S delivers premium, professional sound quality and unrivaled flexibility in a remarkably priced package.

SKU: UWMIC9S-KIT1 Category: Tag:



Specifications

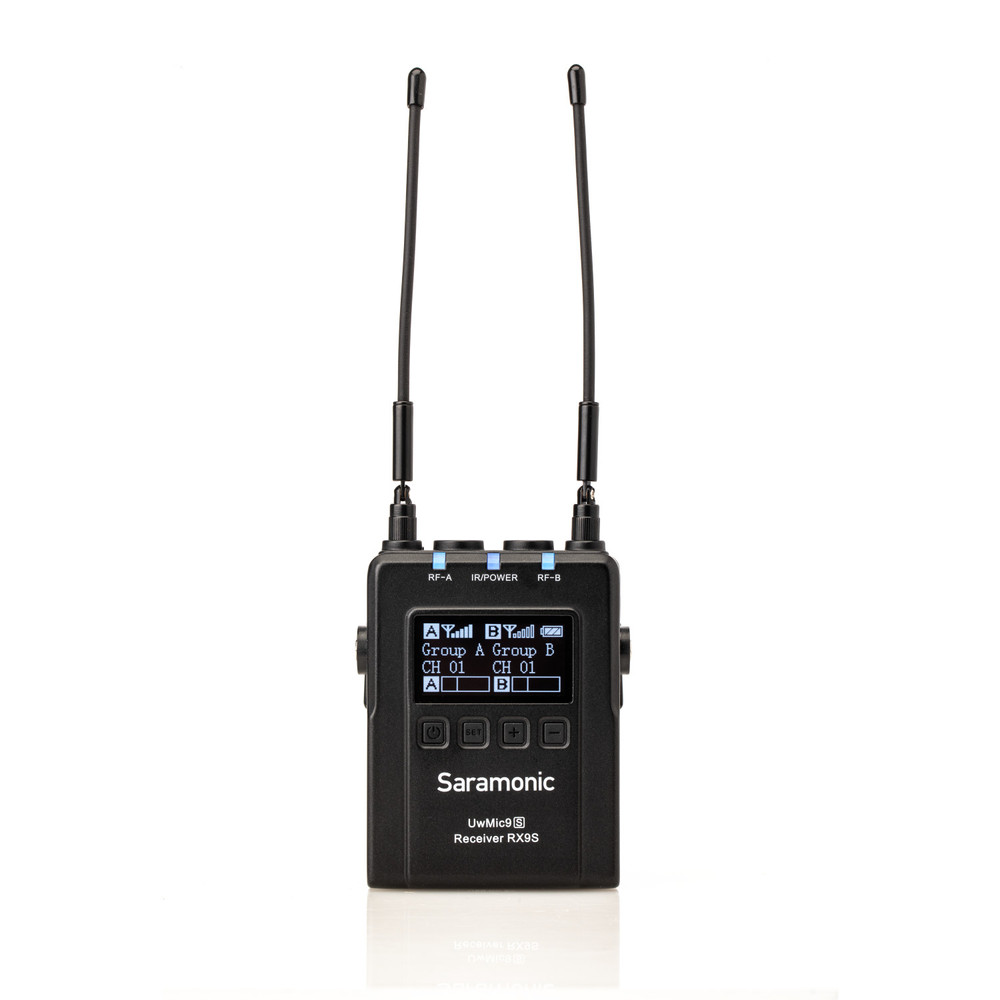

RX9S Receiver

  • Channel number: 2 Banks of 96-Channels
  • Channel Groups: A & B
  • Oscillator Type: PLL Synthesizer

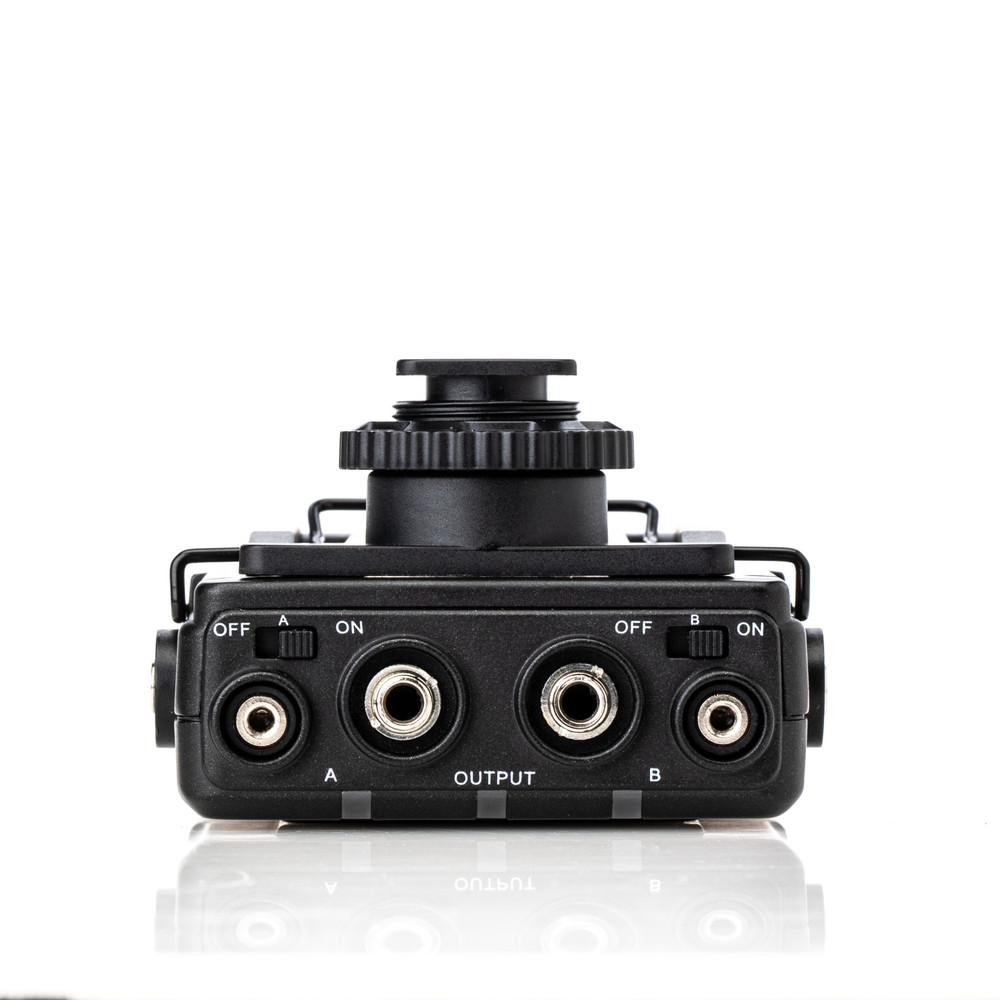

  • Audio Output Connectors: 2x 3.5mm Locking-Type (A & B Outputs)

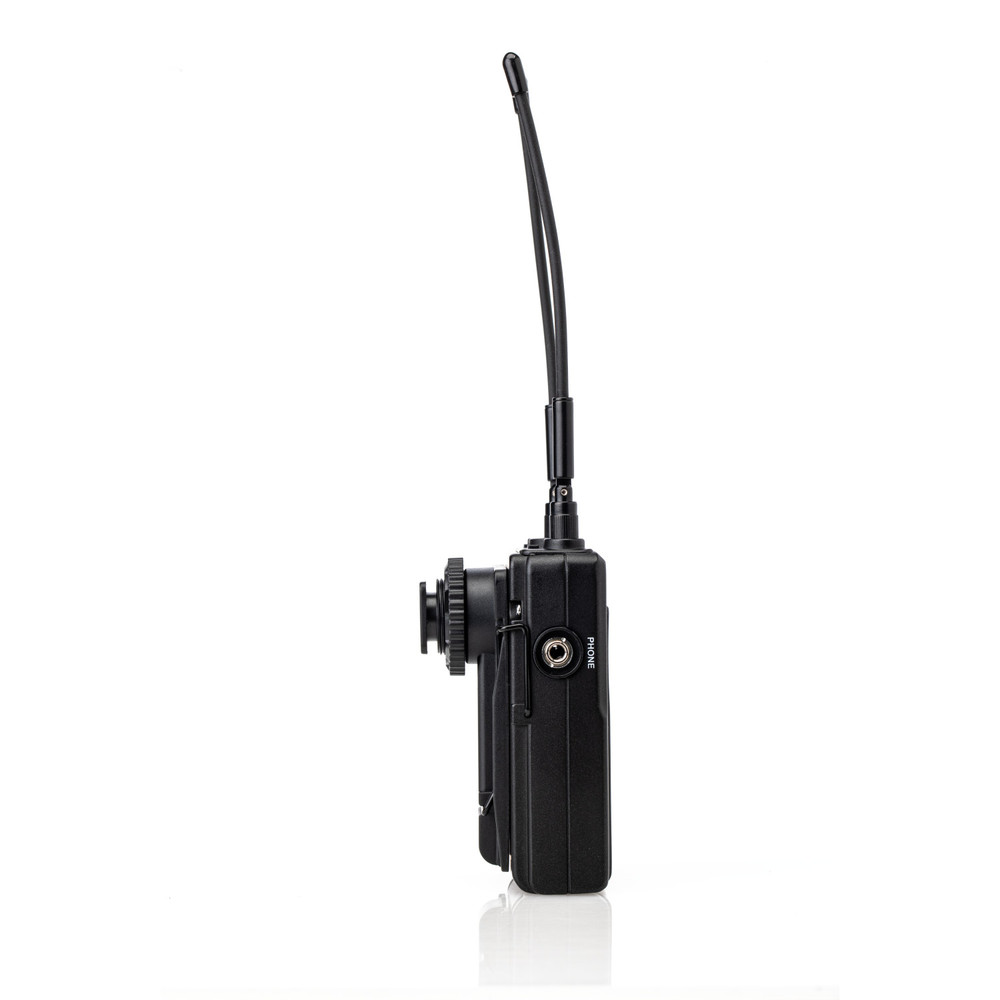

  • Headphone Output: 3.5mm Locking-Type

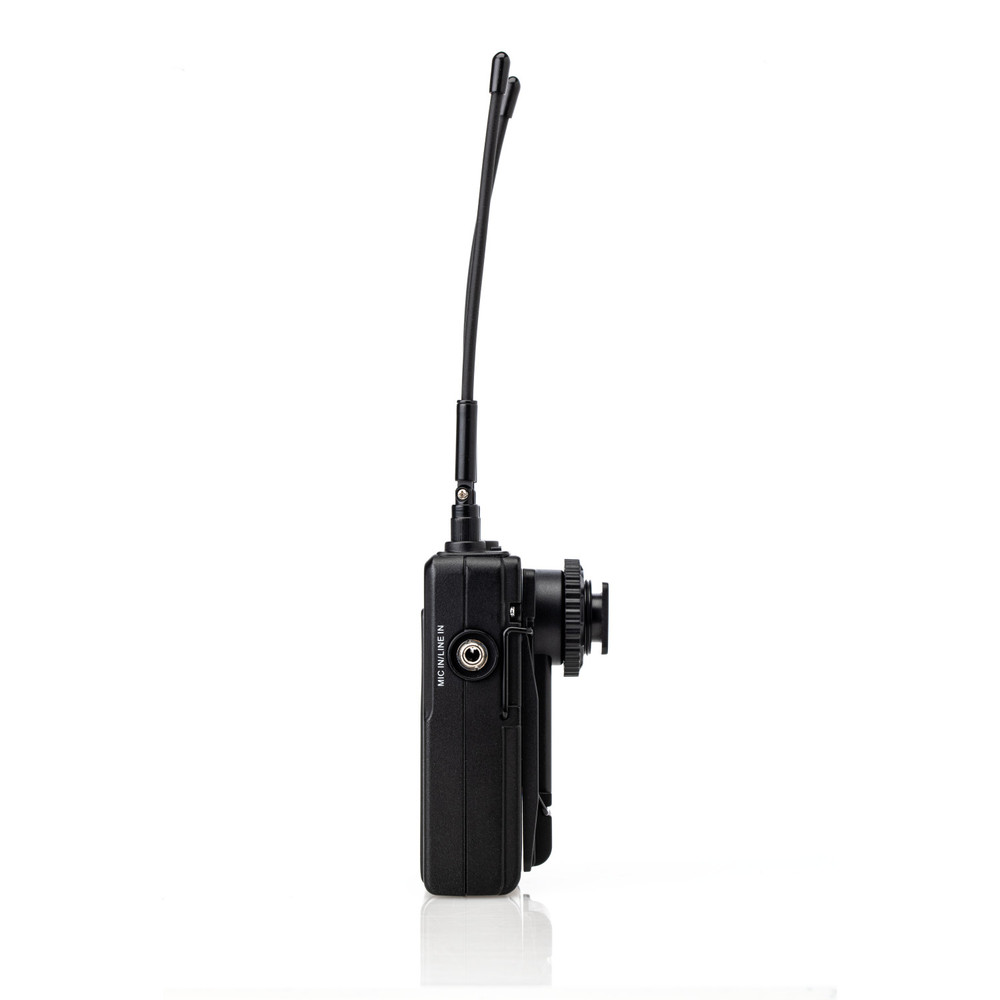

  • Microphone / Line-Level Input Connection: 3.5mm Locking-Type
  • Antenna: 1/4λ Wire Antenna
  • Audio Output Level: -60 dBV
  • Headphone Output Level: 30mW(16Ω)
  • Receiver Frequencies: 514MHz-596MHz
  • Receiver Sensitivity: -95dBm
  • Signal-to-Noise Ratio: 75dB or more
  • Reference Deviation: ±5kHz(-60 dBV,1kHz input)
  • Frequency Response: 40Hz to 18kHz (+/-3dB)
  • Distortion: 0.2% or less
  • Spur Suppression: -60dB
  • Reference Audio Input Level: -60dBV (Mic input, 0dB attenuation)
  • Built-in Battery Capacity: 2000mA

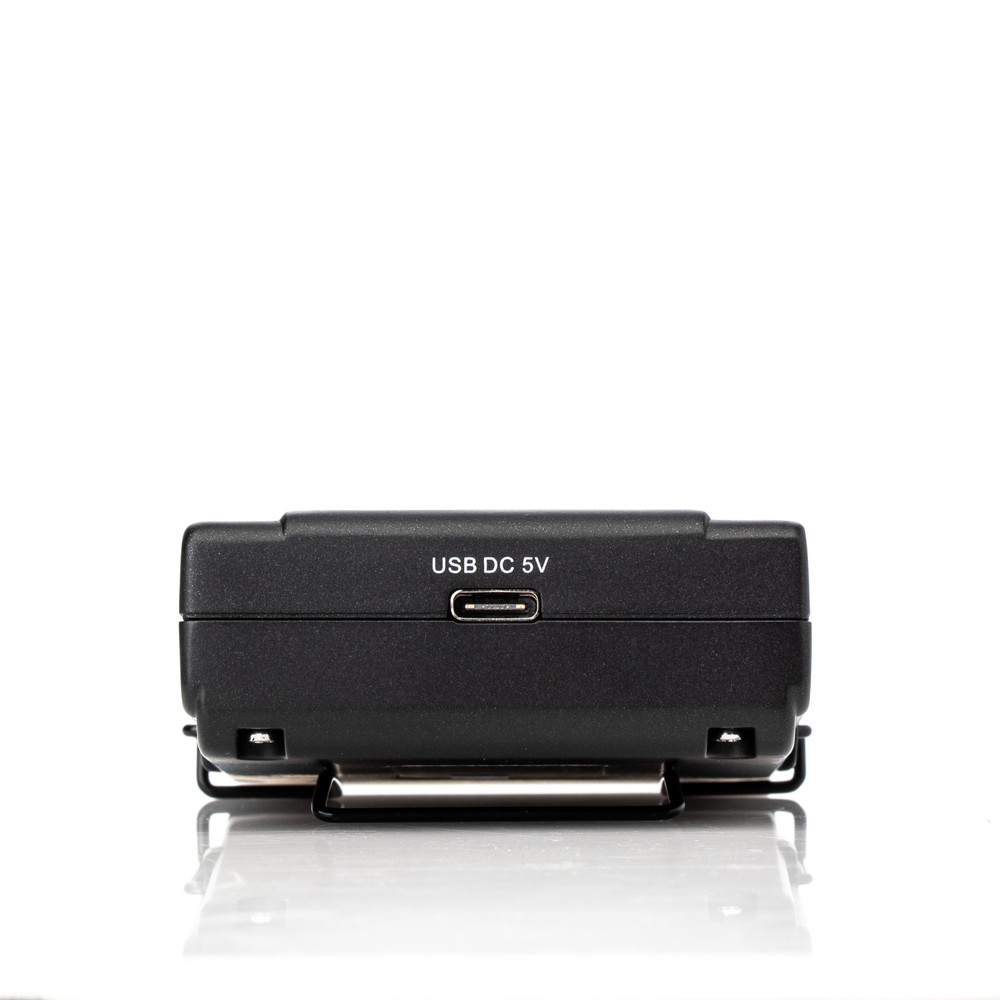

  • Power Requirements: Built-in Li-ion Battery or USB-C DC 5V
  • Continuous Run Time: 8-Hours
  • Dimensions: 8.66 x 2.52 x 0.98 (220 x 64 x 25mm)
  • Weight: 6.8oz (193g)
  • Operating Temperature: 0℃ to 50℃
  • Storage Temperature: -20℃ to +55℃

TX9S Transmitter:

  • Channel Number: 96-Channels
  • Channel Groups: A & B
  • Oscillator Type: PLL Synthesizer
  • Carrier Frequencies: 514MHz-596MHz
  • Reference Deviation: ±5kHz(-60 dBV,1kHz input)
  • Signal-to-Noise Ratio: 75dB or more
  • Spur Suppression: -60dB
  • Microphone Level Input Steps: -4dB, 0dB, +4dB, +6dB, +8dB, +12dB, +15dB, +18dB, +20dB
  • Line-Level Input Level Steps: -14dB, -10dB, -7dB, -4dB, -2dB, +2dB, +5dB, +8dB, +10dB
  • Voice Delay: 12ms
  • Antenna: 1/4λ Wire Antenna
  • Microphone Input Connector: 3.5mm Locking-Type
  • Line-Level Input Connector: 3.5mm Locking-Type
  • Reference Audio Input Level: -60dBV (Mic input, 0dB attenuation)
  • Distortion: 0.2% or less
  • Built-in Battery Capacity: 2000mA
  • Power Requirements: Built-in Li-ion Battery or USB-C DC 5V
  • Continuous Run Time: Up to 10-Hours
  • Dimensions: 8.66 x 2.52 x 0.98 (220 x 64 x 25mm)
  • Weight: 5.5 oz (157g)
  • Operating Temperature: 0℃ to 50℃
  • Storage Temperature: -20℃ to +55℃

DK3A Lavalier:

  • Acoustic Principle: Electret Condenser
  • Polar Pattern: Omnidirectional
  • Sensitivity: -40±2dB (1kHz 0dB=1V/Pa)
  • Frequency Range: 20Hz to 18kHz
  • Signal-to-Noise Ratio: More than 58dB
  • Operating Temperature: -20°C – 60°C
  • Connector: Gold-Plated Locking 3.5mm
  • Cable Length: 70.87” (180cm)

SR-C6 Case:

  • Material: Polypropylene
  • Weight: 1.4lb (640g)
  • External Dimensions: 9.88 x 7.46 x 3.64 (251 x 189.5 x 92.5mm)
  • Interior Dimensions: 9.17 x 6.02 x 3.15″ (233 x 153 x 80mm)
  • Interior Padding: Pre-Cut Foam
  • Rated: IP67 (1-meter submersion for up to 30 minutes)
  • Temperature Rating: -40 to +210°F (-40 to +95°C)
