Saramonic Blink 500 Pro B1

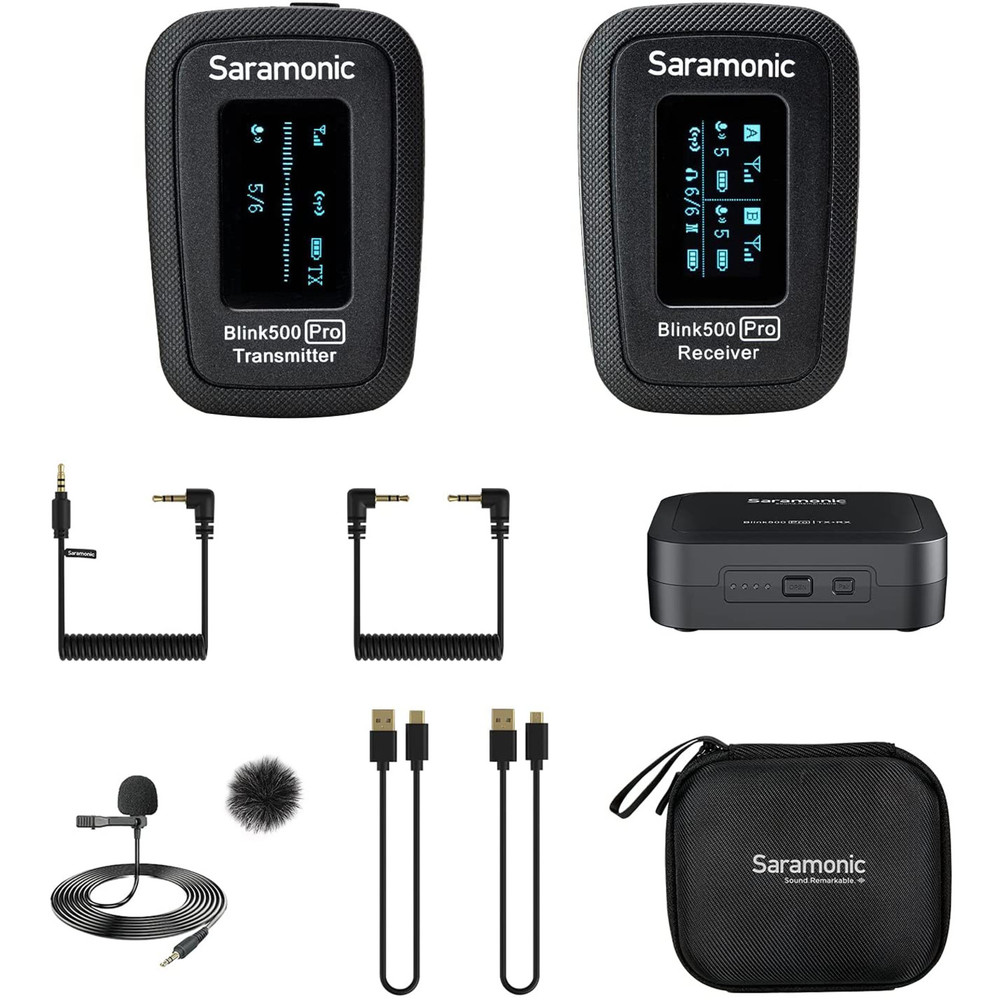

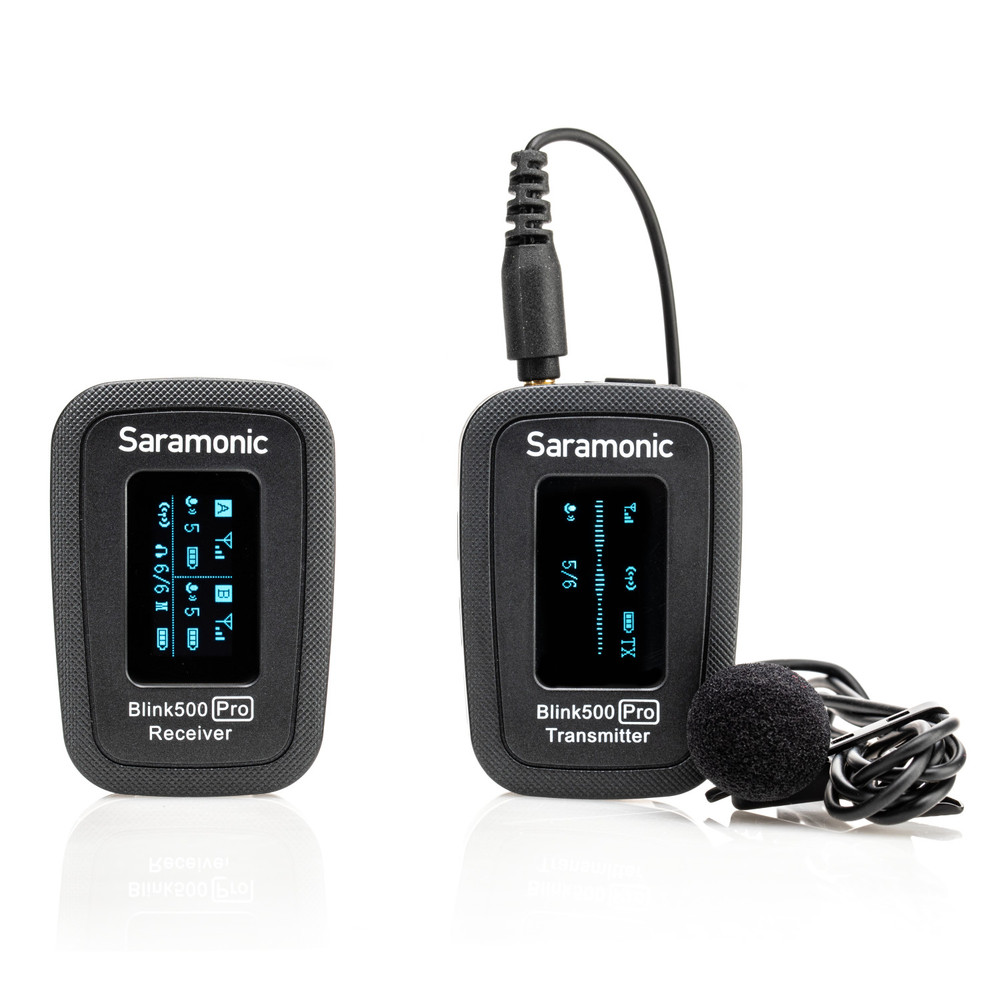

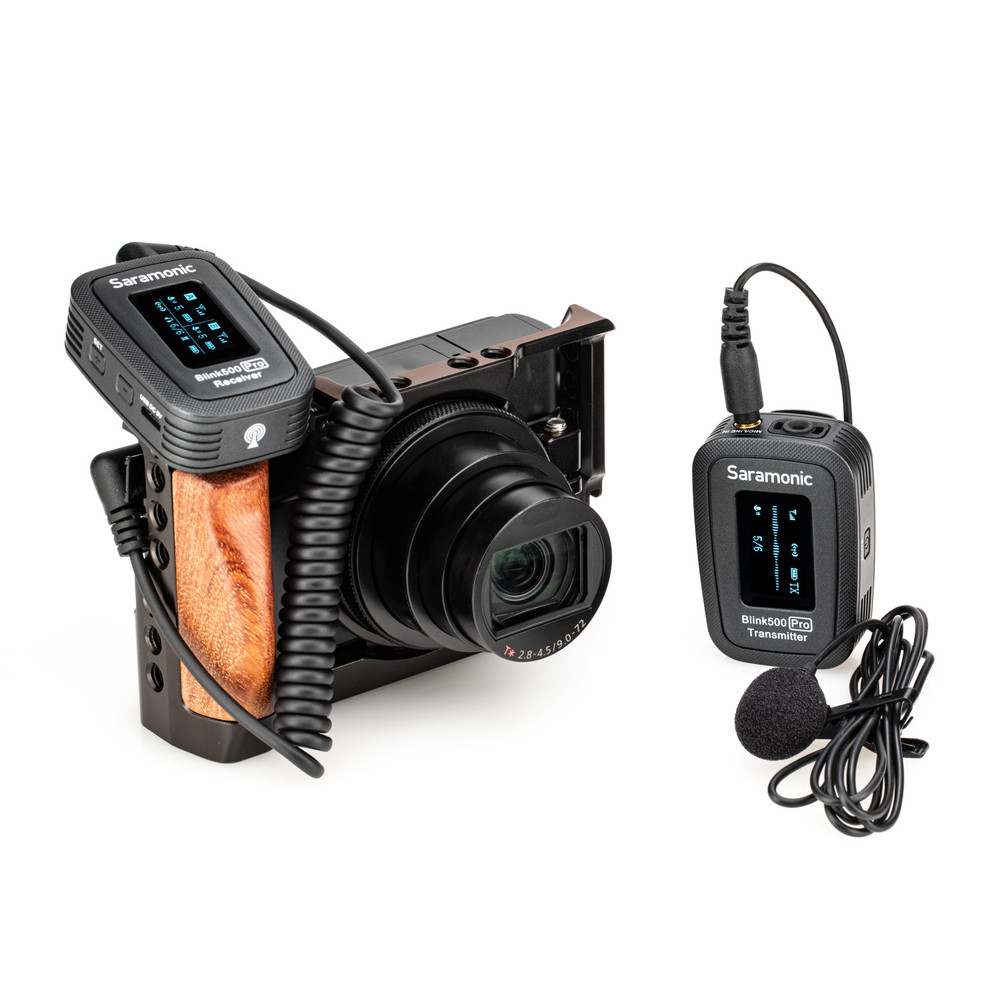

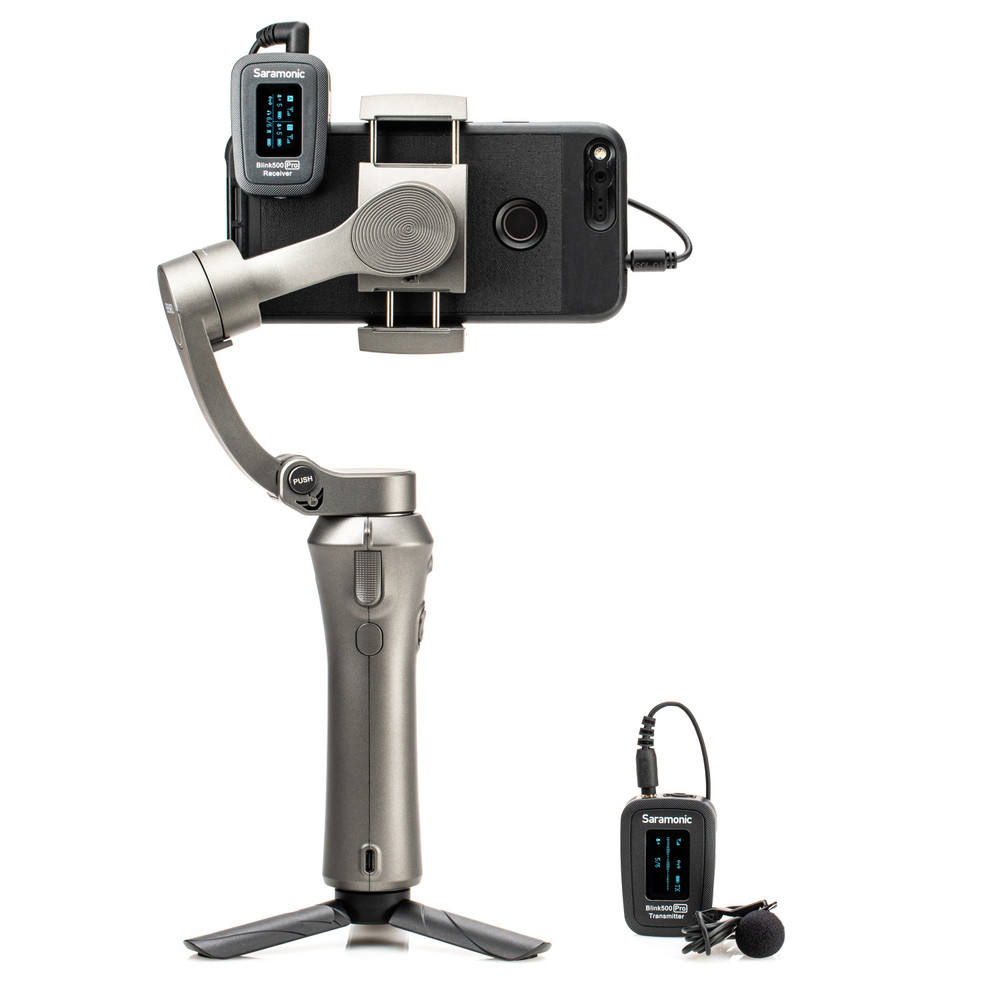

The Saramonic Blink 500 Pro B1 is an advanced 2.4 GHz wireless system designed to deliver exceptional, broadcast-quality sound to cameras, mobile devices, and more. Perfect for broadcasters, podcasters, vloggers, livestreamers, YouTube creators, and filmmakers, this ultra-portable and lightweight kit includes a clip-on wireless transmitter with a built-in mic, a professional-grade lavalier microphone, a dual-channel receiver, and a portable charging carry case. The receiver features both TRS and TRRS output cables and can easily slide into a camera or cage’s shoe mount. Its compact design allows it to be clipped to a smartphone, tablet, or camera strap for versatile wireless microphone use. For added flexibility, you can add a second Blink 500 Pro TX transmitter (sold separately) to accommodate two-person setups.

SKU: BLINK500PROB1 Category: Tag:





Specifications

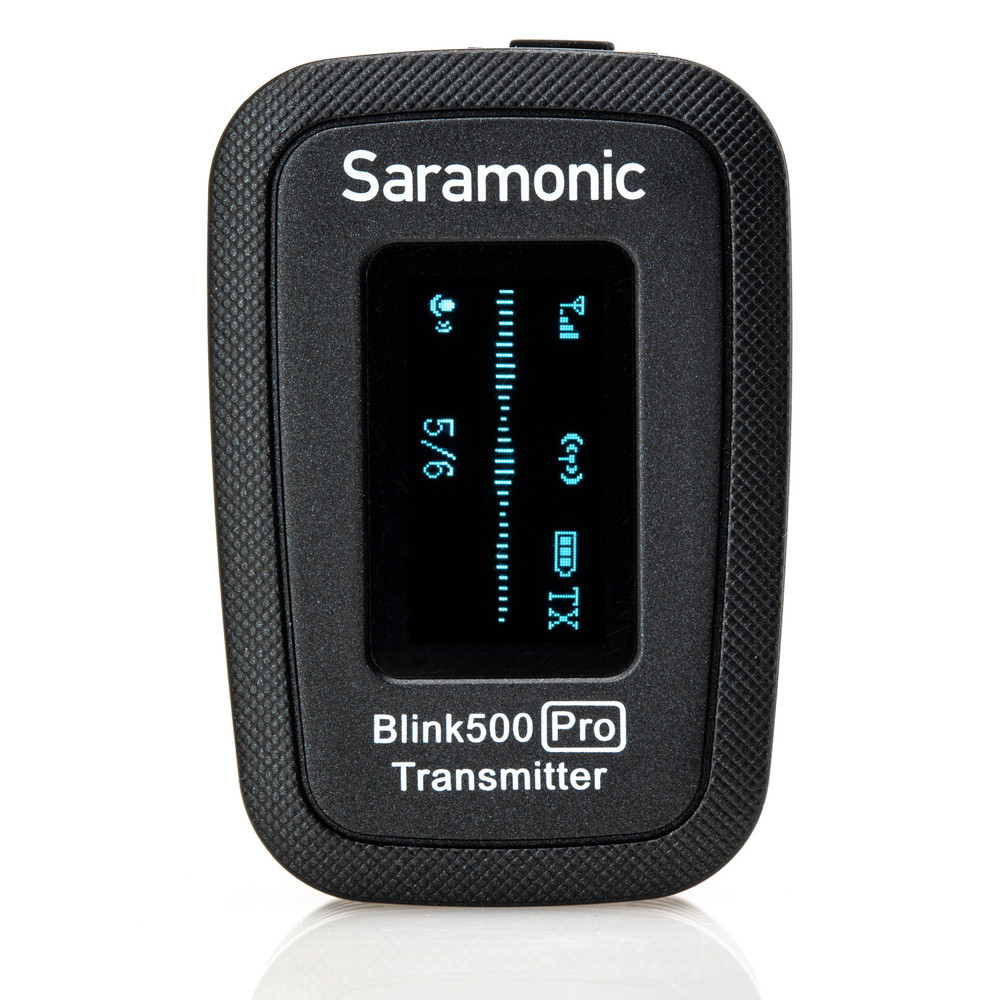

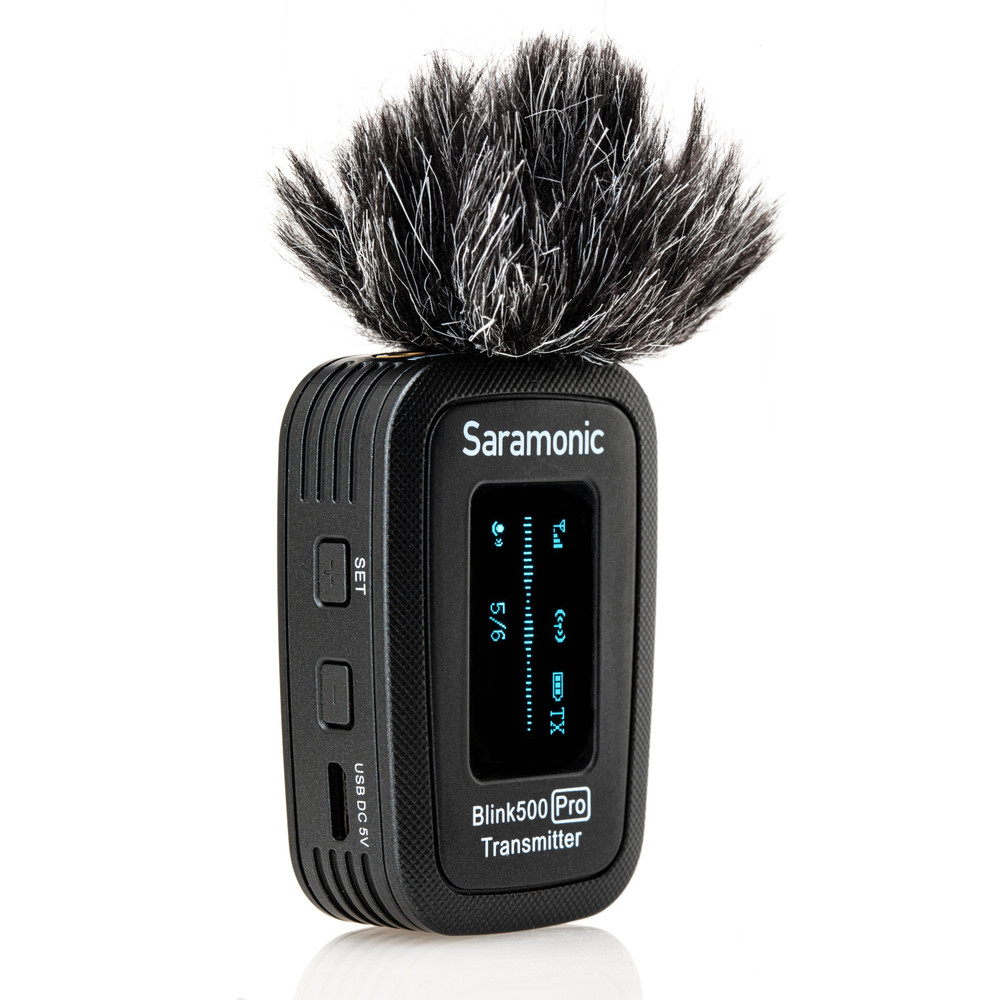

Transmitter

  • Reception Type: 2.4GHz Digital Frequency
  • RF Frequency Band: 2400 to 2483.5 MHz
  • Modulation: Gaussian Frequency-Shift Keying (GFSK)
  • Operating Range: Up to 328′ (100m)
  • RF Output Power: 10mW
  • Built-in Microphone Polar Pattern: Omnidirectional
  • Frequency Response 50Hz to 18KHz
  • Built-in Microphone Maximum SPL: 120dB
  • Built-in Microphone Sensitivity: -39dB
  • Lavalier Microphone Maximum SPL: 110dB
  • Lavalier Microphone Sensitivity: -39dB
  • Reference Audio Input Level: -30~-42dBv MIC input, 0dB Attenuation

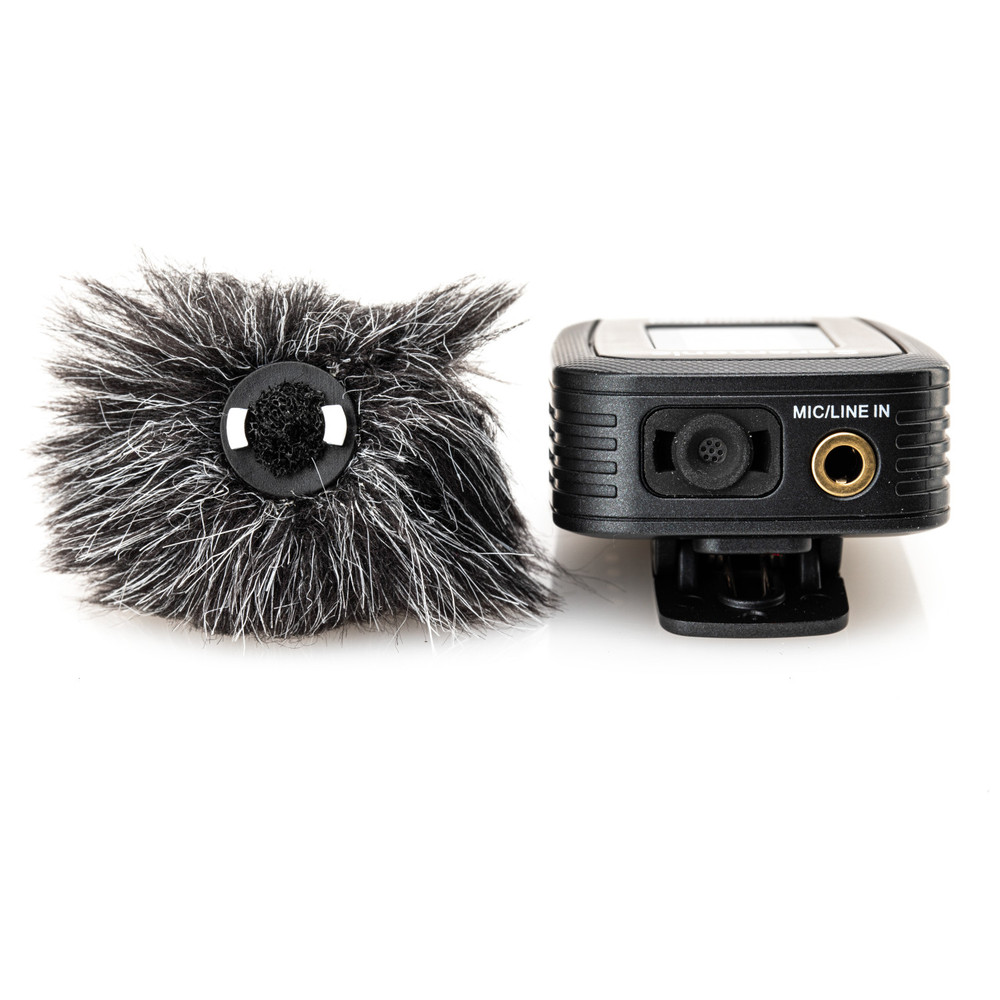

  • Input Connector: 3.5mm Mic In / Line In (Mic with Plug-in-Power)
  • Digital Signal Resolution: 24bit / 44.1kHz
  • Signal-to-Noise Ratio: ≥78dB
  • Voice Delay: ≤6ms
  • Distortion: ≤0.05%
  • Power Requirements: Built-in Li-ion Battery, Micro USB DC 5V or Charging Contact
  • Battery Life: Approximately 8-hours
  • Antenna: PIFA Antenna
  • High-contrast OLED Screen Resolution: 128 X 64 pixels
  • Other Functions: Tactile Mute Function
  • Weight: 1.13oz (32g)
  • Dimensions: 2.22 x 1.5 x 1.03” (56.5 × 38 × 26.1mm)
  • Operating Temperatures: 0° to 122°F (0°C to 50°C)
  • Storage Temperatures: -4° to 131°F (–20°C to +55°C)

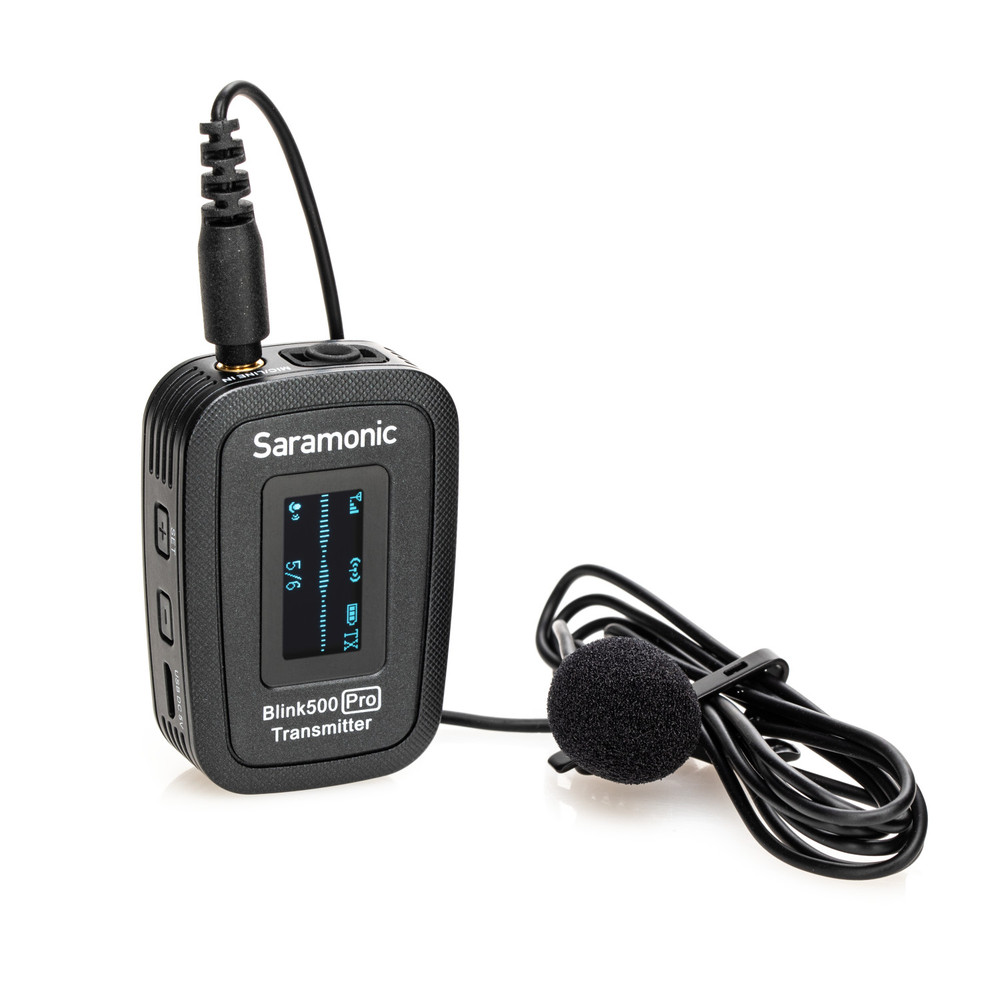

SR-M1 Lavalier

  • Acoustic Principle: Electret Condenser
  • Polar Pattern: Omnidirectional
  • Connector: 3.5mm
  • Cable Length: 4.1’ (1.25m)
  • Maximum SPL: 110dB
  • Sensitivity: -39dB+/-2dB(0dB=1V/Pa,1kHz)
  • Signal-to-Noise Ratio: ≥60dB
  • THD: <1% (94dB SPL at 1kHz)
  • Power Requirements: Plug-in-Power (1V～10V)
  • Standard Operating Voltage: 3V
  • Current Consumption: <500μA
  • Output Impedance: <2.2KΩ

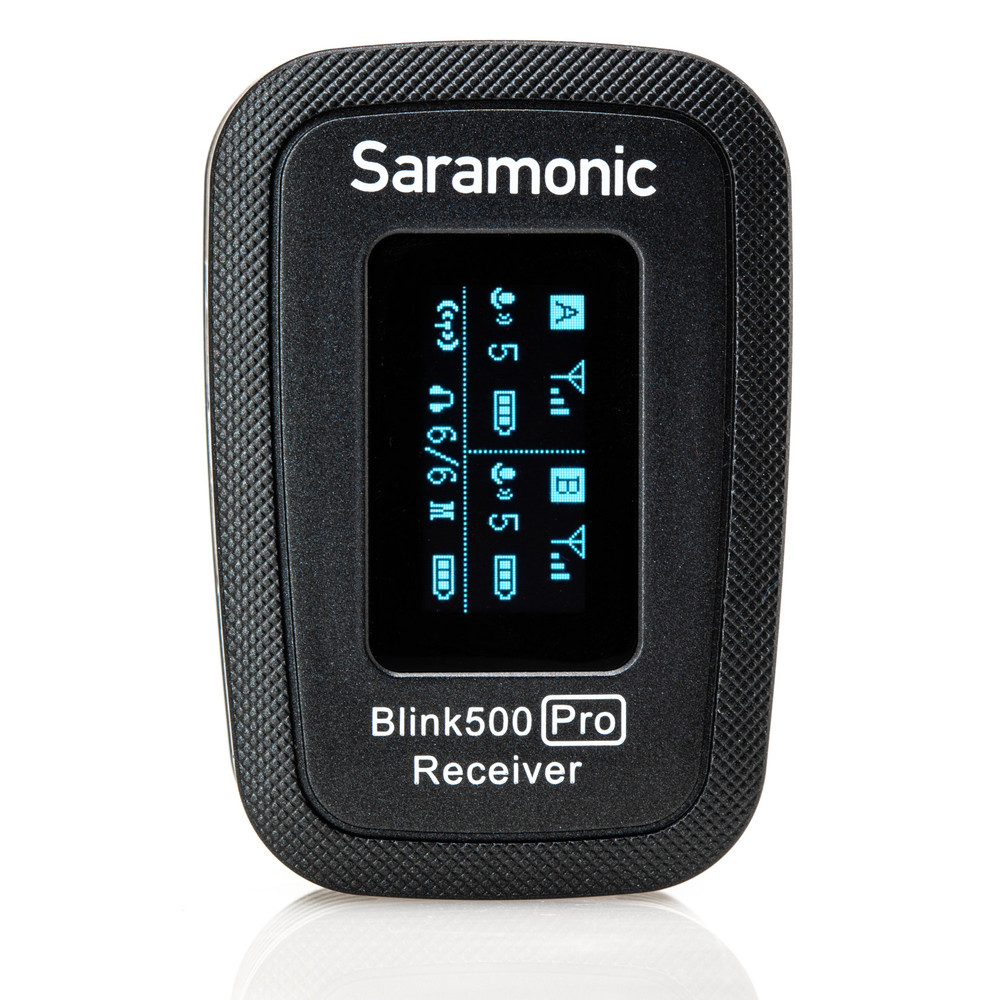

Receiver

  • Reception Type: 2.4GHz Digital Frequency
  • RF Frequency Band: 2400 to 2483.5 MHz
  • Modulation: Gaussian Frequency-Shift Keying (GFSK)
  • Operating Range: Up to 328′ (100m)
  • Line Output Connector: 3.5mm
  • Output Level: -60dBV to -20dBV
  • Output Mode Types: Mono / Stereo
  • Digital Signal Resolution: 24bit / 44.1kHz
  • Signal-to-Noise Ratio: ≥78dB
  • Voice Delay: ≤6ms
  • Distortion: ≤0.05%
  • Headphone Output Connector: 3.5mm
  • Power Requirements: Built-in Li-ion Battery, Micro USB DC 5V or Charging Contact
  • Battery Life: Approximately 8-hours
  • Antenna: PIFA Antenna
  • High-contrast OLED Screen Resolution: 128 X 64 pixels
  • Weight: 1.13oz (32g)
  • Dimensions: 2.2 x 1.5 x 1.16” (56 × 38 × 29.4mm)
  • Operating Temperatures: 0° to 122°F (0°C to 50°C)
  • Storage Temperatures: -4° to 131°F (–20°C to +55°C)

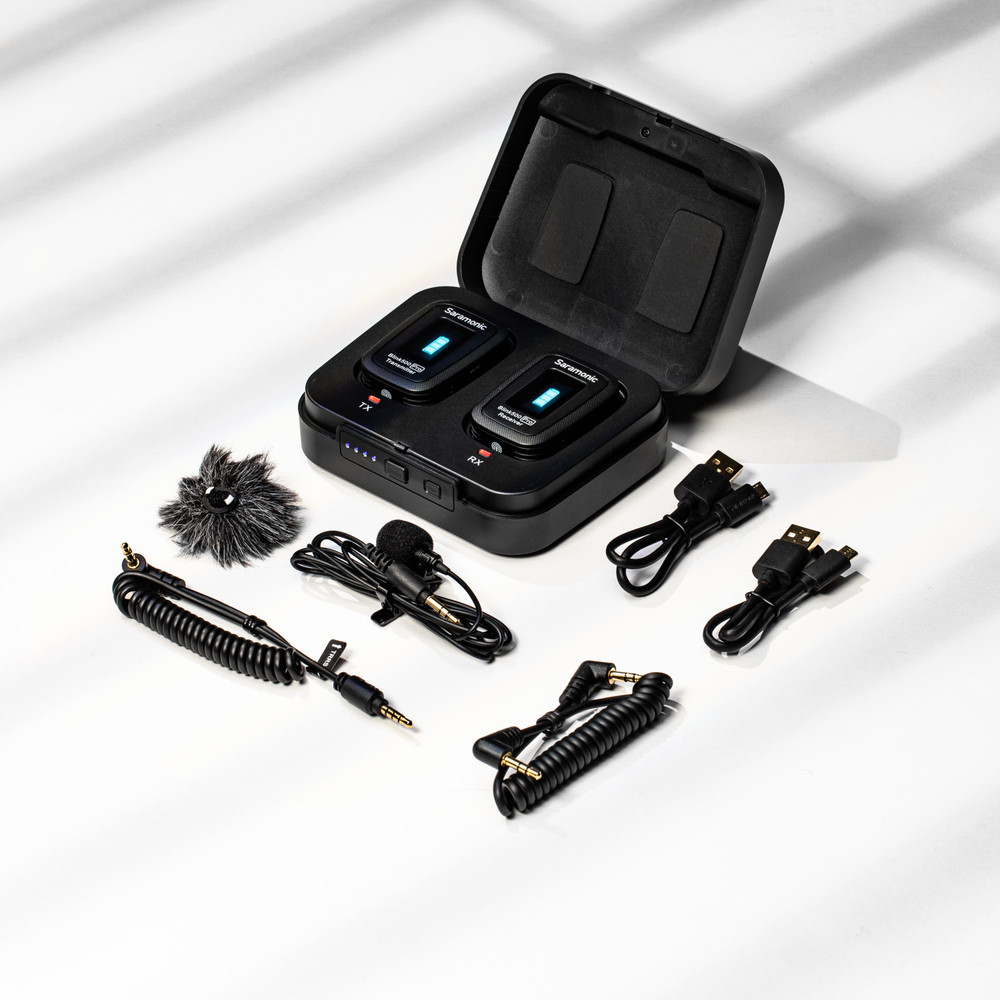

Blink 500 Pro B1 Charging Case

  • Power Requirements: Powered by USB-C port to USB-A Charger (5V/1.5A)
  • Power Capacity: 1200mAh
  • Box’s Charging Time: 3-hours
  • Weight: 7.05oz (200g)
  • Dimensions: 4.84 x 4.02 x 1.56” (123 x 102 × 39.7mm)
  • Operating Temperatures: 0° to 122°F (0°C to 50°C)
  • Storage Temperatures: -4° to 131°F (–20°C to +55°C
