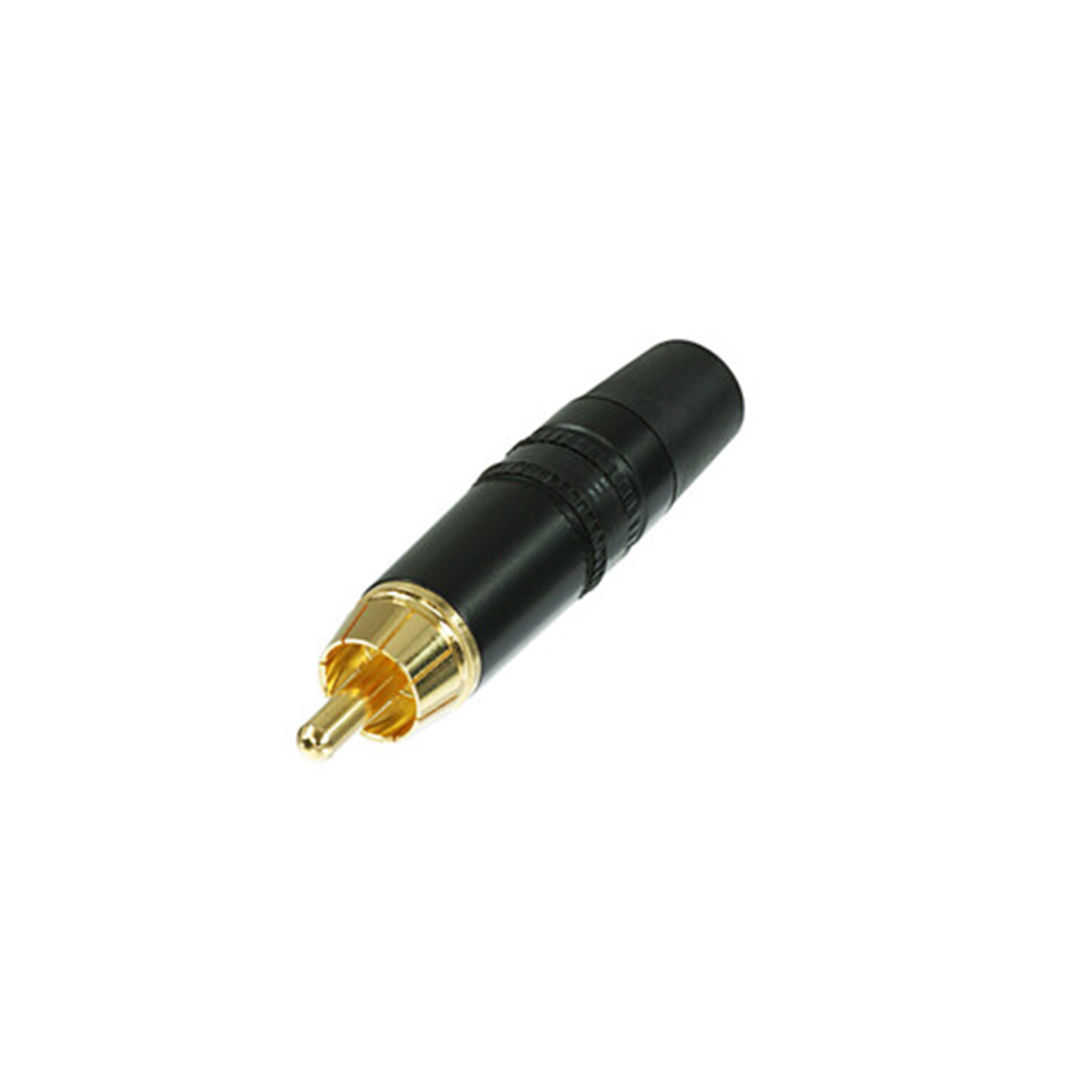

Neutrik Rean NYS373 RCA Phono Plug

The Neutrik NYS373 is a premium RCA phono plug designed for custom cable assembly. It combines gold-plated contacts, a black shell, and a rubber boot for excellent performance and durability, with an easy-to-identify color-coded ring. Ideal for use with cables ranging from 3.5 to 6.1 mm in outer diameter, it ensures a reliable connection with superior anti-kink protection.

SKU: NYS373 Category: Tag:

Product Overview

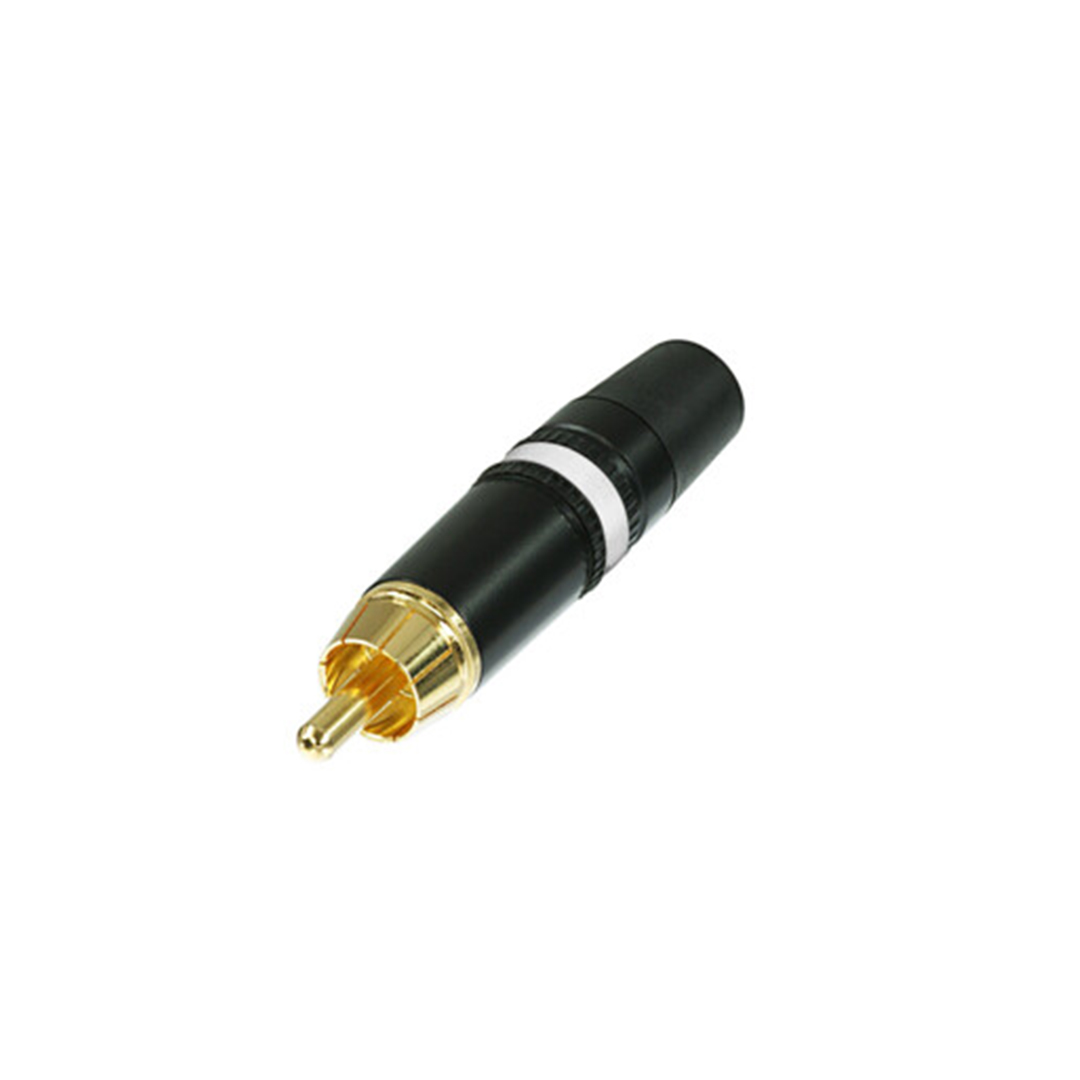

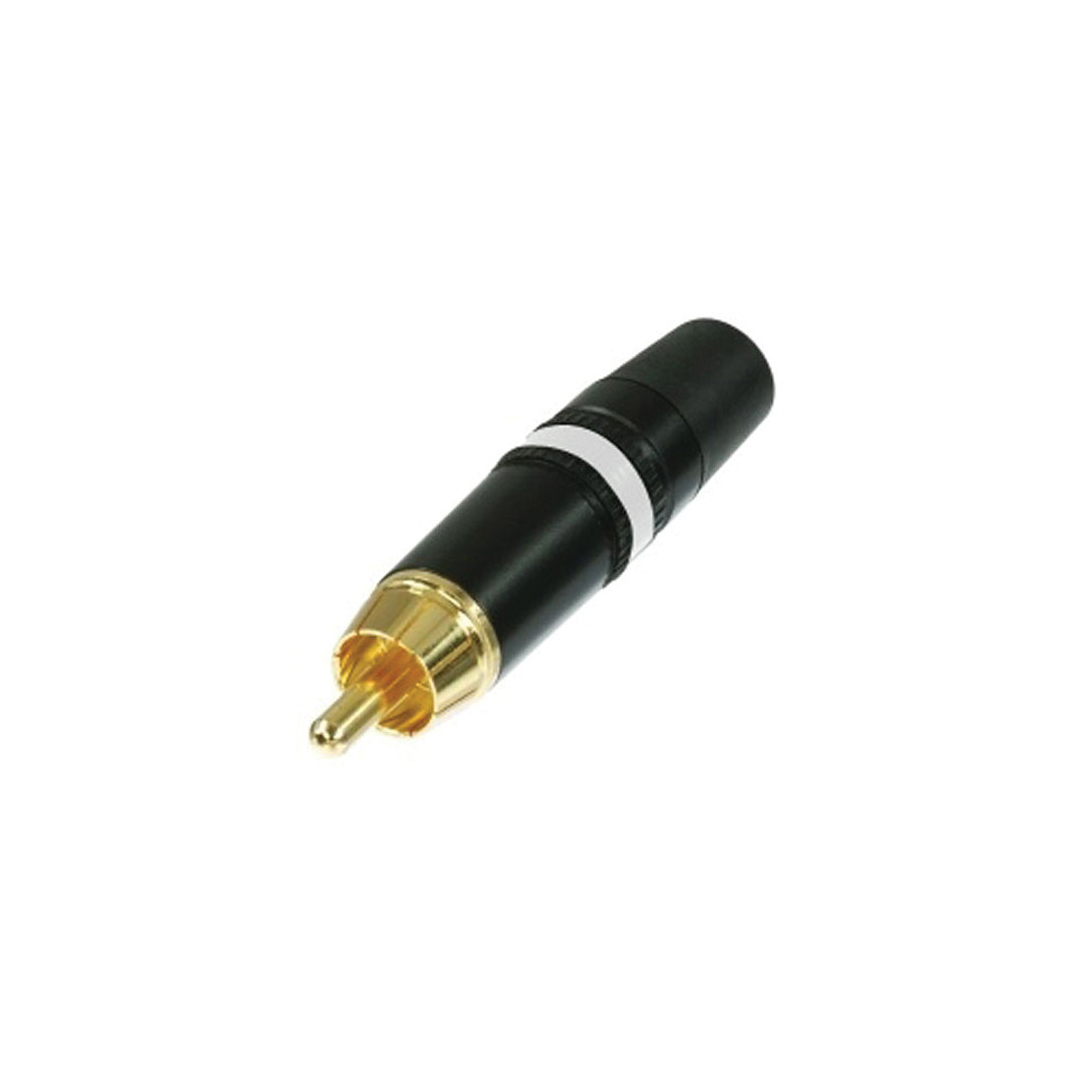

The Neutrik NYS373 is a high-quality RCA phono plug designed for crafting custom RCA cables. Featuring a distinctive white ring, this male plug offers gold-plated contacts for superior signal transmission, a durable black shell, and a rubber boot to prevent cable kinks. Its chuck-type strain relief ensures a secure and reliable connection. The plug is suitable for cables with an outer diameter ranging from 3.5 mm to 6.1 mm.

Features

  • Gold-Plated Contacts: Ensures reliable, high-quality signal transfer.
  • Black Shell Covering: Provides a sleek and durable outer casing.
  • Rubber Boot: Offers excellent kink protection and durability.
  • Chuck-Type Strain Relief: Helps prevent cable strain and ensures long-lasting performance.

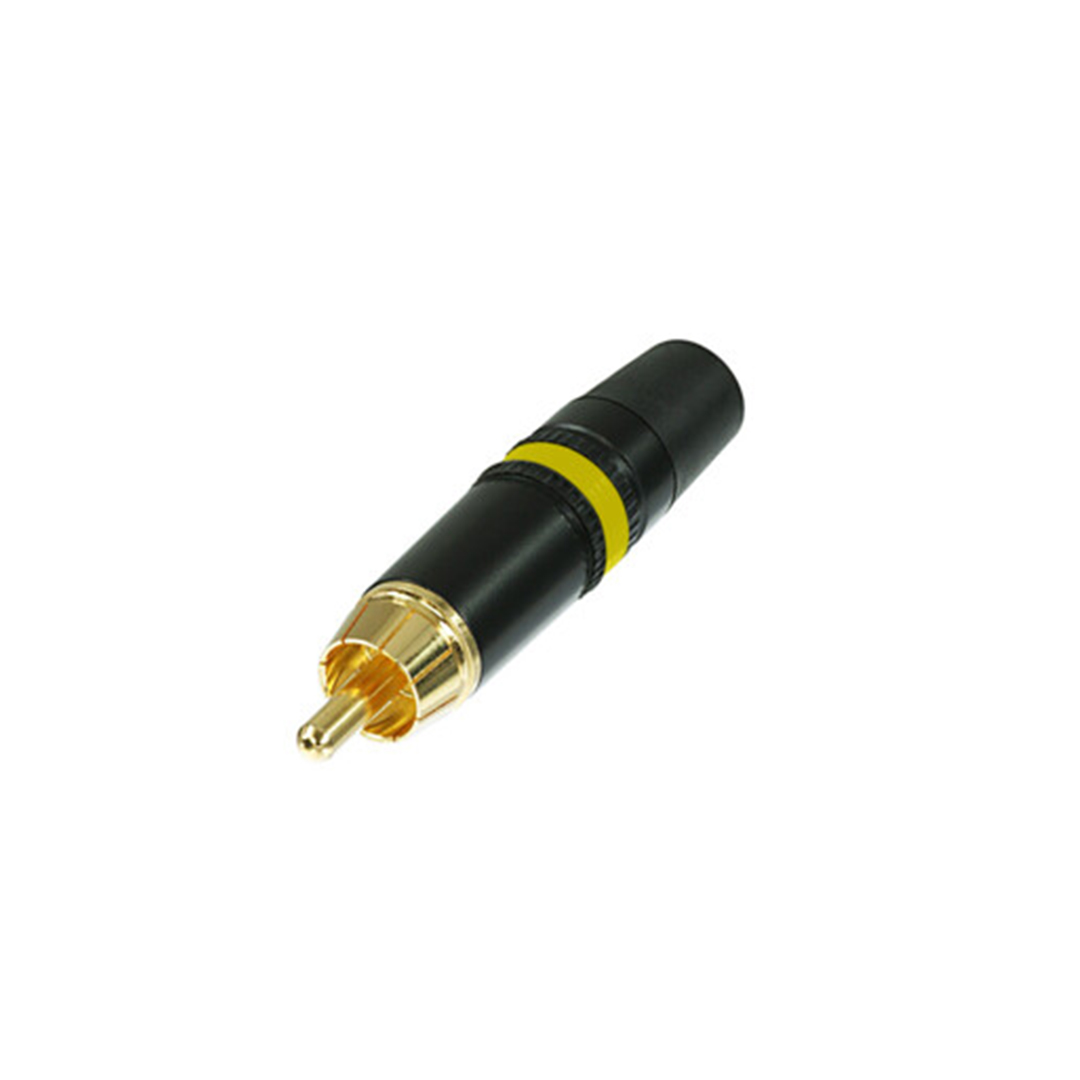

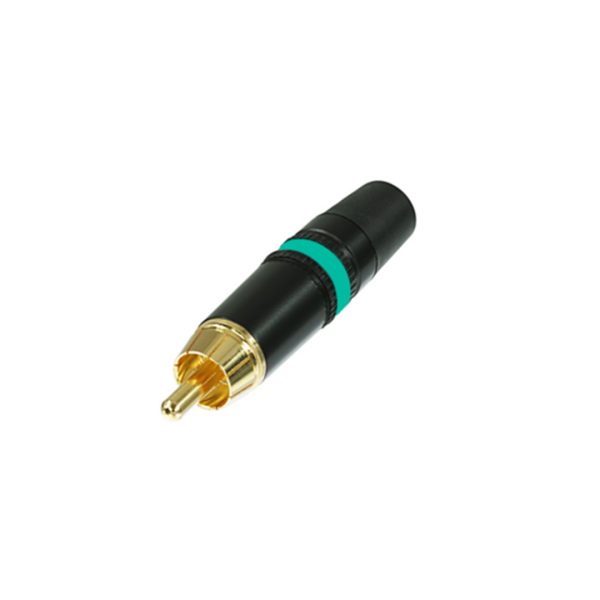

  • Color-Coded Ring: Features a color-coded ring for easy identification and cable organization.





Technical Information

Product
Title NYS373
Connection Type Phono (“RCA/Cinch”)
Electrical
Contact Resistance ≤10 mΩ
Insulation Resistance >2000 MΩ(Initial)
Rated Voltage 0.5 VAC
Mechanical
Insertion and Withdrawal Force 5-20N
Lifetime >5000 Mating Cycles
Material
Pin Brass
Housing Copper
Housing Zinc
Boot PVC
Ground Contact H62
Chuck PA6
Color dividing ring Rubber
Elastic clamp ABS
Pin Gold
Housing Gold
Ground Contact Gold
Housing Black
