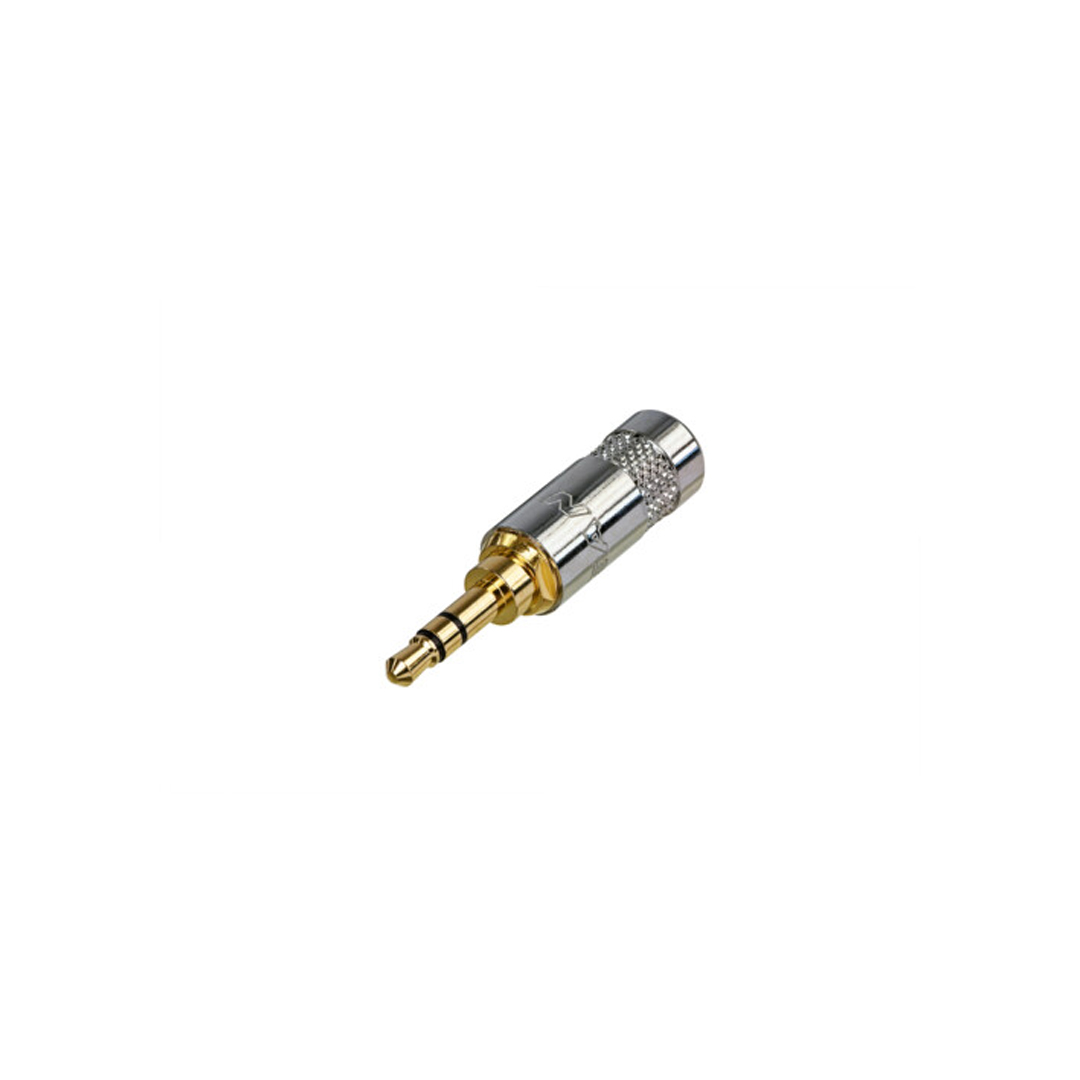

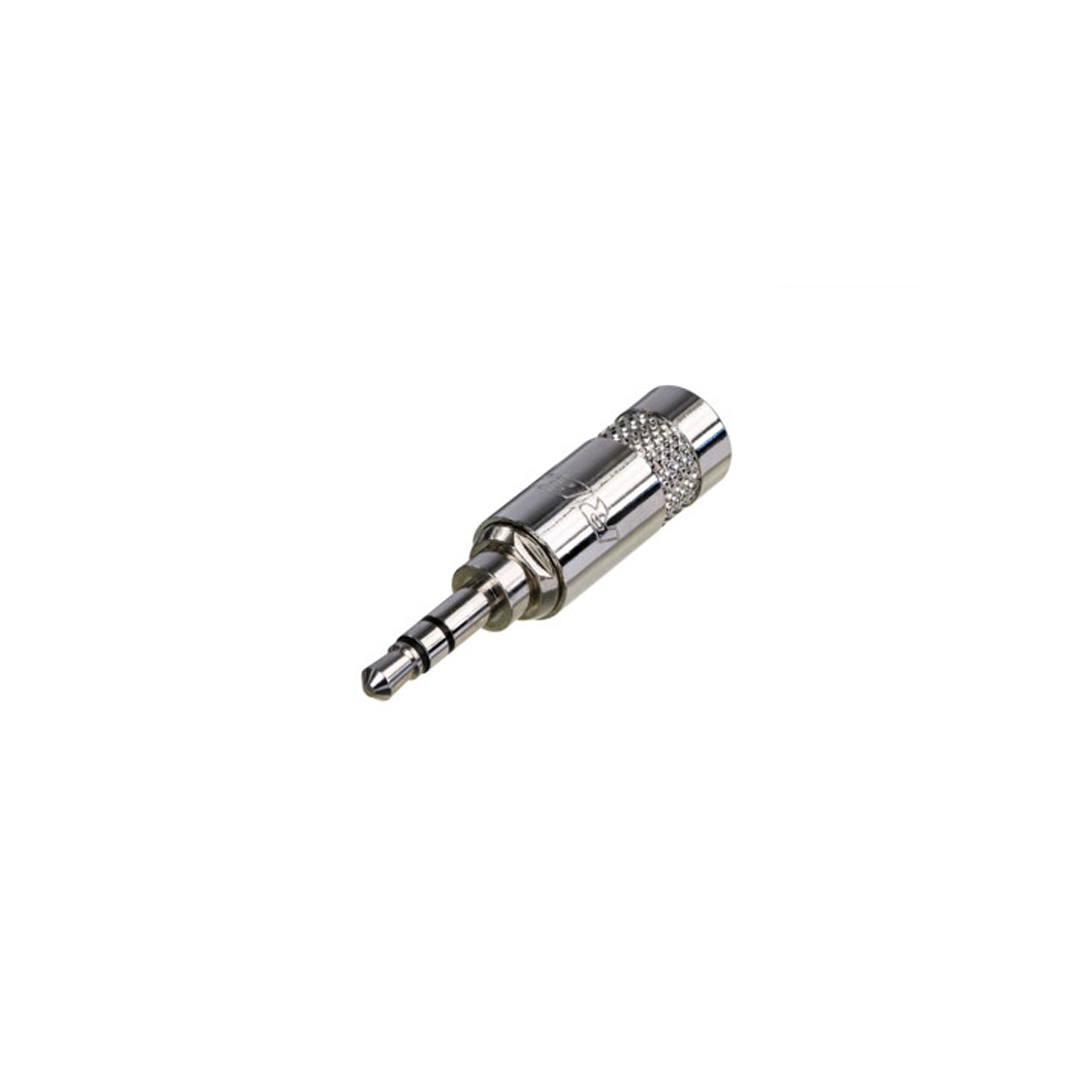

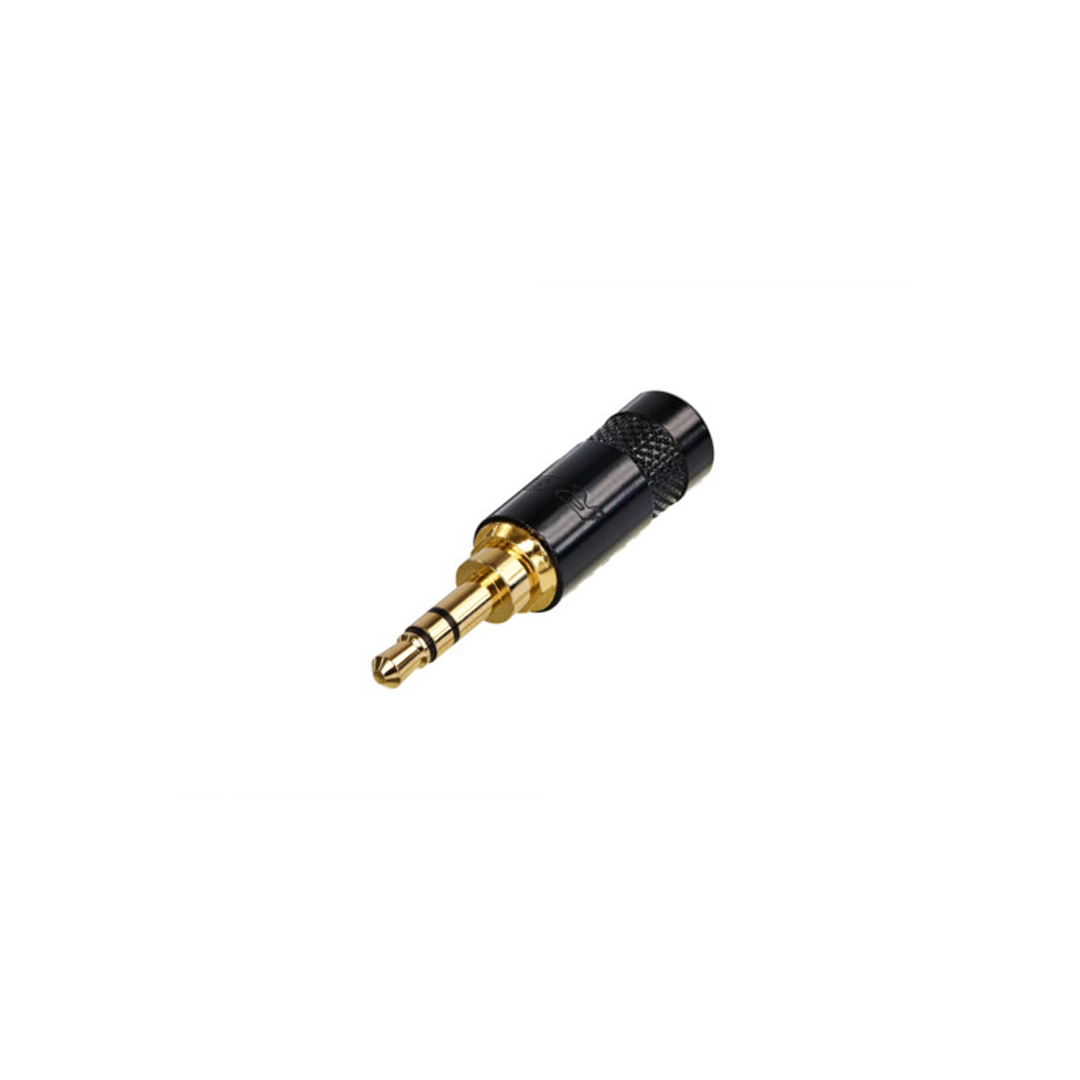

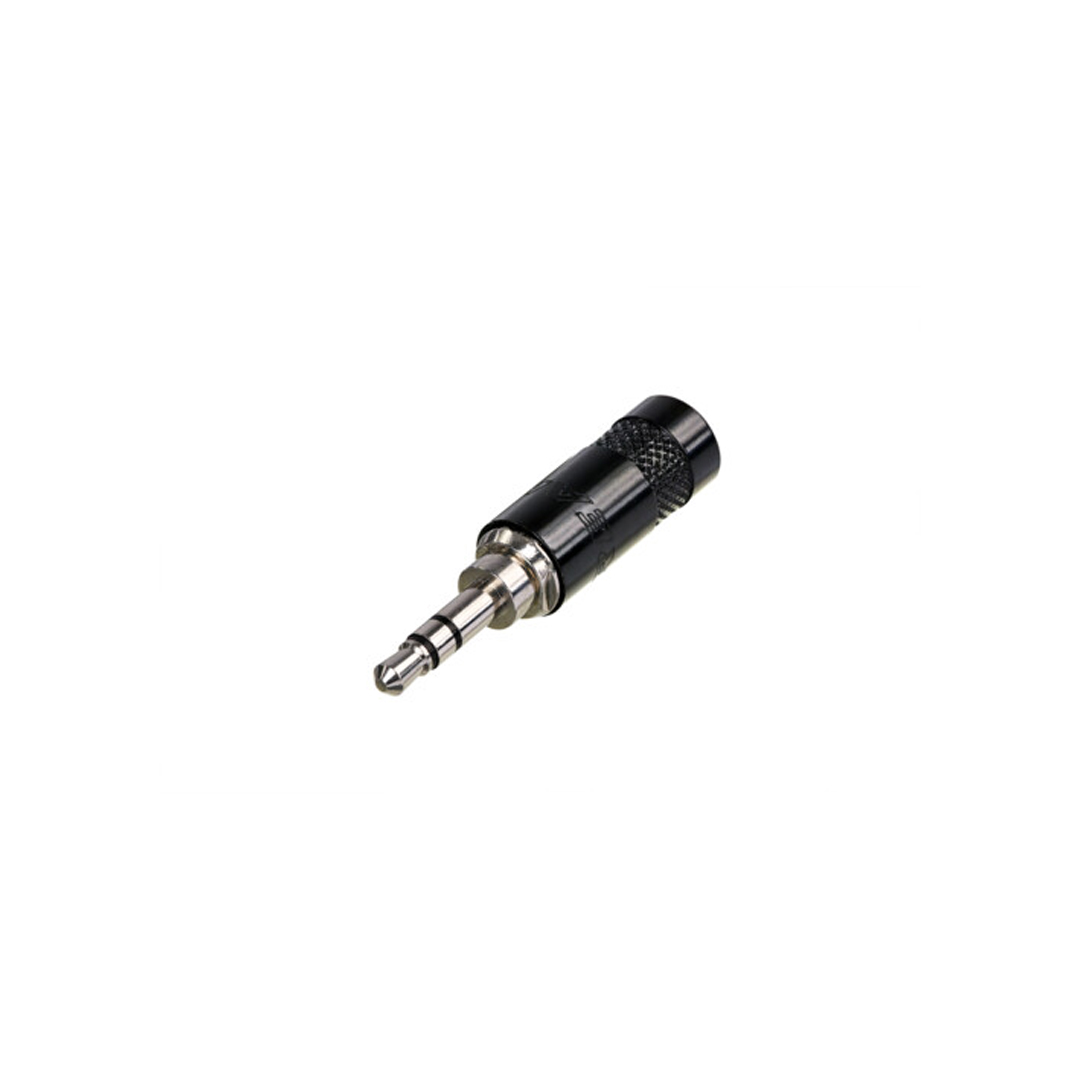

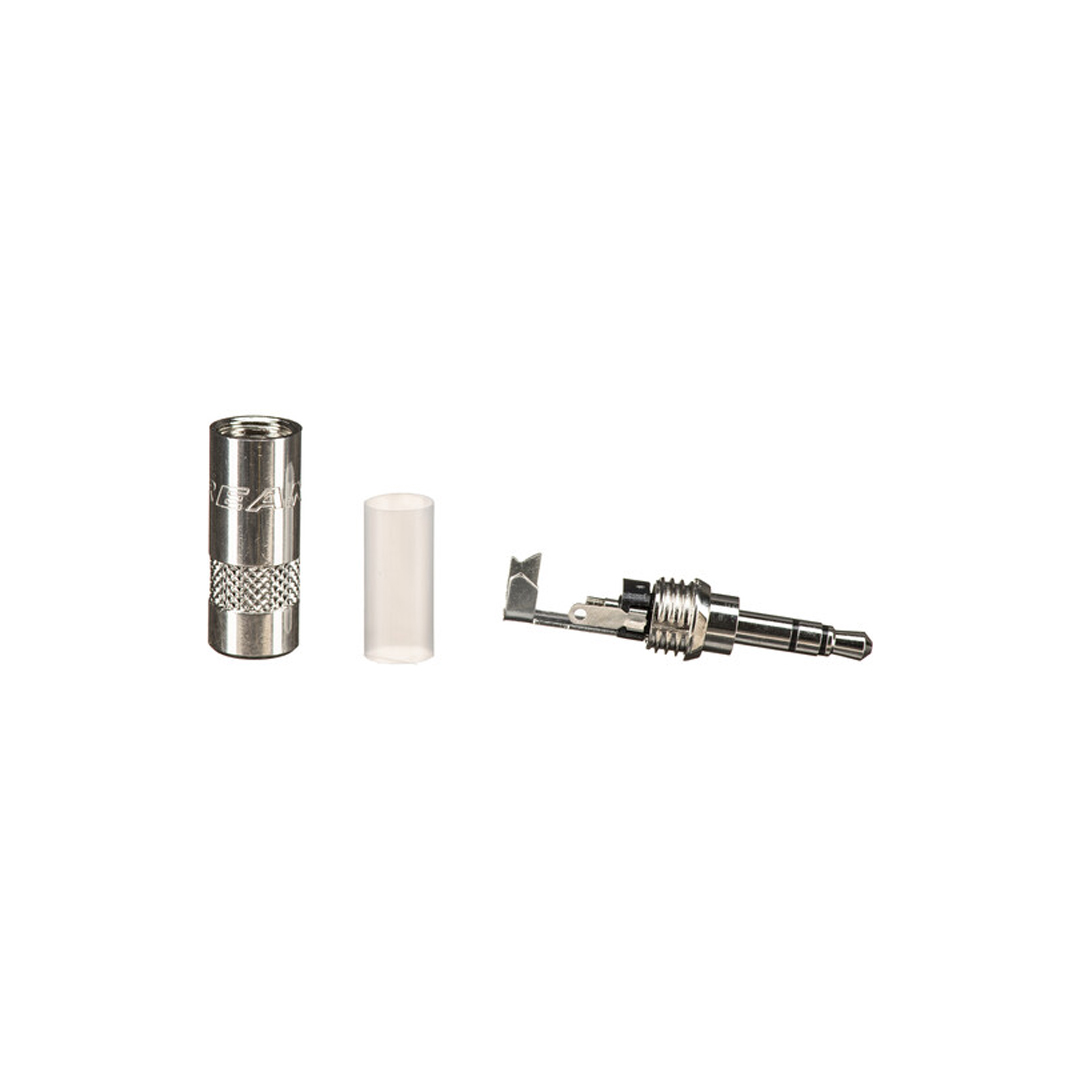

Neutrik NYS231 3.5mm Mini Plug

The Rean 3.5mm Mini Plug is a reliable 3-pole connector featuring a metal grip for secure and accurate connections. It is designed to accommodate cables up to 6mm in diameter, making it a versatile choice for professional audio setups.

SKU: NYS231 Category: Tag:

Product Overview

The Rean 3.5mm Mini Plug is a high-quality 3-pole connector designed for secure and precise connections. It accommodates cables with a maximum outer diameter of 6mm and features a metal grip to ensure stable, reliable performance in a variety of audio applications.

 Features

  • 3-Pole Connector: Supports balanced audio connections with three contact points.
  • Cable Compatibility: Suitable for cables with a maximum outer diameter of 6mm.
  • Metal Grip: Ensures a firm, precise connection for optimal performance.



Technical Information

Product
Title NYS231
Connection Type Plug



Electrical
Contact Resistance ≤ 10 mΩ
Insulation Resistance ≥ 200 MΩ(Initial)
Dielectric Strength 0.5 KVdc 50HZ



Mechanical
Lifetime > 5,000 Mating Cycles
Insertion and Withdrawal Force 5 – 40 N
Cable O.D. max 4.5 mm for standard outlet
max 6.4 mm for large outlet ( * L）
max 8.5 mm for large outlet ( * LL）



Material
Plug finger Brass
Sleeve Zinc
Retainer ring PA66+30%GF
Soldering Contact Phosphor Bronze
Cable Clamp Steel
Insulation PP
Housing Zinc
Plug finger plating Nickel
Sleeve plating Nickel
Soldering Contact plating Tin
Cable Clamp plating Tin
Housing plating Nickel
