Product Overview:

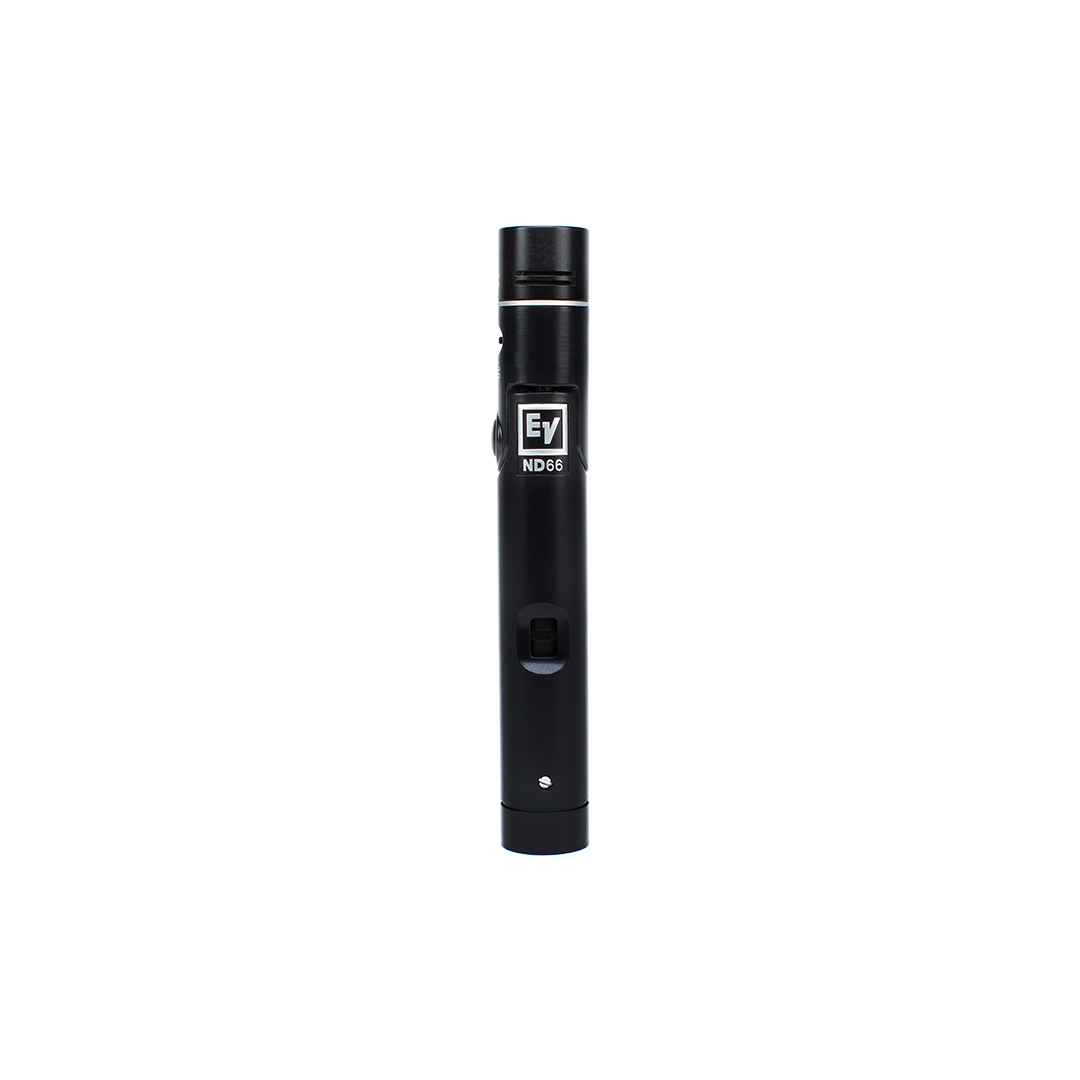

The ND66 is a high-performance small-diaphragm condenser microphone, designed for capturing the intricate details of percussive and stringed instruments. With its self-biased condenser element, the ND66 delivers a crisp, clean, and highly detailed sound, making it ideal for both studio and live performance applications. The microphone’s unique locking pivoting head allows for easy and precise mic placement, while its selectable -10 dB and -20 dB pads offer essential gain control. Additionally, the ND66 features selectable high-pass filters to eliminate unwanted low-frequency noise, ensuring a clear and professional sound in any recording environment.
Features:
- Premium Small-Diaphragm Condenser Element: Self-biased design for exceptional responsiveness, capturing detailed transient nuances.
- Clean, Crisp, and Detailed Sound: Ideal for percussive and stringed instruments, delivering accurate sound reproduction.
- Locking Pivoting Head: Easy mic placement with a simple push-button mechanism, allowing precise positioning and secure locking.
- Selectable -10 dB and -20 dB Pads: Provides necessary gain reduction to prevent mic overload in high-volume situations.
- Selectable High-Pass Filters (75 Hz and 150 Hz): Efficiently eliminates unwanted low frequencies to maintain clean signal quality.
Specifications
Connector Type | 3-pin XLR |
Height | 5.63″ (143mm) |
Weight Net | 6.31oz (179g) |
Shipping Weight | 16.4oz (465g) |
Family | ND Series |
Diameter (Max) | 0.83″ (21mm) |
Element | Condenser |
Impedance, Low-Z balanced | 200Ω |
Open Circuit Voltage | 10mV/Pascal |
Case Material | Die cast zinc |
Finish | Black polyurethane paint |
Power Requirement | 48 VDC Phantom |
Audio Frequency Response | 50 – 20,000 |
Maximum SPL | 146dB |
Polar Pattern | Cardioid |
Wired/Wireless | Wired |
Mic Type | Instrument |
