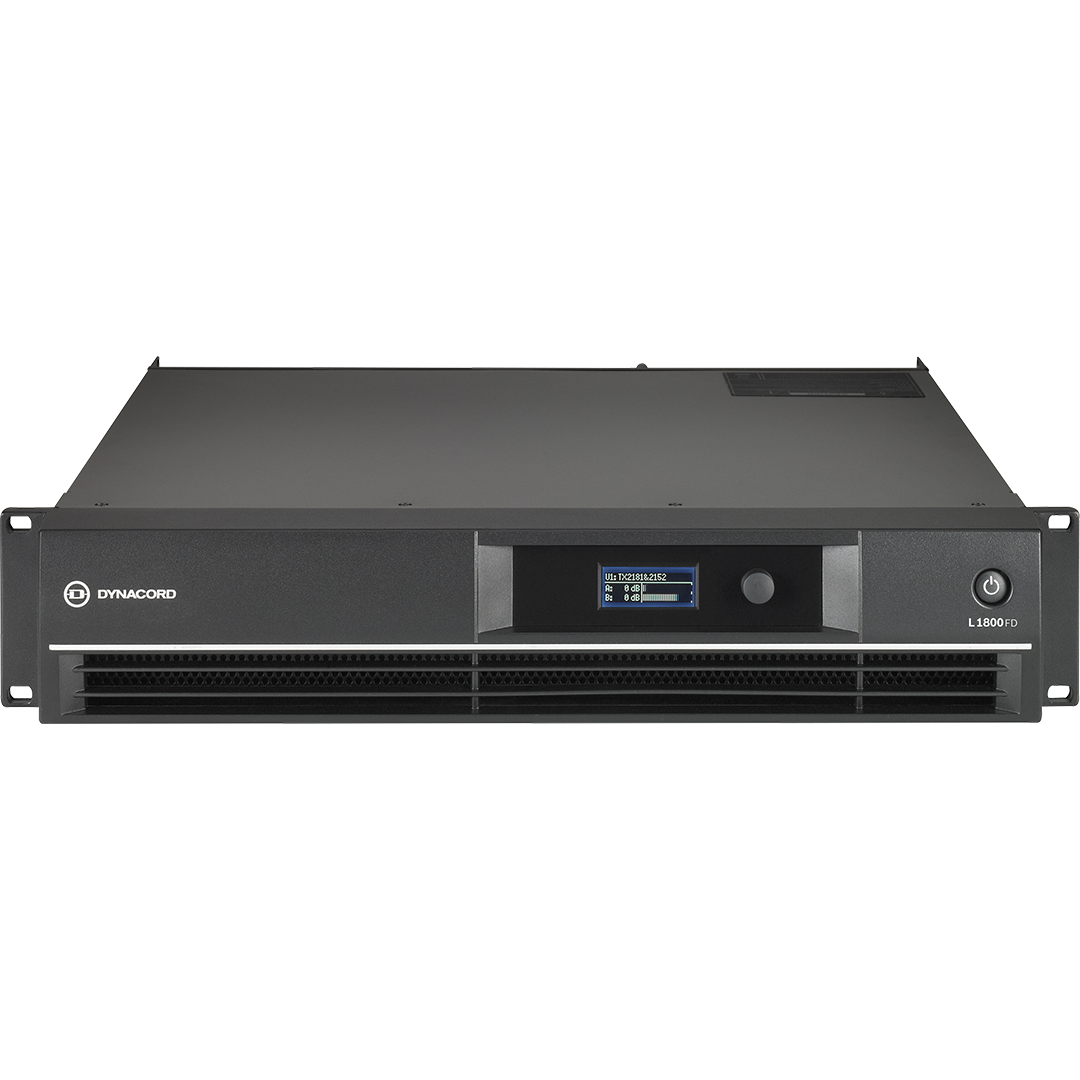

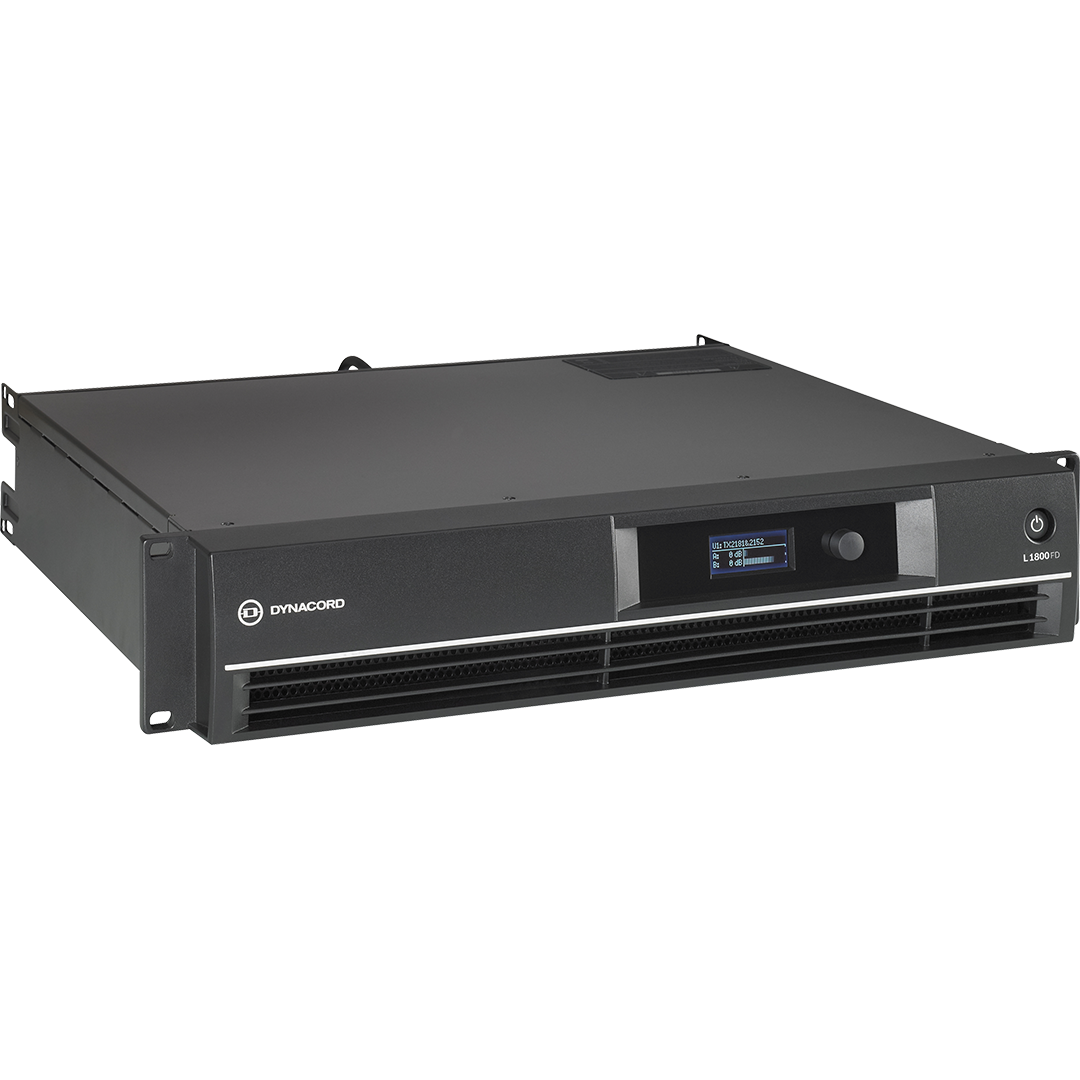

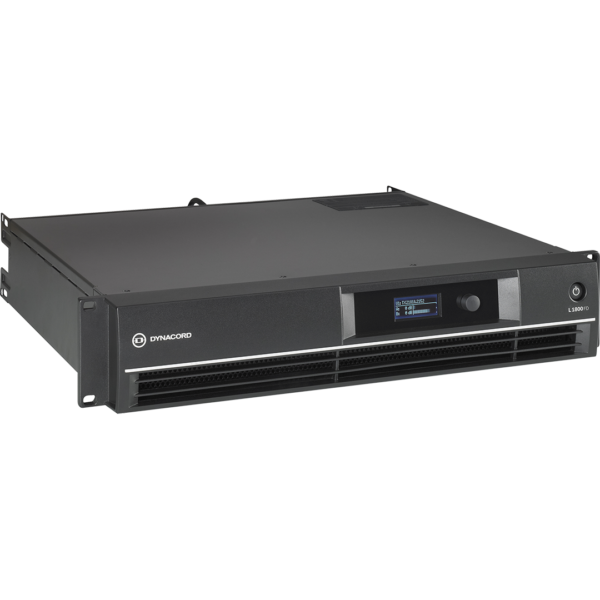

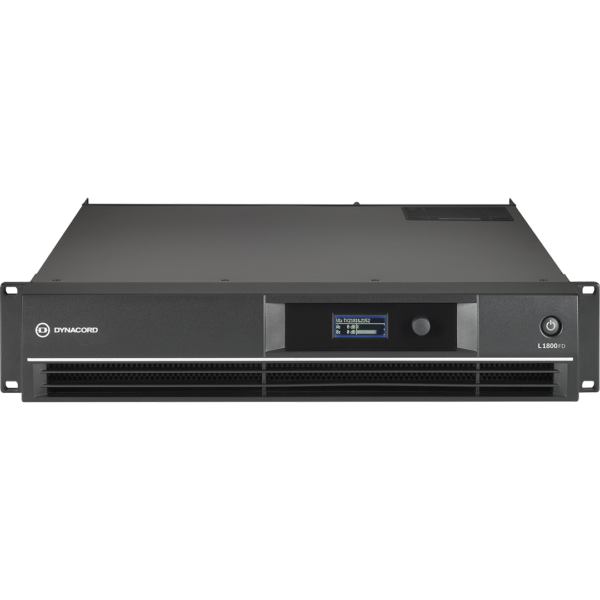

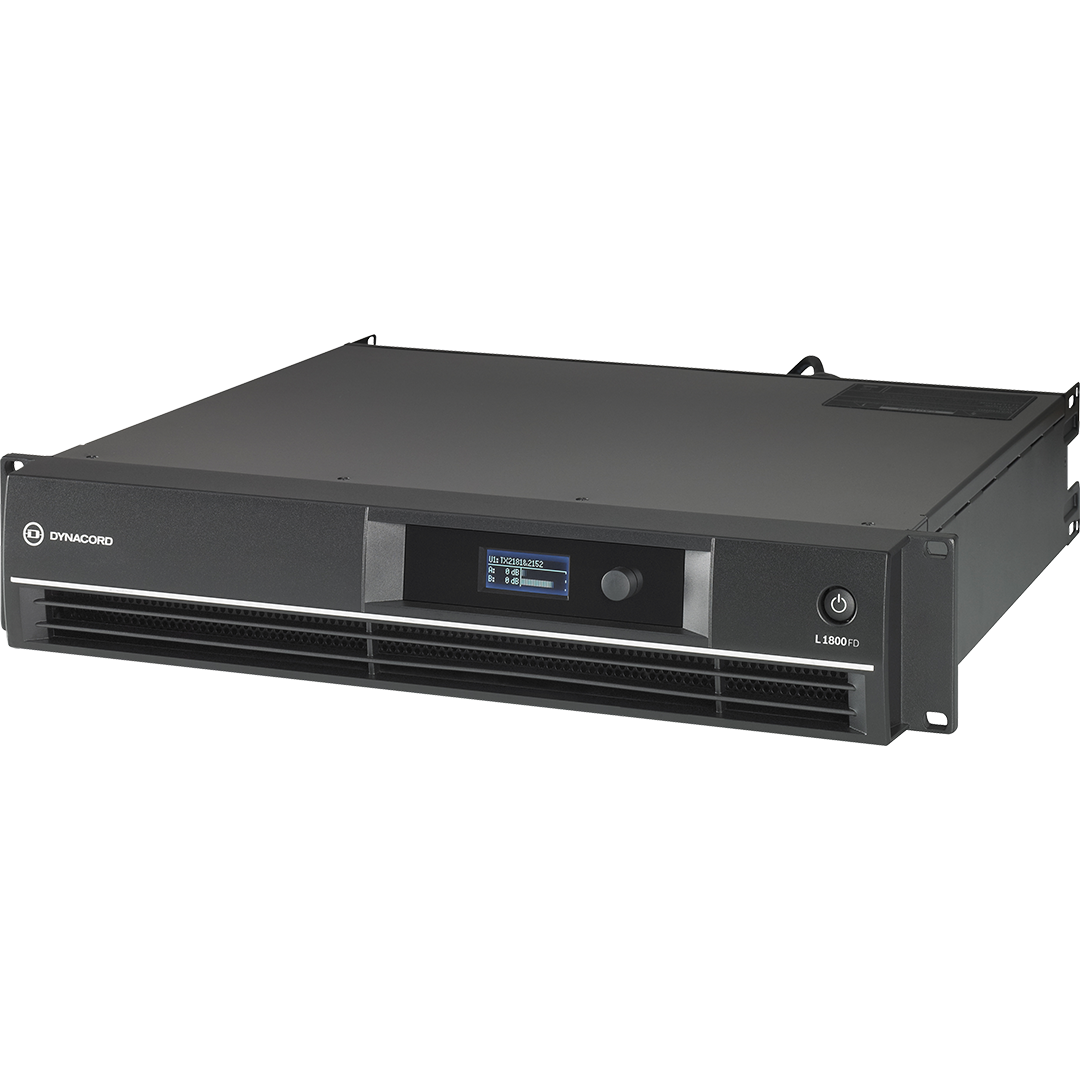

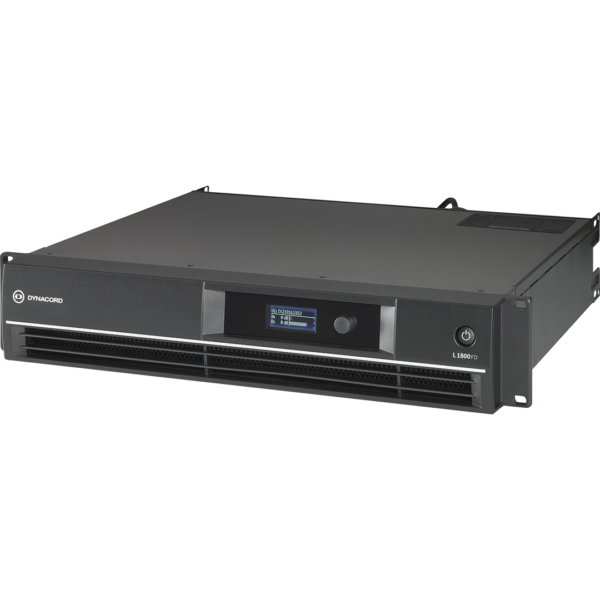

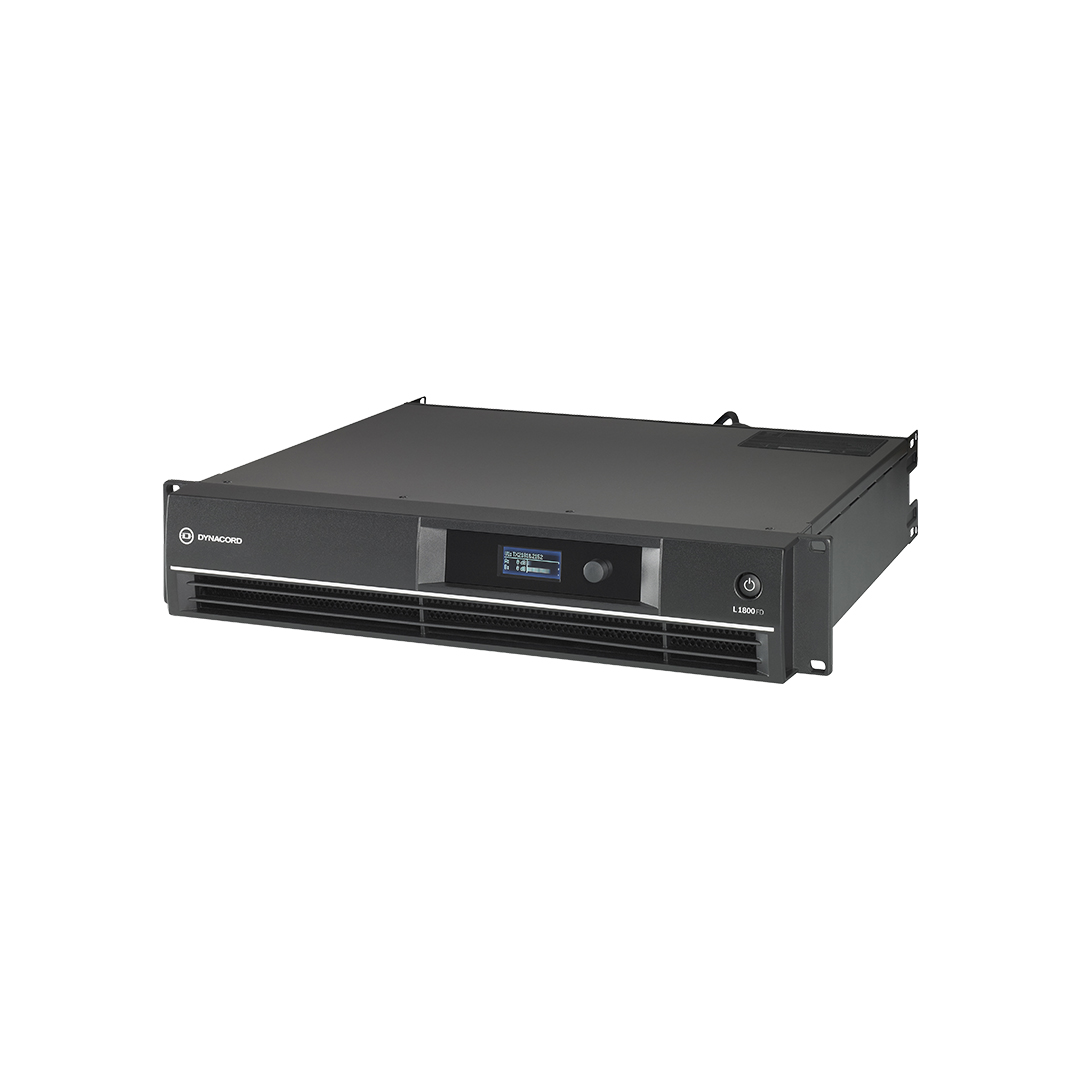

Dynacord L1800FD DSP Power Amplifier 2 x 950W with FIR Drive

BD 390.00 VAT INC

The Dynacord L1800FD L-Series Power Amplifier delivers reliable performance and professional sound quality for live sound reinforcement and mobile audio systems. Featuring FIR Drive technology, advanced DSP capabilities, and robust protection circuitry, the L1800FD ensures consistent, high-quality audio in demanding live sound environments. It integrates seamlessly with SONICUE software for easy control, configuration, and monitoring, making it an ideal solution for musicians, event production companies, and sound engineers seeking superior performance, reliability, and flexibility. Whether for fixed installations or mobile applications, the L1800FD provides the performance and features needed to deliver excellent sound in any setting.

SKU: L1800FD Category: Tag:



Dynacord L1800FD L-Series Power Amplifier Overview

The Dynacord L1800FD L-Series FIR-Drive Power Amplifier is an 1800W dual-channel amplifier designed for professional live sound reinforcement and mobile applications. With FIR Drive technology, advanced DSP features, and a robust design, the L1800FD is ideal for performing musicians, production companies, and sound engineers working in a wide range of venues, including music clubs, community halls, performance centers, and sports venues.

Key Features:

  • 1800W Output Power: Provides sufficient power for smaller to medium-sized live events and sound reinforcement applications, delivering clear, professional-quality audio.
  • FIR Drive Technology: Utilizes FIR (Finite Impulse Response) processing for optimized loudspeaker performance, ensuring accurate frequency response and exceptional sound quality.
  • Class A/B and Class H Topologies: These topologies offer superior sound reproduction, efficiency, and reliability, making it suitable for both live performance and mobile sound systems.
  • On-Board DSP Processing: The amplifier includes multi-band parametric EQs (PEQs), crossovers, limiters, and delays for each channel. Additional PEQ, GEQ (graphic equalizer), and delay settings are available for group control.
  • Sophisticated Protection Circuitry: Built-in protection features safeguard the amplifier and connected loudspeakers, ensuring safe operation even in demanding conditions.

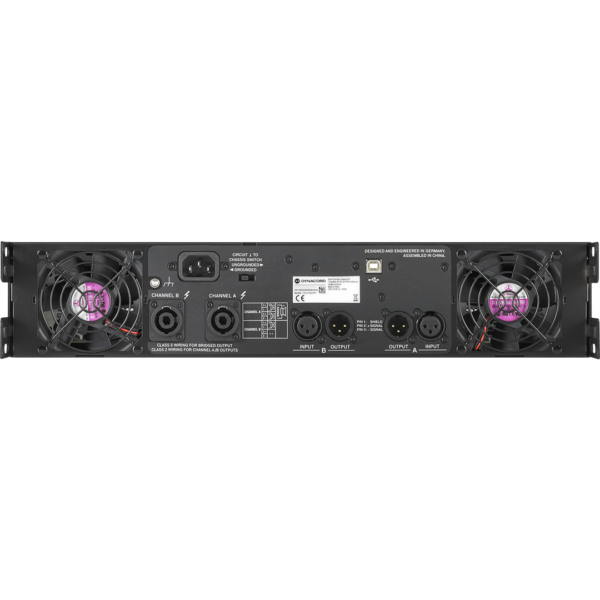

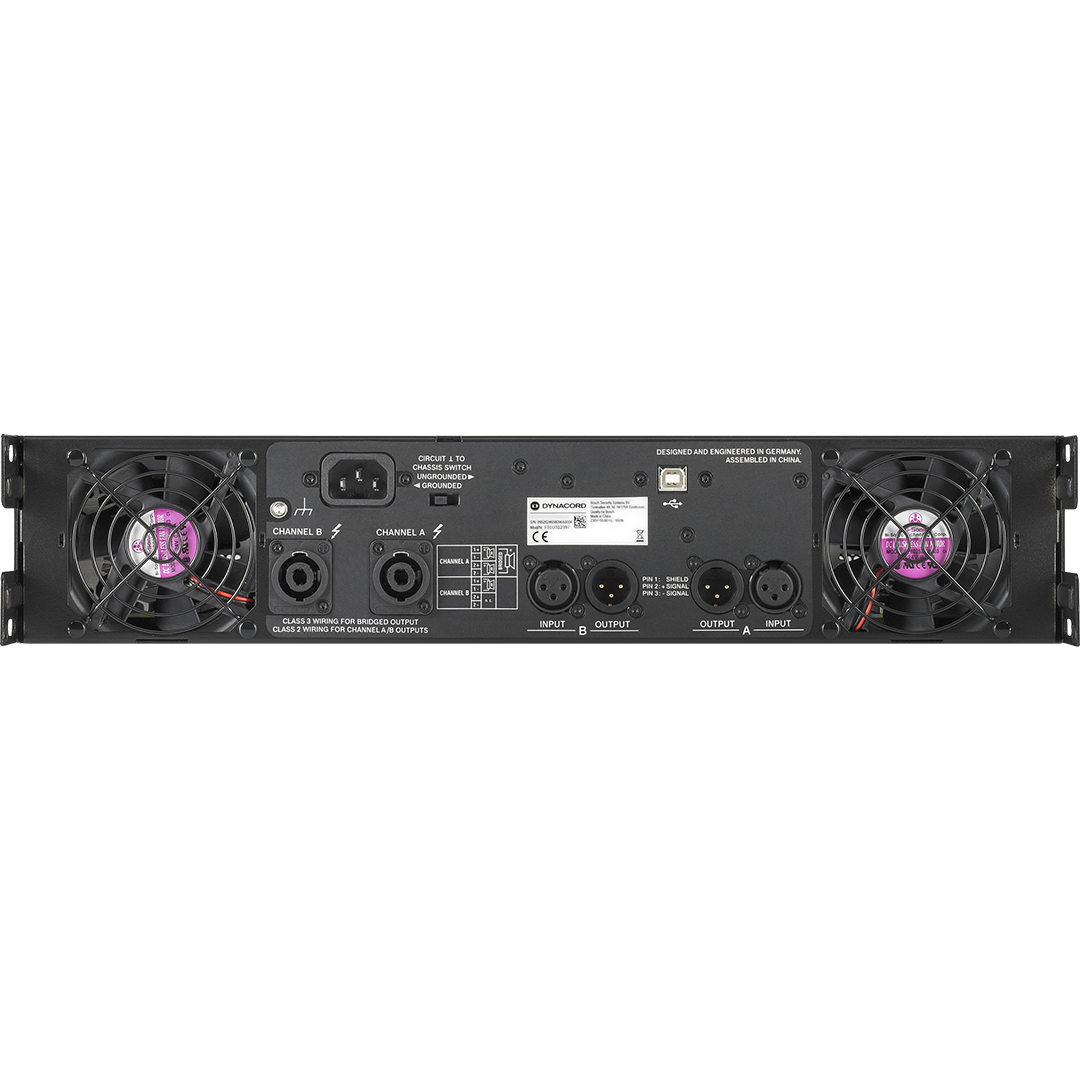

  • SpeakOn Connectors: Equipped with SpeakOn connectors for secure and reliable speaker connections in professional sound systems.
  • SONICUE Software Integration: The L1800FD works seamlessly with SONICUE sound system software, enabling intuitive configuration, control, and real-time monitoring. Users can control up to 16 amplifier channels simultaneously, simplifying system management.
  • Constant Stability at 2 Ohms: Designed to handle 2-ohm loads with consistent stability, the L1800FD is ideal for demanding speaker setups.
  • High-Performance Voltage Handling: Handles high voltage conditions effectively, making it suitable for challenging environments.
  • Engineered in Germany: Built with premium components and backed by German engineering, ensuring high durability and long-term reliability.

Applications:

  • Live Sound Reinforcement: Perfect for musicians, DJs, event production companies, and sound engineers in concerts, festivals, performances, and sports events.
  • Mobile Sound Systems: Ideal for portable setups, offering reliable performance in touring or temporary installations.
  • Fixed Installations: Suitable for permanent sound installations in medium-sized venues, including theaters, community centers, and corporate events.
  • High-Performance Venues: Excellent for venues requiring robust and high-quality audio, such as conference rooms, clubs, and churches.

Specifications:

  • Power Output: 1800W (dual-channel)
  • Speaker Processing: Fully integrated FIR Drive technology for optimal loudspeaker performance
  • Amplifier Topology: Class A/B and Class H for efficient, high-quality sound reproduction
  • DSP Features:
    • Multi-band PEQs and GEQ for flexible sound shaping
    • Crossover and limiter functions per channel
    • Delay settings per channel and group control
  • Connectivity: SpeakOn connectors for reliable speaker connections
  • Software Control: Integration with SONICUE sound system software for configuration, monitoring, and real-time control
  • Protection Circuitry: Advanced protection to ensure safe operation
  • Stability: Constant performance at 2 Ohms
  • Voltage Handling: High-performance handling for demanding environments
  • Engineered in Germany: Built with high-quality components for durability and long-term performance





Load Impedance 2 Ω 2.6 Ω 4 Ω 8 Ω
Maximum Output Power, Single Channel 1600 W 1300 W 950 W 480 W
Maximum Output Power, Dual Channel 1400 W 1200 W 850 W 450 W
Maximum Output Power, Bridged — — 2800 W 1700 W
Maximum RMS Voltage Swing THD = 1%, 1 kHz 65.1 V
Voltage Gain Ref.1 kHz 32.0 dB
THD at 600 W/4 Ω MBW = 80 kHz, 1 kHz < 0.05%
IMD-SMPTE, 60 Hz, 7 kHz < 0.1%
DIM30, 3.15 kHz, 15 kHz < 0.05%
Maximum Input Level +21 dBu
Crosstalk ref. 1 kHz, at 100 W/4 Ω < -80 dB
Frequency Response, ref. 1 kHz 10 Hz to 21 kHz (±1 dB)
Input Impedance, Active Balanced 20 k Ω
Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power @ 8 Ω >105 dB
Output Noise, A-weighted < -68 dBu
Output Stage Topology Class AB
Power Requirements 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption 1/8 Maximum Output Power @ 4 Ω 700 W
Mains Fuse 240 V/230 V: T12AH; 120 V/100 V: T25AH
Protection Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
Cooling Front-to-rear, 3-stage-fans
Ambient Temperature Limits +5°C to +40°C (40°F to +105°F)
Safety Class I
Color Black
Dimensions (W x H x D), mm 483 x 88 x 462.4
Weight 15.2 kg (33.5 lb)
Signal Processing FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance
Remote Control SONICUE sound system software **
Accessories RMK15 (rear rack mount kit)

Test signal for max. output power according IHF-A-202 (Dynamic-Headroom, burst 1 kHz/20 ms on/480 ms off/low level -20 dBu).

** requires firmware 2.0.
