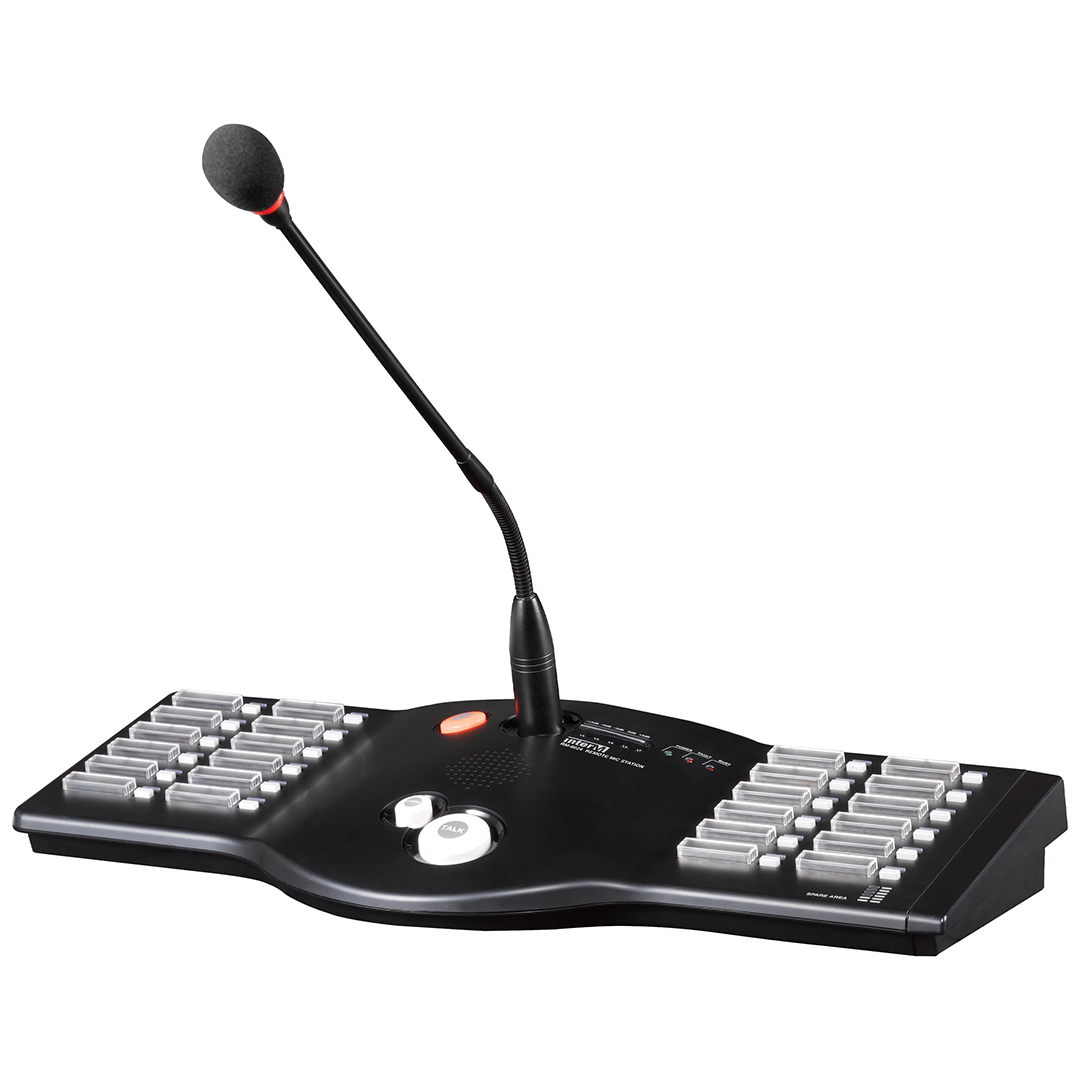

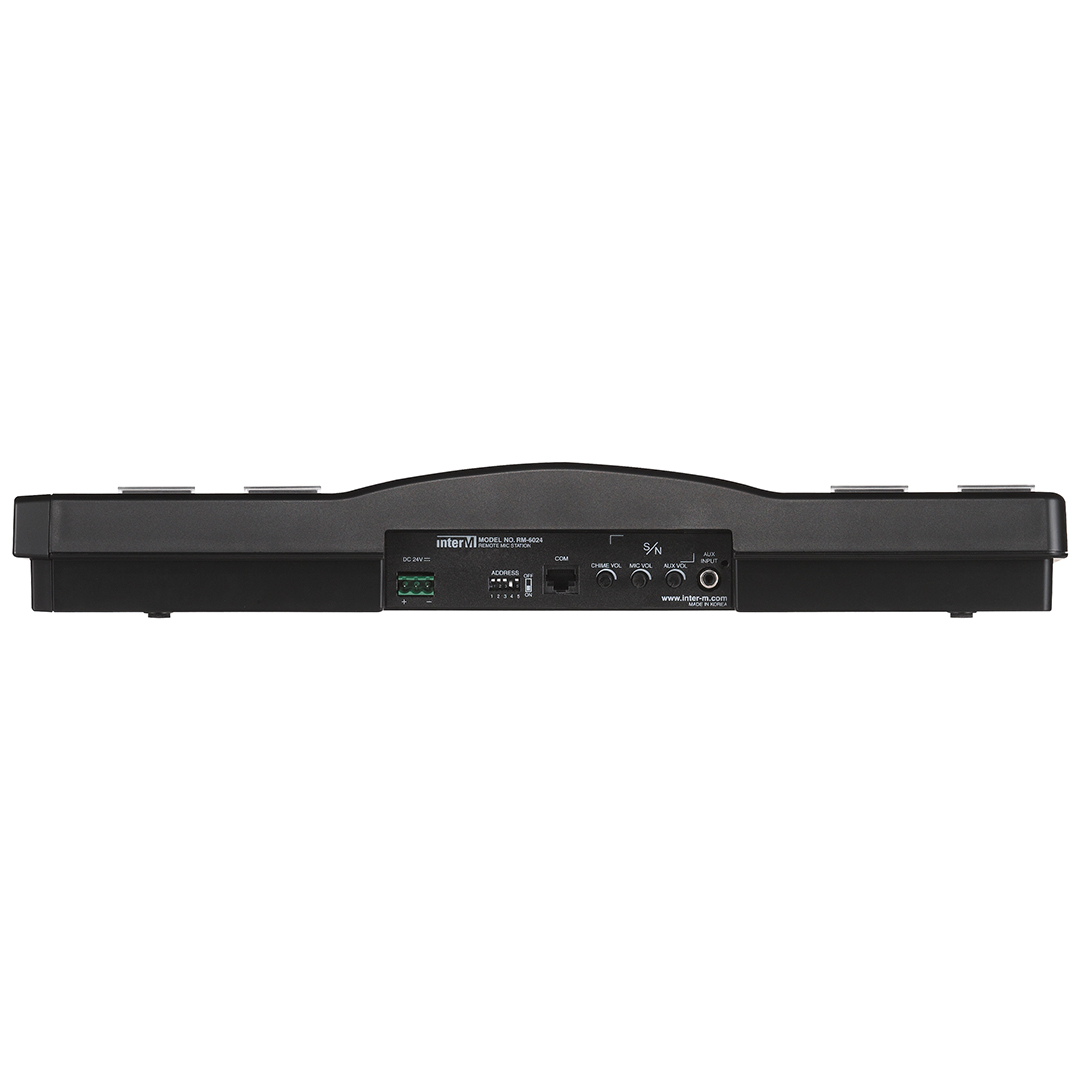

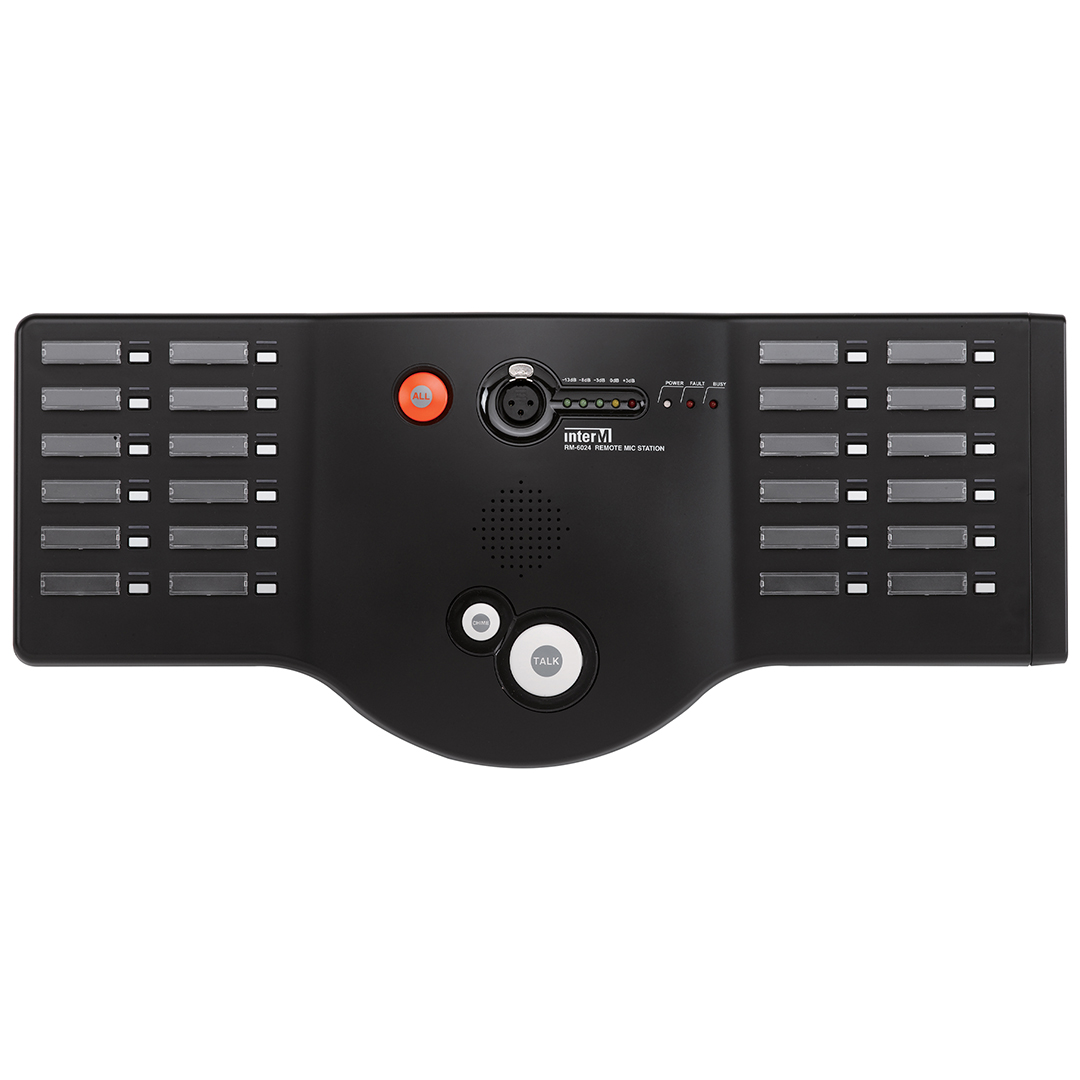

InterM RM-6024 System Remote MIC Station

The RM-6024 is a 24-channel remote microphone designed for use with the RME-6108 amplifier. It features RS-422 communication protocol, allowing operation at distances up to 1 km (3,280 feet). The microphone offers excellent audio quality with a frequency response of 120Hz to 20kHz, less than 0.5% total harmonic distortion (THD+N), and a signal-to-noise ratio (S/N) of over 50dB for the mic input and over 60dB for the AUX input.

SKU: RM-6024 Category: Tag:

Product Features

  • Zone Macro Function
    The Zone Macro Function in the Inter-M PC Windows program allows multiple zones to be combined into a single button, with up to 160 zones per button.
  • Expansion Keypad (RM-6012KP)
    When an Expansion Keypad (RM-6012KP) is added, up to 48 macro buttons can be used. (Up to two Expansion Keypads can be connected.)
  • Chime Function
    Provides a notification sound to indicate a remote microphone broadcast.
  • External AUX Function
    Allows mixing of an external audio source, enabling background music (BGM) during microphone broadcasts.
  • RS-422 Communication
    Supports remote microphone (RM-6024) placement up to 1 km (3,280 feet) away from the RME-6108.
    Note: It is recommended to keep the remote microphone (RM-6024) within 500 meters (1,640 feet) of the RME-6108.



Product specification

RM-6024
Channel 24CH
Communication Protocol RS-422(Maximum 1km/3,280 feet)
Audio
MIC INPUT SENSTIVITY -50dB
THD+N Less than 0.5%
FREQUENCY RESPONSE 120Hz ~ 20kHz
S/N Better than 50dB
AUX INPUT SENSTIVITY -10dB
THD+N Less than 0.5%
FREQUENCY RESPONSE 120Hz ~ 20kHz
S/N Better than 60dB
Operation Temperature -10°C ~ +40°C/14°F ~ 104°F
Power Source DC 24V
Weight (Set) 1.2kg/2.6lbs
Dimensions (Set) 456(W) x 65(H) x 200(D)mm/17.9(W)x2.5(H)x7.9(D)in
