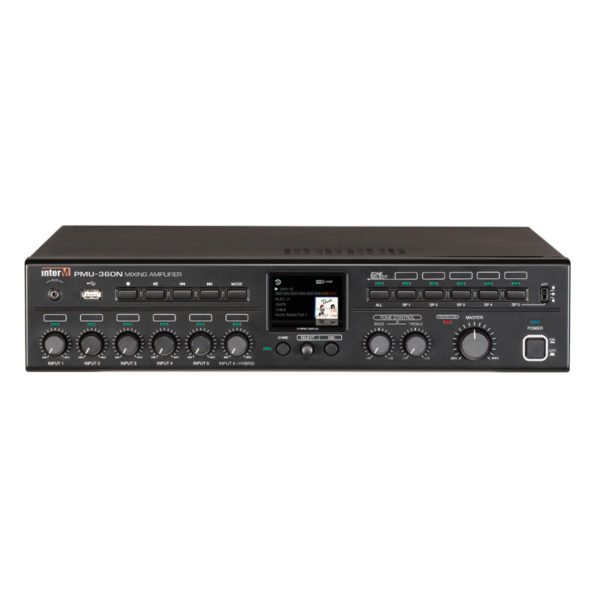

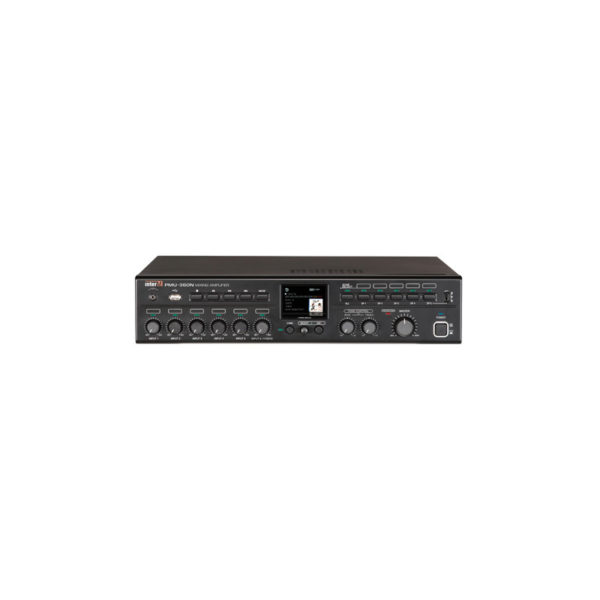

InterM PMU-360N Mixing Amplifier

The PMU-360N is a 6-input, 360-watt mixer/amplifier that includes a built-in digital portable media player capable of playing MP3, WMA, and WAV audio files. It provides input flexibility with six selectable microphone and line-level inputs, making it ideal for a variety of audio applications.

In addition, the PMU-360N features a direct PC USB connection through its built-in USB PC sound card. For networked audio applications, the amplifier supports a network audio connection, which allows it to receive audio via LAN, dedicated WAN, and internet TCP/IP or RTSP, making it suitable for background music (BGM) systems.

• Internet Radio
  Streams internet radio via the network.
• AOE-212N Streaming
  Connects with Inter-M’s network audio streamer (AOE-212N) to stream audio data in real time.
• USB Memory Playback (MP3, WAV)
  Plays audio files from a USB memory stick.
• USB Audio Stream
  Streams audio from a connected PC.
• 2.8″ Color TFT LCD
  Displays output levels, playback, and system information.
• 2U Size
  Compact, 2U rackmount form factor.
• 60W / 120W / 240W Output Power
  Offers multiple output power options.
• SMPS Technology
  Provides high power output with low power consumption and reduced weight.

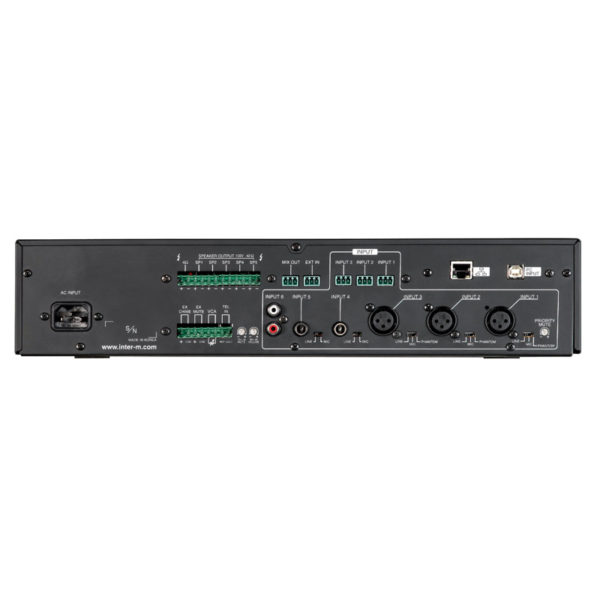

• 5 Microphone/Line Inputs, EXT IN, and TELL IN
  Features individual volume control for each input.
• Input Level LED Monitor per Channel
  Displays input levels for each channel.
• Separate BASS/TREBLE Tone Controls
  Allows independent adjustment of bass and treble.
• 5 Zone Selection Switches
  Enables selection of up to five audio zones.
• Independent Built-In Attenuator Over Zone 5
  Allows for independent attenuation control in Zone 5.
• Priority Function
  Prioritizes certain inputs over others.
• Remote MUTE and CHIME Terminal
  Supports remote muting and chime functionality.
• VCA Remote Volume Control
  Allows remote control of the volume using a VCA system.
