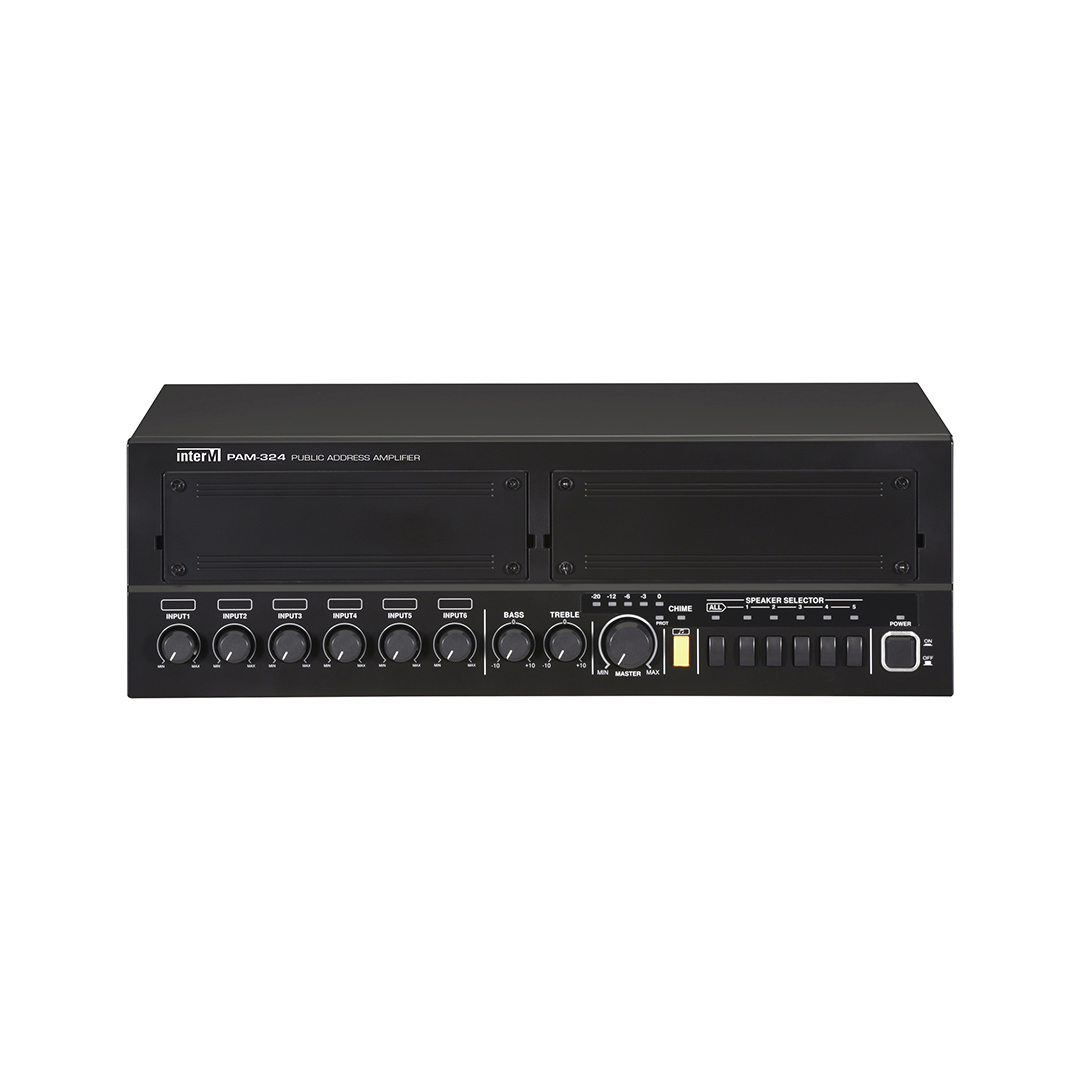

InterM PAM-324 Mixer Amplifier

Product Overview:

The Class-D amplifier series offers models with 120W, 240W, 360W, and 480W output options, supporting high-impedance 100V/70V speaker systems. It features versatile input options, including 3 MIC/LINE inputs, 3 LINE inputs, a stereo input, and TEL IN, with individual volume control for each channel. The amplifier includes tone control (BASS/TREBLE), 5-speaker selection switches, and external mute, chime, and EM contact closure functions. It also offers a 4-tone chime, output level indicator, and a priority broadcast function for efficient signal management.

SKU: PAM-324 Category: Tag:

Product Features:

  • Class-D Amplifier offering 240W output power, available in models PAM-324 (240W).
  • High-Impedance Output supporting 100V/70V speaker systems.
  • Versatile Input Options including 3 MIC/LINE inputs, 3 LINE inputs, a Stereo input, and TEL IN.
  • Individual Volume Control for each channel.
  • Mixed Signal Output (MIX OUT) for added flexibility.
  • Tone Control with separate BASS and TREBLE adjustments.
  • 5-Speaker Selection Switches for flexible audio management.
  • External Mute, Chime, and EM Contact Closure functions for remote control.
  • 4-Tone Chime Function for enhanced audio signaling.
  • Output Level Indicator for easy monitoring of output levels.
  • Priority Broadcast Function with a priority hierarchy:
    EM > TEL IN > INPUT 1/RM-05A, INPUT 2, CHIME > INPUT 3/4/5/6, EXT IN, PAM Module
  • Priority Control for INPUT 1 and INPUT 2, allowing activation/deactivation of the PRIORITY function.



Product specification

PAM-324
Rated Output Power (1kHz, THD 1%) 70V/100V 240W
Frequency Response (1W, ±3dB, 20kHz LPF) LINE 80Hz~15kHz
MIC 100Hz~15kHz
THD (Rated Power, 1kHz) Less than 1%
S/N, A-WTD LINE Better than 70dB
MIC Better than 55dB
Input Sensitivity / Impedance Input 1~3 / Input Impedance MIC -60dBV/2kΩ (Balanced)
LINE -20dBV/2kΩ (Balanced)
Input 4~5 / Input Impedance LINE -20dBV/30kΩ (Balanced)
Input 6 / Input Impedance LINE -20dBV/20kΩ (Un-Balanced)
TEL IN / Input Impedance -20dBV~0dBV/40kΩ (Balanced)
EXT IN / Input Impedance 0dBV/40kΩ (Balanced)
MIX OUT 0dBV (Balanced)
Speaker Output Level/Impedance 100V/42Ω
70V/21Ω
TONE CONTROL BASS(100Hz) ±10dB
TREBLE(10KHz)
Operating Temperature -10℃ ~ +40℃
Power Source AC 120V, 60Hz, AC 220-240V, 50/60Hz
Power Consumption (1/8W output) 85W
Weight (Set) 6.88kg/15.2lb
Dimensions (Set) 420(W) x 132(H) x 358(D)mm/16.5(W) x 5.2(H) x 14(D)in
