InterM PA360 Mixer Amplifier

The PA360 multi-purpose integrated mixer amplifier features 6 inputs:

• 5 Microphone/Line Level, balanced on XLR female and/or euro terminal block connectors on the rear of the unit. Each input terminal features rear-mounted level selector switch for Mic or Line Level sensitivity.
• Inputs 1-3 also feature Phantom Power for use with condenser microphones.
• Input 6 is a high impedance unbalanced on 2 x RCA connectors.

This amplifier also features a telephone input terminal for connectivity to a standard phone system, allowing paging directly from a telephone handset. VOX priority override is available on inputs 1 and 2 as well as the telephone input.

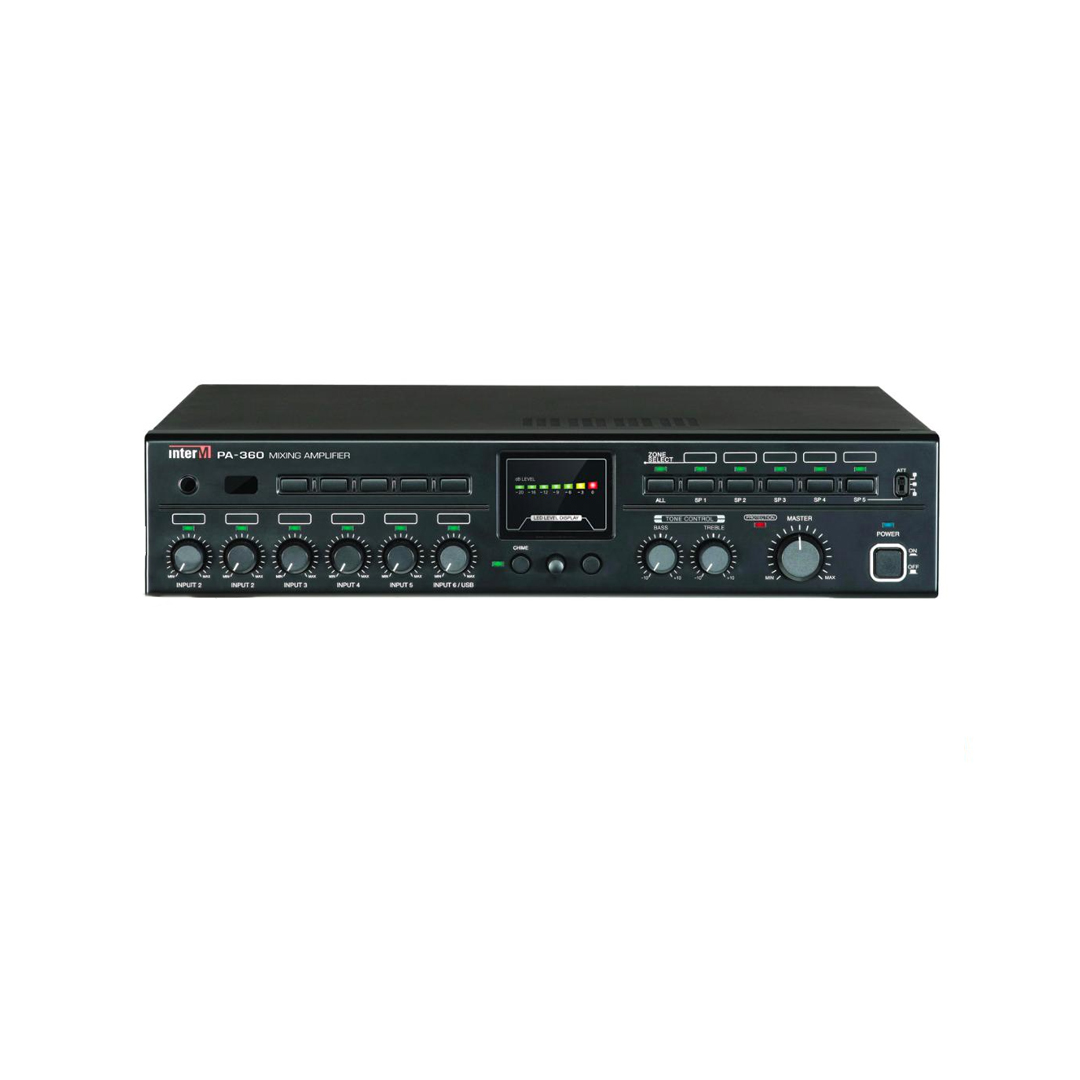

The front panel of the PA360 amplifier features master volume control, 5-zone loudspeaker selection (plus ‘all-call’), Bass and Treble Tone control and built-in chime and siren trigger buttons.

Designed to support high-performance requirements of a commercial audio system, the PA360 is built with reliability as a priority, featuring short-circuit and thermal protection.

Applications:

• Education facilities: School, College, University, Training Institute, etc.
• Commercial establishments: Retail stores, Shopping centres, Multiplex cinemas, hospitals, etc
• Public facilities: Government offices, transportation, stations, airport terminals, exhibition halls, factories, resorts, etc.

The PA Series amplifiers are available in outputs of 60, 120, 240, 360, 480 and 600W with Low-Impedance (4 Ω) or High-Voltage (70v / 100v line) options. The higher output amplifiers use Inter-M’s digital amplifier technology.

The PA360 Integrated Mixer Amplifier can be desktop or rack-mounted and is ideal for commercial audio applications such as background music (BGM), paging and public address (PA).

Key Features:

• 2U Size
• 360W output power
• SMPS delivers high power output with low power consumption and weight reduction
• 5 Microphone / Line Inputs, EXT IN and TELL IN with individual volume control
• Input Level LED Monitor per channel
• Separate BASS / TREBLE Tone Controls
• 5 zone selection switches
• Independent built-in Attenuator over Zone 5 (Maximum 50W, more than 200Ω)
• Remote MUTE and CHIME terminal
• VCA Remote volume control
• Priority volume control
