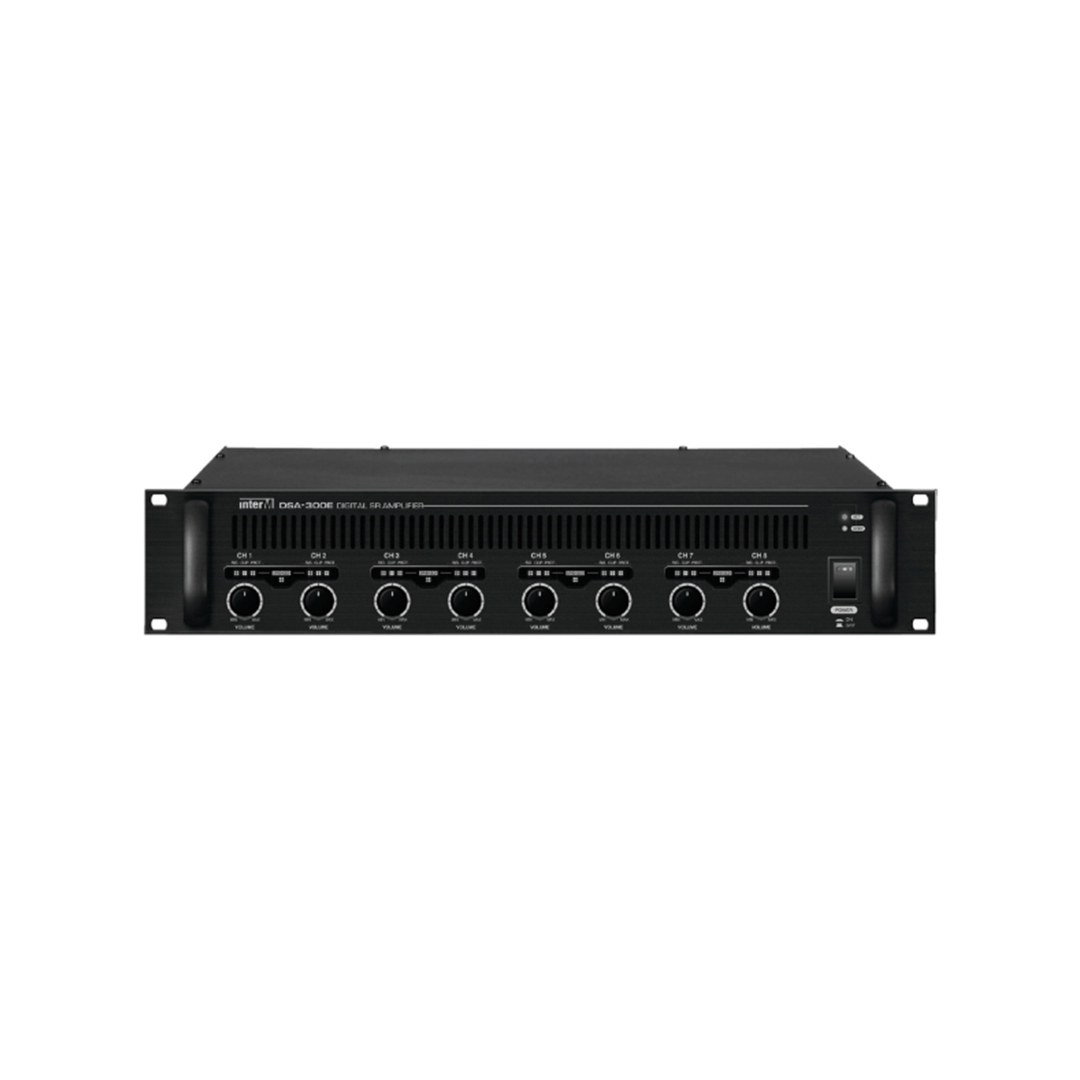

InterM DSA-300E amplifier

DSA-300E is a multi-channel amplifier for pro audio that is made based on technology from the Best Patent awarded DPA digital amplifier technology. It provides an optimum solution for dispersion in a multi-broadcast system as it can output a maximum of 300 W×8CH(4 Ω) or 600 W×4CH(8 Ω) by connecting the output in Bridge mode.
SKU: DSA-300E Category: Tag:
  • HIGH PERFORMANCE 8 CHANNEL CLASS-D POWER AMPLIFIER – High performance Class-D Professional Amplifier has up to 2400W (300W×8ch) power output.
  • SMPS (SWITCHING MODE POWER SUPPLY) POWER SCHEME – High efficient, light weight SMPS power system is utilized.
  • POWERFUL AND DETAILED SOUND QUALITY – High S/N ratio and Low THD reproduces powerful and detailed sound.
  • COMPLETE PROTECTION CIRCUITS – Complete circuit protection is activated in case of amplifier overheating, output shorting, overload, over power and DC output.
  • OPERATION INDICATOR LED – LED display to check the operating status (ACT, STBY, POWER, SIG, CLIP, PROT, BRIDGED)
  • BALANCED INPUT – This connection is used to ensure the lowest noise operation which eliminates the common noisefrom the cable.
  • STEREO / BRIDGED MODE SELECT – There is STEREO MODE that outputs input signals of each channel independently. The BRIDGED MODE binds CH1 and CH2 as one which enables bigger output than done in STEREO MODE.

Technical specifications of DSA-300E Inter-M

DSA-300E
Rated power(STEREO) 8Ω per channel 150W
4Ω per channel 300W
Rated power(BRIDGED) 8Ω per channel 600W
Input Sensitivity 1.23Vrms (4dBu)
Voltage Gain (STEREO) 29dB
Voltage Gain (BRIDGED) 35dB
THD (AES17, 1/3 rated output power) Less than 0.3%  (20kHz LPF)
S/N (20kHz LPF) More than 100dB (20kHz LPF)
Frequency Response (1W, ±3dB) 20Hz ~ 20kHz
Output Circuit Class D
Input Impedance 10kΩ Balanced
Indicator SIG, CLIP, PROT, BRIDGED
Safety Circuit Full Short Circuit, Thermal Protection, Power ON/OFF Muting, DC Output Protection

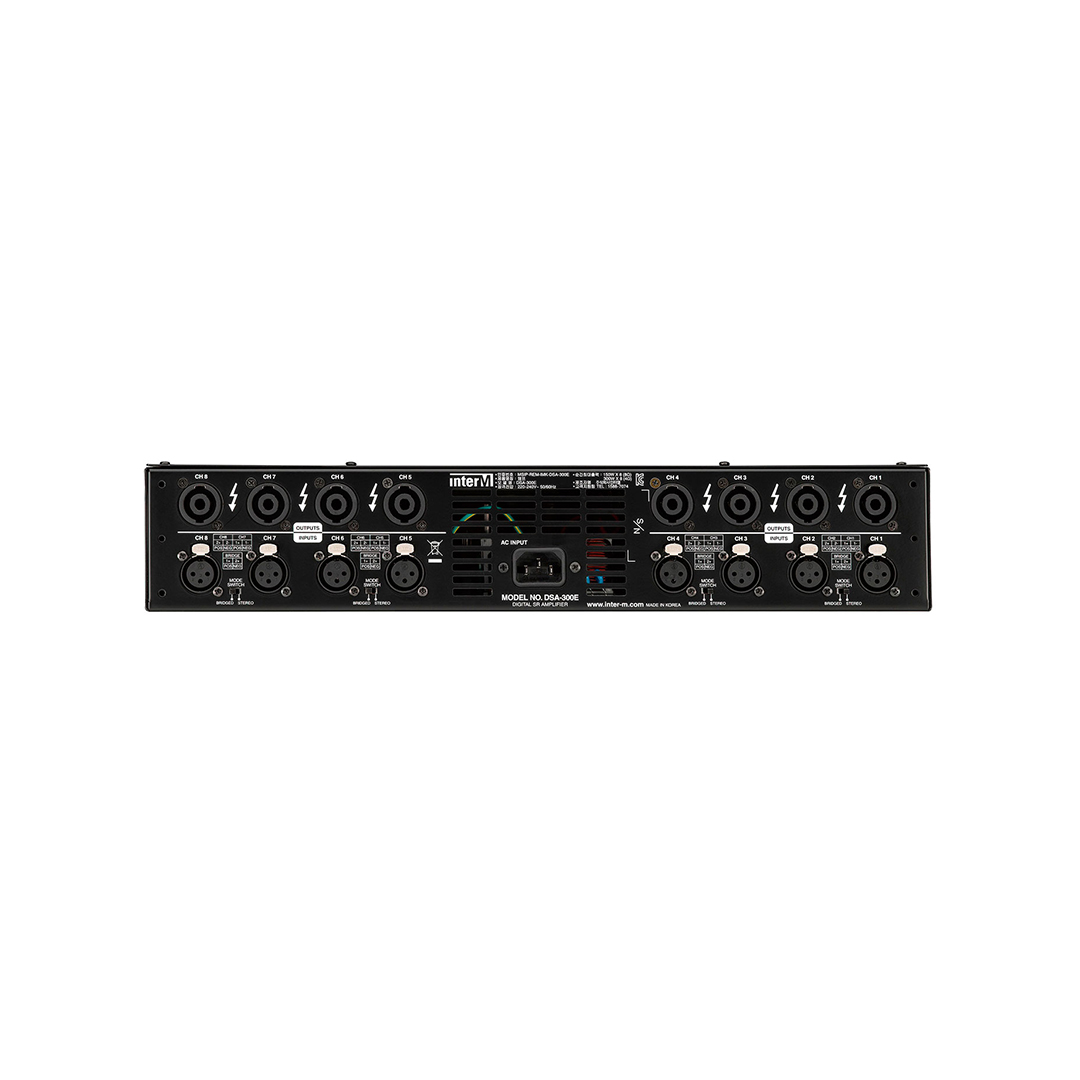

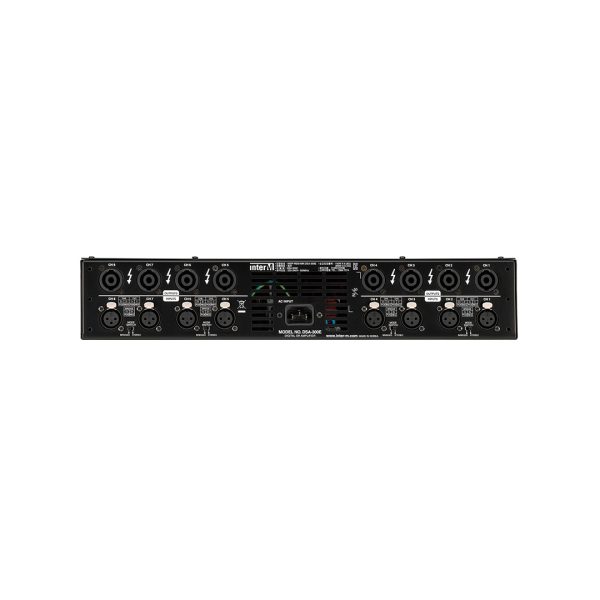

Input Connector XLR Female
Output Connector 4 Pole Speaker Socket
Operating Temperature / Humidity -10°C ~ +40°C/0% ~ 90%
Power Source AC 220-240V, 50/60Hz
Power Consumption 480W (1/8W)
Weight (set) 7.7kg/16.9Ib

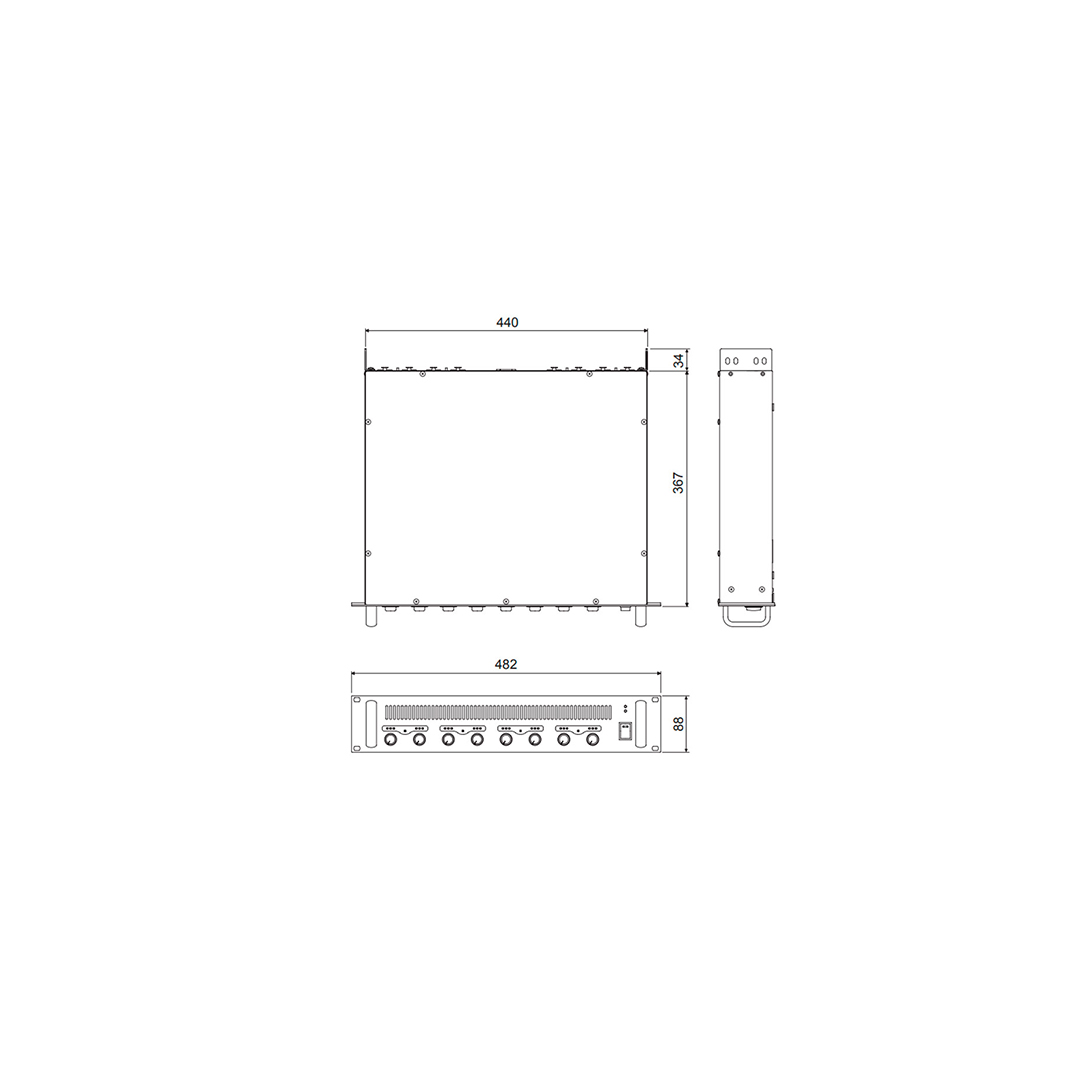

Dimensions (set) 482(W) x 88(H) x 367(D)mm/
18.9(W) x 3.46(H) x 14.4(D)in
