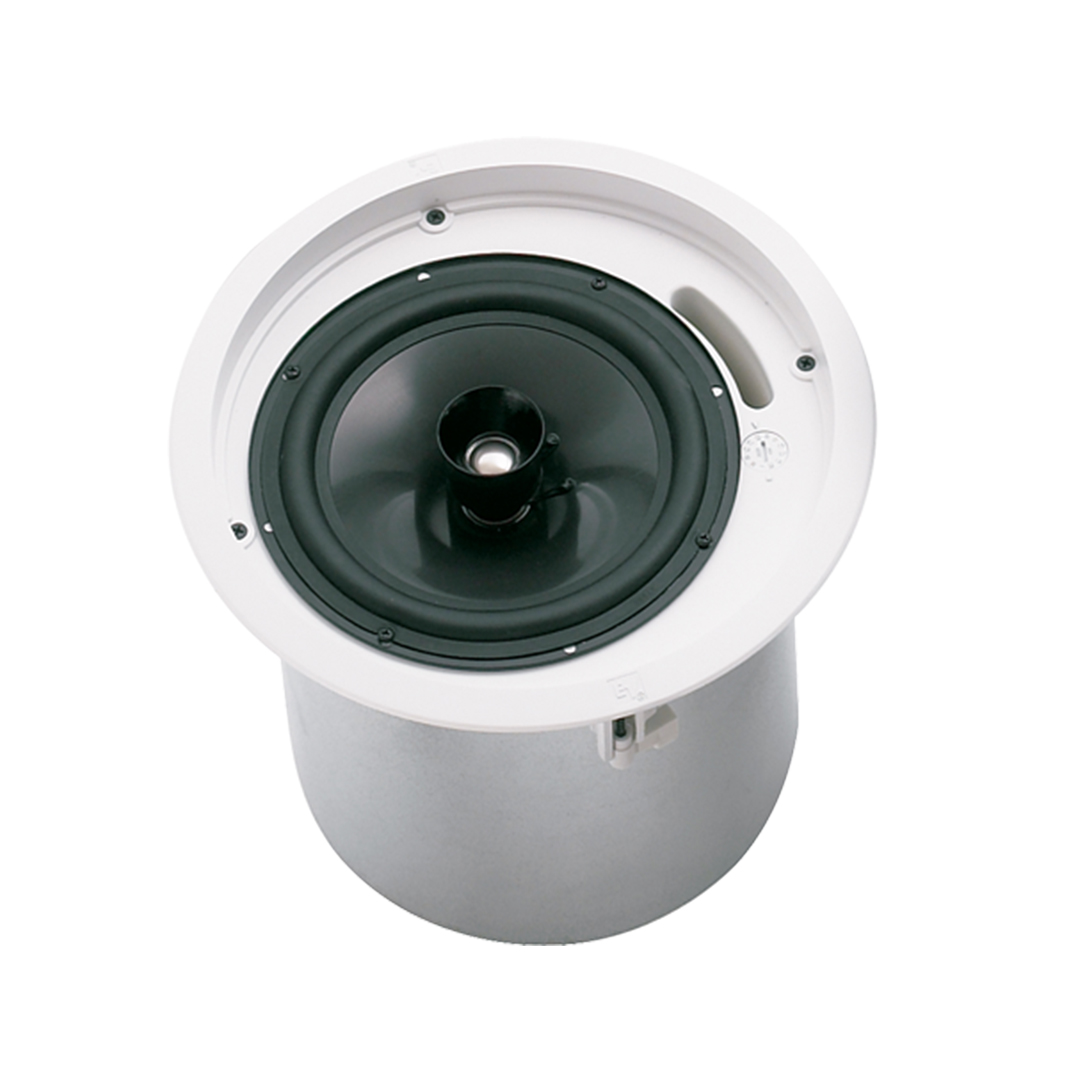

EVID C8.2 8″ 2‑way coaxial ceiling loudspeaker

The Electro-Voice EVID C8.2D is a high-quality coaxial ceiling speaker designed for demanding installations where flush-mount design is required without compromising audio performance. Featuring an 8-inch woofer, a waveguide-coupled 1-inch titanium tweeter, and a ported enclosure, it delivers excellent bass response and crystal-clear highs. The speaker includes an integrated transformer for 70V, 100V, or 8Ω use, making it adaptable to various amplifier configurations. With a simple installation process and a sleek, white grille, the EVID C8.2D provides superior sound quality in commercial and residential spaces.

SKU: EVID C8.2 Category: Tag:

Product Overview:

The Electro-Voice EVID C8.2D is a high-performance coaxial ceiling speaker designed for demanding audio applications in commercial environments. Equipped with an 8-inch woofer and a 1-inch titanium-coated waveguide-coupled tweeter, this speaker delivers clear, full-range sound with deep bass response and smooth high frequencies. The ported enclosure is specifically tuned to enhance bass, making it ideal for environments where a flush-mount design is needed but high-quality audio performance is still a priority.

Designed with versatility in mind, the EVID C8.2D features an integrated transformer for use with 70V, 100V, or 8Ω systems, along with a front-panel mode/wattage selector for easy customization. The speaker is built for simple and safe installation with the included tile bridge and mounting ring, while the white perforated grille offers a modern, unobtrusive aesthetic. With full-bandwidth overload protection, this speaker guarantees reliable performance in both commercial and residential setups.



Product Features:

  • Ported Enclosure for Enhanced Bass Response: The specially tuned ported enclosure ensures deep, extended bass performance for rich, full-range sound.
  • Waveguide-Coupled 1-Inch Titanium-Coated Tweeter: Provides smooth and controlled high-frequency coverage up to 20 kHz, ensuring clarity and precision.
  • Full-Bandwidth Overload Protection: Protects both low and high-frequency drivers, ensuring safe operation and durability.
  • Integrated Transformer: Allows for 70V, 100V, or 8Ω power input, providing flexibility for various amplifier setups.
  • Front-Panel Mode/Wattage Selector: Easily switch between different wattage settings to match your system’s requirements.
  • Easy Installation: Includes a tile bridge and mounting ring for quick, secure flush-mount installation.
  • Sleek Design: Features a white semi-gloss perforated grille that blends seamlessly into most environments.
  • Complete Package: Everything needed for installation is included, requiring no additional accessories.

Specifications

Freq. Response (-10 dB): 50 Hz – 20 kHz
Coverage (Conical): 110°
Power Handling: 75 W Cont. / 300 W Peak
Sensitivity (SPL 1W/1m): 91 dB
Max Calculated SPL: 110 dB Cont. / 116 dB Peak
Impedance: 8 Ohms nominal (transformer bypass)
Network: Network and transducers protected, 12 dB/oct 2.6 kHz
LF Transducer: 8 in. (200 mm) Polypropylene cone
HF Transducer: 1 in (25 mm) Ti Mylar laminate
Transformer Taps: 70V: 1.88, 3.75, 7.5, 15 or 30w 100V: 3.75, 7.5, 15 or 30W Bypass: 8 Ohms
Connectors: C8.2: Phoenix type removable, with screw terminals and “loop-thru”, accepts 12 ga wire C8.2D: Fire-safety rated input block, 3 terminal barrier strip accepts 12 ga wire
Enclosure Material: Baffle- UL 94V-O rated ABS Backcan-Zinc plated steel
Grille: Perforated powder coated steel with safety tether
Support Hardware: Tile bridge, backing plate support, cutout template, paint shield
Dim (H x Dia.): 10.0″ x 10.6 (255mm x 270mm)
Cutout Size: 10.75″ (272mm)
Net Weight (each): 11.0 lbs (5.0 kg)
Shipping Weight (pair): 24.0 lbs (11.0 kg)
Safety Agency Ratings: UL 1480 Safe for use in air handling spaces per UL 2043.
