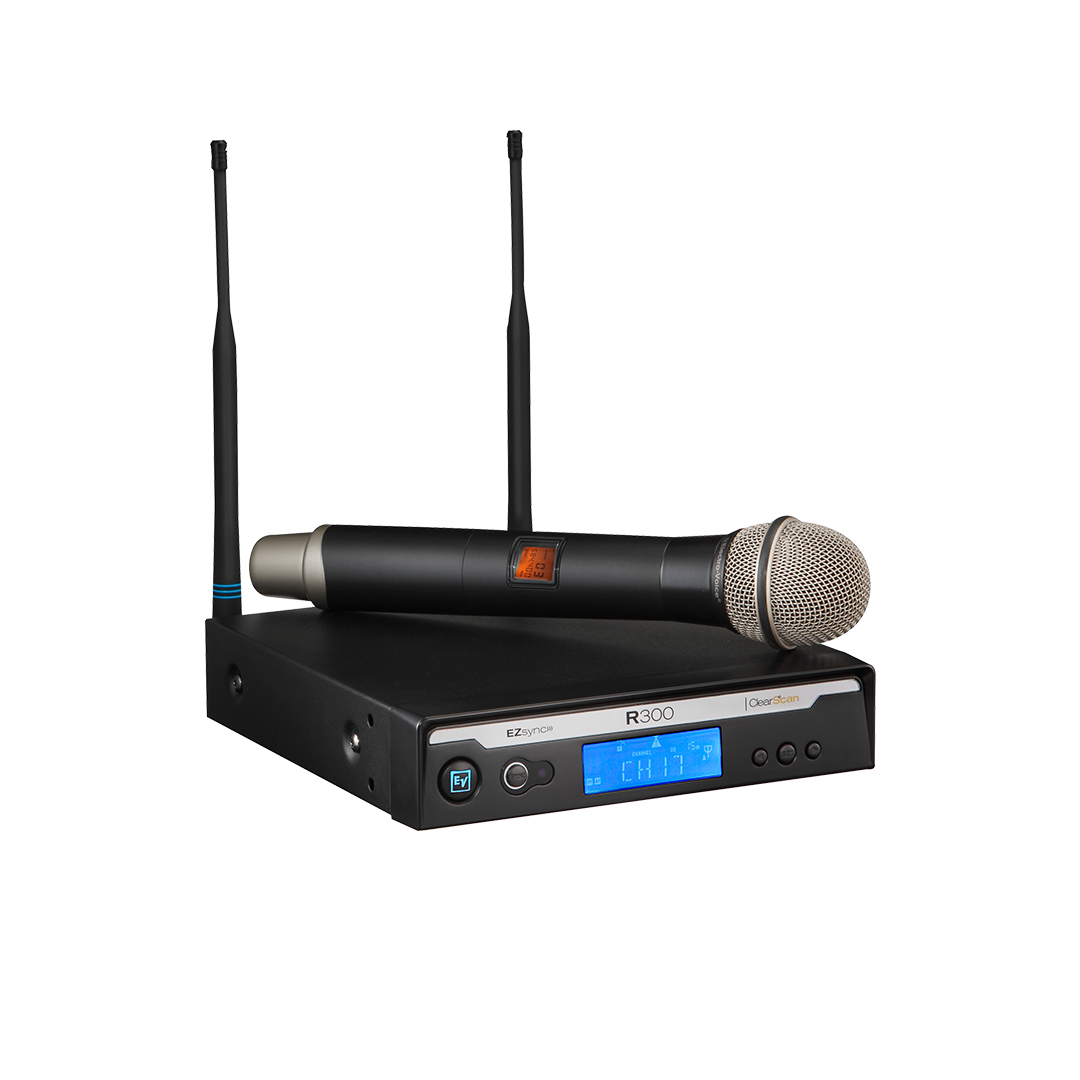

Electro-Voice R300-HD-A-EURO Handheld system with PL22 dynamic microphone

The R300-HD is a reliable UHF wireless system featuring the durable HT-300 handheld transmitter with the PL22 cardioid dynamic microphone, perfect for vocals, speeches, and presentations. It offers ClearScan technology for automatic channel selection and EZsync for one-step setup. With a 14-hour battery life, rugged metal construction, and dual antenna diversity, this system ensures stable performance and minimal dropouts. Its metal receiver chassis provides flexibility for both tabletop and rack-mounting, making the R300-HD a versatile and durable solution for professional wireless audio needs.

SKU: R300-HD-A-EURO Category: Tag:

Product Overview:

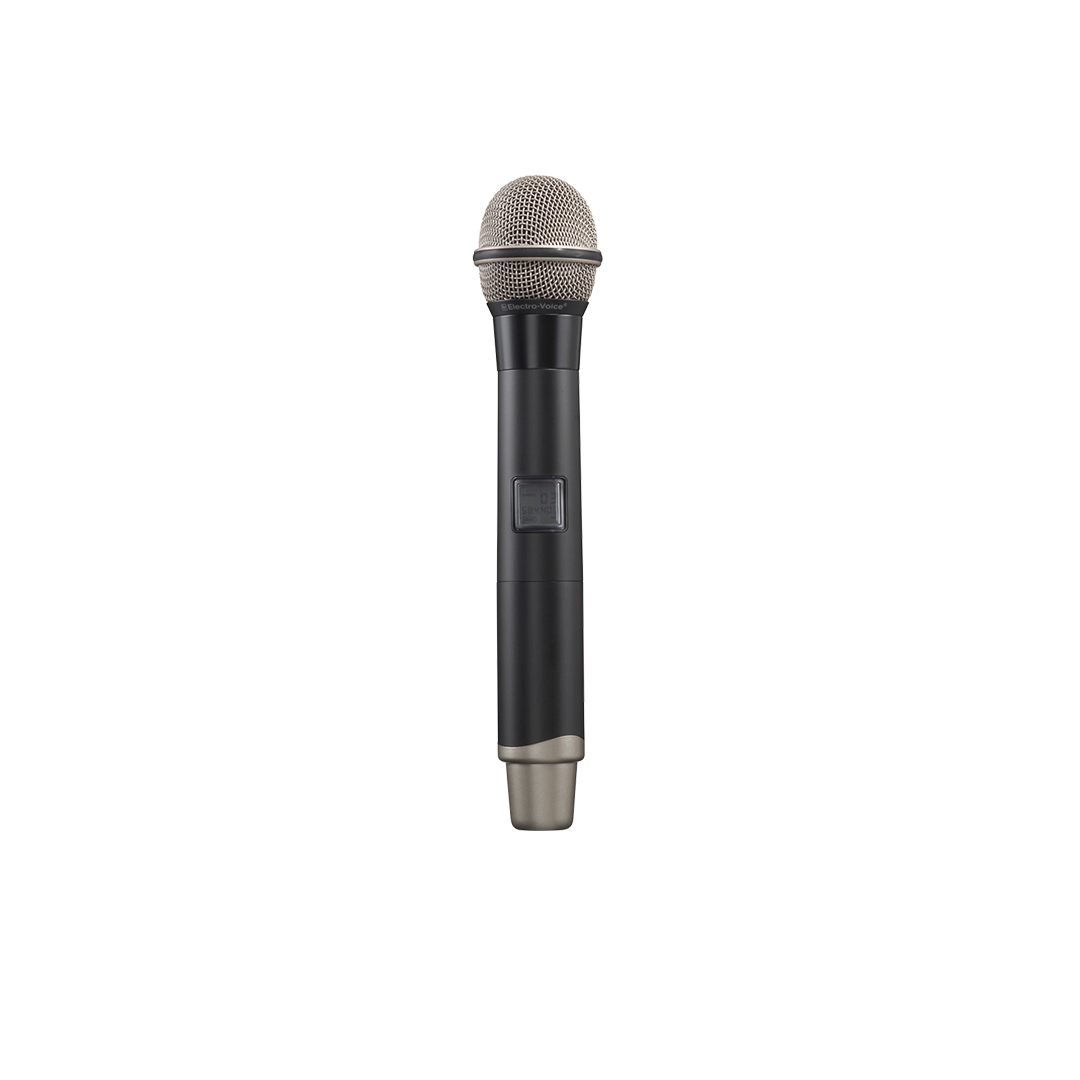

The R300-HD is a robust handheld UHF wireless system, ideal for applications that require a handheld transmitter. The HT-300 metal handheld transmitter, paired with the PL22 cardioid dynamic microphone, provides clear, reliable audio for vocal performances, speeches, and presentations. The cardioid pattern rejects unwanted background noise and minimizes feedback, while the microphone’s design allows performers to move freely. The system’s ClearScan feature automatically selects the best channel, while EZsync ensures easy setup. With a 14-hour battery life and durable metal construction, the R300-HD is designed for reliability in demanding environments. The receiver’s dual antenna diversity and metal chassis offer added durability and flexibility, making it perfect for both tabletop and rack-mounted configurations.



Features:

  • ClearScan Technology: Automatically detects and selects the clearest channel for optimal performance.
  • EZsync One-Step Channel Setup: Simplifies system setup with quick and easy synchronization.
  • PL22 Cardioid Dynamic Microphone Element: Offers versatile performance for vocals, speeches, and emcee work, with excellent feedback rejection.
  • 14-Hour Battery Life: Powered by two AA alkaline batteries for extended use in professional settings.
  • Rugged Metal Transmitter: Built to endure the demands of daily use while maintaining comfort and durability.

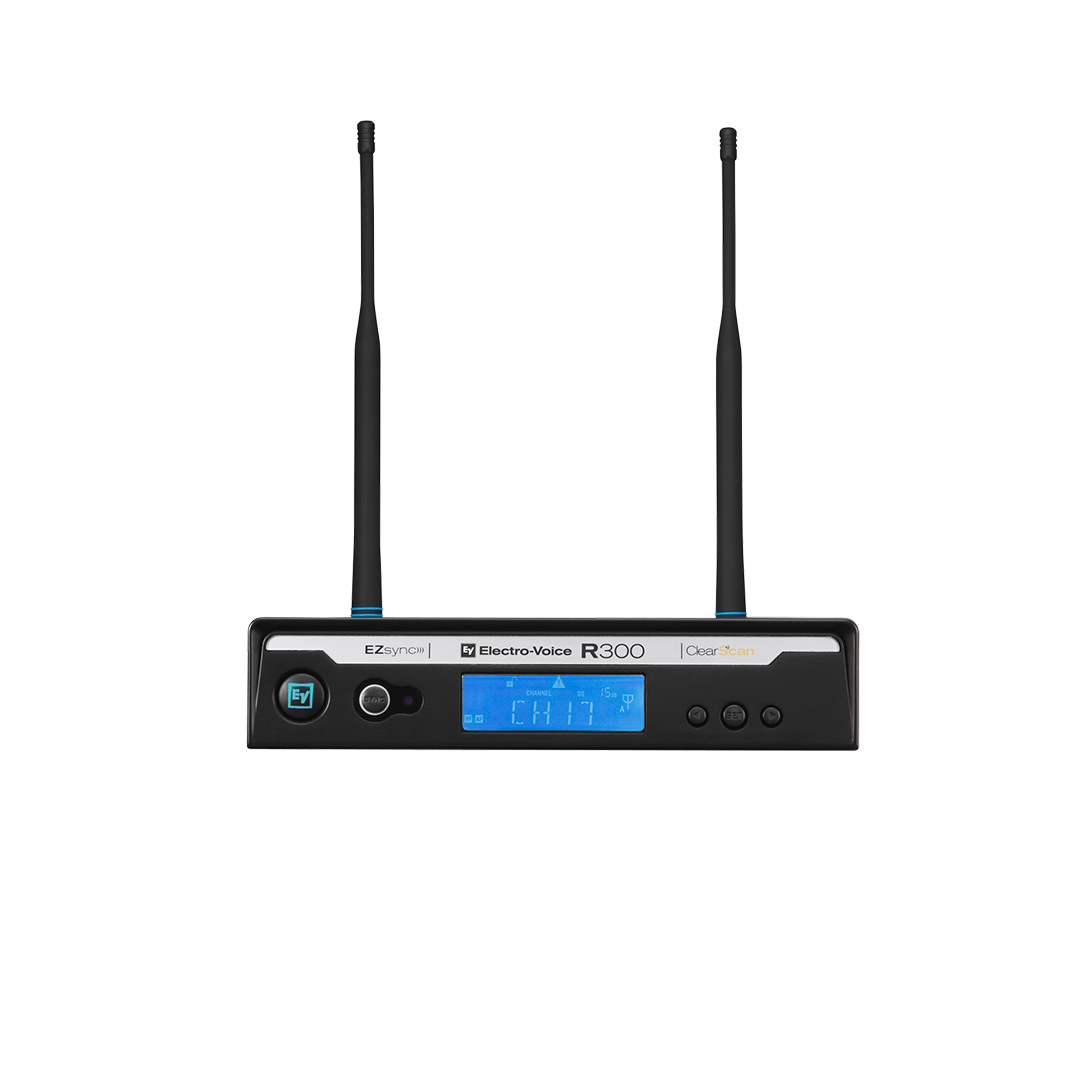

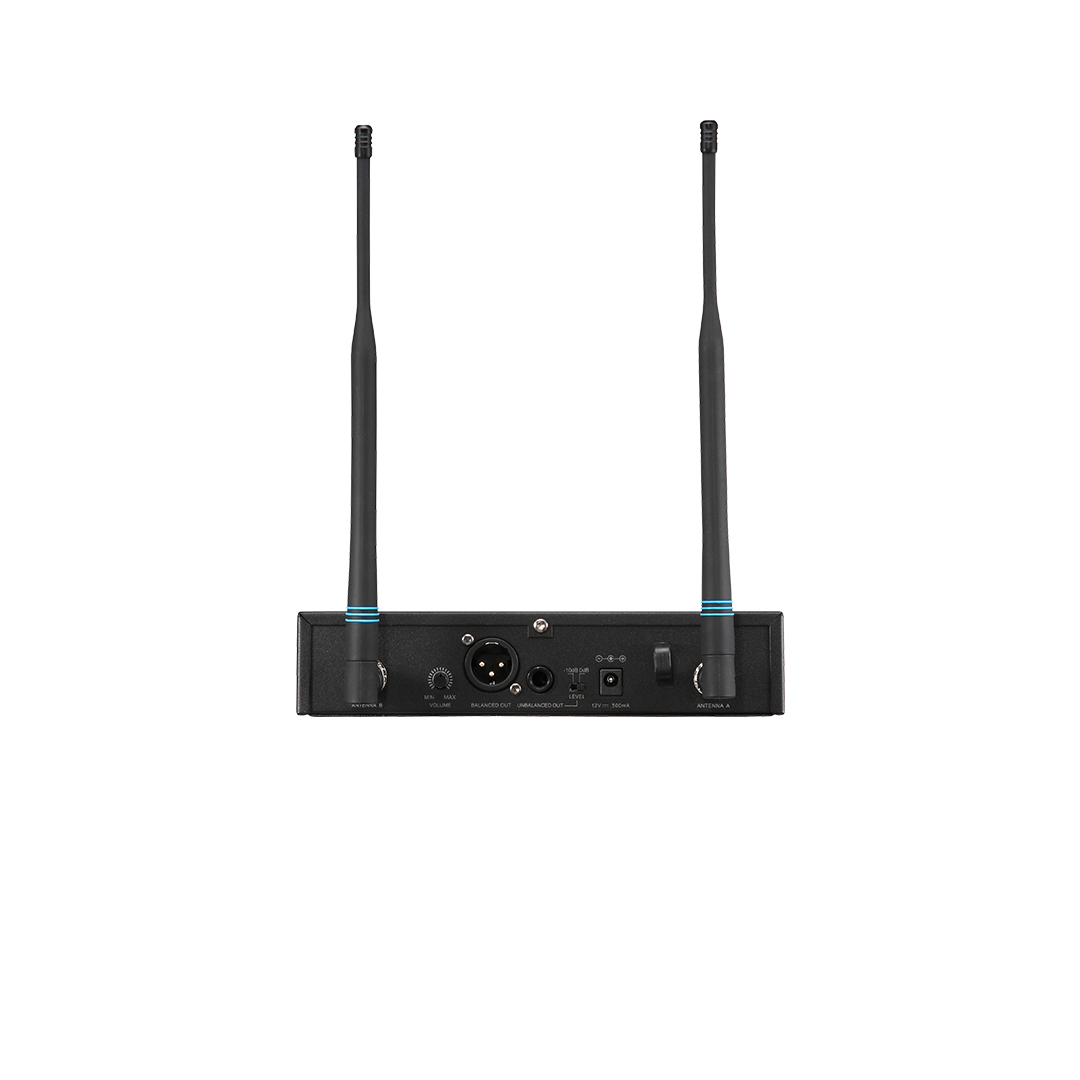

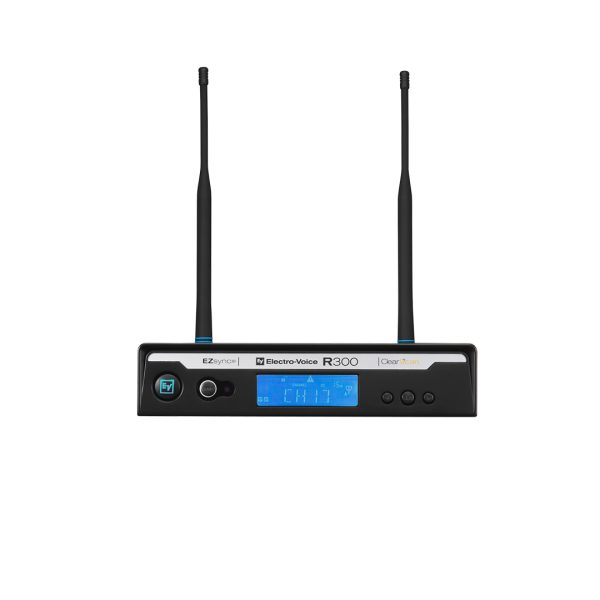

  • Durable Metal Receiver Chassis: Offers both tabletop and optional rack-mounting capabilities for flexible setup.
  • Dual Antenna Diversity: Enhances signal stability and minimizes dropouts, ensuring reliable wireless performance.



Specifications

Receiver Type Synthesized PLL
Frequency Range (RF) A Band 618 – 634 MHz (Not Available in US or Canada)
Number of Channels 32
Modulation ± 40 kHz
Diversity True Antenna
RF Sensitivity <1.0 μV for 12 dB SINAD
Image Rejection > 55 dB
Squelch Tone Code plus Amplitude
Power Requirements 12-16 VDC, 500mA max
Operating Temperature 5°C to 45°C (41°F to 113°F)
Dimensions 43 mm H x 206 mm W x 210 mm D (1.72 in H x 7.8 in W x 8.0 in D)
Audio Parameters,
Frequency Response 80 Hz – 18 kHz ± 2 dB
Balanced Output 20 dBV (max @ 40 kHz deviation)
Unbalanced Output Adjustable 8 mV to 0.755V RMS
Distortion < 1.0%, 0.4% typical (ref 1 kHz, 40 kHz deviation)
Signal-to-Noise Ratio > 100 dB A-Weighted
Dynamic Range > 95 dB
BP-300 and HT-300 Transmitter Specifications
Radiated Output 8 mW typical
Back Lit LCD Display Channel, Frequency, Mute, and Battery Level
Microphone Head Electro-Voice PL22 Cardioid Dynamic
Standard Lavalier Microphone Electro-Voice ULM18 Uni-Directional Condenser
TA4F Connector Wiring Pin 1 Ground; Pin 2 Mic Input; Pin 3 +5V bias; Pin 4 +5V thru 2.2k Ω
Power Requirement Two AA batteries
Battery Life (Typical) > 14 hours with AA alkaline typical
Bodypack Antenna Flexible external 1/4 wave
Handheld Antenna Internal proprietary
Dimensions (Bodypack) 84 mm H x 66 mm W x 23 mm D (3.3 in H x 2.6 in W x 0.89 in D)
Dimensions (Handheld) 26.7 cm (10.57 in) Long
