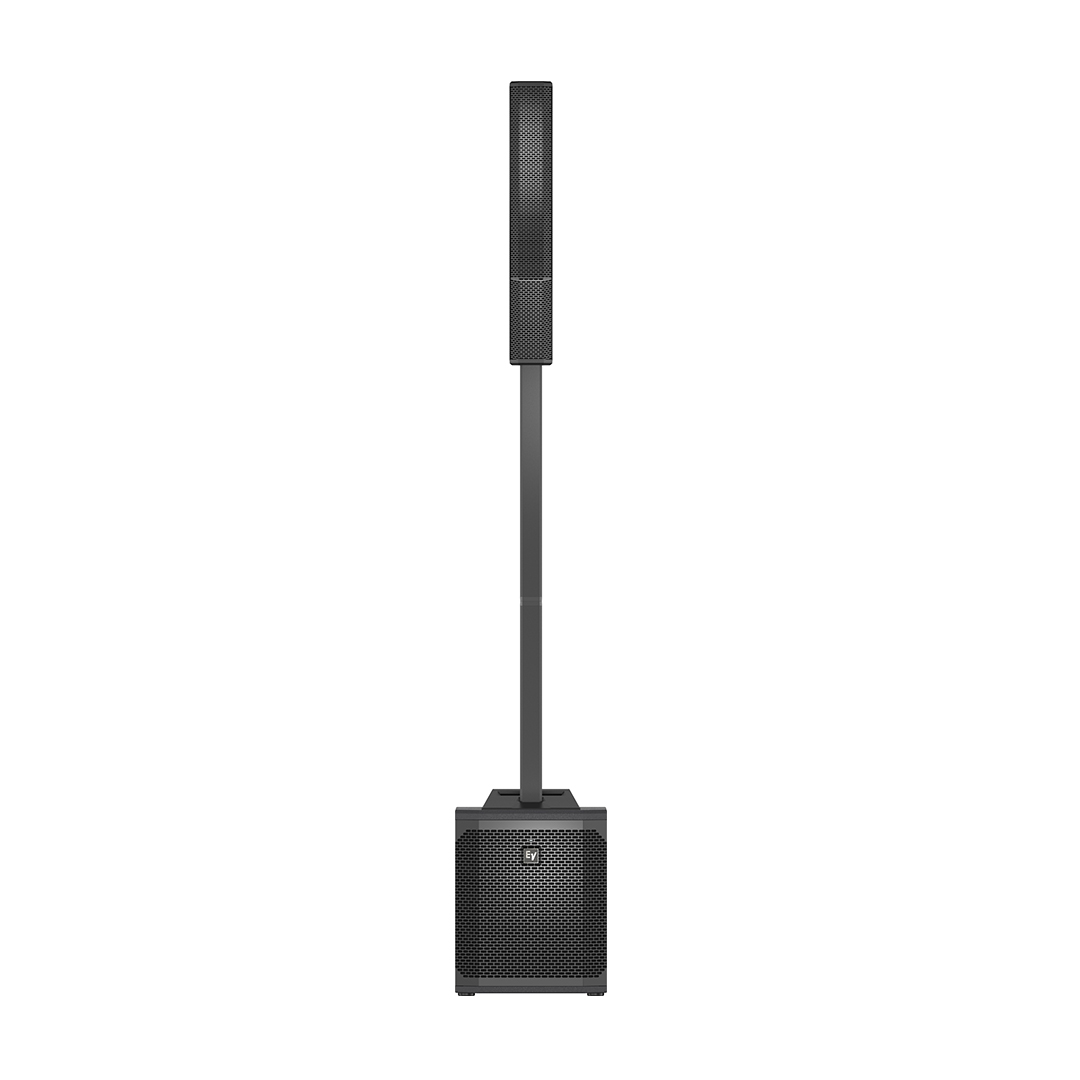

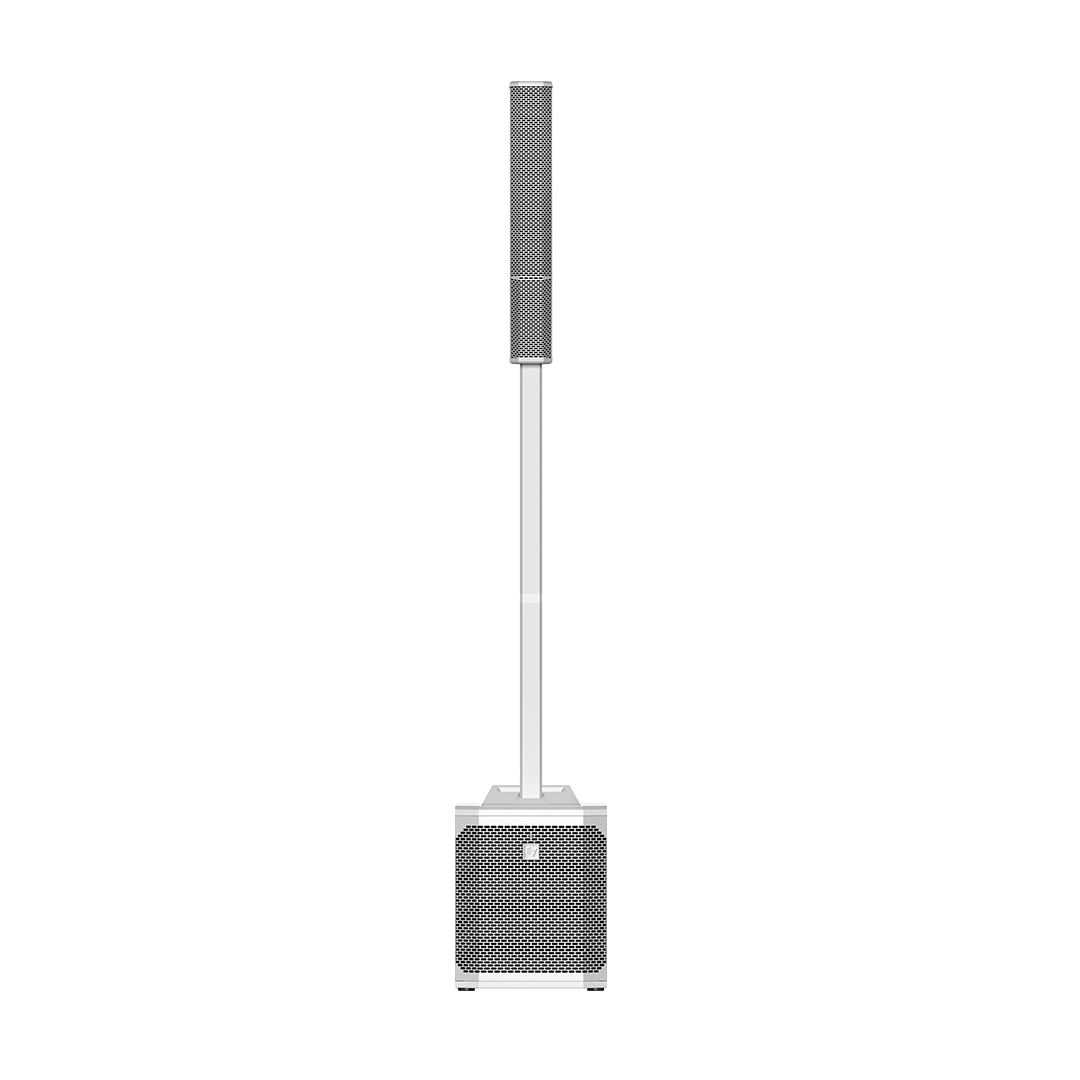

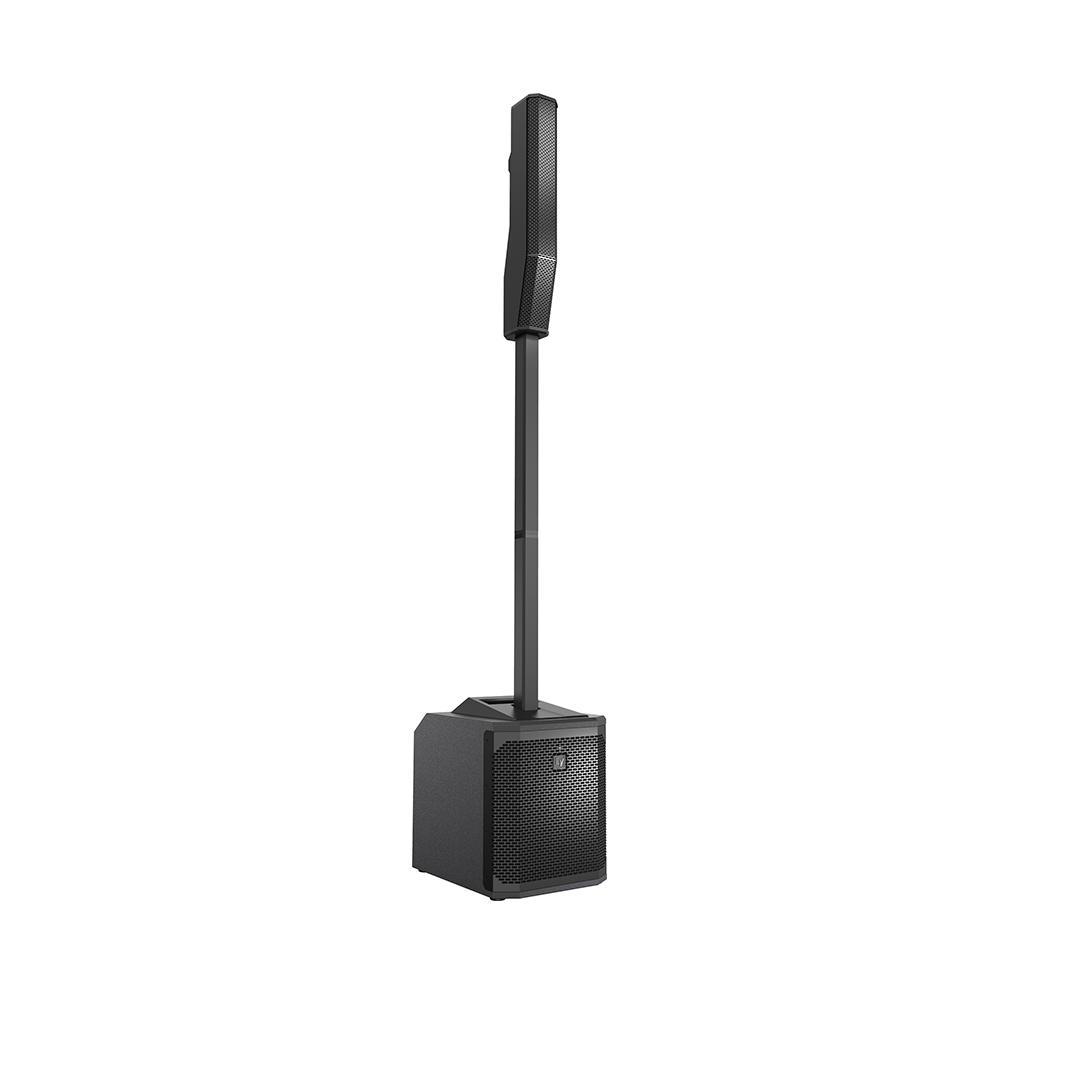

Electro-Voice EVOLVE 30M Portable powered column system

The Electro-Voice EVOLVE 30M is a portable, all-in-one column speaker system designed for top-tier sound performance. It features an 8-channel digital mixer, onboard effects, and advanced QuickSmart DSP for perfect sound control. The system includes a high-performance 10″ subwoofer and 6 neodymium drivers to deliver clear, wide coverage for any venue. With Bluetooth streaming, versatile input options, and remote control via the QuickSmart Mobile app, the EVOLVE 30M offers ultimate flexibility and ease of use for performers and event organizers alike.



SKU: EVOLVE 30M Category: Tag:

Product Overview:

The Electro-Voice EVOLVE 30M is a compact yet powerful column speaker system designed for solo performers, smaller musical groups, and venues requiring easy setup, portability, and exceptional sound quality. Featuring an 8-channel digital mixer, onboard studio-quality effects, and the advanced QuickSmart DSP, it offers unrivaled audio flexibility and control. With a high-performance 10″ subwoofer, 6 neodymium drivers, and 120° wide coverage, the EVOLVE 30M fills any room with rich, clear sound, while Cardioid Control reduces stage noise when multiple systems are used.

Designed for easy use, the system features multiple input options and a full suite of customizable effects. The QuickSmart Mobile app lets you remotely adjust sound settings, making it perfect for musicians and events that need quick sound optimization and full control. Whether for a wedding, corporate event, or live performance, the EVOLVE 30M delivers outstanding audio in a convenient, portable package.

Product Features:

  • Superior Sound Quality: Equipped with an 8-channel digital mixer, onboard studio-quality effects, and industry-leading QuickSmart DSP for optimized sound performance.

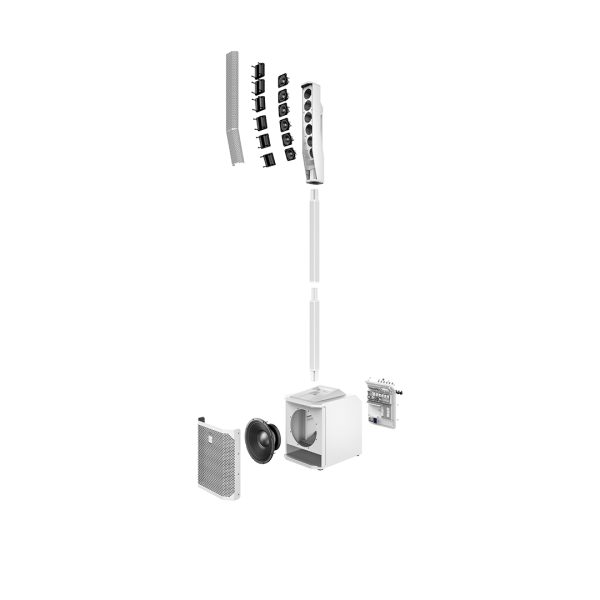

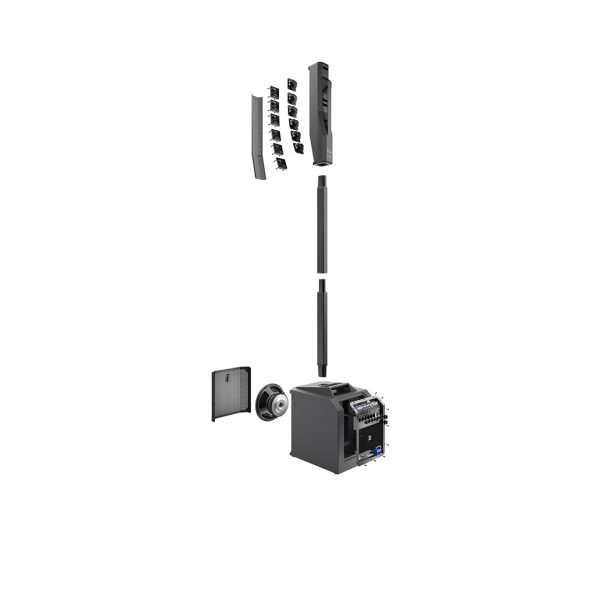

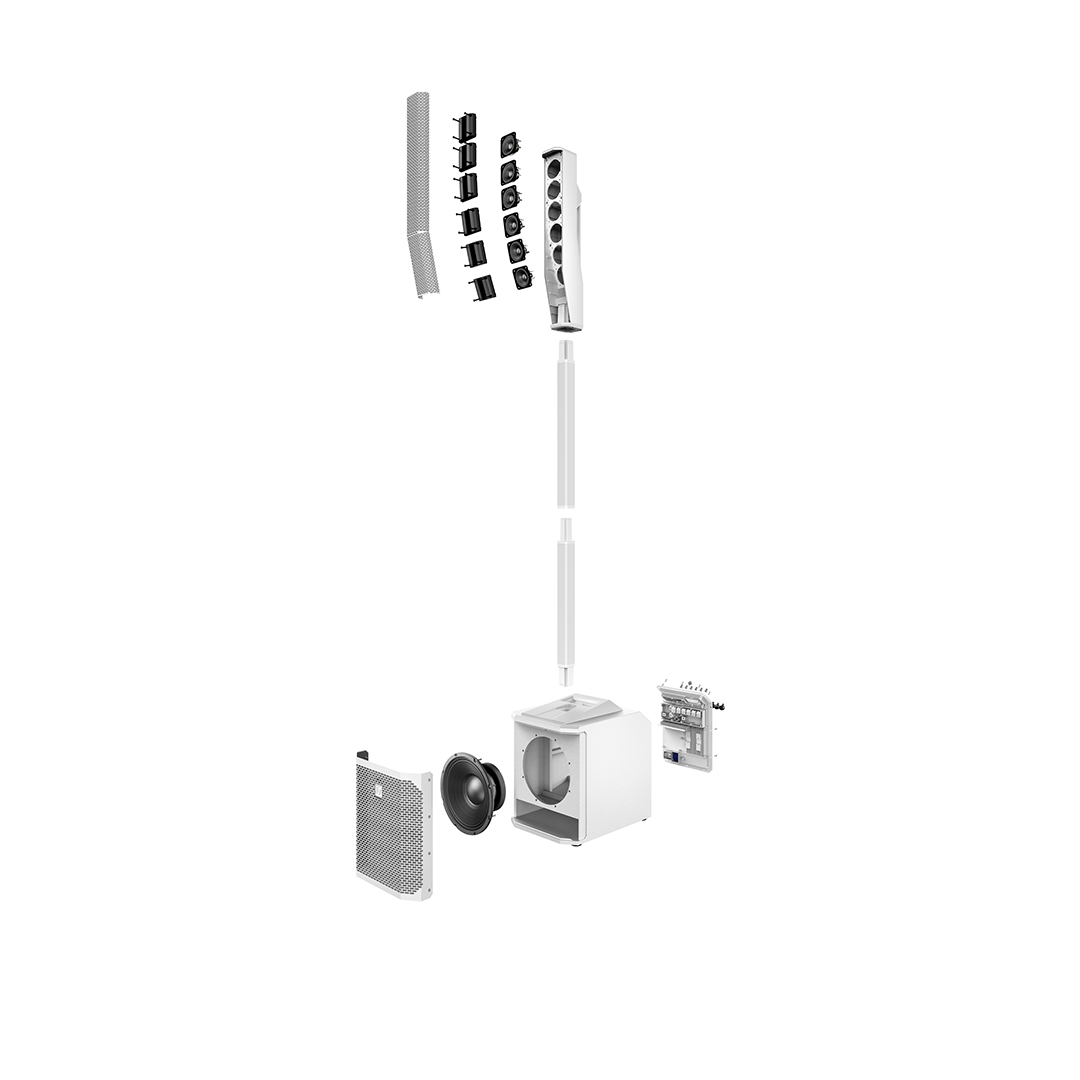

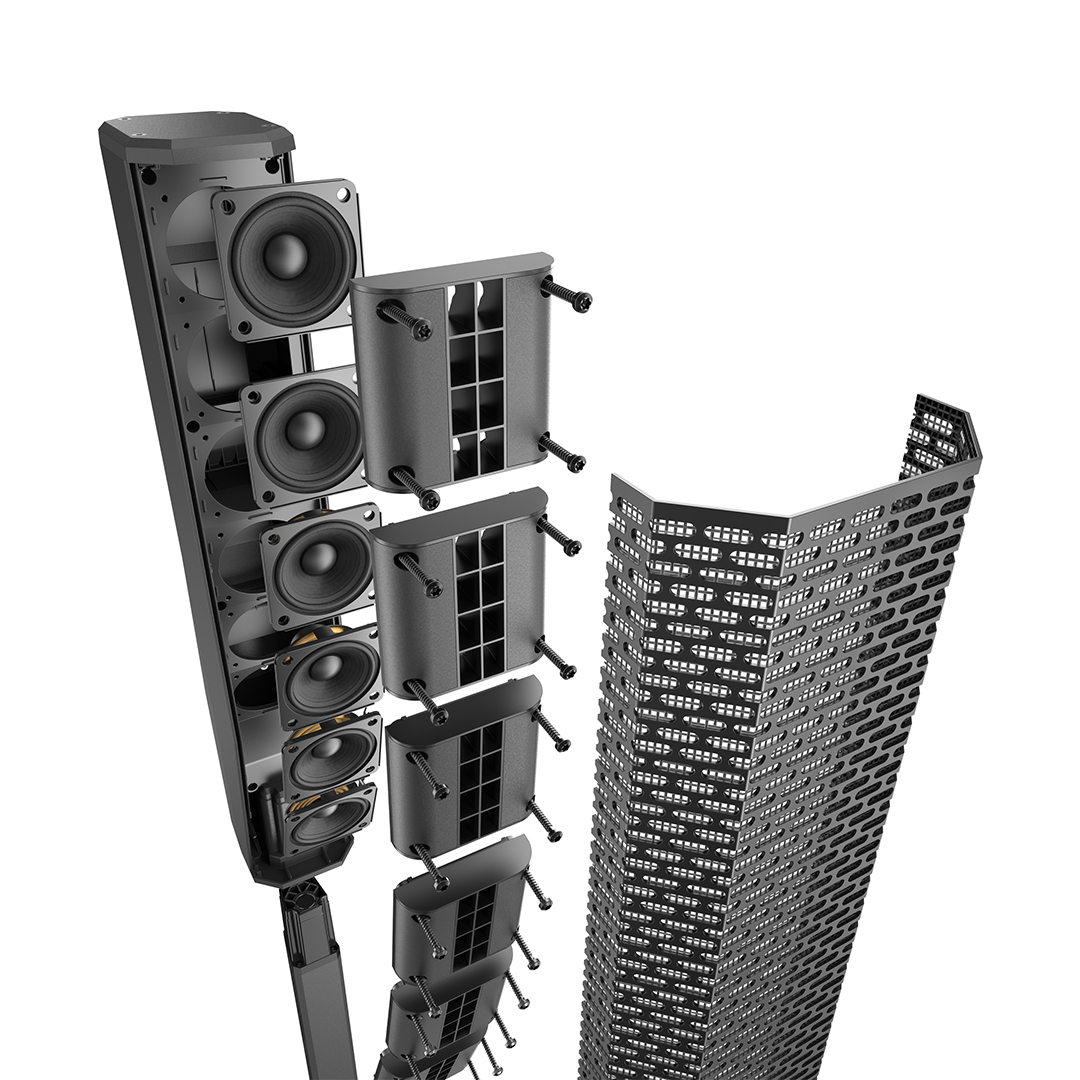

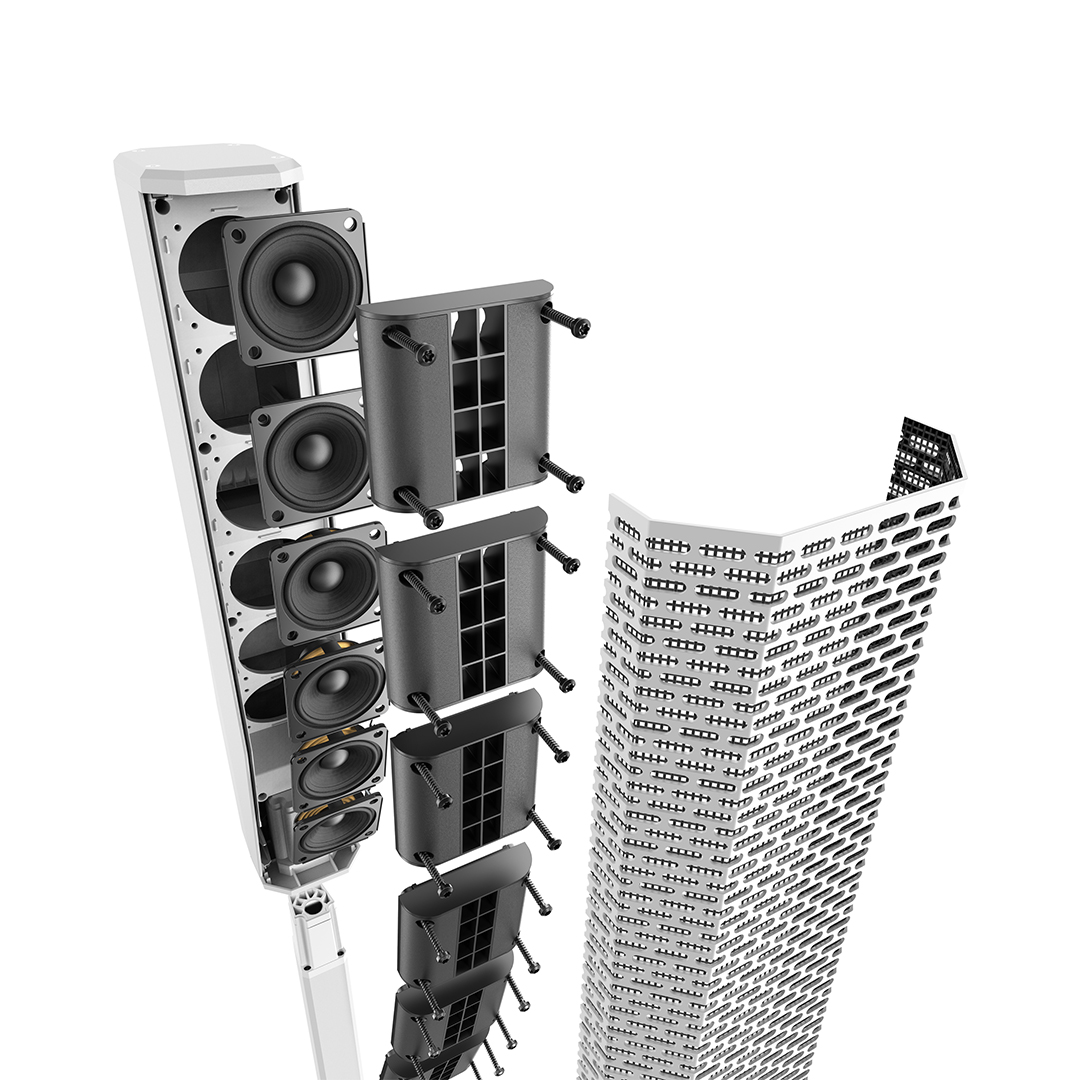

  • Room-Filling Coverage: The 6 neodymium drivers in the full-range column array provide 120° ultra-wide coverage, while the array-formed 40° asymmetrical vertical coverage targets both sitting and standing audiences.
  • Powerful Subwoofer: 10″ subwoofer with a high-efficiency laminar-flow vent design housed in a 15mm wood enclosure for enhanced acoustical performance.
  • Quick Setup & Portability: Lightweight and compact design, with single-trip portability, ideal for solo performers or small groups.
  • Flexible Connectivity: Multiple input options, including XLR/TRS combo, RCA, 3.5mm stereo, and Hi-Z instrument input, offering complete versatility for various performance needs.
  • Studio-Quality Effects: Includes 30 onboard presets for effects like chorus, delay, flange, and reverb, all easily accessible via the onboard mixer or QuickSmart Mobile app.
  • Bluetooth Streaming: High-resolution, low-latency Bluetooth streaming for music playback or accompaniment (available in select countries).
  • Remote Control via App: The next-gen Electro-Voice QuickSmart Mobile app allows for complete remote control of all audio, effects, and mix functions from across the room.
  • Rugged and Durable: Composite material speaker enclosure with ergonomic aluminum handle and a durable, road-worthy design for reliable performance on stage.





Specifications

Frequency response (-3 dB)1 51 Hz to 20 KHz
Frequency range (-10 dB)1 45 Hz to 20 KHz
Maximum SPL2 123 dB
Coverage (H x V) 120° x 40°
Amplifier rating 1000 W
LF channel rating 500 W
HF channel rating 500 W
Crossover frequency 200 Hz

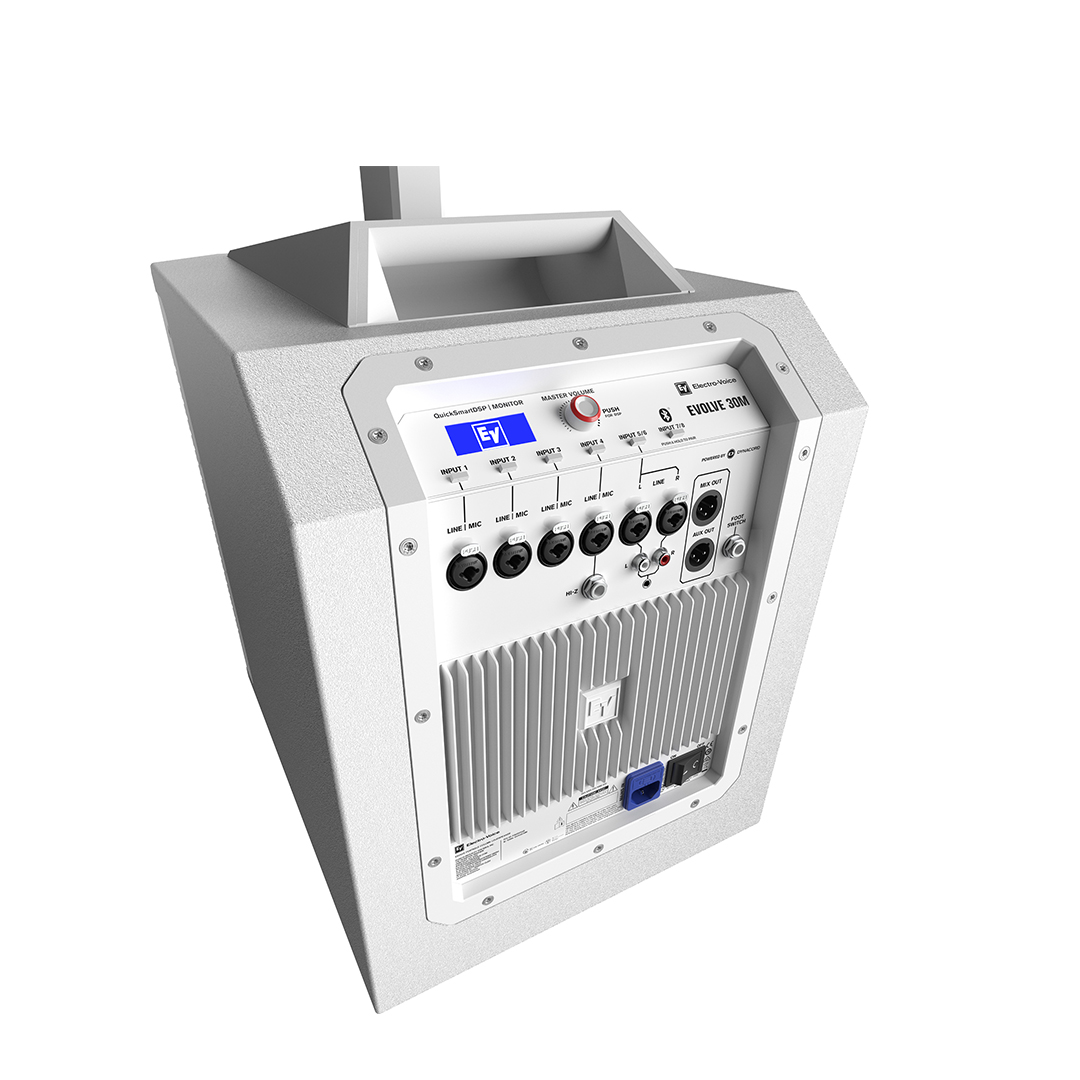

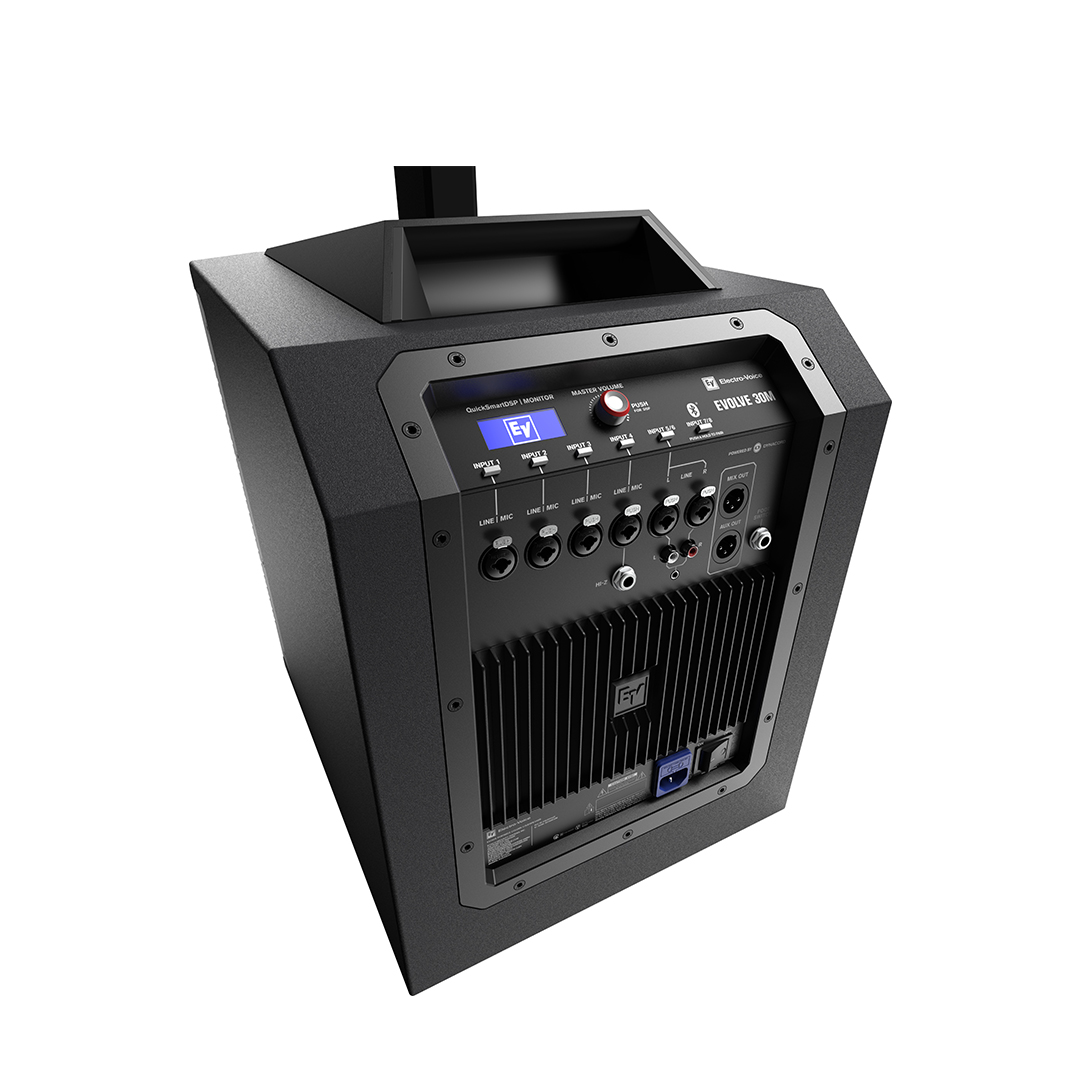

Connectors 4x XLR/TRS Combo Jack Line / Mic Input
1x 1/4″ TRS HI-Z input
2x XLR/TRS Combo Jack for Stereo Line Input
1x Stereo RCA Input
1x 3.5 mm Stereo Input
1x Wireless Stereo Bluetooth® Audio Input
1x 1/4″ Foot Switch Input
1x XLR MIX OUT Output
1x XLR AUX OUT Output
Enclosure Sub: 15 mm plywood
Column: Composite
Pole: Aluminum
Grille: Steel with black or white powder coat
Color: Black or white
Dimensions (HxWxD): mm (in) Sub: 448 x 332 x 432 (17.6 x 13.1 x 17)
Column: 620 x 95 x 157 (24.4 x 3.7 x 6.2)
Pole (2 pcs): 600 x 48 x 55 (23.6 x 1.9 x 2.2)
Net weight Sub: 34.9 lb (15.8 kg)
Column: 6.0 lb (2.7 kg)
Pole (2 pcs): 3.1 lb (1.4 kg)
Bag for column and pole: 1.9 (0.85 kg)
Shipping weight 53.4 lb (24.2 kg)
Power consumption3 100-240 V AC, 50-60 Hz, 1.5-0.6 A



1Half-space measurement using live DSP preset.
2Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
3Current rating is 1/8 power.
