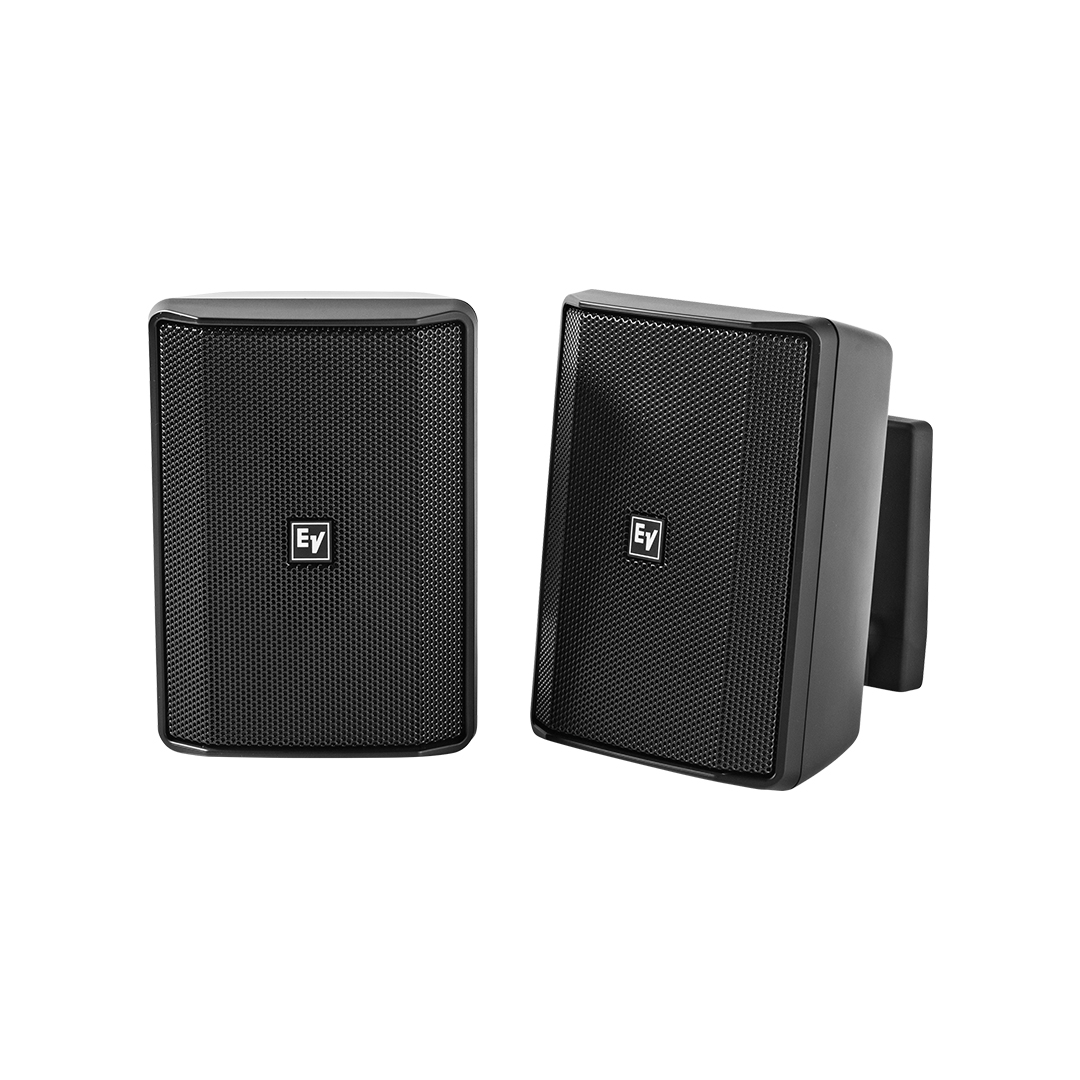

Electro-Voice EVID-S4.2T 4” cabinet 70/100v pair

Product Overview:

The Electro-Voice EVID-S4.2T is a high-performance, surface-mount speaker designed to provide excellent audio coverage in both indoor and outdoor environments. Featuring a 4″ woofer and titanium tweeter, the S4.2T delivers clear and balanced sound for background and foreground music, paging, and general sound reinforcement. With an IP54 rating, the speaker offers superb weather resistance, making it ideal for restaurants, bars, patios, retail settings, fitness clubs, and hospitality venues.

The unique mounting system of the EVID-S4.2T ensures easy, fast, and reliable installation with up to 90° horizontal rotation and 45° vertical rotation, allowing for flexibility in aiming the speaker to achieve optimal coverage. The system is ready for installation straight out of the box, eliminating the need for additional parts or complicated assembly.

With its durable ABS plastic enclosure and fire-rated housing, the speaker maintains its structural integrity while providing excellent low-frequency extension down to 75 Hz. The 15 W transformer with selectable wattage taps (3.7 W, 7.5 W, or 15 W) makes it compatible with 70V or 100V systems, ensuring adaptability to various audio setups.

Electro-Voice EVID-S4.2T Surface Mount Speaker Specifications:

• Speaker Type: Two-way, full-range surface mount speaker
• Woofer: Long-throw 4″ (102 mm) woofer for extended low-frequency performance, down to 75 Hz
• Mounting System: Innovative, quick-install system that allows for 90° horizontal and 45° vertical rotation, providing easy and flexible installation on walls and ceilings. The system comes fully assembled for convenience.
• Transformer: 15 W transformer with selectable wattage options of 3.7 W (70V only), 7.5 W, or 15 W. Selection is made via the Euroblock connector on the rear input panel.
• Weather Resistance: IP54 rating, ensuring protection against dust and water splashes, making it suitable for both indoor and outdoor environments (restaurants, bars, patios, retail, etc.).
• Enclosure: Fire-rated ABS plastic for durability, housed in a compact and aesthetically pleasing design.
• Audio Performance: Ideal for background and foreground music, paging, and sound reinforcement, providing excellent wide and uniform coverage.

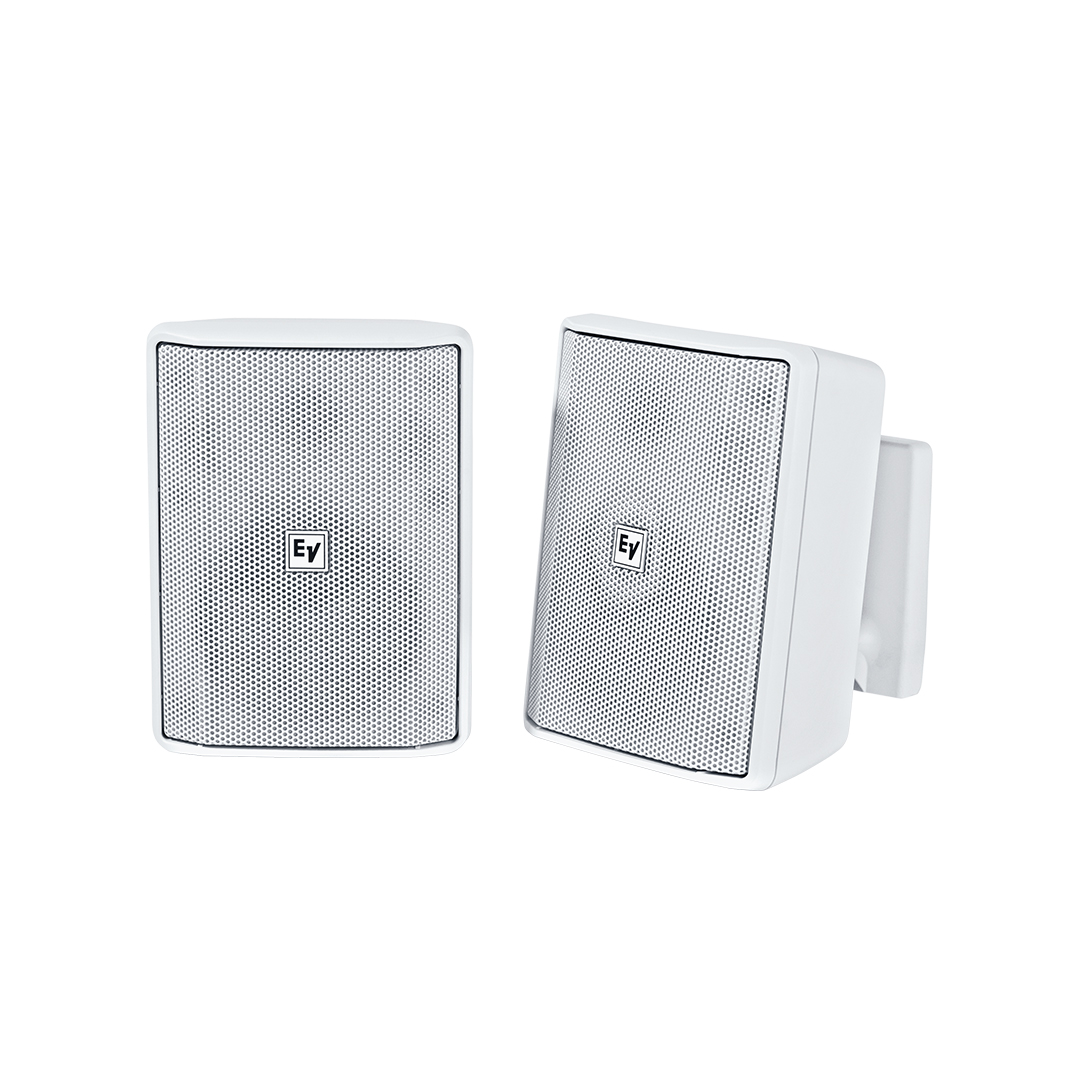

• Color Options: Available in black and white finishes, and can be easily painted to match decor.
• Installation: Suitable for use in a variety of indoor and outdoor applications with a simple, reliable installation system for flexibility in placement.
• Durability: Engineered for outdoor environments with superior weather resistance, ensuring reliable operation even in challenging conditions (sun, salt, and moisture).

Key Features Recap:

• 4″ Woofer and titanium tweeter for full-range, high-quality sound reproduction
• IP54 weather-resistant rating for indoor and outdoor use, ensuring durability against sun, salt, and moisture
• Innovative Mounting System with 90° horizontal and 45° vertical rotation for easy installation on walls and ceilings
• Selectable Transformer Wattage options (3.7 W, 7.5 W, 15 W) for use in 70V or 100V systems
• Fire-Rated ABS Plastic Enclosure with a compact, modern design
• Excellent Low-Frequency Performance down to 75 Hz
• Wide Coverage ideal for music, paging, and sound reinforcement in commercial spaces
• Available in black or white, and can be painted to match decor

Specifications
