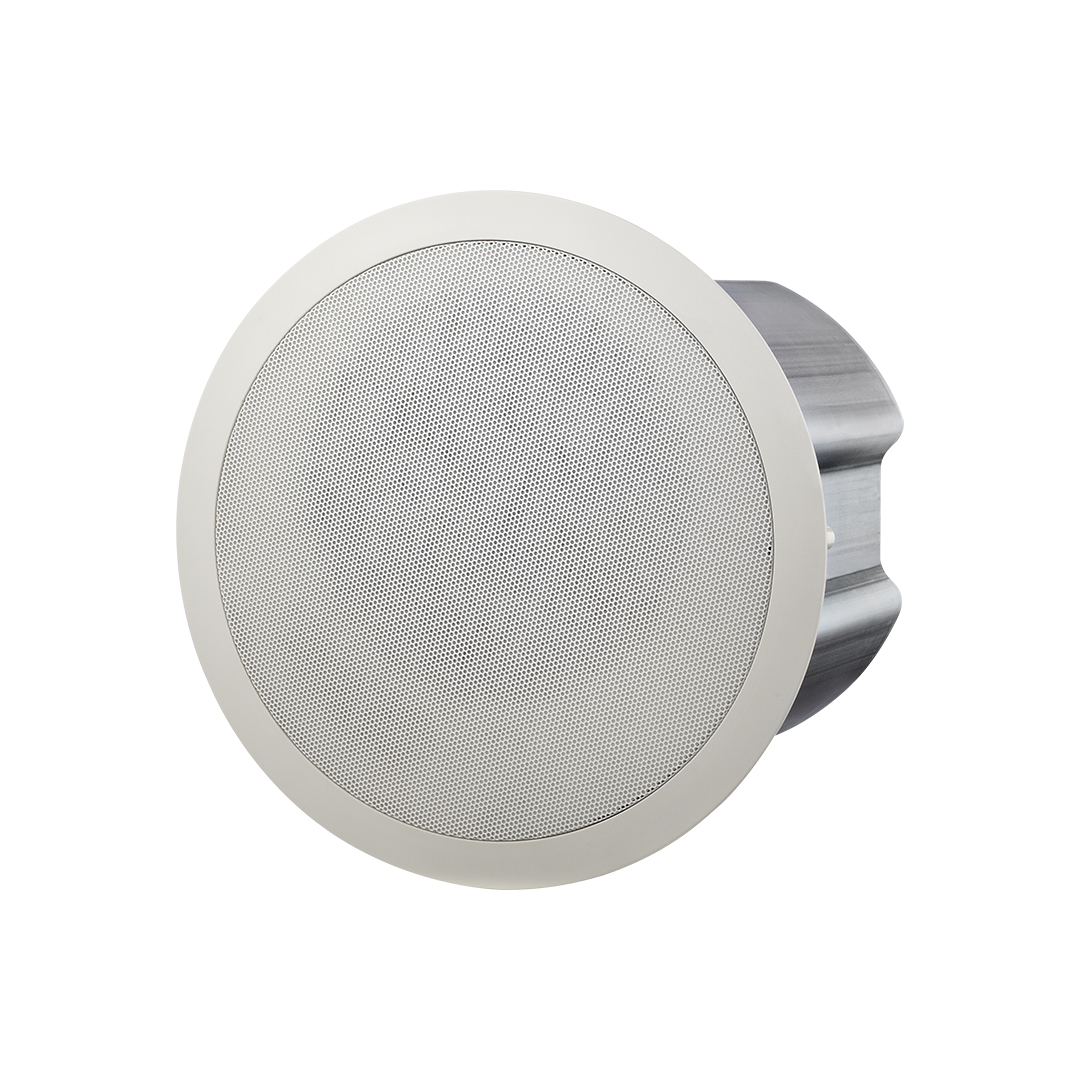

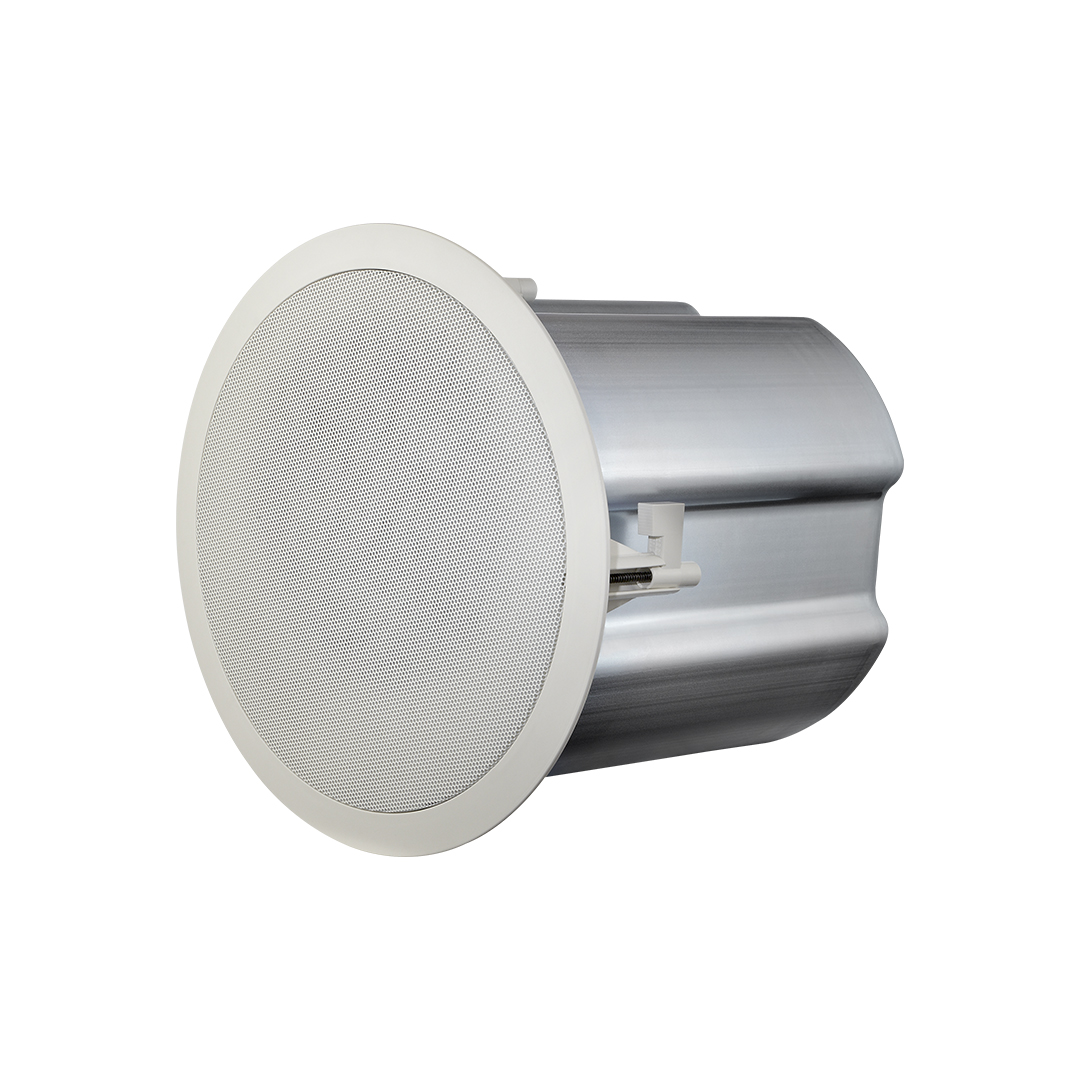

Electro-Voice EVID-PC6.2 6½” 2-way ceiling speaker

Product Overview:

The Electro-Voice PC6.2 is a cutting-edge ceiling speaker system designed for superior audio performance and ease of installation. It combines a dedicated high-performance EV-engineered compression driver and a high-excursion 6.5-inch woofer, offering a powerful sound with extended low-end frequency response and ultra-wide high-frequency dispersion. This design allows for incredibly even coverage, making it ideal for large spaces such as retail environments, shopping malls, theaters, restaurants, and stadium concourses.

With enhanced power handling capabilities of up to 100W, the PC6.2 delivers high output (113 dB peak SPL), ensuring that the system can fill large spaces with clear, detailed sound. Its broad coverage angles (120° horizontal, 105° vertical) provide exceptional sound coverage across a wide area, eliminating dead spots and ensuring consistent sound quality throughout the room.

The PC6.2 also features innovative installation hardware, including a four-point clamp mechanism and integrated mounting legs, making it easy to install in various ceiling formats. The detachable pass-thru Phoenix-style signal connections streamline wiring, reducing setup time.

Constructed with a fully reinforced ABS baffle, the PC6.2 ensures durability and long-lasting performance, with compliance to key safety standards, including UL1480 and EN 54 (pending), ensuring reliability for commercial and public spaces.

Electro-Voice PC6.2 Ceiling Speaker System Specifications:

• High-Performance Compression Driver: Utilizes an EV-engineered compression driver for enhanced high-frequency performance and ultra-wide dispersion, providing even and consistent coverage across the room.

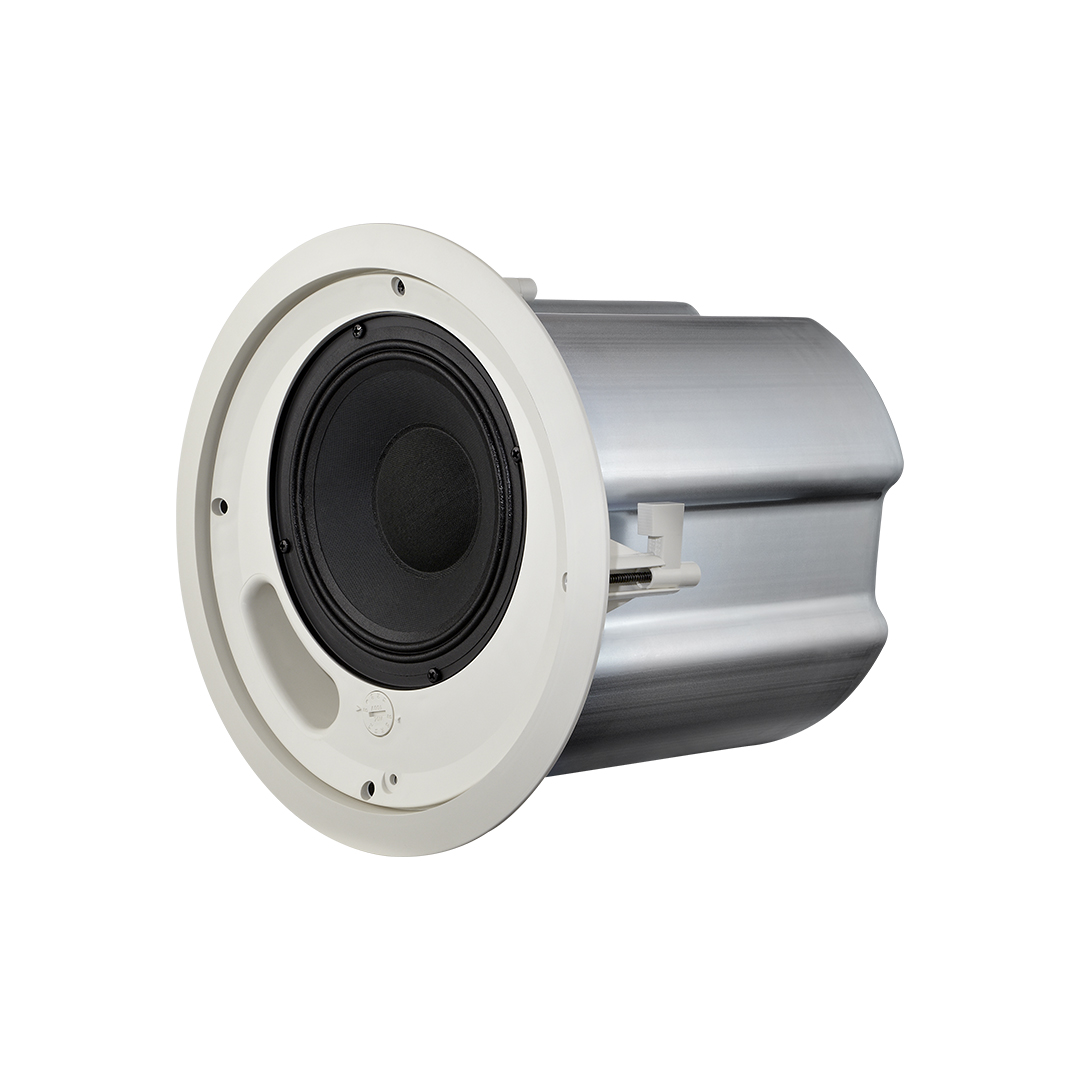

• High-Excursion Woofer: The 6.5-inch woofer offers dramatic low-end frequency extension, producing rich bass without sacrificing clarity.

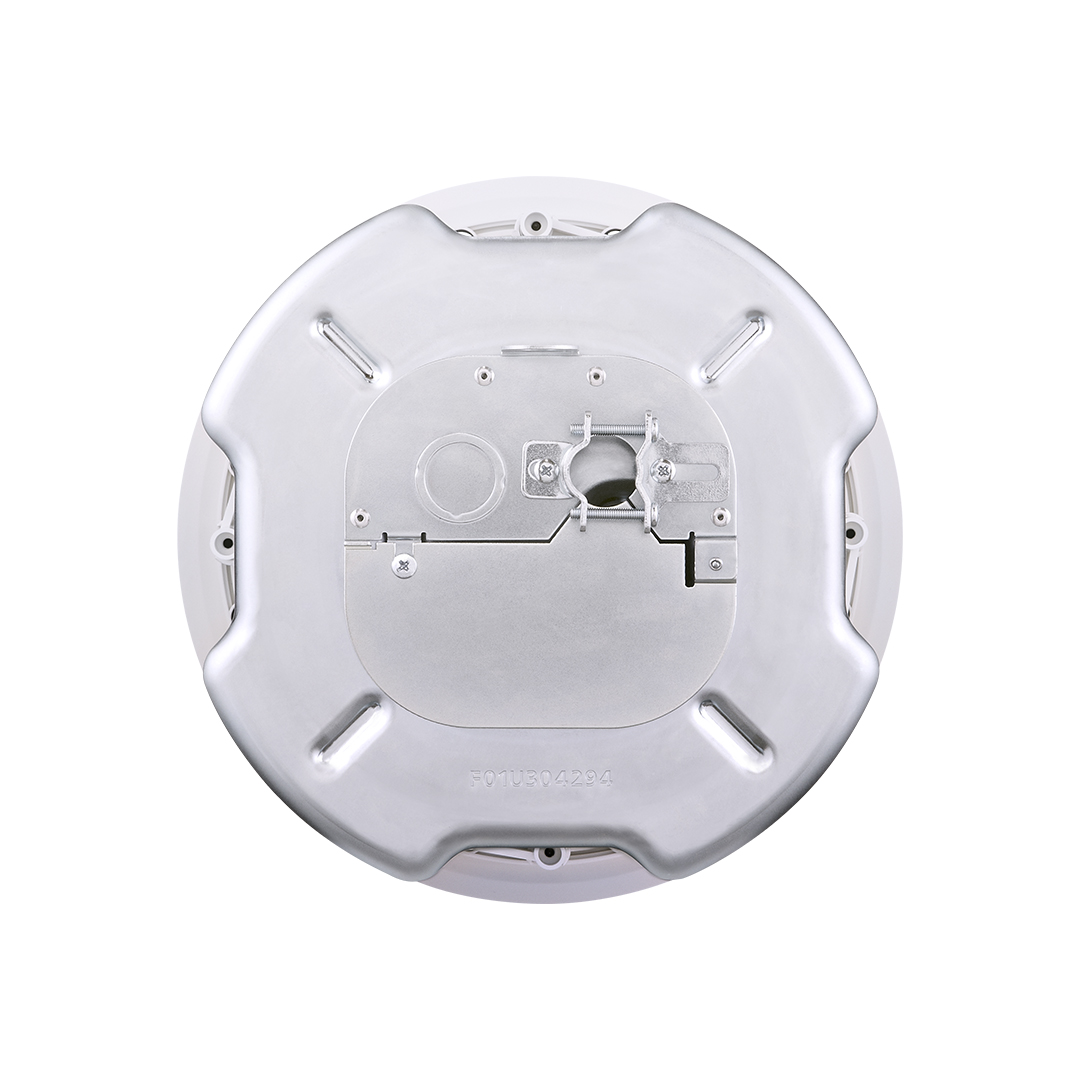

• Reinforced Steel Back Can: Provides a rigid enclosure that minimizes acoustic loss, ensuring optimal sound quality and durability.
• Wide Coverage Angle:
  • 120° Horizontal Dispersion and 105° Vertical Dispersion to ensure that sound is evenly distributed across a wide area.
• Tap Selector: Offers flexible operation for 8Ω, 70V, or 100V systems, with easy-to-use wattage tap adjustments for efficient power handling.
• Installation Features:
  • Four-Point Clamp Mechanism and Integrated Mounting Legs: Enables quick and secure ceiling installation, making setup easy in various ceiling constructions.
  • Detachable Pass-Thru Phoenix-Style Signal Connections: Simplifies the wiring process for faster, hassle-free installation.
• Durable Construction:
  • ABS UL-Rated Baffle: Ensures long-term durability and compliance with safety standards.
  • Fully Reinforced Baffle: Provides added protection for internal components and ensures reliable performance.
• Certification Compliance: Fully compliant with EN 54 (pending), UL 1480, and 2043 standards, ensuring safety and quality for commercial and public installations.

Key Features Recap:

• Compression Driver for enhanced high-frequency performance and even coverage
• High-Excursion Woofer for extended bass and powerful low-end frequencies
• 120° Horizontal & 105° Vertical Coverage for uniform sound distribution
• High Output (113 dB / 114 dB) for maximum clarity and volume
• Tap Selector for 8Ω, 70V, or 100V configurations
• Simplified Installation with four-point clamp mechanism and Phoenix-style signal connections
• Durable ABS Baffle with reinforced construction for long life
• Certification Compliance with EN 54 (pending), UL 1480, and 2043
