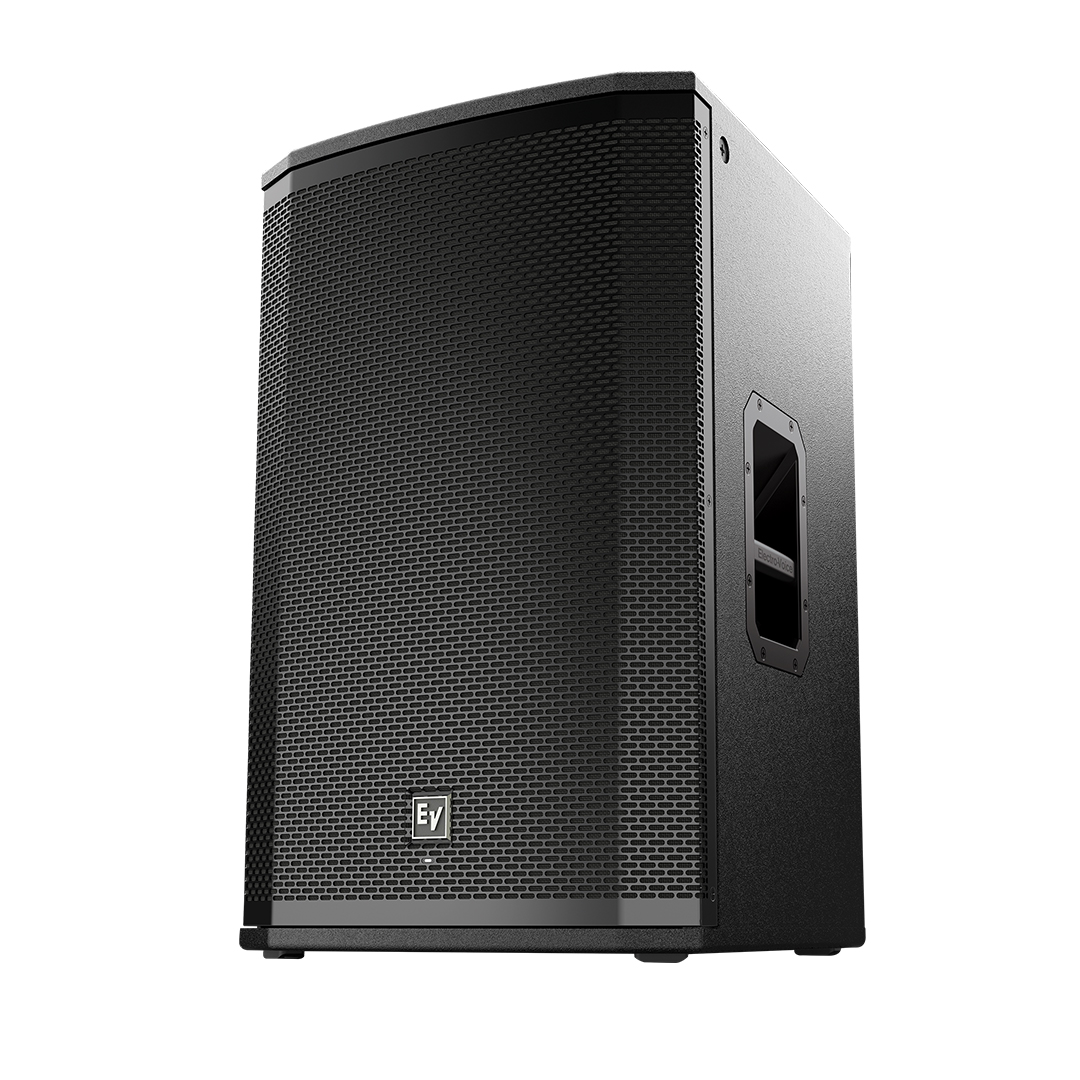

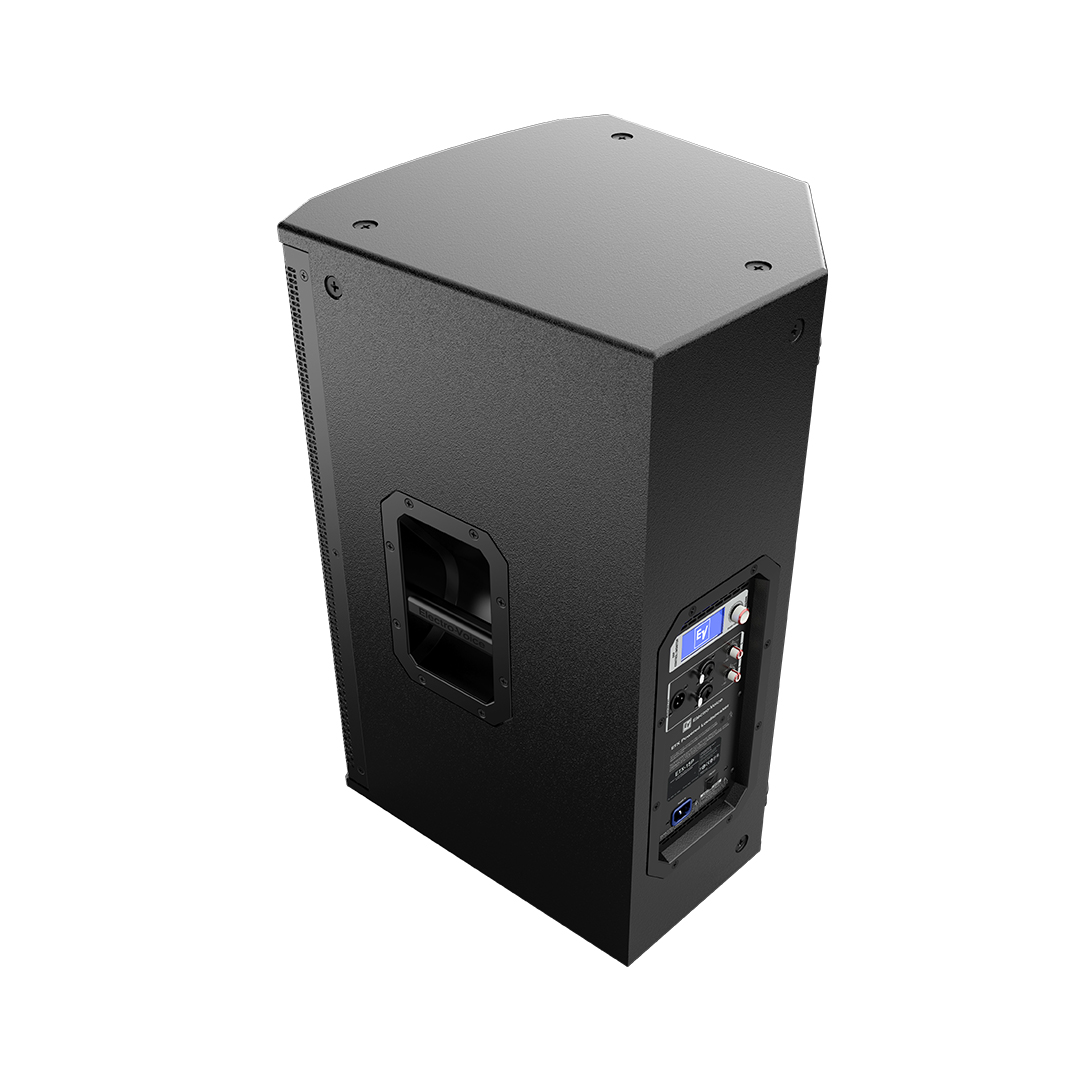

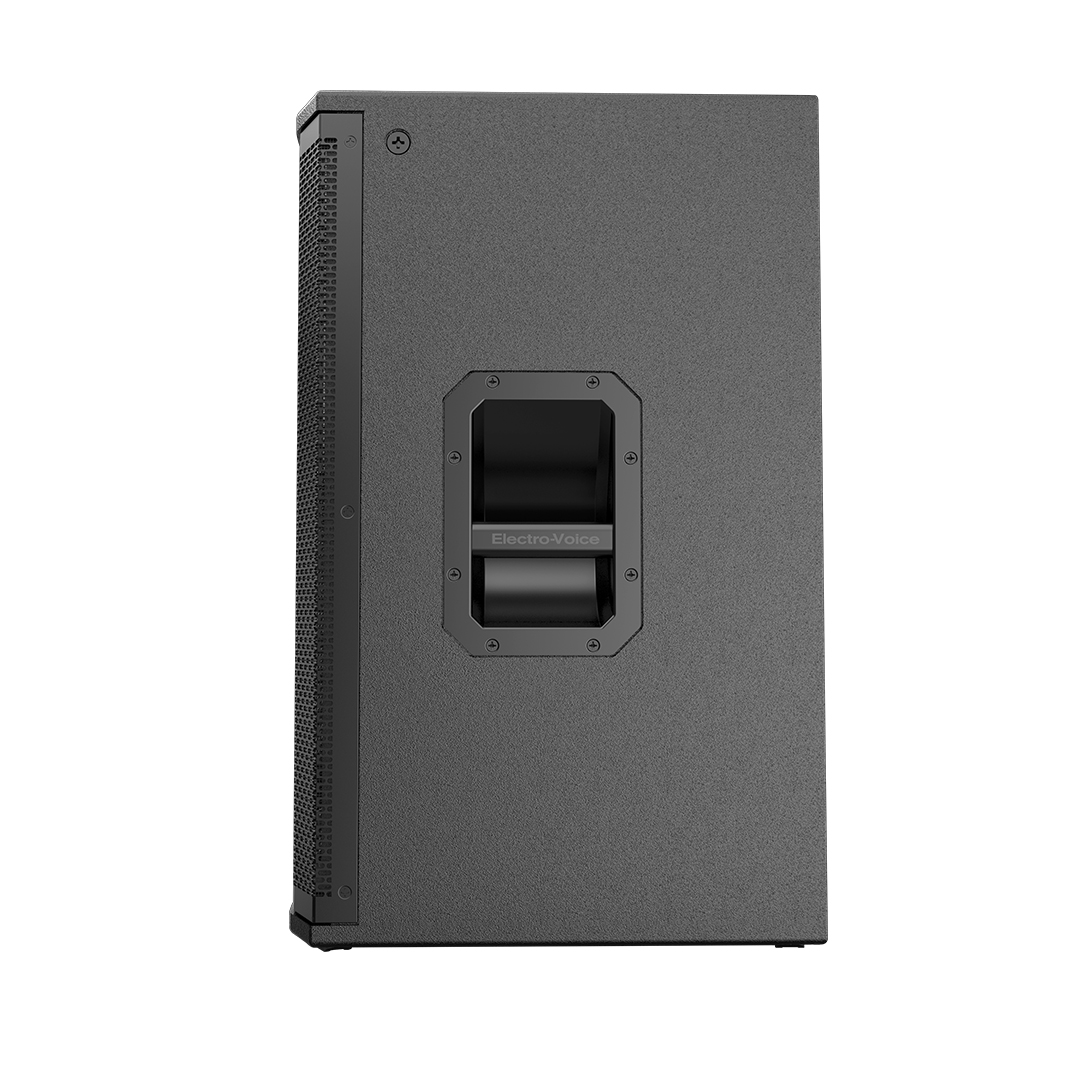

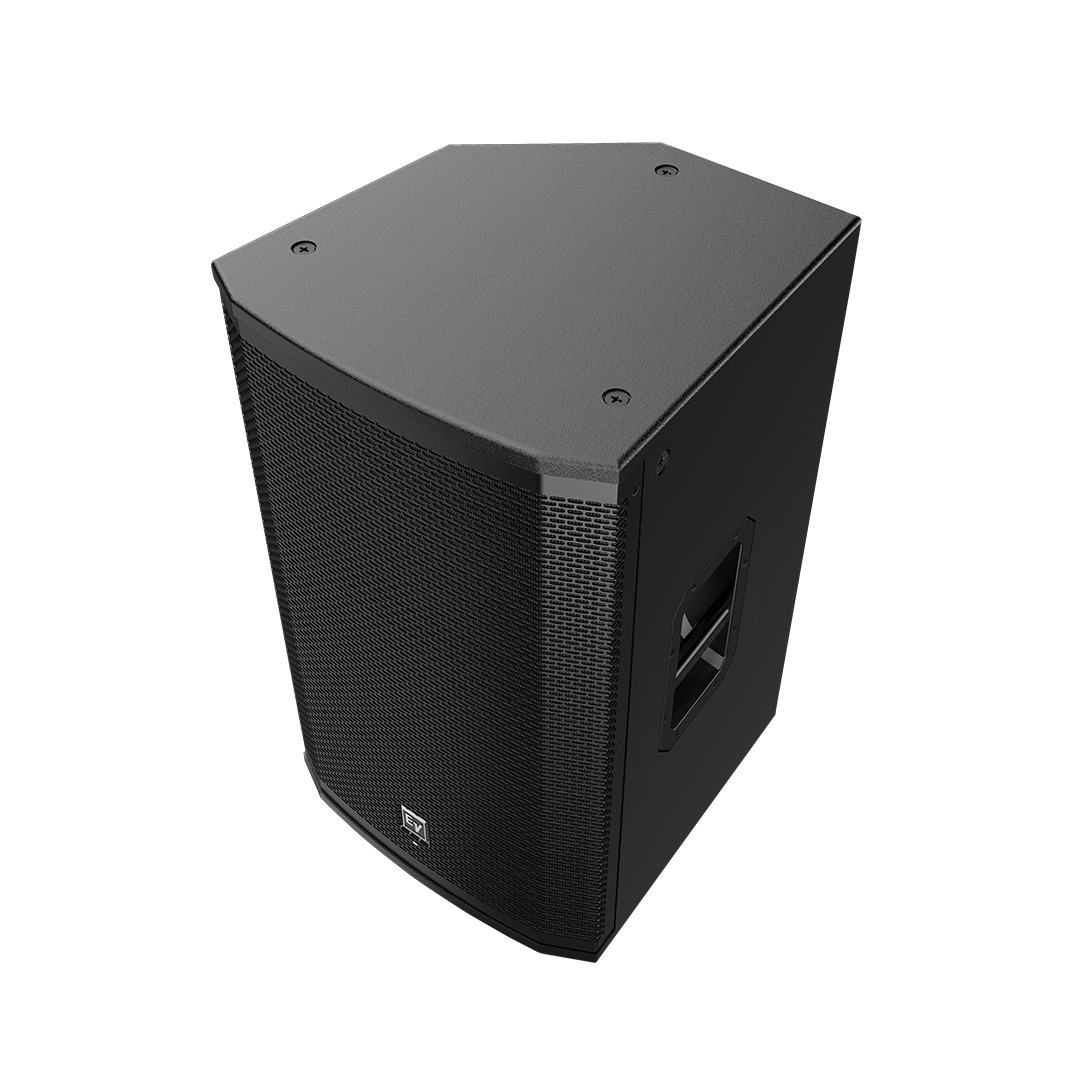

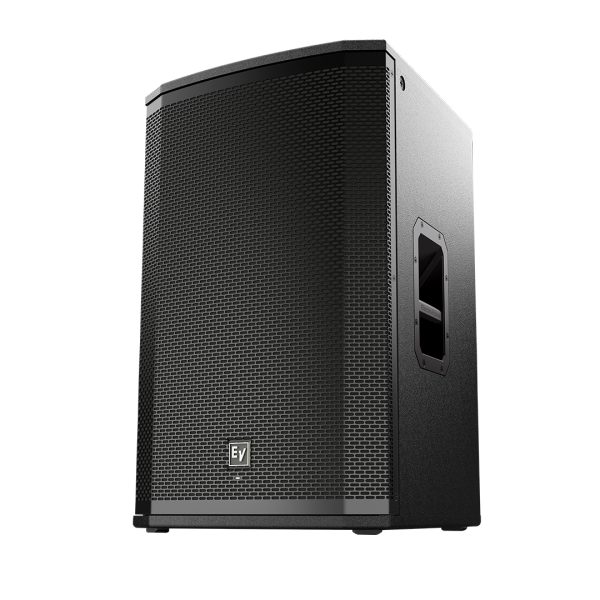

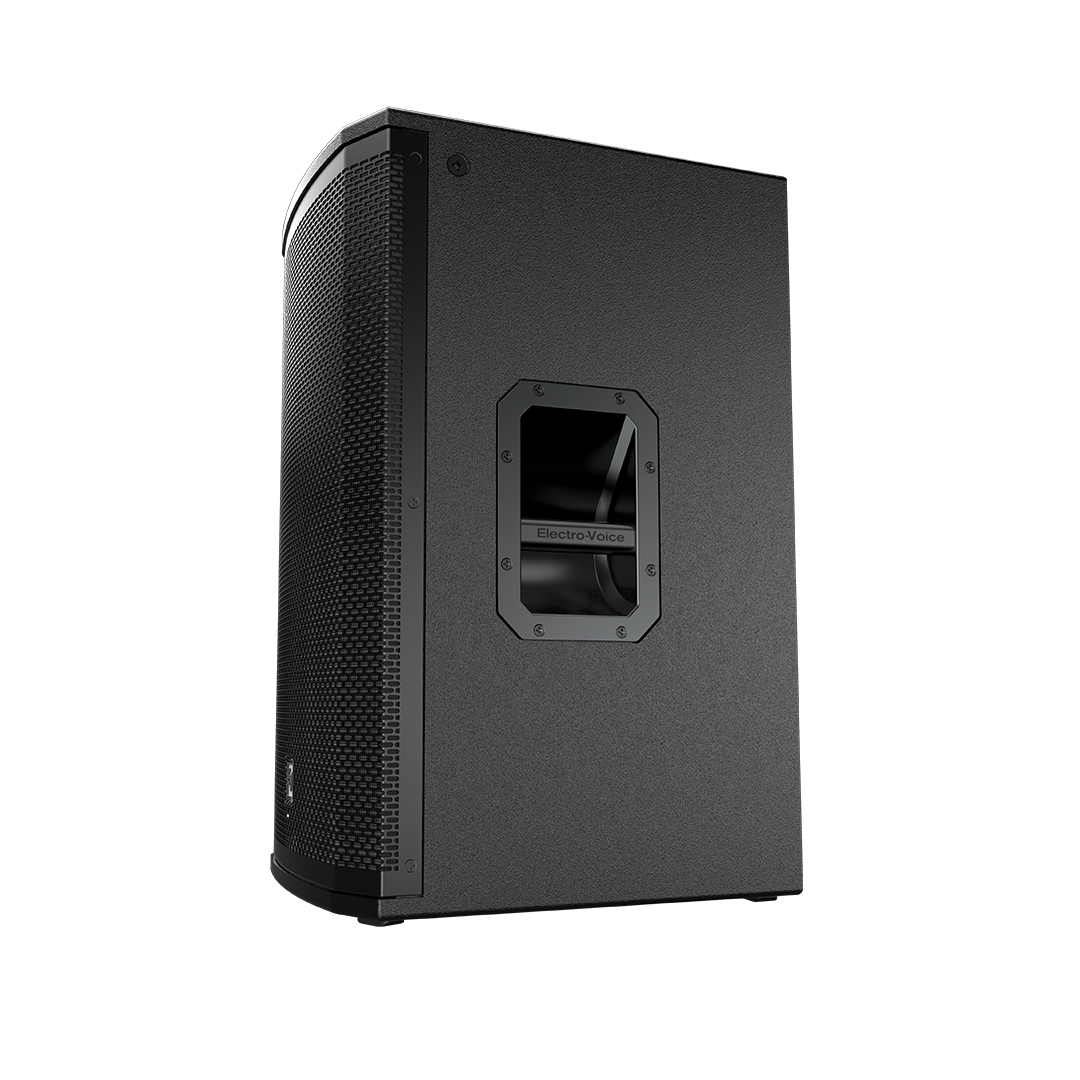

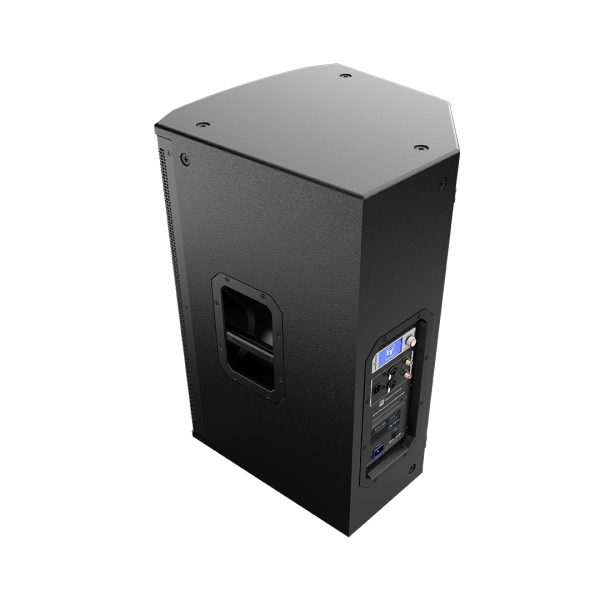

Electro-Voice ETX-15P 15″ powered loudspeaker

This high-power, two-way compact loudspeaker is designed for a range of portable and permanent applications. Featuring a 15-inch SMX woofer, 1.25-inch HF titanium compression driver, and a 2000 W Class-D amplifier with FIR-Drive DSP, it delivers exceptional sound with up to 135 dB peak SPL. The innovative SST waveguide and advanced transducer technologies ensure uniform coverage, minimal distortion, and smooth, high-quality sound, making it an ideal choice for demanding audio environments.

SKU: ETX-15P Category: Tag:



Product Overview:

The high-performance loudspeaker featuring a 15-inch LF SMX woofer and a 1.25-inch HF titanium compression driver offers exceptional audio clarity and powerful sound output. Powered by a 2000 W Class-D amplifier and integrated FIR-Drive DSP, this speaker delivers a peak SPL of 135 dB, making it ideal for both portable and permanent applications. With its innovative SST (Signal Synchronized Transducers) waveguide design and advanced transducer technology, this speaker provides precise, uniform coverage with minimal distortion, ensuring high-quality sound in a wide variety of environments.

Product Features:

  • Powerful Performance: 2000 W Class-D power amplifier and FIR-Drive DSP deliver up to 135 dB peak SPL for clear, powerful sound.
  • Advanced Transducers: 15-inch LF SMX woofer with composite cone materials and 1.25-inch HF titanium compression driver for smooth, high-SPL response.
  • Signal Synchronized Transducers (SST): Proprietary waveguide design for consistent coverage, optimized directivity, and minimal distortion.
  • Single-Knob DSP: Easy-to-use DSP with presets for various configurations, top+sub combinations, and tailored performance across different environments.
  • High-Efficiency Driver: DH3-B compression driver with convex diaphragm for extended frequency response up to 20 kHz, ensuring smooth, high-frequency performance.



Specifications

Frequency Response (-3 dB) 48 Hz – 20 kHz1
Frequency Range (-10 dB) 40 Hz – 20 kHz1
Maximum SPL 135 dB peak2
Coverage (H x V) 90° x 60°
Power Rating 2000 W
LF Transducer SMX2150 380 mm (15 in)
HF Transducer DH3-B 1.25-in titanium compression driver
Crossover Frequency 1500 Hz

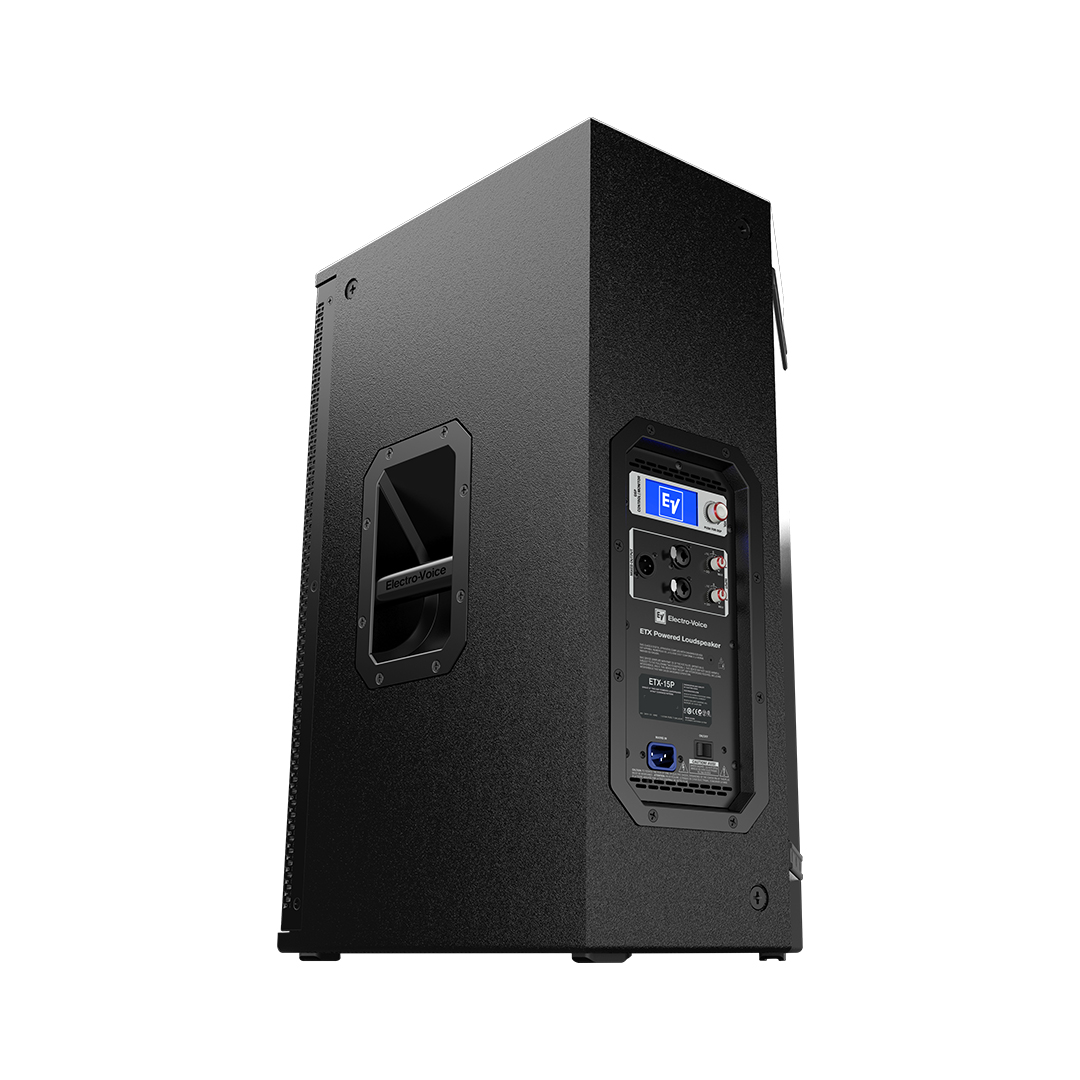

Connectors (2) XLR/TRS combo jack and (1) XLR link output
Enclosure 18mm Plywood with EVCoat
Grille 16AWG steel with powdercoat

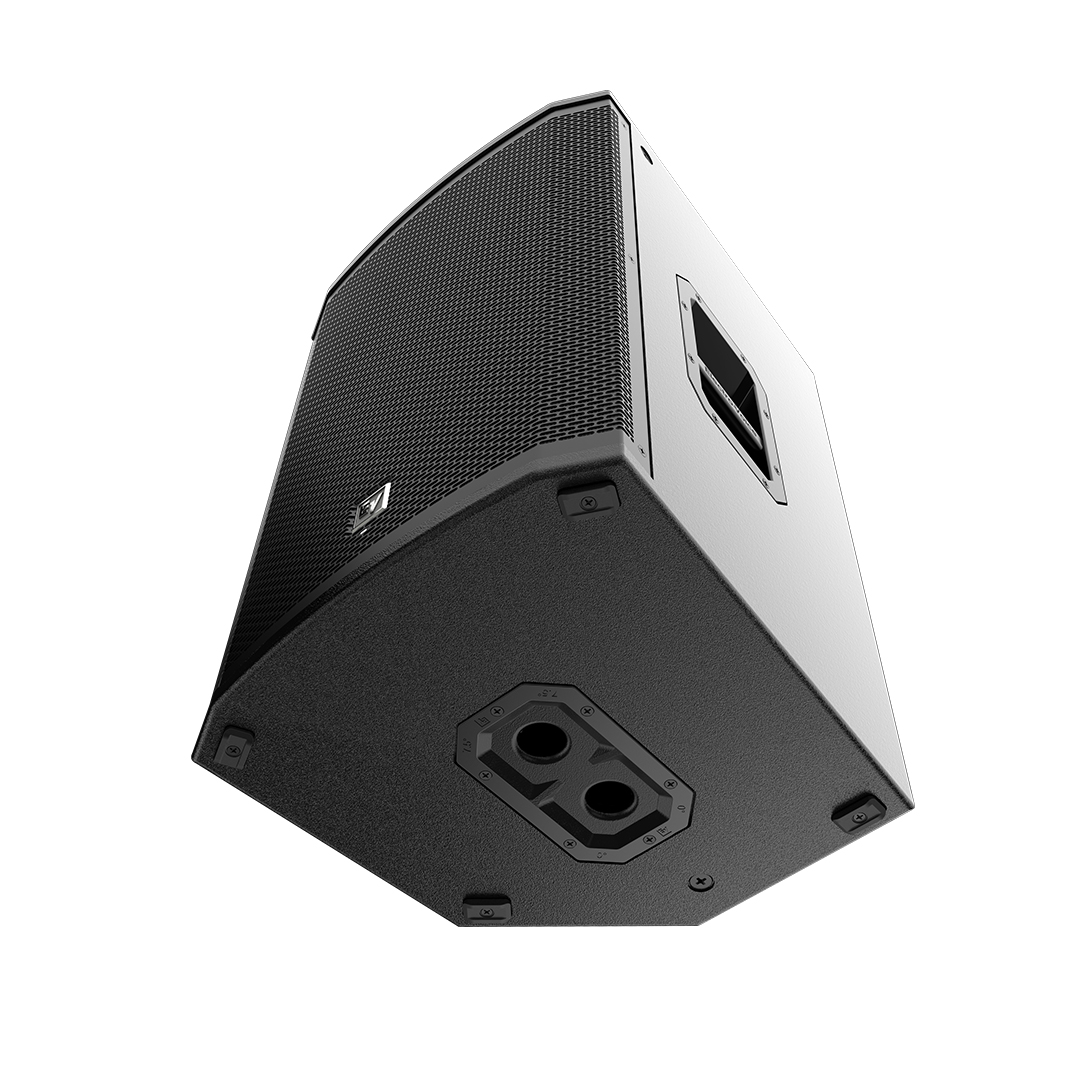

Suspension (8) M10 suspension points
Dimensions (H x W x D) 691 mm x 431 mm x 447 mm (27 in x 17 in x 18 in)
Net Weight 27.7 kg (61.1 lb)
Shipping Weight 31.5 kg (69.5 lb)
Power Consumption 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A3

¹ Full space measurement using the music DSP preset.

2 Maximum SPL is measured at 1 m using broadband pink noise at maximum output.

3 Current rating is 1/8 power..
