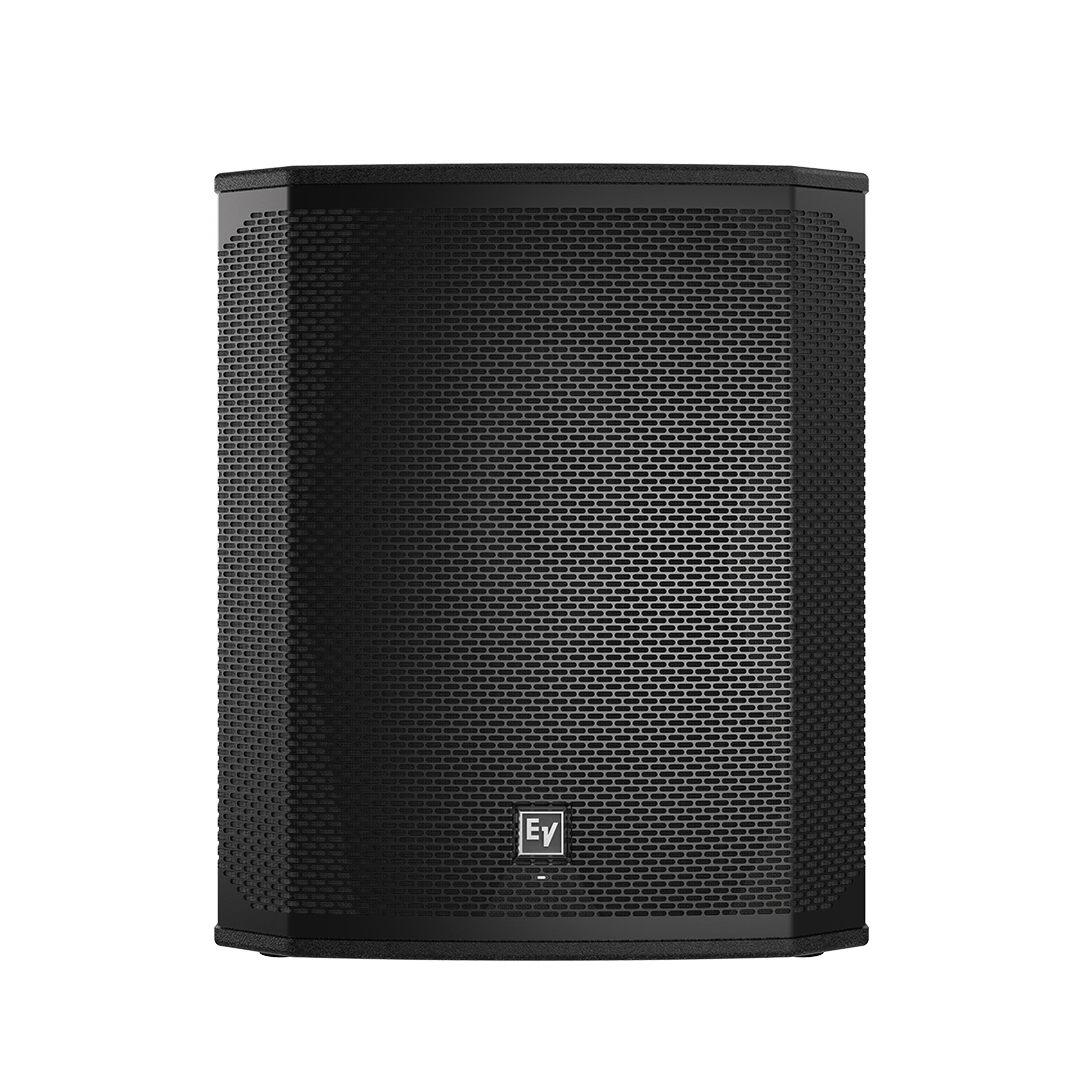

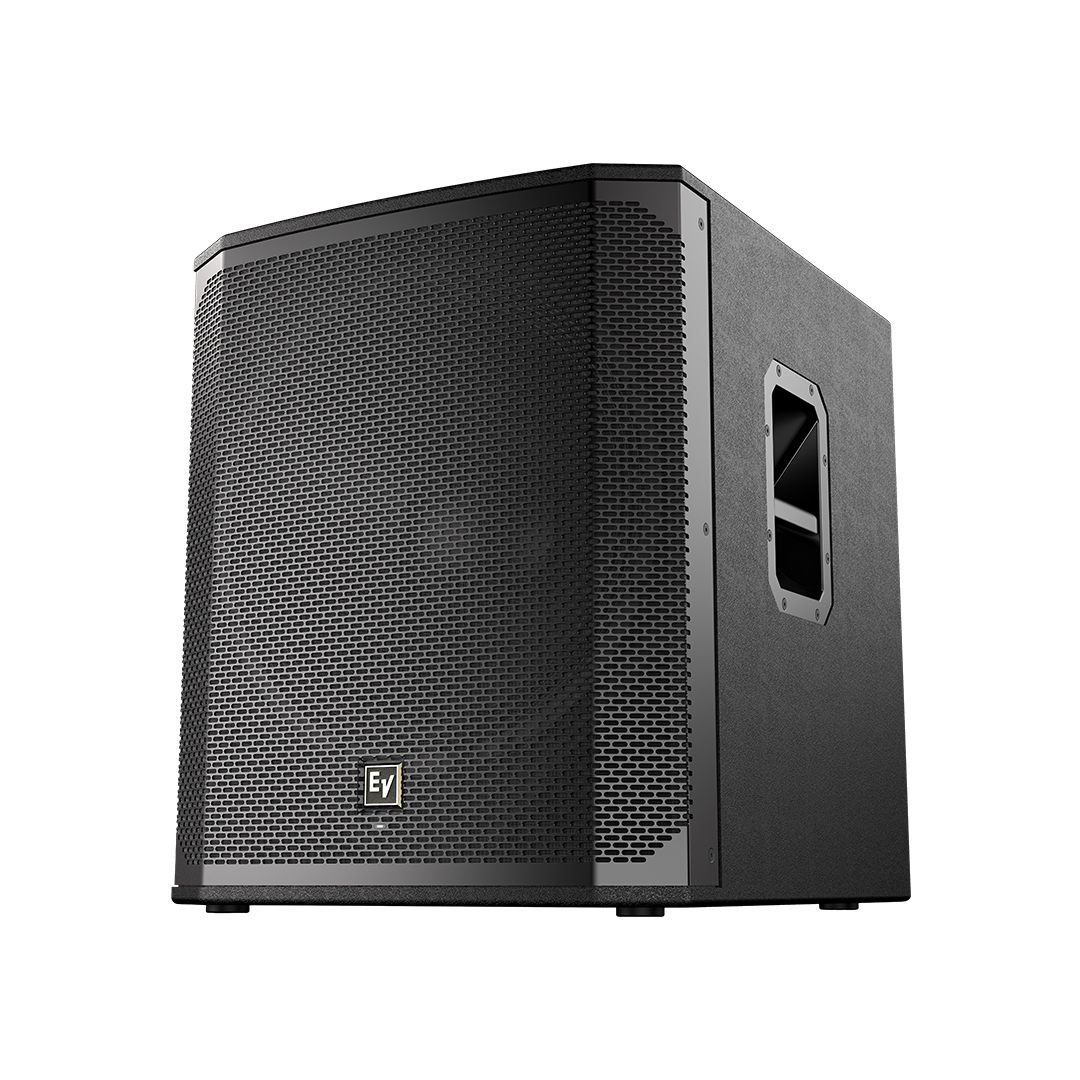

Electro-Voice ELX200-18SP 18″ powered subwoofer

The Electro-Voice ELX200-18SP powered subwoofer offers exceptional bass performance with 1200 W of power and advanced QuickSmartDSP technology for easy setup and system optimization. Designed for both portable and installed applications, it features a rugged, lightweight enclosure, professional-grade hardware, and the ability to control and monitor up to six speakers wirelessly via the QuickSmart Mobile app. With its high-efficiency amplifier and EV-engineered transducers, the ELX200-18SP provides powerful, clear bass for any live event or installation.

SKU: ELX200-18SP Category: Tag:



Product Overview:

The Electro-Voice ELX200-18SP powered subwoofer delivers powerful, deep bass with high-efficiency 1200 W Class-D amplification, reaching up to 132 dB peak SPL. With integrated QuickSmartDSP technology, it offers easy setup and precise control through presets, a three-band EQ, and user-programmable settings. The ELX200-18SP features professional-grade hardware for portability and durability, including a compact, lightweight 15-mm wood enclosure, integrated M20 threaded pole mount plate, and two-handle design for easy transport. Additionally, the QuickSmart Mobile app enables wireless configuration, control, and monitoring of up to six ELX200 speakers simultaneously.

Product Features:

  • QuickSmart Mobile App: Wireless configuration and monitoring of up to six ELX200 loudspeakers using Bluetooth Low Energy (BTLE), with alerts for critical performance conditions (Bluetooth availability varies by region).
  • QuickSmartDSP: Advanced processing with three presets (Music, Live, Club), three-band EQ, user-programmable presets, limiter status monitoring, input level control, and master volume for optimal gain structure via LCD.
  • 1200 W Class-D Amplifier: Delivers up to 132 dB peak SPL with ultra-efficient, high-sensitivity transducers (18-inch EVS-18L woofer) designed and engineered by EV for deep, powerful bass.

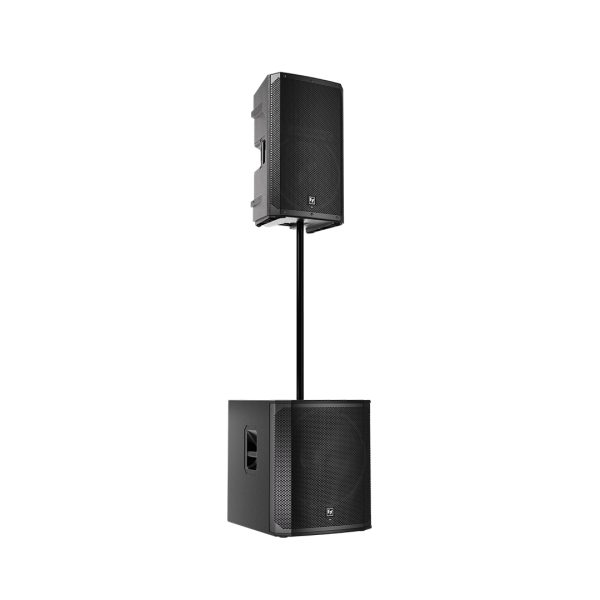

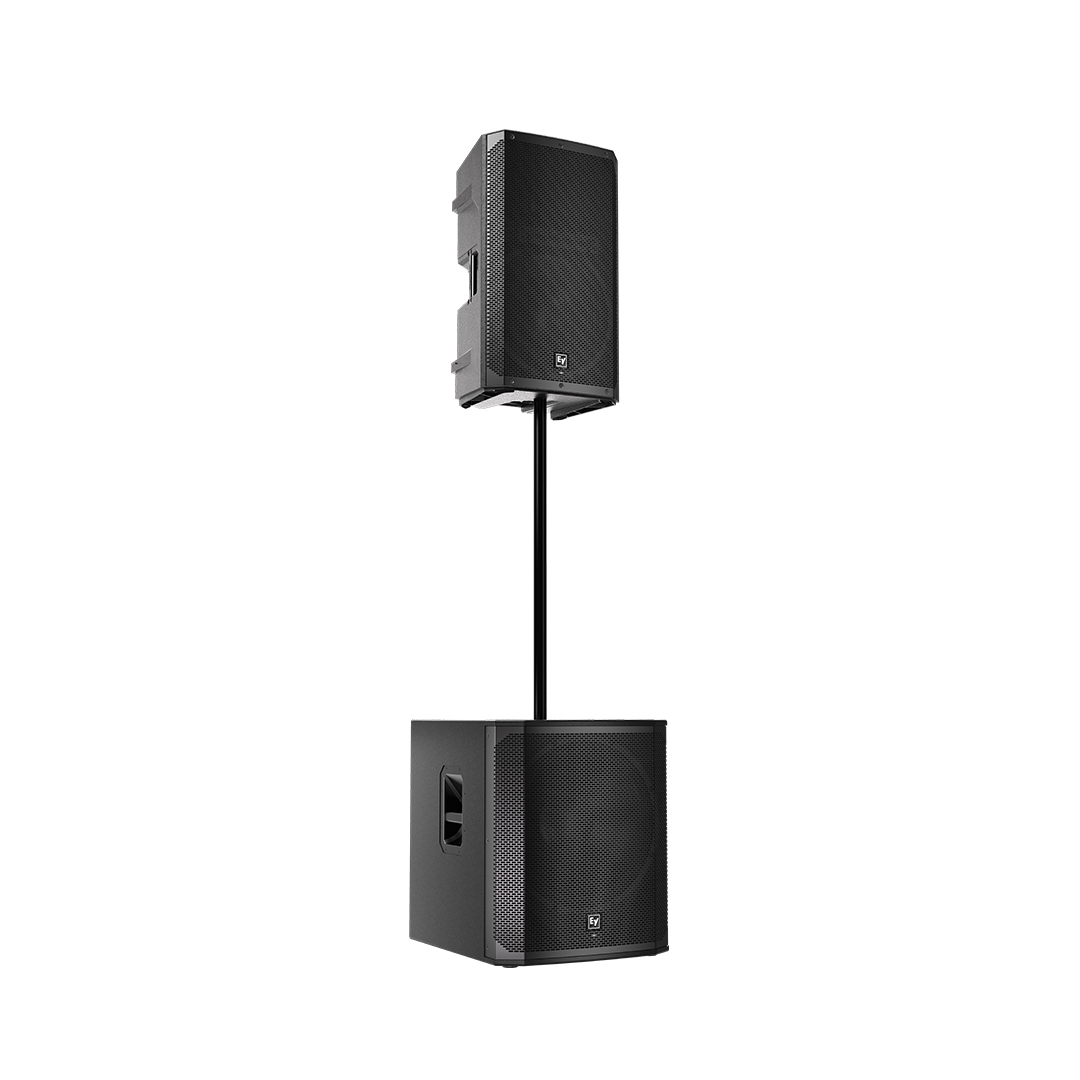

  • Professional-Grade Hardware: Features integrated M20 threaded pole mount plate and a durable two-handle design for easy lifting and secure transport.
  • Portable and Durable: Lightweight 15-mm wood enclosure designed for both portable and installed applications, ensuring reliability and ease of use.

Specifications

Frequency response (-3 dB) 47 Hz – 105 Hz¹
Frequency range (-10 dB) 40 Hz – 145 Hz¹
Maximum SPL 132 dB²
Power rating 1200 W
LF transducer EVS-18L 457 mm (18 in)
Low-Pass frequency Adjustable 80 Hz, 100 Hz, 120 Hz, 150 Hz

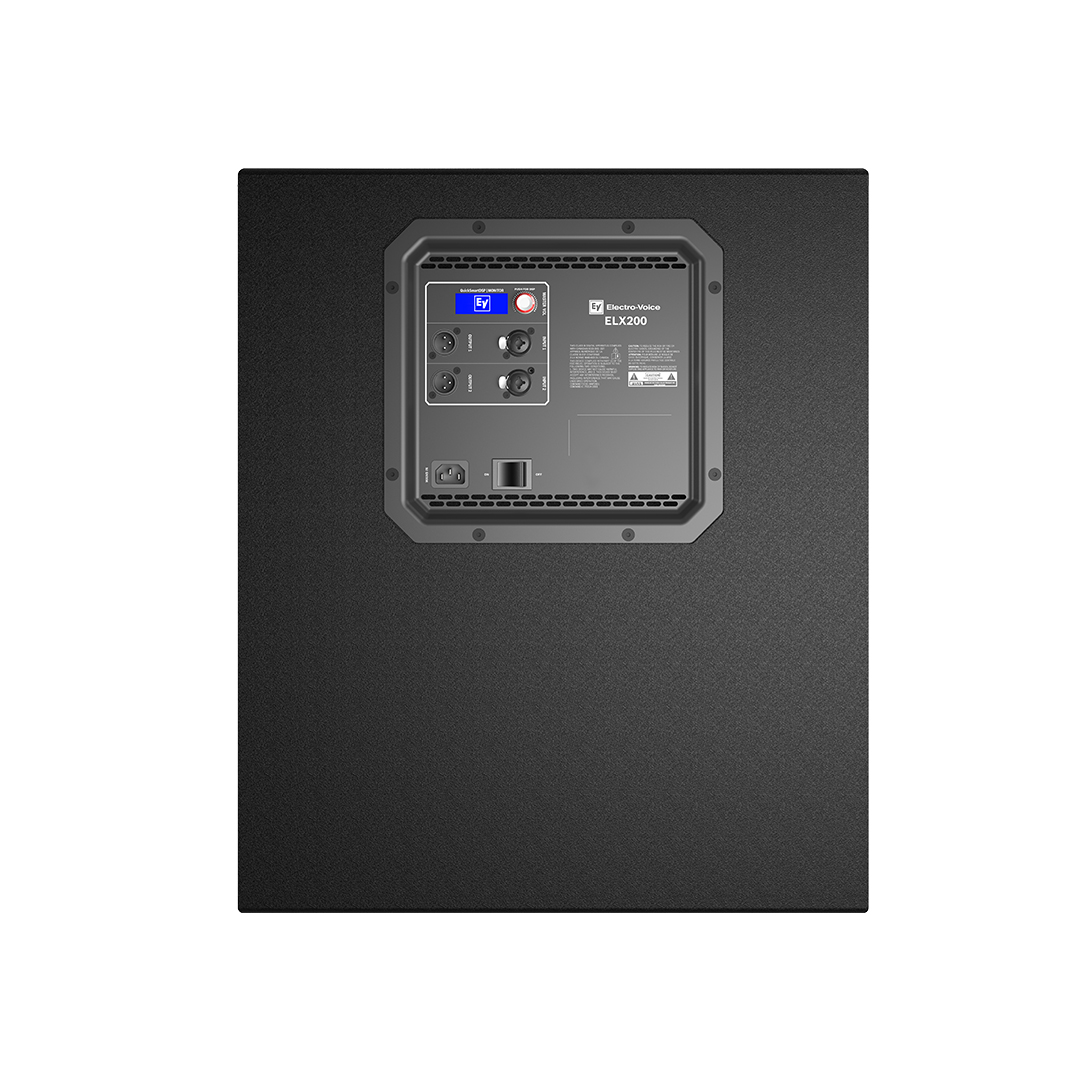

Connectors (2) XLR/TRS combo jacks and (2) XLR link outputs
Enclosure 15 mm plywood with EVCoat
Grille 18 AWG steel with powdercoat
Color Black or White
Dimensions (H x W x D) 600 mm x 507 mm x 574 mm (23.7 in x 20.0 in x 22.6 in)
Net weight 29.0 kg (64 lb)
Shipping weight 33.1 kg (73.0 lb)
Power consumption 100 – 240 V~, 50 – 60 Hz, 1.2 ~ 0.6A³

¹ Full space measurement using music DSP preset.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8 power.
