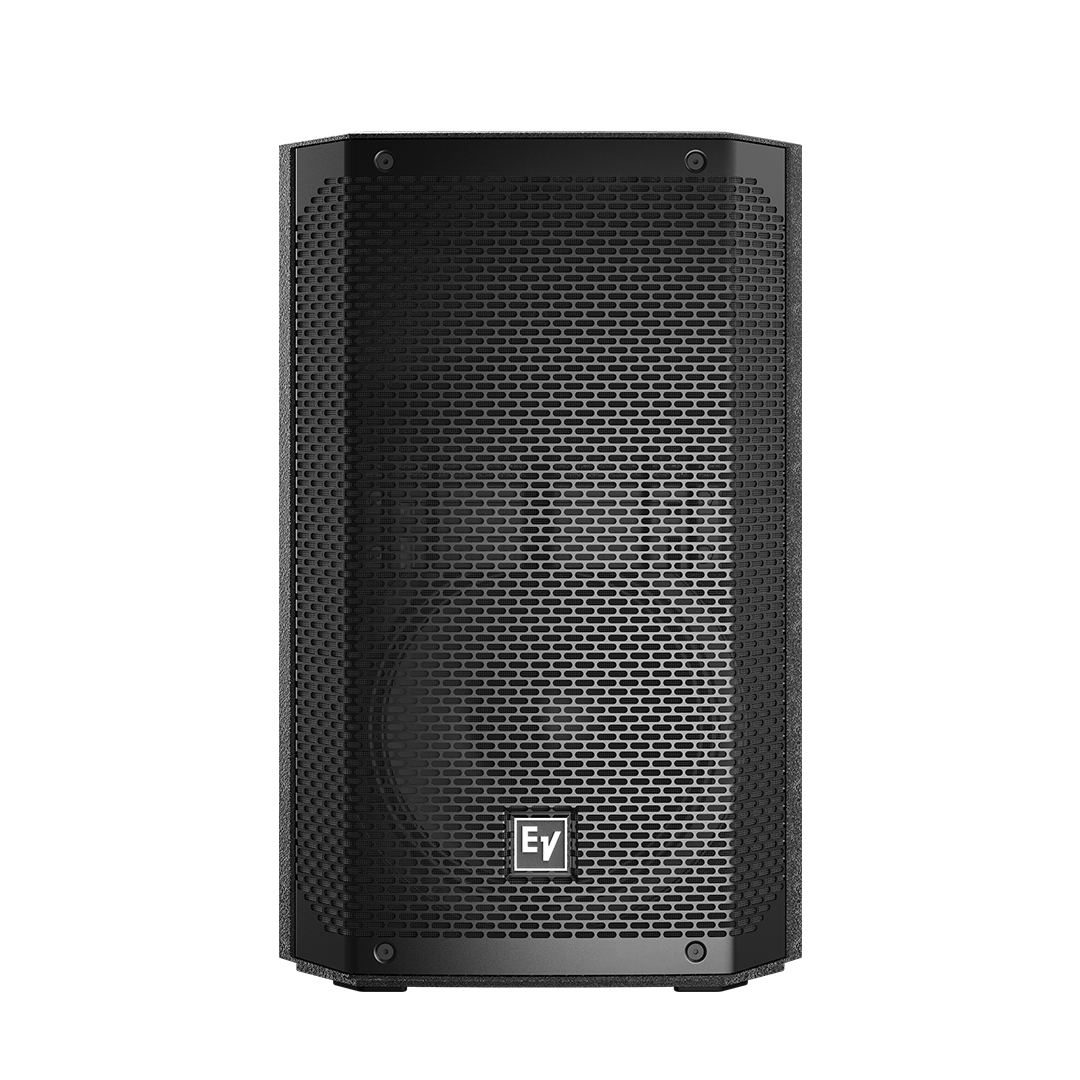

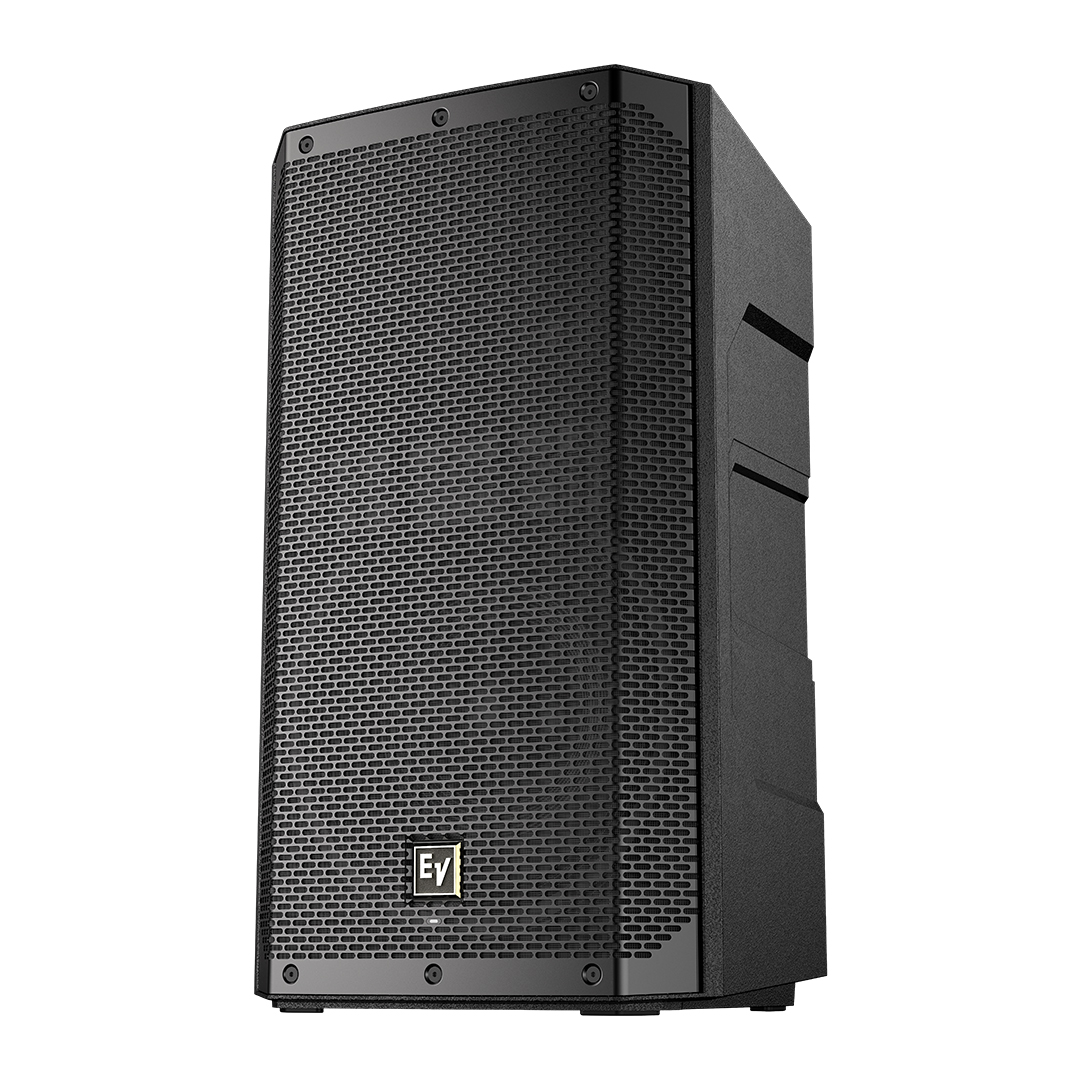

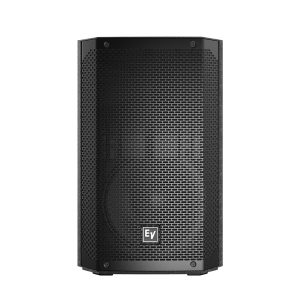

Electro-Voice ELX200-15P 15″ powered loudspeaker

The Electro-Voice ELX200-15P powered loudspeakers offer high-efficiency audio performance, with a 1200 W amplifier and advanced QuickSmartDSP technology. Delivering up to 132 dB peak SPL, these speakers feature user-friendly wireless control via the QuickSmart Mobile app and are built for both portability and durability. With EV’s Signal Synchronized Transducers (SST) and professional-grade hardware, the ELX200-15P provides reliable, exceptional sound for live performances, events, and installations.

SKU: ELX200-15P Category: Tag:







Product Overview:

The Electro-Voice ELX200-15P powered loudspeakers deliver exceptional sound clarity and reliability, featuring a 1200 W Class-D power amplifier that delivers up to 132 dB peak SPL. With advanced QuickSmartDSP technology, the ELX200 provides easy setup, optimized sound control, and comprehensive system monitoring. The system allows wireless control via the QuickSmart Mobile app, which can manage up to six speakers simultaneously, providing intuitive control from a distance. These loudspeakers are designed for both portable and installed applications, ensuring superior durability and performance with lightweight polypropylene enclosures and EV-patented Signal Synchronized Transducers (SST).

Product Features:

  • QuickSmart Mobile App: Wireless configuration, control, and monitoring of up to six ELX200 loudspeakers using Bluetooth Low Energy (BTLE), with immediate alerts during critical performance conditions (Bluetooth availability may vary by region).
  • QuickSmartDSP: High-quality processing with four presets (Music, Live, Speech, Club), three-band EQ, user-programmable presets, limiter status monitoring, input level control, and master volume control for easy system optimization via LCD.
  • 1200 W Class-D Amplifier: Delivers up to 132 dB peak SPL with EV-designed transducers (15-inch EVS-15M woofer and DH-1L 1-inch titanium compression driver) for powerful and clear audio.
  • Signal Synchronized Transducers (SST): EV-patented design for precise coverage, reduced distortion, and enhanced acoustical loading.
  • Professional-Grade Hardware: Features three M10 threaded mounting points, integrated pole mounts, and a proven ZLX handle design for ease of transport and installation.



Specifications

Frequency response (-3 dB) 55 Hz – 16 kHz¹
Frequency range (-10 dB) 48 Hz – 19 kHz¹
Maximum SPL 132 dB2
Coverage (H x V) 90° x 60°
Power rating 1200 W
LF transducer EVS-15M 381 mm (15 in)
HF transducer DH-1L 1-inch titanium compression driver
Crossover frequency 1600 Hz

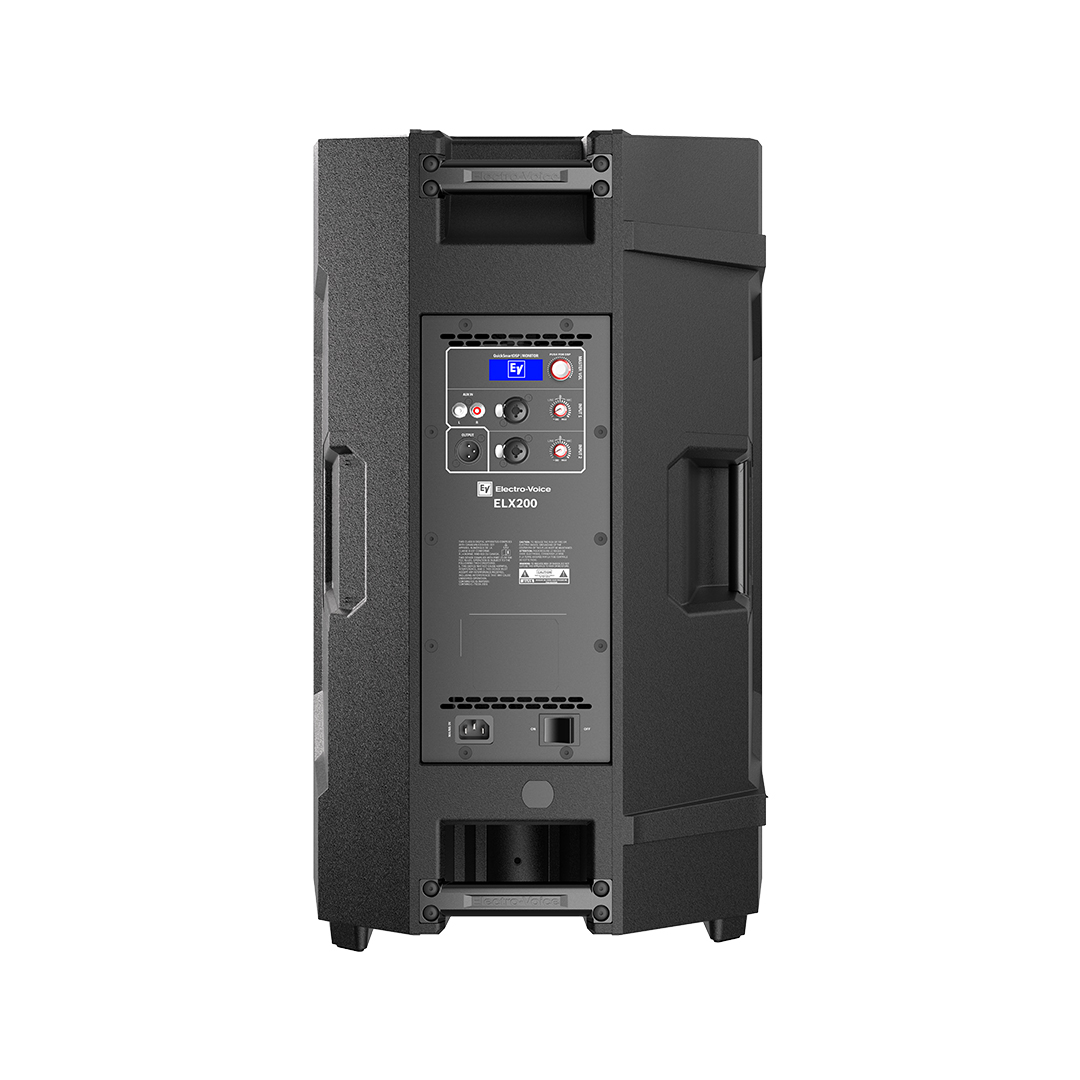

Connectors (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
Enclosure Polypropylene
Grille 18 AWG steel with powdercoat
Suspension (3) M10 suspension points
Color Black or White
Dimensions (H x W x D) 710 mm x 423 mm x 384 mm (28.0 in x 16.7 in x 15.2 in)
Net weight 18.9 kg (41.7 lb)
Shipping weight 21.8 kg (48.1 lb)
Power consumption 100 – 240 V~, 50 – 60 Hz, 1.2 ~ 0.6A³

¹ Full space measurement using music DSP preset.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8 power.
