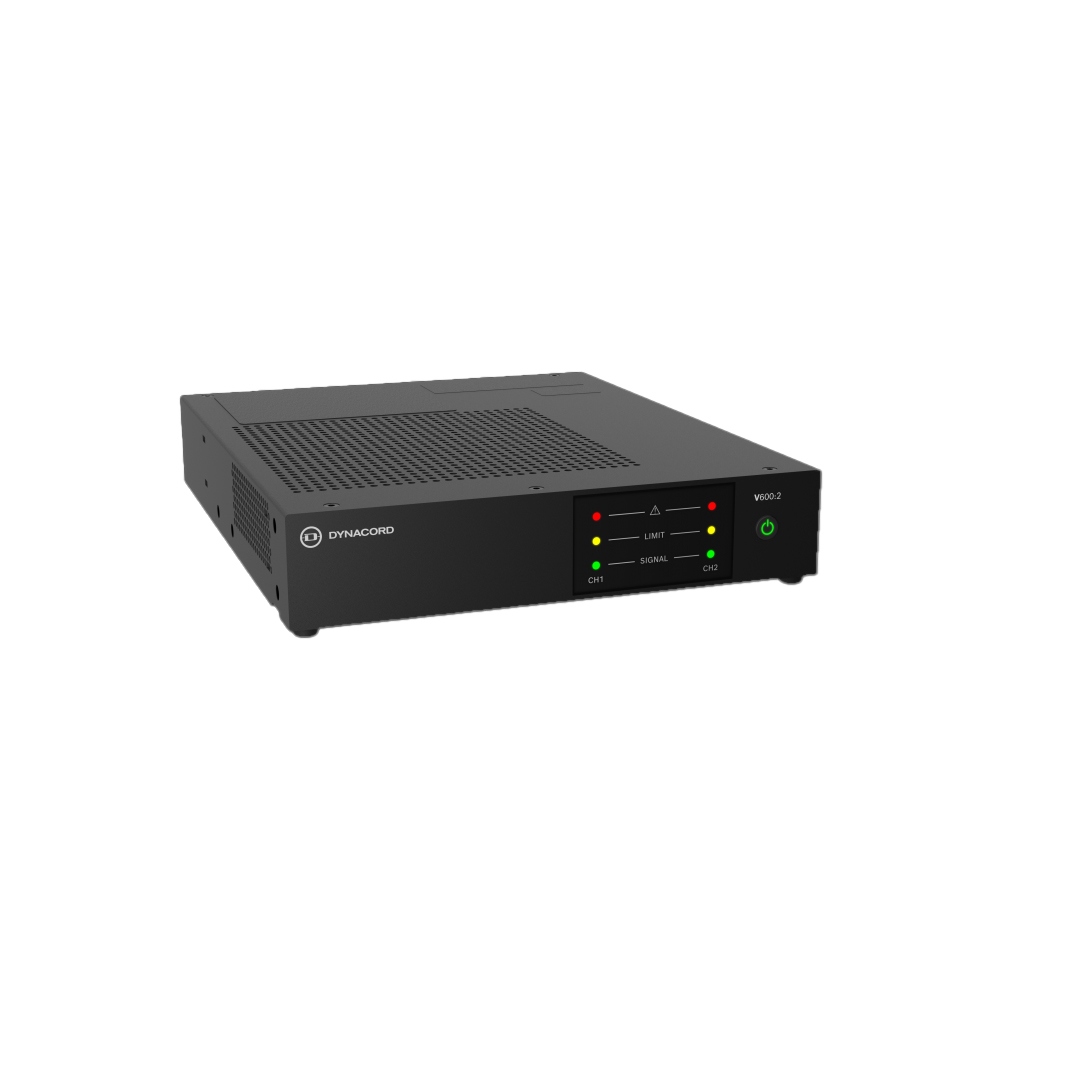

Dynacord V600:2 Multi-channel Power Amplifier

The V600:2 two-channel power amplifier offers an attractive solution for small to mid-sized commercial installations, where reliable background music and announcement capabilities are crucial. With 600 watts of total output power, the amplifier is ideal for applications requiring higher SPL levels, such as in educational, retail, and hospitality environments. Advanced Dynacord technologies like powerTANK, dualCOOL, and ecoRAIL provide enhanced power efficiency, reduced energy consumption, and reliable, uninterrupted operation. The amplifier’s compact design ensures seamless integration into spaces where rack space is limited, while its flexible power allocation and thermal management make it an ideal choice for integrators looking to optimize both performance and cost.

SKU: V600:2 Category: Tag:



Product Overview

The V600:2 is a versatile, lightweight two-channel power amplifier designed to deliver high-performance audio in small to mid-sized commercial installations. Ideal for background music, announcements, and applications requiring higher SPL levels, this compact amplifier combines exceptional efficiency and flexibility with Dynacord’s advanced technologies. Whether for educational institutions, retail environments, or houses of worship, the V600:2 provides reliable, energy-efficient performance in a space-saving one RU, half-rack design.

Product Features

  • powerTANK: A flexible amplification power reservoir that automatically adapts to the needs of each output or zone, without requiring manual configuration of each channel.
  • dualCOOL Thermal Design: Typically operates as a convection-cooled amplifier, but switches to an intelligent multi-speed fan for extreme conditions, ensuring optimal performance and reliability.
  • ecoRAIL: Optimizes power efficiency for background music levels with ultra-low standby power consumption, and includes Auto Power Down (APD) for additional energy savings when idle.
  • PFC Power Supply: Ensures stable and reliable operation with a power factor correction (PFC) power supply, protecting against shutdown situations and maintaining peak performance under demanding conditions.
  • Compact and Efficient: At just one rack unit high and half a rack width wide, the V600:2 offers multiple installation options, including single or dual rack-mount configurations.
  • Installation Flexibility: Suitable for various fixed installations such as educational facilities, hospitality venues, retail spaces, and more. Two amplifiers can be mounted side by side to double the channel count and output power, maximizing space efficiency.

Specifications

ELECTRICAL
Total rated output power1 600 W
Number of channels 2
Rated output power1 2 x 300 W
Output power: 4 Ω / 8 Ω / 70 V / 100 V
Maximum output power per channel (power sharing) 500 W / 600 W / 500 W / 600 W
AMPLIFIER
4 Ω / 8 Ω / 70 V / 100 V
Nominal Gain
(+6 dBu input sensitivity, LEVEL 0 dB)		 27.0 dB / 30.0 dB / 33.2 dB / 36.2 dB
Signal to Noise Ratio
(A‑weighted, ref. to rated output power, LEVEL 0 dB)		 > -100 dB / > 102 dB / > 101 dB / > 103 dB
THD+N
(1/8 RATED OUTPUT POWER, 1 KHZ)		 < 0.1 %
CONNECTIVITY
Type 1 x 6-pin Euroblock, 3.81 mm, male,
parallel 1x RJ45 (AES72-1E)
Loudspeaker output 2 x 4-pin Euroblock, 5.08 mm, female
Control port type 1 x 5-pin Euroblock, 3.81 mm, male
GENERAL
Signal processing Input Routing, Filter (24 dB/Oct.), Hi-pass 30/50/100/150 Hz, Lo-pass 150 Hz, Peak Limiter
Power requirements 100 V to 240 V, 50 Hz to 60 Hz AC
Power consumption:
Idle mode (ecoRAIL with no input signal) < 12 W
Consumption at 1/8 rated output power 115 W
Standby mode (APD active) < 1 W
Protections Audio limiters, high temperature, DC, HF, short circuit, back-EMF, peak current limiters, inrush current limiters, mains over/under voltage protection

1 Test signal for max. output power according IHF-A-202 (Dynamic-Headroom, burst 1 kHz / 20 ms on / 480 ms off / low level -20 dB)
