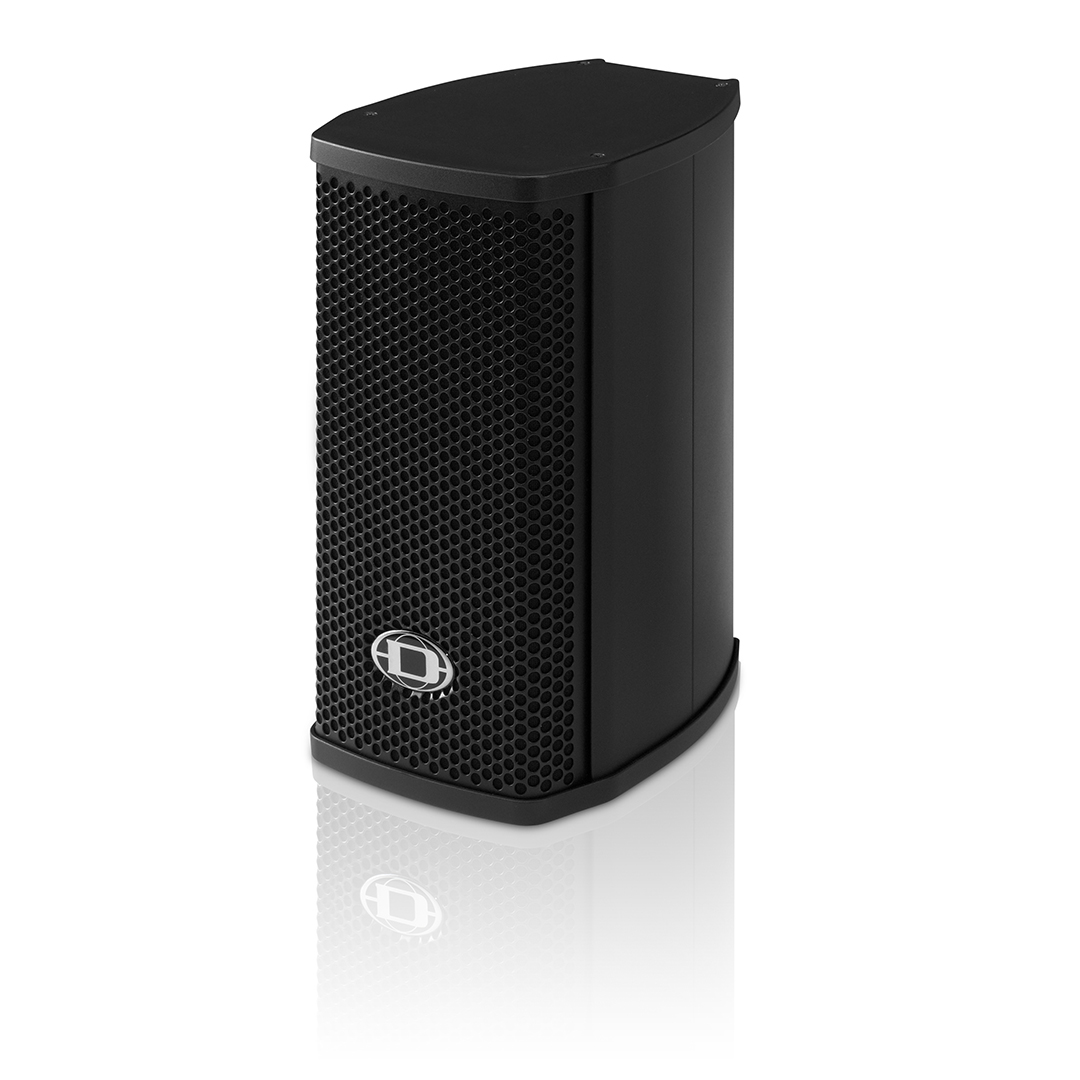

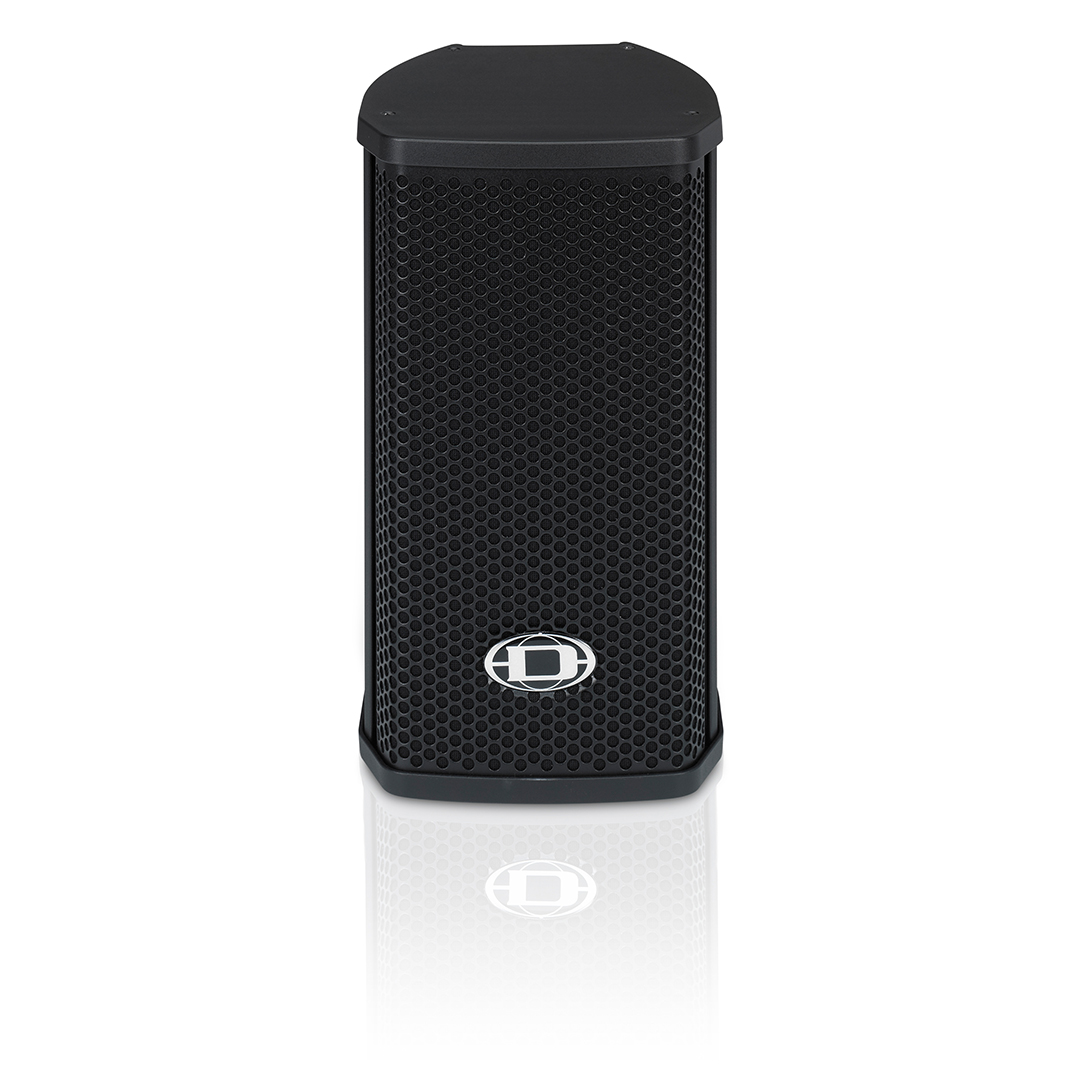

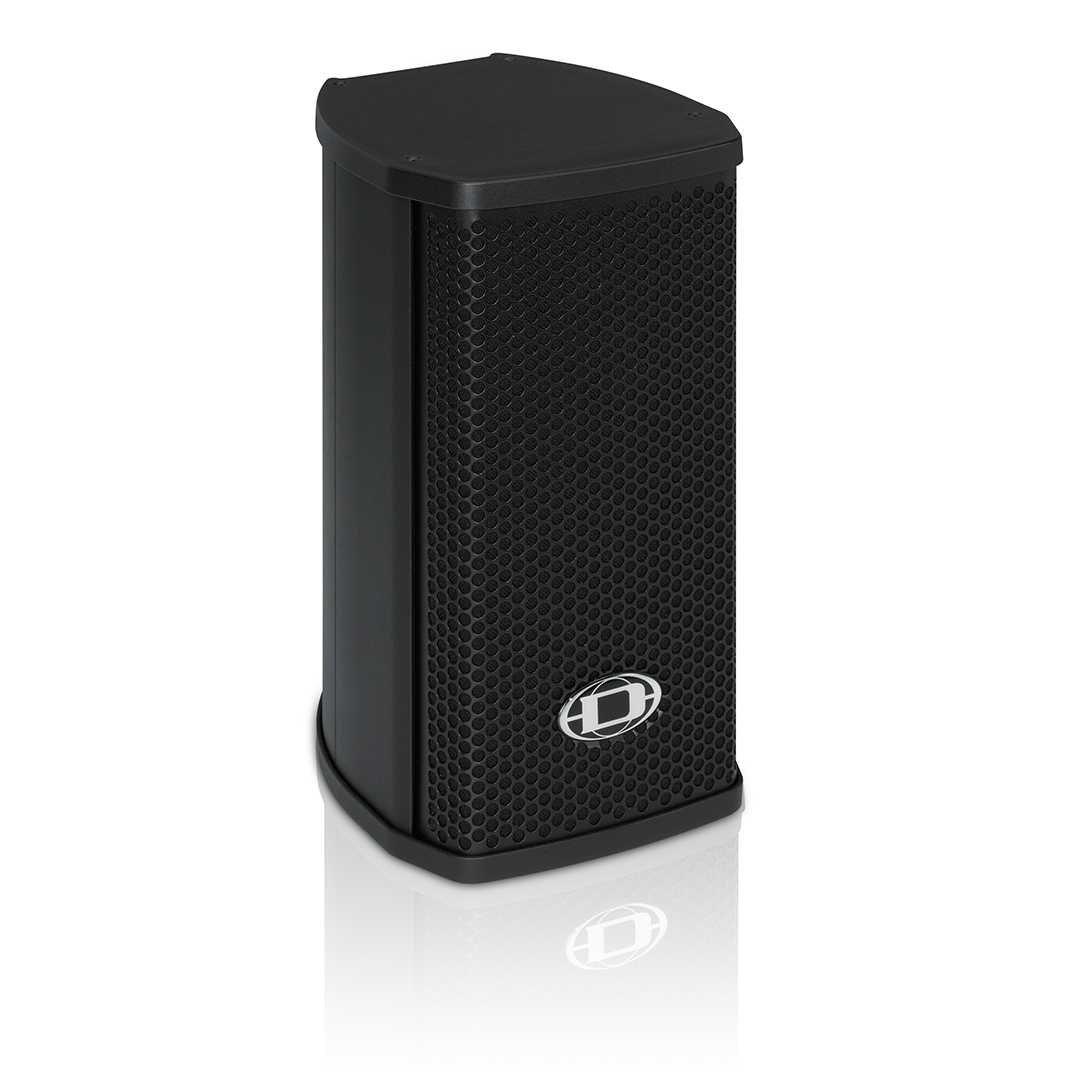

Dynacord TS 100 6″ / 1″ full‑range cabinet loudspeaker

Dynacord TS 100 Overview

The Dynacord TS 100 is a compact, high-performance, two-way full-range loudspeaker designed for a wide variety of multifunctional audio applications. With its 150W RMS power handling, the TS 100 delivers impressive sound quality and high SPL from a compact and versatile cabinet. Its elegant styling and certified mounting accessories make it an ideal choice for both professional installations and mobile PA systems.

Key Features:

• High Power Handling:
  • The TS 100 is capable of handling 150W RMS, providing consistent and clear sound reproduction for a wide range of applications. Despite its compact design, the speaker is built to deliver high sound pressure levels (SPL), ensuring excellent coverage in various settings.
• High-Quality Drivers:

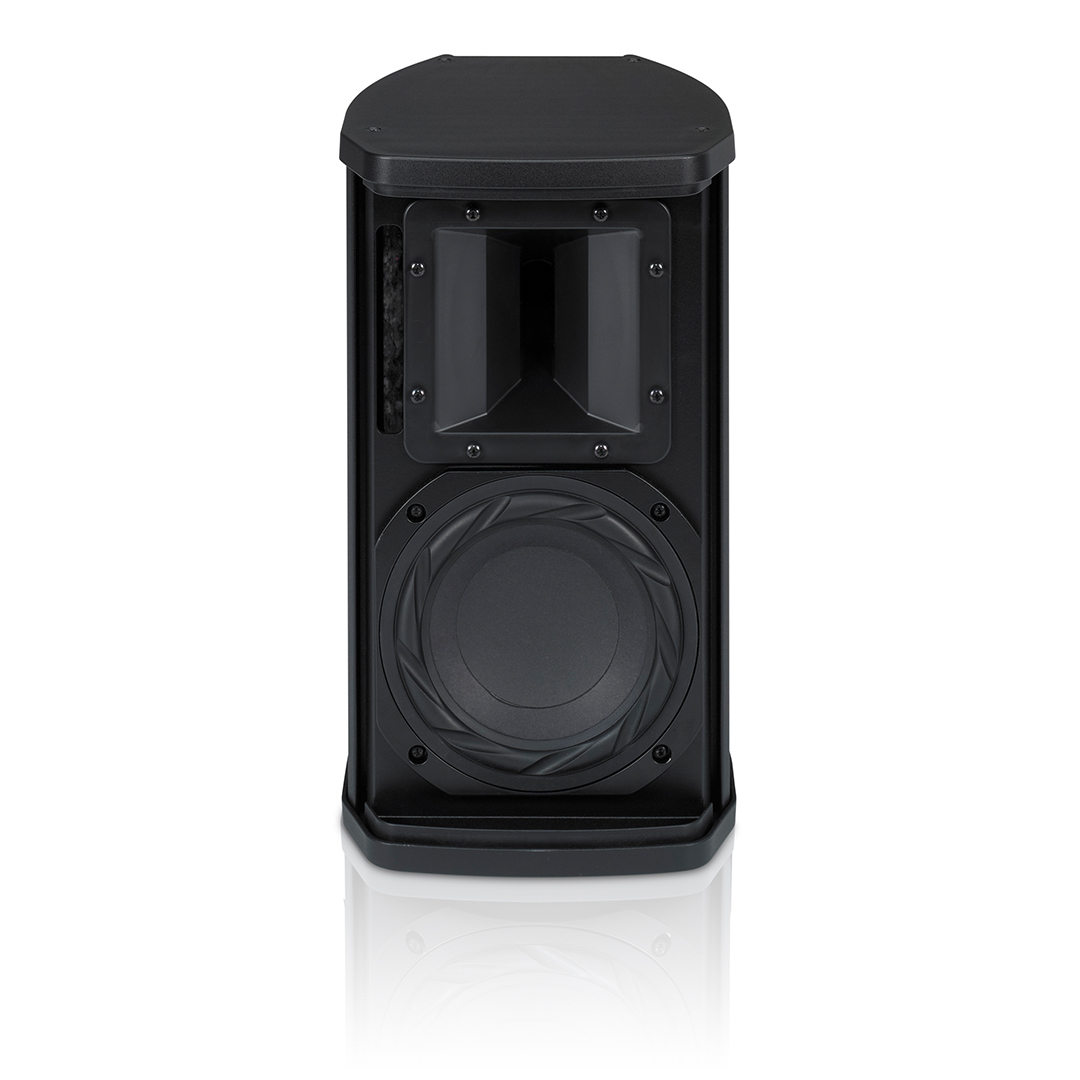

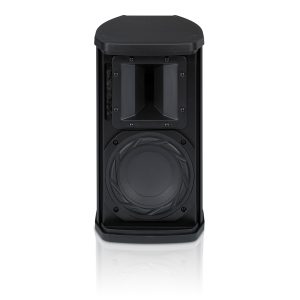

  • DH-3 Titanium Diaphragm Driver: The high-frequency driver features a titanium diaphragm for clear and detailed high-end frequencies. This ensures accurate reproduction of vocals, instruments, and other high-frequency sounds.
  • Neodymium DND 6130-16 Woofer: The neodymium-based woofer offers lightweight design and excellent performance with high efficiency, delivering punchy, tight bass and midrange frequencies.
• Rotatable CAD Optimized 90° x 40° CD Horn:
  • The TS 100 is equipped with a rotatable horn to provide precise and controlled sound coverage. The 90° x 40° coverage ensures uniform sound distribution, while the CAD optimization of the horn improves overall sound clarity and efficiency.
• Compact Design for Versatility:
  • The TS 100 is designed to be highly versatile and space-efficient, making it an excellent option for both permanent installations and mobile sound systems. It is lightweight at just 7.1 kg, allowing easy transport and setup.
• Elegant Styling:
  • With its sleek, professional design, the TS 100 is perfect for environments that require both aesthetic appeal and high-performance sound. Its discreet styling ensures that it blends seamlessly into a variety of settings, from corporate environments to entertainment venues.

Applications:

The Dynacord TS 100 is ideal for a wide range of applications, including:

• Commercial Installations: Perfect for restaurants, bistros, clubs, and hotels, where both sound quality and aesthetics are important.
• AV Installations: Suitable for boardrooms, conference rooms, trade fairs, and exhibition halls, where high-quality sound reproduction is required for presentations and events.
• Front-fill in Theaters: The TS 100 is excellent for theater front-fill, ensuring even coverage and high sound quality in performance venues.
• Mobile PA Systems: Its lightweight design makes the TS 100 ideal for portable PA systems, ideal for events that require both compactness and high SPL.

Technical Specifications:

• Type: Passive 2-way loudspeaker
• Power Handling: 150W RMS, 600W Peak
• Impedance: 16 Ω
• Frequency Response: 80 Hz – 20 kHz
• SPL (Maximum Output): 116 dB
• HF Driver: DH-3 Titanium Diaphragm Driver
• LF Driver: Neodymium DND 6130-16 Woofer
• Horn: Rotatable 90° x 40° CD Horn (CAD optimized)
• Dimensions: 300 mm (W) x 400 mm (H) x 230 mm (D)
• Weight: 7.1 kg (15.7 lbs)
• Finish: Black
