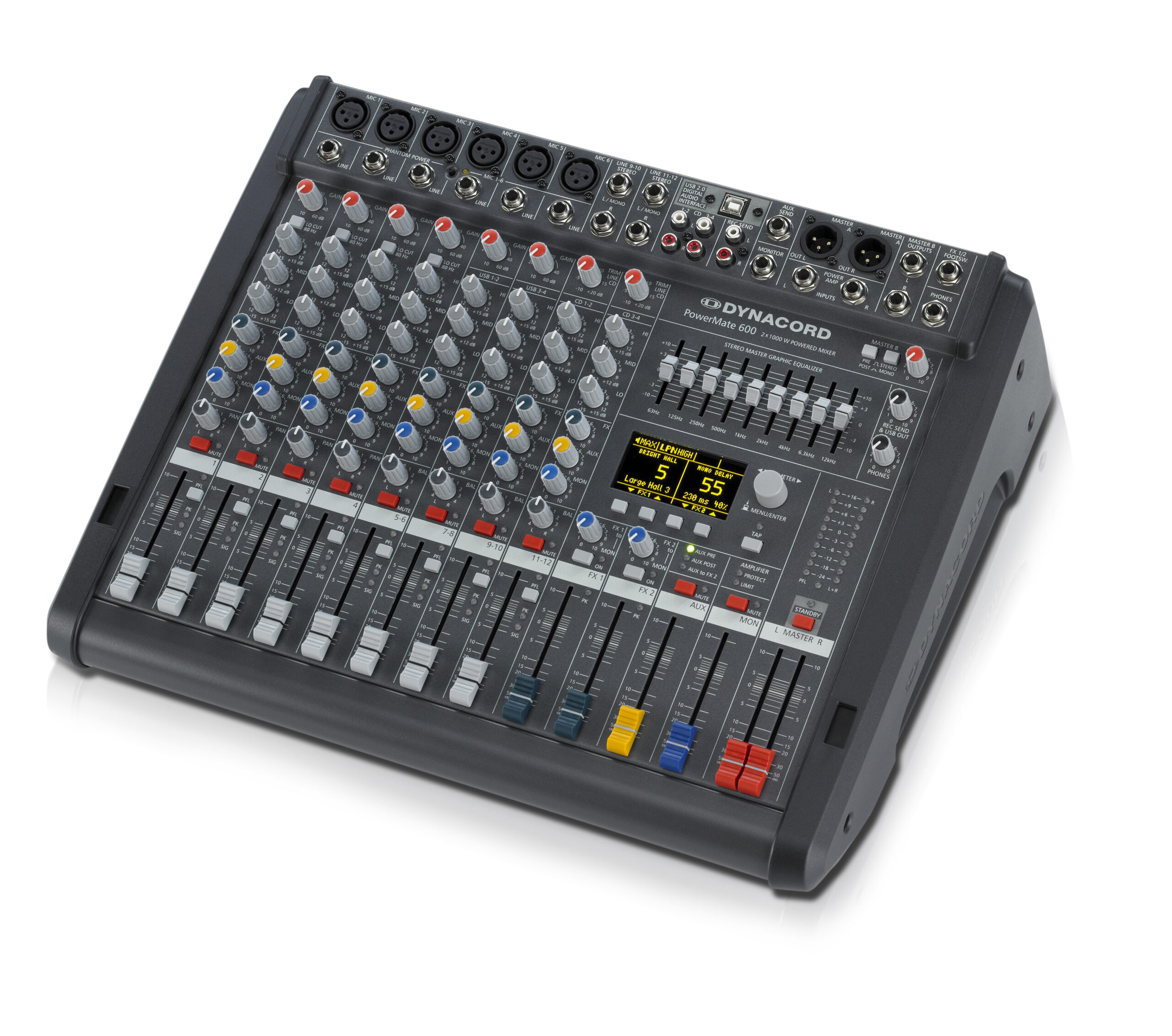

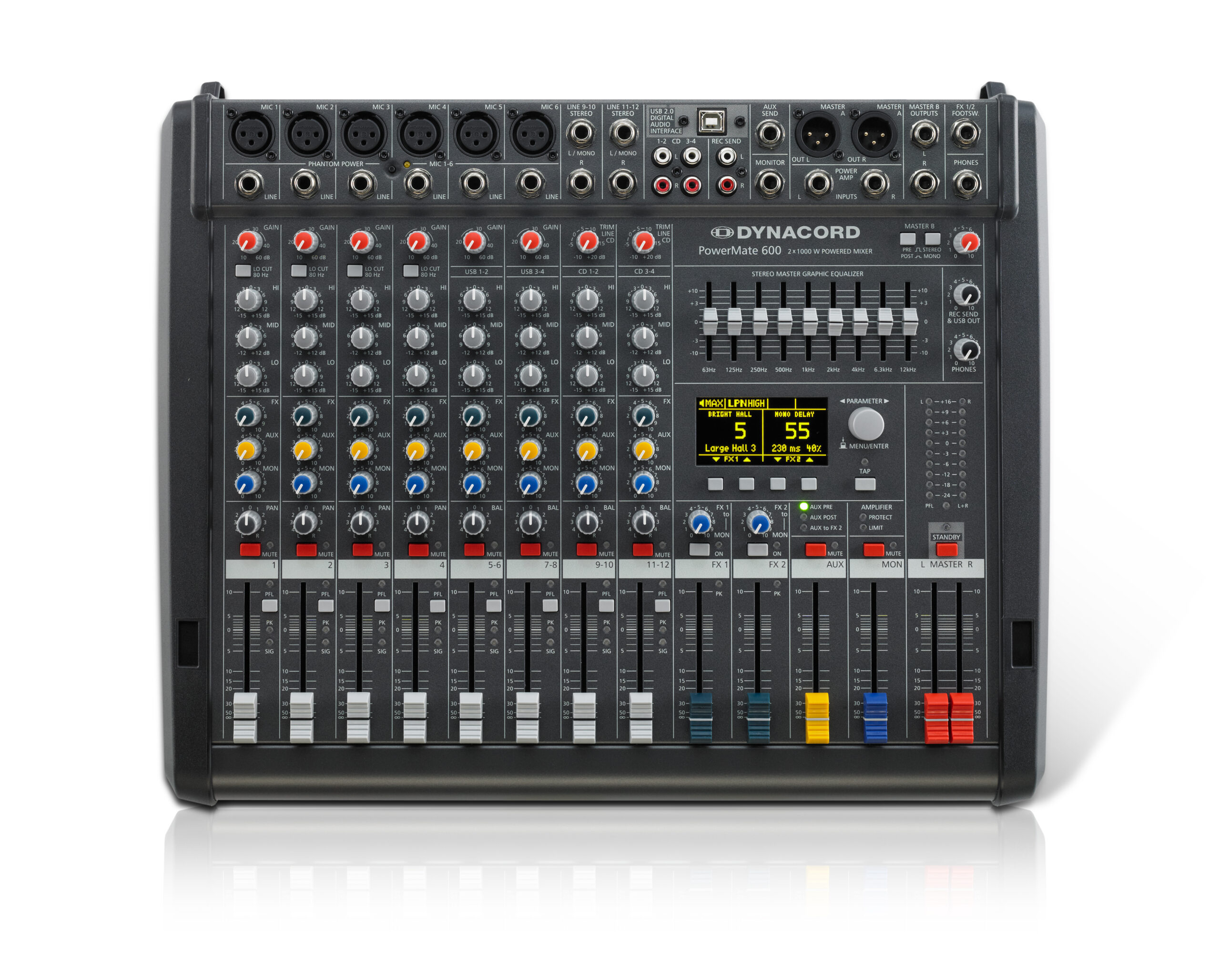

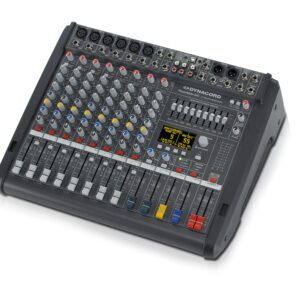

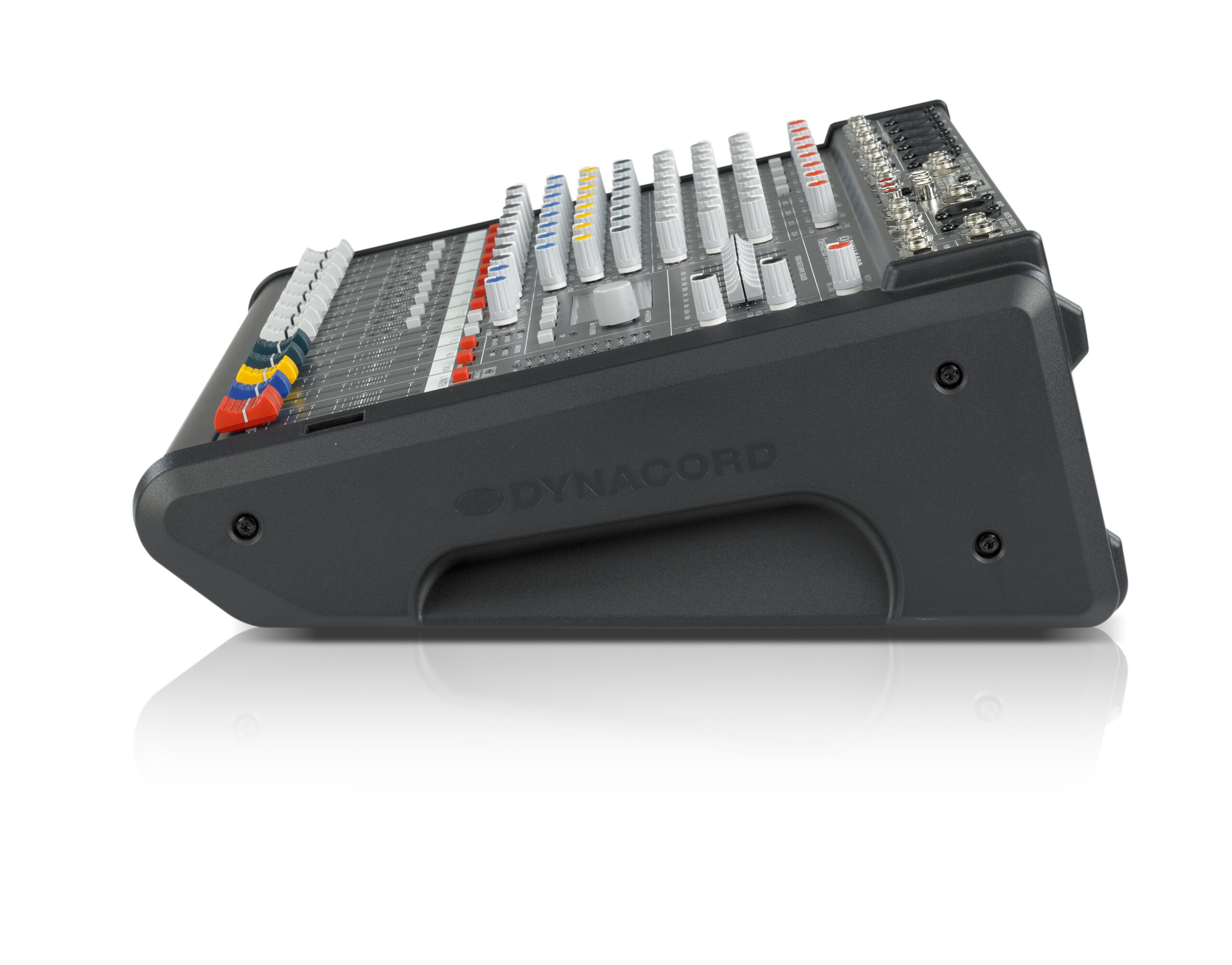

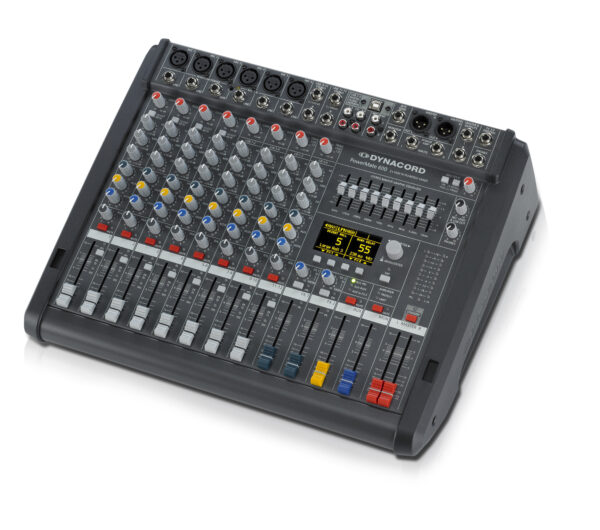

Dynacord PowerMate 600-3 8-Channel Powered Mixer

BD 880.00 VAT INC

The PowerMate 600-3 is a versatile, high-quality power mixer that brings professional-level performance to a compact, road-ready unit. It integrates six essential audio devices—mixing console, effects units, graphic equalizer, USB audio interface, and amplifier—into one efficient package. The 8 input channels, powerful 1,000-watt amplifier, and intuitive effects processing offer exceptional flexibility for live performances, recording, and studio use. The mixer’s built-in USB interface and MIDI capabilities make it easy to integrate with modern production setups, while the rugged design ensures durability and portability for mobile sound engineers. Whether you’re on stage or in the studio, the PowerMate 600-3 delivers excellent audio performance with minimal size and weight.

1 in stock

SKU: DC-PM600-3 Category: Tag:

Product Overview

The PowerMate 600-3 is a compact, high-performance power mixer designed for professionals who need a powerful yet portable audio solution. With 8 input channels, an integrated 1,000-watt amplifier, high-quality effects, and a USB audio interface, this mixer is an all-in-one solution for live sound mixing, recording, and more. Featuring a lightweight design and rugged build, it is ideal for musicians, sound engineers, and performers who require reliability and flexibility in both fixed and mobile setups.

Product Features

  • 8 Input Channels: Includes 4 Mic/Line inputs, 2 Mic/Stereo-USB inputs, and 2 Stereo-Line inputs, with low-noise discrete preamps for clear, professional audio.
  • Powerful Amplification: Provides 2 x 1,000 Watts (RMS) at 4 Ohms, offering excellent power and efficiency with a modern switching mode power supply and class-D output stage.
  • Editable Effects Processors: Equipped with 2 high-quality effects units, featuring 100 factory presets and 20 user-editable presets, including legendary PowerMate reverb effects.
  • USB Audio Interface: 4×4 24-bit / 96 kHz USB interface for seamless PC/Mac integration, plus MIDI support for connecting external instruments such as keyboards.
  • Precision Graphic Equalizer: 9-band stereo graphic equalizer for detailed tone shaping and room optimization.

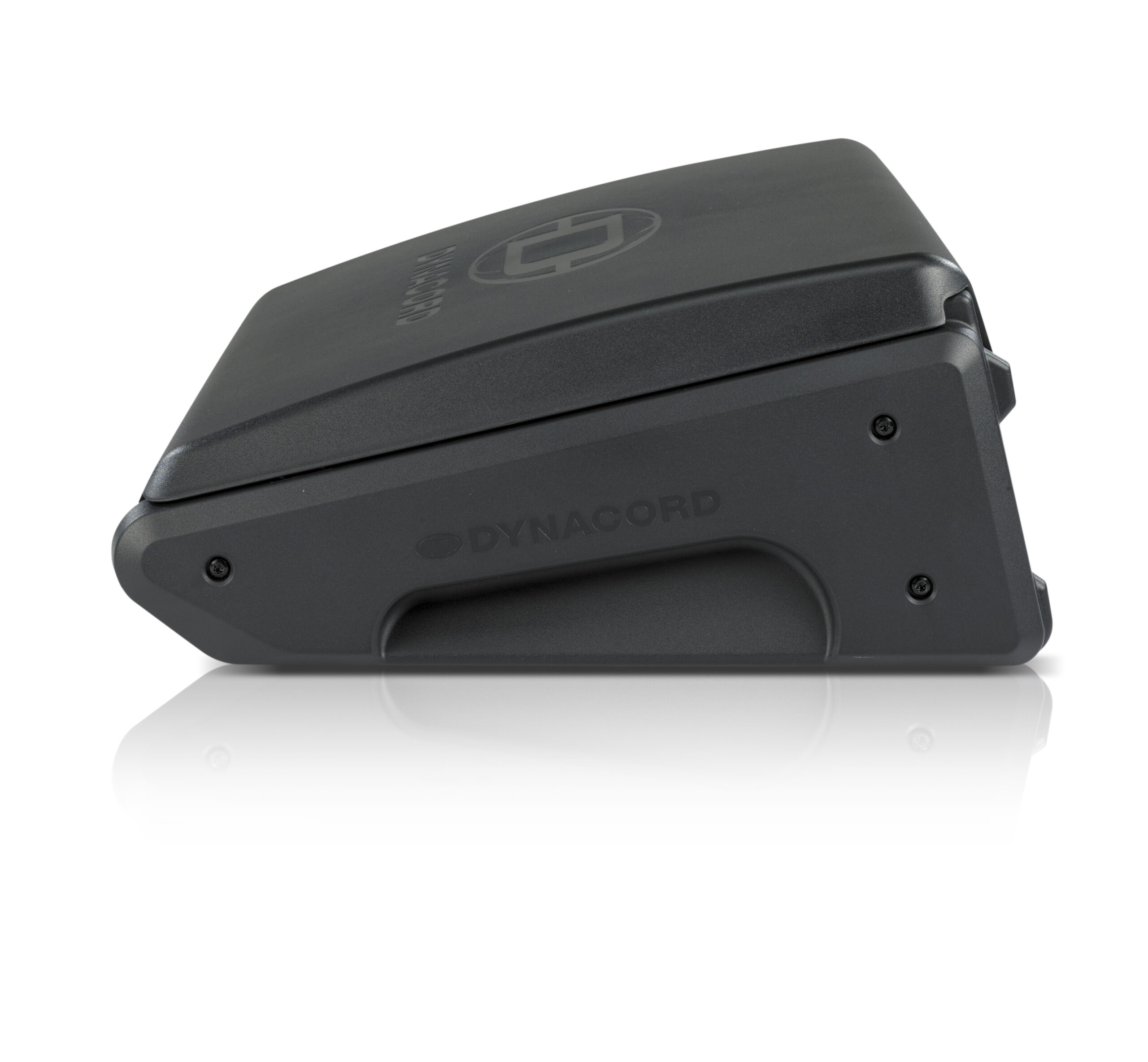

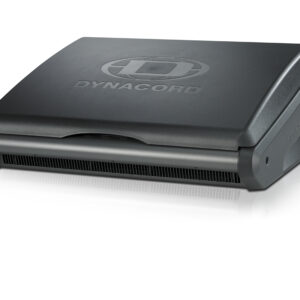

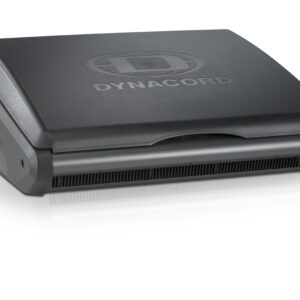

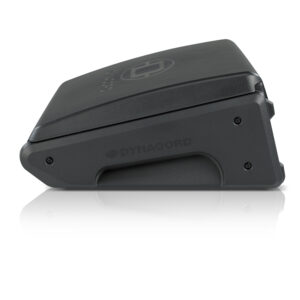

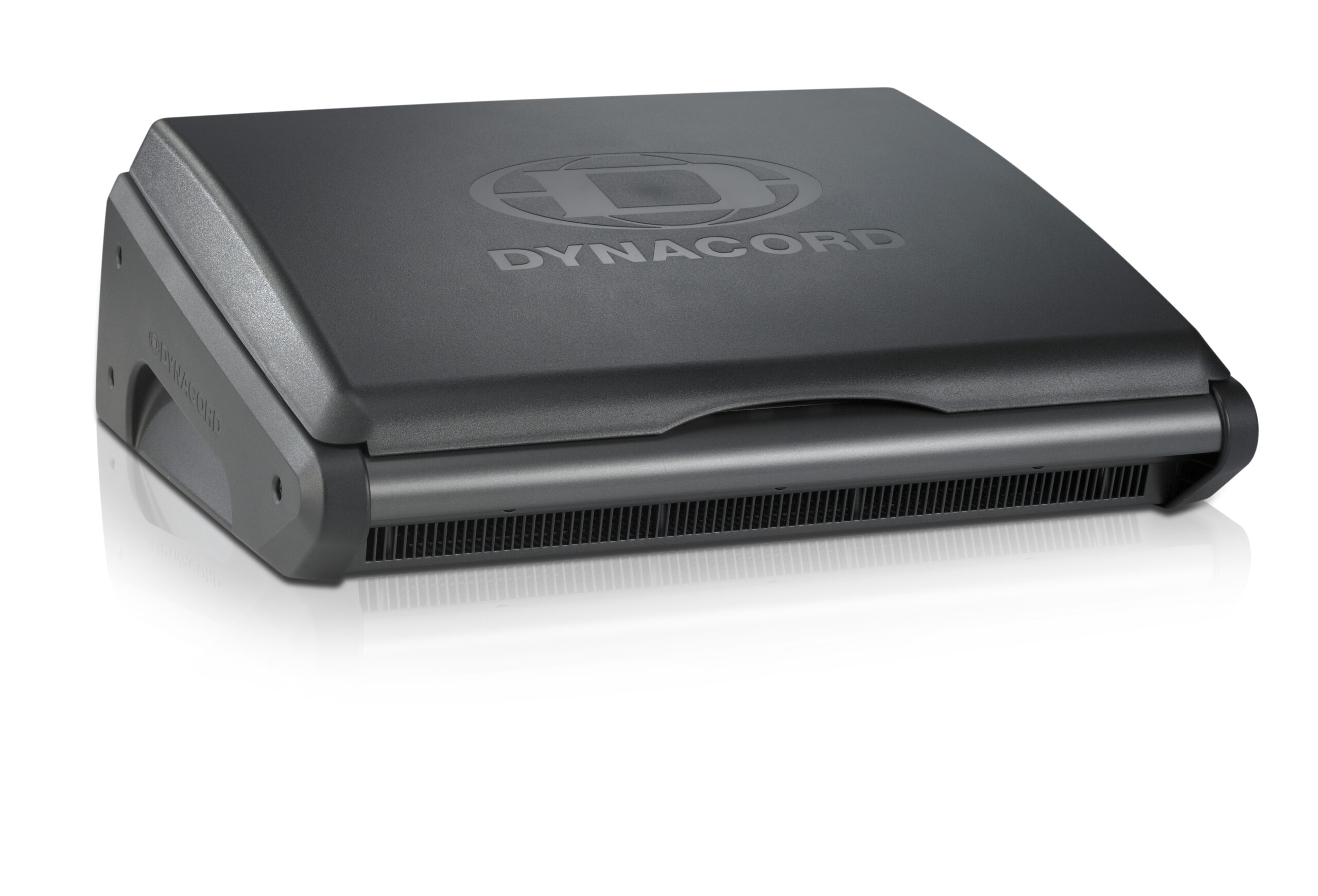

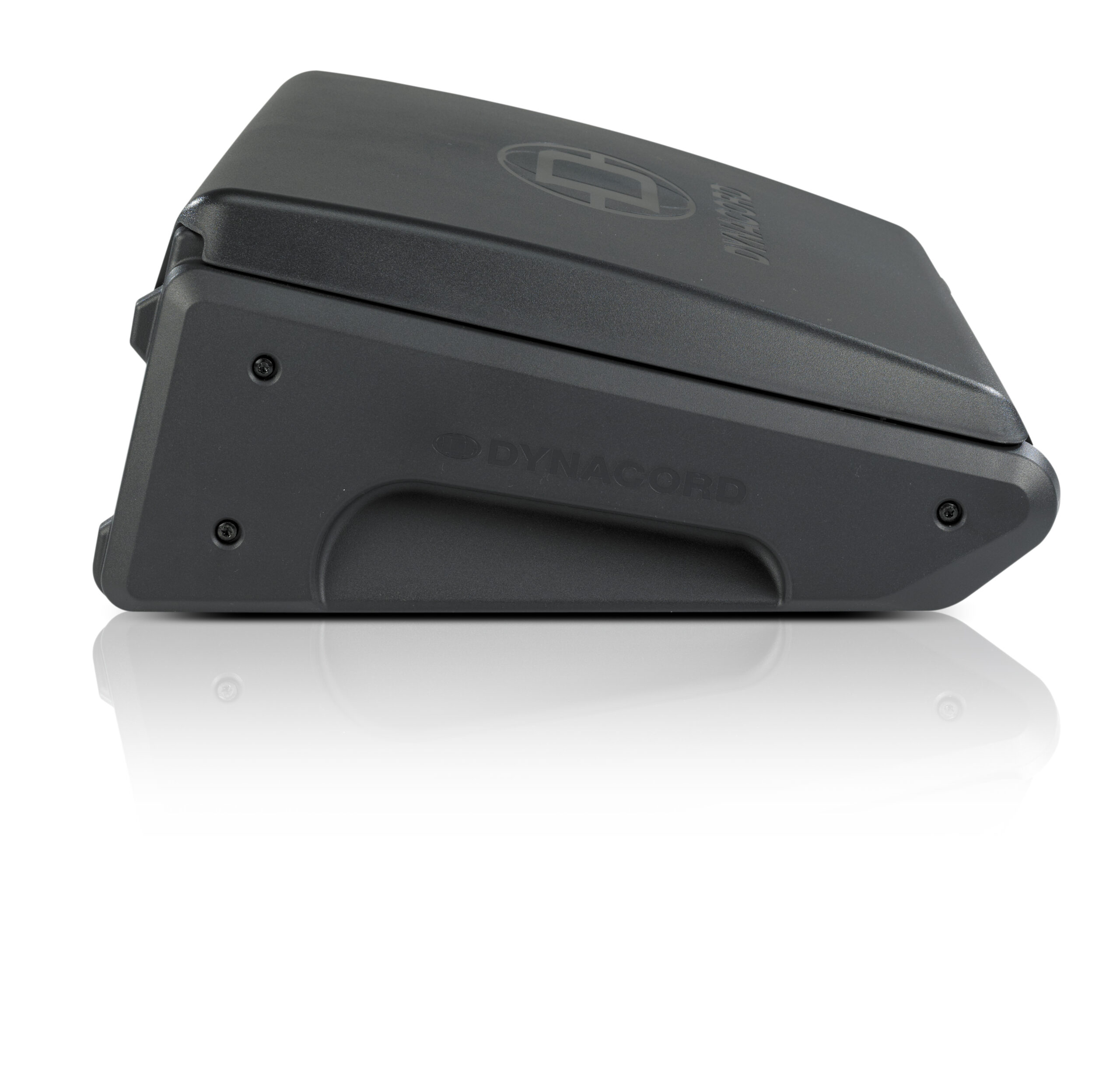

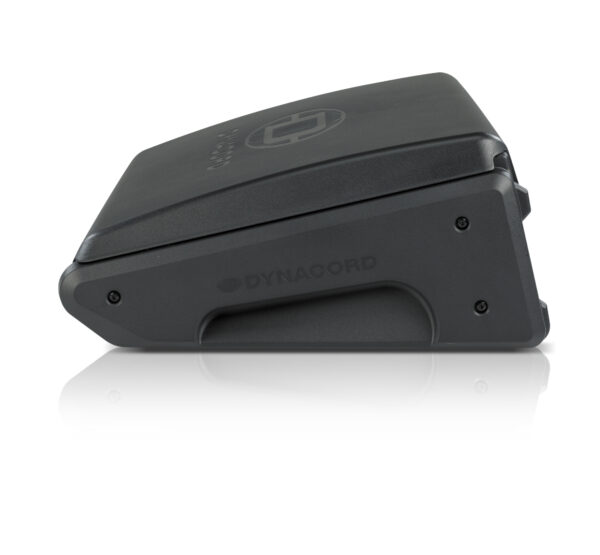

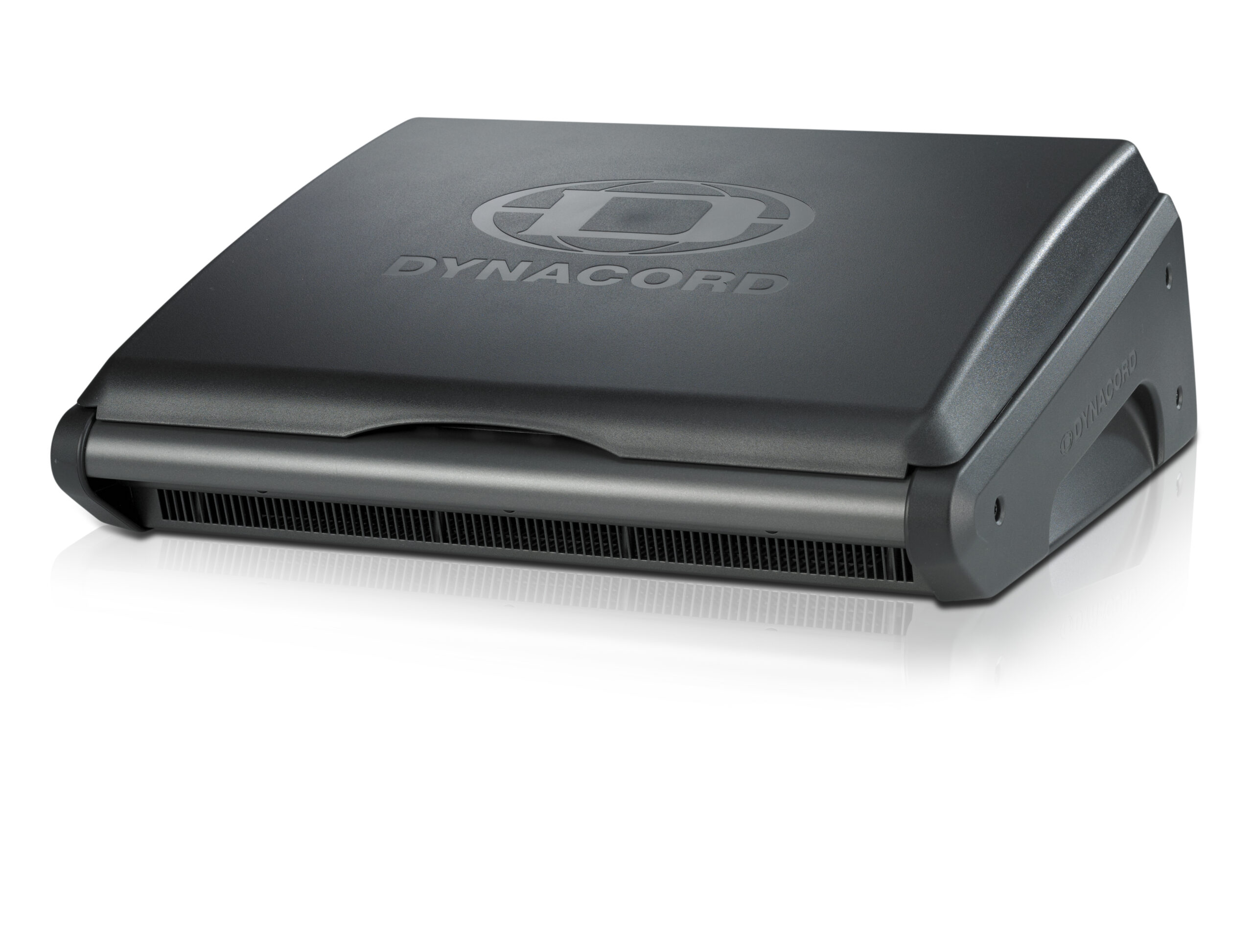

  • Road-Ready Design: Weighs only 9.5 kg and includes a durable plastic cover with strong magnetic latches, ensuring safe transport and protection in demanding environments.



Specifications

Channels (Mono + Stereo) 4 + 4
Microphone Inputs (XLR) 6
Auxiliarys (MON, FX, AUX) 1 Pre, 1 Post, 1 Pre/Post switchable
Max. Single Channel Output Power, Dynamic-Headroom, IHF-A
into 2.66 Ω 2 x 1600 W
into 4 Ω 2 x 1250 W
into 8 Ω 2 x 675 W
Max. Single Channel Output Power, Continuous, 1 kHz, THD = 1%
into 2.66 Ω 2 x 1350 W
into 4 Ω 2 x 1150 W
into 8 Ω 2 x 650 W
Maximum Midband Output Power, 1 kHz, THD = 1%, Dual Channel
into 2.66 Ω 2 x 1350 W
into 4 Ω 2 x 1000 W
into 8 Ω 2 x 600 W
Rated Output Power, 20 Hz to 20 kHz, THD < 0.5%, Single Channel
into 4 Ω 2 x 900 W
into 8 Ω 2 x 450 W
Maximum Output Voltage, of power amplifier, 1 kHz, no load 74 Vrms
THD, at 1 kHz, MBW = 80 kHz
MIC input to Master A L/R outputs, +16 dBu, typical < 0.005%
POWER AMP INPUTS to Speaker L/R outputs < 0.075%
DIM 30, power amplifier, 3.15 kHz, 15 kHz < 0.05%
IMD-SMPTE, power amplifier, 60 Hz, 7 kHz < 0.15%
Frequency Response, -3 dB, ref. 1 kHz
Any input to any Mixer output 15 Hz to 70 kHz
Any input to Speaker L/R output 20 Hz to 30 kHz
Crosstalk, 1 kHz
Amplifier L/R < -85 dB
Channel to Channel < -80 dB
Mute- & Standby-Switch attenuation > 100 dB
Fader & FX/AUX/MON-Send attenuation > 85 dB
CMRR, MIC input, 1 kHz > 80 dB
Input Sensitivity, all level controls in max. position
MIC -74 dBu (155 µV)
LINE (Mono) -54 dBu (1.55 mV)
LINE (Stereo) -34 dBu (15.5 mV)
CD (Stereo) -34 dBu (15.5 mV)
POWER AMP INPUTS +8 dBu (1.95 V)
Maximum Level, mixing desk
MIC inputs +11 dBu
Mono Line inputs +31 dBu
Stereo Line inputs +31 dBu
All other inputs +22 dBu
All other outputs +22 dBu
Input Impedances
MIC 2 ㏀
CD In 10 ㏀
All other inputs > 15 ㏀
Output Impedances
Phones 47 Ω
All other outputs (balanced/unbalanced) 150 Ω / 75 Ω
Equivalent Input Noise, MIC input, A-weighted, 150 ohms -130 dBu
Noise, Channel inputs to Master A L/R outputs, A-weighted
Master fader down -100 dBu
Master fader 0 dB, Channel fader down -92 dBu
Master fader 0 dB, Channel fader 0 dB, Channel gain unity -82 dBu
Signal/Noise-Ratio, power amplifier, A-weighted, 4 Ω 105 dB
Output Stage Topology, amplifier Class D
Equalization
LO Shelving ±15 dB / 60 Hz
MID Peaking ±12 dB / 2.4 kHz
HI Shelving ±15 dB / 12 kHz
Master EQ 9-band (63, 125, 250, 500, 1k, 2k, 4k, 6.3k, 12kHz) ±10 dB / Q = 1.5 to 2.5
Filter
LO-CUT, mono inputs f = 80 Hz, 18 dB/oct., switchable
Speaker Processing LPN, switchable
Effects
Type 2 x Stereo 24/48-bit multi effects processors
Effects presets 100 Factory + 20 User, Tap-Delay
Remote control Footswitch, MIDI
Display 128 x 64 pixels, OLED
Digital Audio Interface
Channels 4 In / 4 Out
AD/DA Conversion 24-bit
Sampling Rate 44.1 / 48 / 88.2 / 96 kHz
PC Interface USB2.0, Female Type B
Supported OS See documentation
Peak Display 6 dB before Clip

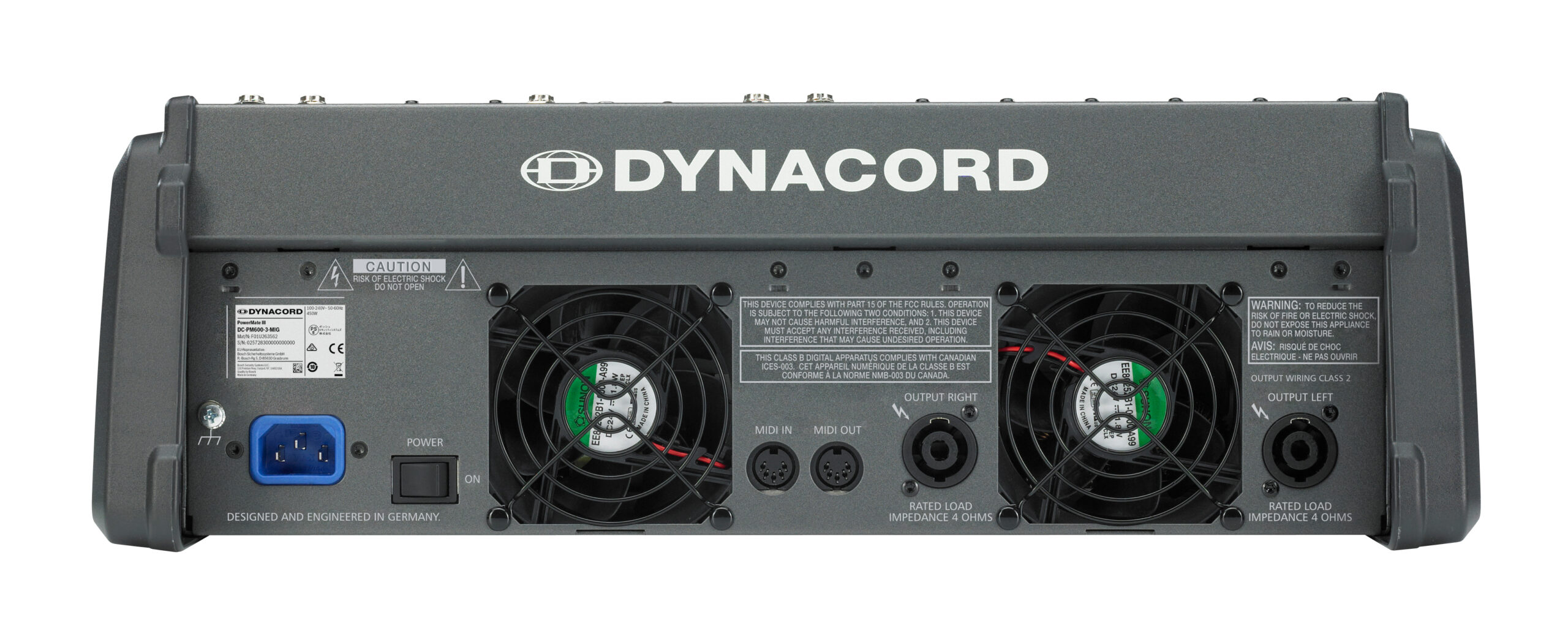

MIDI Interface 5-pin DIN connector, In / Out
Output Power Control (Speaker Protection) Adjustable longterm RMS Limiter
Protection
Mixer Outputs, relay controlled AUX, MON, MASTER A L/R
Amplifier Audio Limiters, High Temperature, DC, HF, Short Circuit, Peak Current Limiters, Turn-on Delay, Back EMF
Switching Mode Power Supply (µC controlled) Inrush Current Limiters, Mains Over/Undervoltage, Mains Over Current, High Temperature
Cooling Continuous speed controlled Fans
Phantom Power, switchable 48 V DC
Power Requirements (SMPS with auto range mains input) 100 V to 240 V AC, 50 Hz to 60 Hz
Power Consumption, at 1/8 maximum output power, 4 Ω 450 W
Safety Class I
Ambient Temperature Limits +5 °C to +40 °C (40 °F to 105 °F)
Dimensions (W x H x D), mm With lid: 438.8 x 161.7 x 362.5 Rack-mount: 483 x 135.8 x 310.3 (7 HU)
Weight
Net Weight, without lid 9.0 kg
Net Weight, with lid 9.5 kg
Shipping Weight 12 kg
Warranty 36 months
Optional Accessories
Rack Mount Kit F01U214880 (DC-RMK-600-3)
FS 11 (Footswitch with LED) F01U100598 (DC-FS11)
Carrying bag F01U259014 (DC-BAG-600PM)

Device in rated condition, unity gain (MIC gain 20 dB), all faders position 0 dB, all pots in mid position, master fader +8 dB, LPN HIGH, amplifier load 8 ohms, dual channel, mains voltage 230 V/50 Hz or 120 V/60 Hz, unless otherwise specified.
