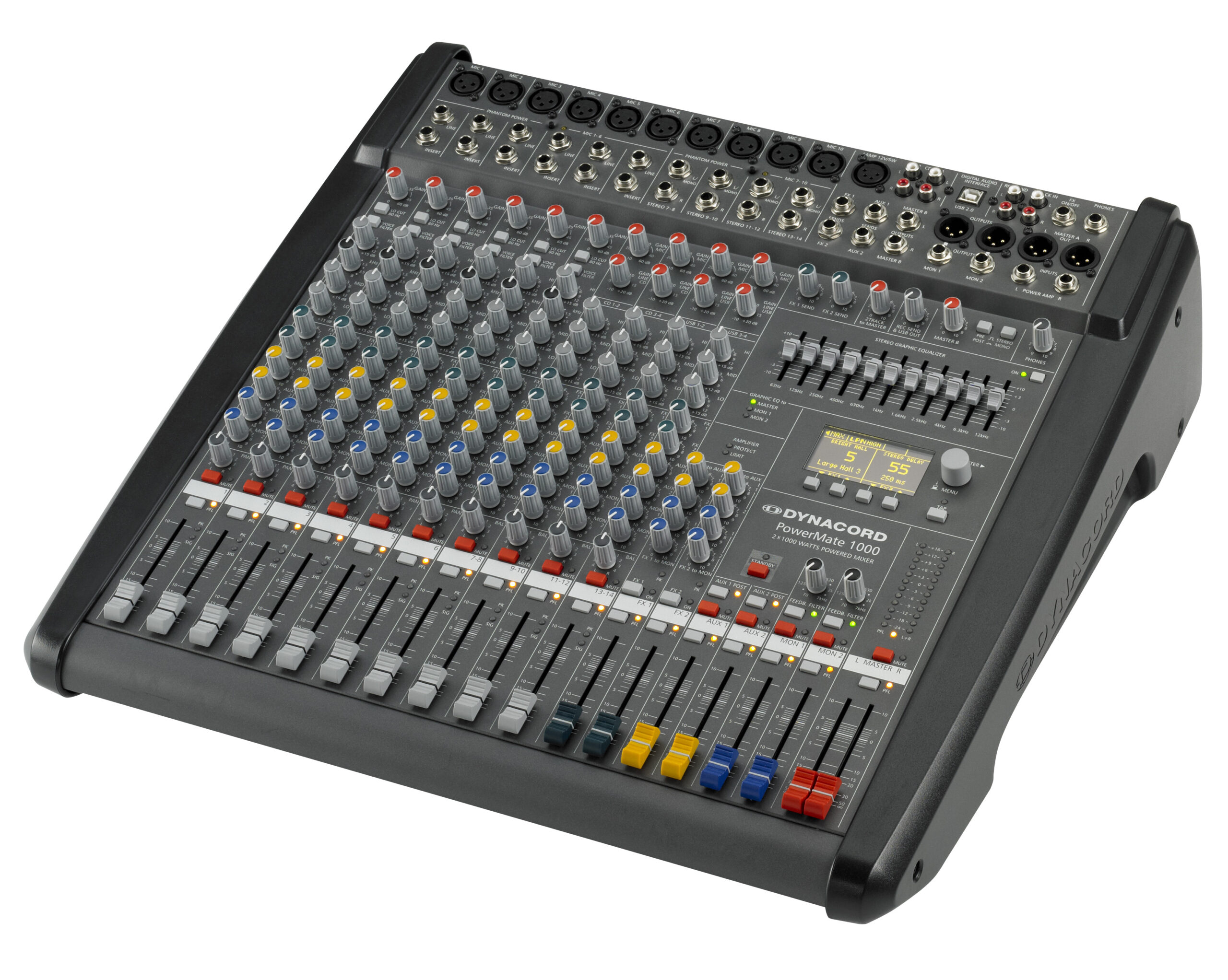

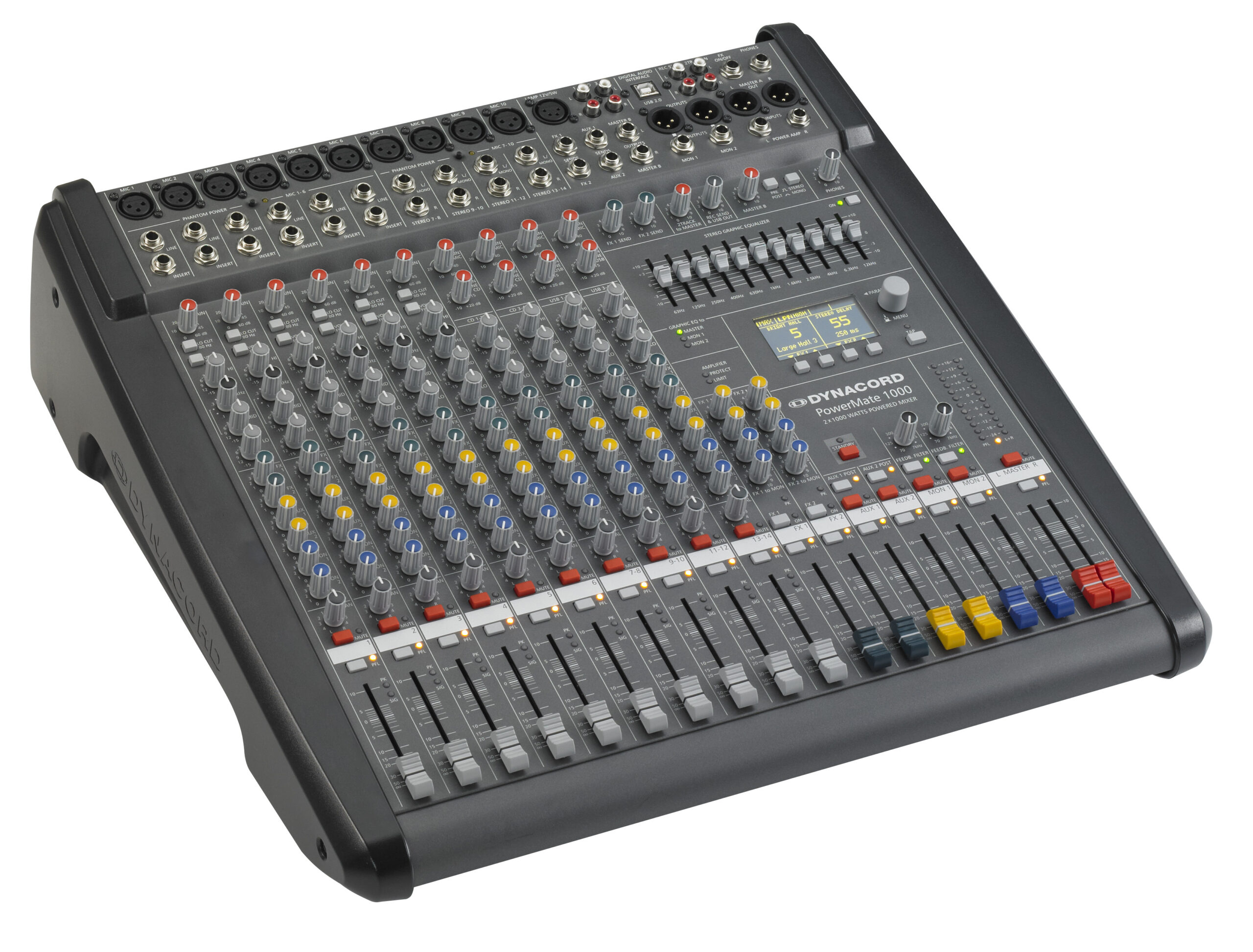

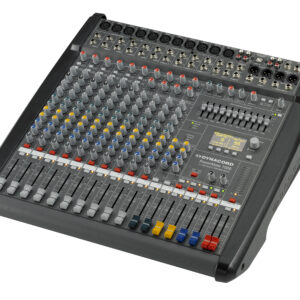

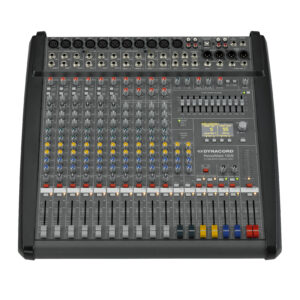

Dynacord PowerMate 1000-3 10-Channel Powered Mixer
BD 1,200.00 VAT INC
The PowerMate 1000-3 compact power mixer is the ideal solution for audio professionals seeking a powerful yet portable mixer for a variety of applications. With its 10 input channels, powerful 2 x 1,000 Watt amplifier, and integrated effects processors, this mixer ensures pristine sound quality in any environment. The built-in USB interface allows for seamless recording and playback, while the 11-band graphic equalizer and flexible monitoring options provide complete control over your sound. Designed for reliability and ease of use, the PowerMate 1000-3 is perfect for live performances, studios, and mobile setups. Its lightweight, rugged design makes it an essential tool for any audio engineer on the go.
1 in stock
Product Overview
The PowerMate 1000-3 is a versatile and compact power mixer designed to provide top-tier audio performance in a lightweight and portable package. Offering 10 input channels, a robust amplifier, and high-quality built-in effects, this mixer combines six essential audio devices in a single unit: a mixing console, effects processors, graphic equalizer, USB audio interface, and power amplifier. Whether you’re mixing live sound, recording, or producing music, the PowerMate 1000-3 delivers exceptional sound quality and flexibility in a road-ready design.
Product Features
- 10 Input Channels: Features 6 Mic/Line inputs and 4 Mic/Stereo-Line inputs with low-noise discrete preamps, providing clarity and flexibility for various audio sources.
- Powerful Amplification: Delivers 2 x 1,000 Watts (RMS) at 4 Ohms, ensuring powerful and reliable performance with modern switching mode power supply and class-D output stage.
- Editable Effects Processors: Includes 2 high-quality effects units with 100 factory presets and 20 user-editable presets, featuring the renowned PowerMate reverb effects.
- Professional USB Audio Interface: A 4×4 24-bit / 96 kHz USB interface for seamless integration with PC or Mac systems, plus MIDI compatibility for connecting external instruments like keyboards.
- Graphic Equalizer: An 11-band stereo graphic equalizer with flexible routing options to master or monitor channels for precise sound control.

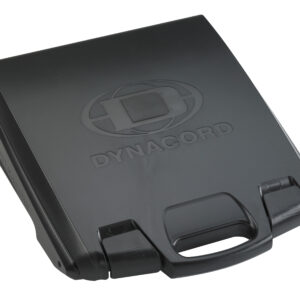

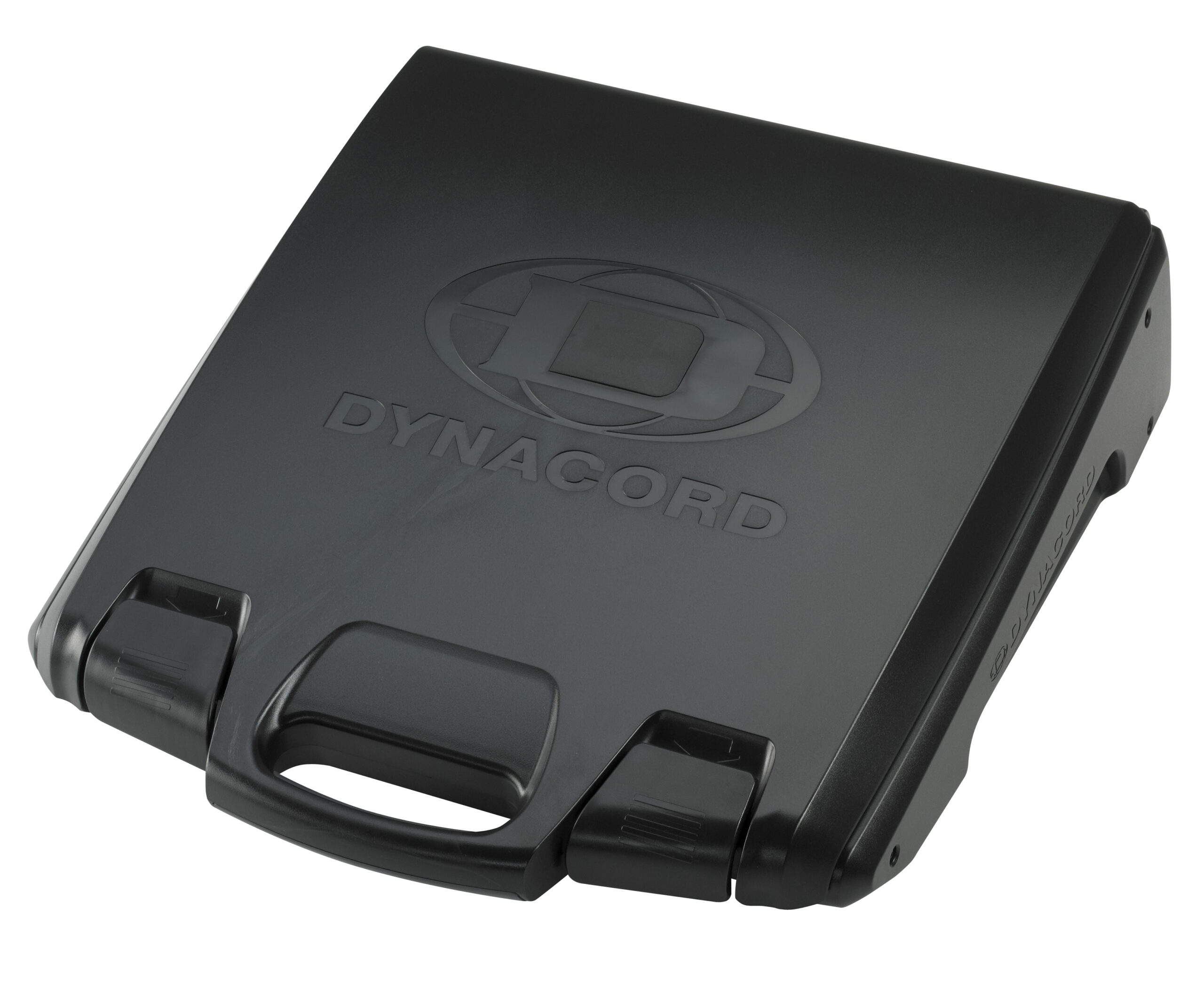

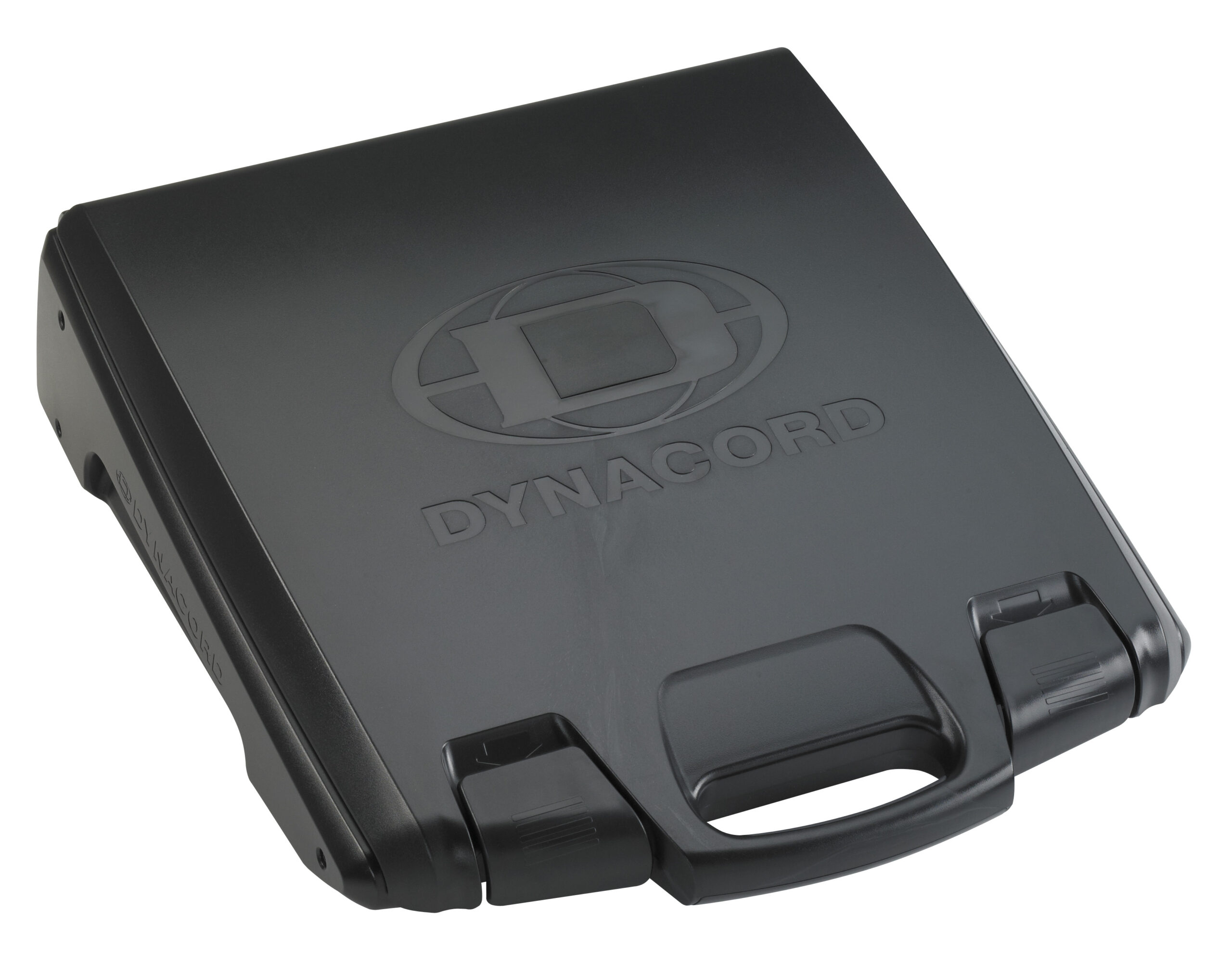

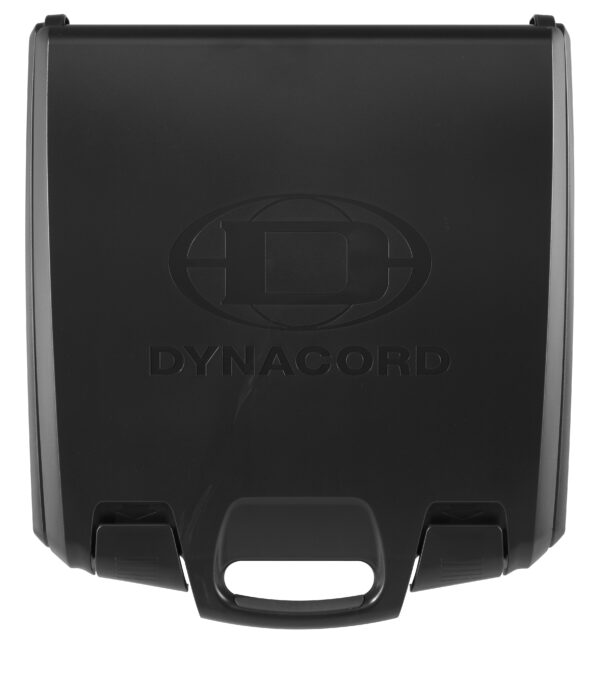

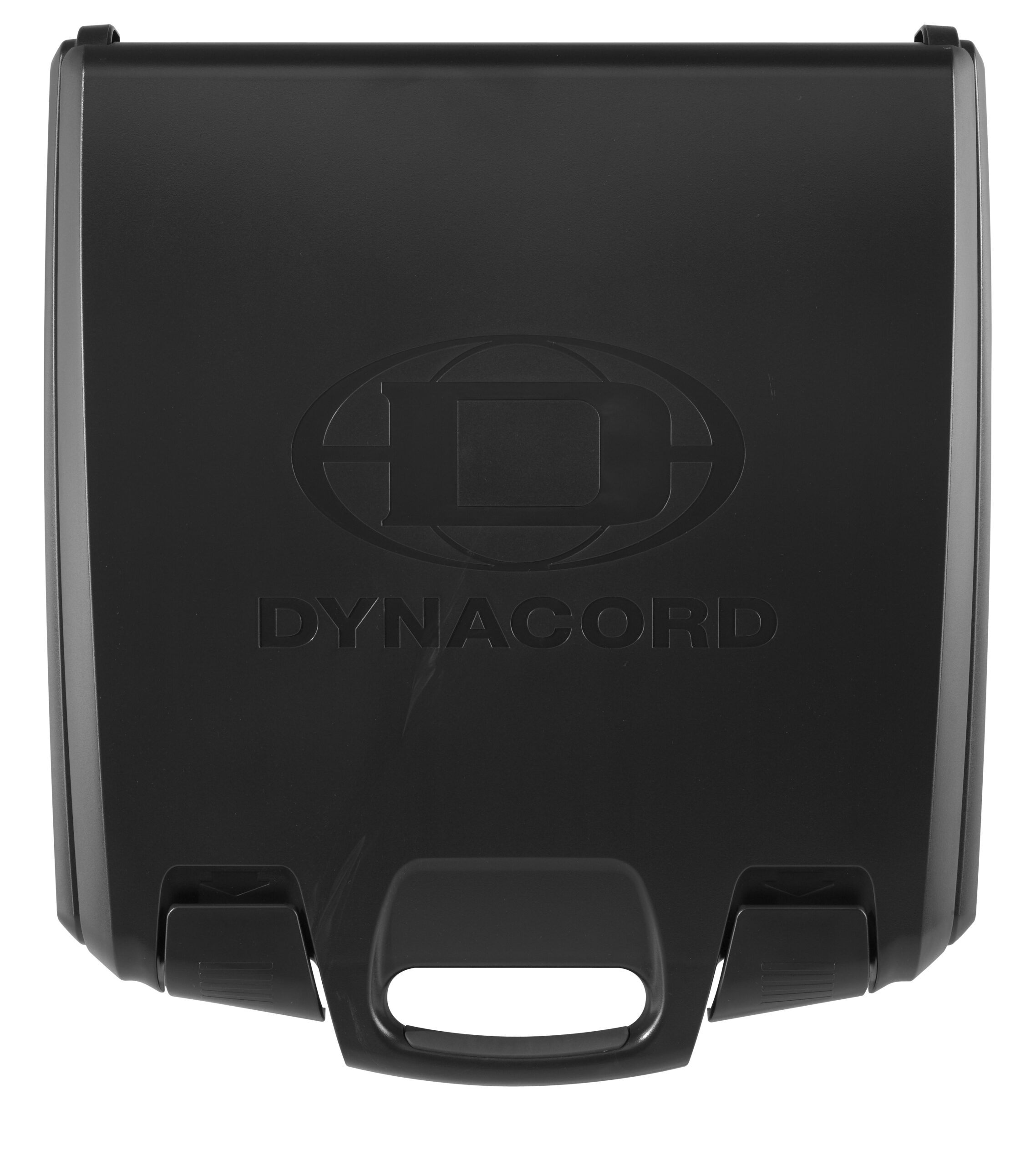

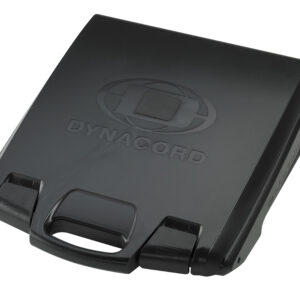

- Lightweight and Road-Ready: At only 14 kg, the mixer comes with a robust plastic cover and integrated handle for easy transportation, making it perfect for live events and mobile setups.
Specifications
| Channels (Mono + Stereo) | 6 + 4 |
| Auxiliarys (MON, FX, AUX) | 2 Pre, 2 Post, 2 Pre/Post switchable |
| Max. Single Channel Output Power, Dynamic-Headroom, IHF-A | |
| into 2.66 Ω | 2 x 1600 W |
| into 4 Ω | 2 x 1250 W |
| into 8 Ω | 2 x 675 W |
| Max. Single Channel Output Power, Continuous, 1 kHz, THD = 1% | |
| into 2.66 Ω | 2 x 1350 W |
| into 4 Ω | 2 x 1150 W |
| into 8 Ω | 2 x 650 W |
| Maximum Midband Output Power, 1 kHz, THD = 1%, Dual Channel | |
| into 2.66 Ω | 2 x 1350 W |
| into 4 Ω | 2 x 1000 W |
| into 8 Ω | 2 x 600 W |
| Rated Output Power, 20 Hz to 20 kHz, THD < 0.5%, Single Channel | |
| into 4 Ω | 2 x 900 W |
| into 8 Ω | 2 x 450 W |
| Maximum Output Voltage, of power amplifier, 1 kHz, no load | 74 Vrms |
| THD, at 1 kHz, MBW = 80 kHz | |
| MIC input to Master A L/R outputs, +16 dBu, typical | < 0.005% |
| POWER AMP INPUTS to Speaker L/R outputs | < 0.075% |
| DIM 30, power amplifier, 3.15 kHz, 15 kHz | < 0.05% |
| IMD-SMPTE, power amplifier, 60 Hz, 7 kHz | < 0.15% |
| Frequency Response, -3 dB, ref. 1 kHz | |
| Any input to any Mixer output | 15 Hz to 70 kHz |
| Any input to Speaker L/R output | 20 Hz to 30 kHz |
| Crosstalk, 1 kHz | |
| Amplifier L/R | < -85 dB |
| Channel to Channel | < -80 dB |
| Mute- & Standby-Switch attenuation | > 100 dB |
| Fader & FX/AUX/MON-Send attenuation | > 85 dB |
| CMRR, MIC input, 1 kHz | > 80 dB |
| Input Sensitivity, all level controls in max. position | |
| MIC | -74 dBu (155 μV) |
| LINE (Mono) | -54 dBu (1.55 mV) |
| LINE (Stereo) | -34 dBu (15.5 mV) |
| CD (Stereo) | -34 dBu (15.5 mV) |
| POWER AMP INPUTS | +8 dBu (1.95 V) |
| Maximum Level, mixing desk | |
| MIC inputs | +21 dBu |
| Mono Line inputs | +41 dBu |
| Stereo Line inputs | +30 dBu |
| All other inputs | +22 dBu |
| All other outputs | +22 dBu |
| Input Impedances | |
| MIC | 2 ㏀ |
| Insert Return | 3.3 ㏀ |
| 2Track Return & CD In | 10 ㏀ |
| All other inputs | > 15 ㏀ |
| Output Impedances | |
| Phones | 47 Ω |
| All other outputs | 75 Ω |
| Equivalent Input Noise, MIC input, A-weighted, 150 ohms | -130 dBu |
| Noise, Channel inputs to Master A L/R outputs, A-weighted | |
| Master fader down | -97 dBu |
| Master fader 0 dB, Channel fader down | -91 dBu |
| Master fader 0 dB, Channel fader 0 dB, Channel gain unity | -83 dBu |
| Signal/Noise-Ratio, power amplifier, A-weighted, 4 Ω | 105 dB |
| Output Stage Topology, amplifier | Class D |
| Equalization | |
| LO Shelving | ±15 dB / 60 Hz |
| MID Peaking, mono inputs | ±15 dB / 100 Hz to 8 kHz |
| MID Peaking, stereo inputs | ±12 dB / 2.4 kHz |
| HI Shelving | ±15 dB / 12 kHz |
| Master EQ 11-band (63, 125, 250, 400, 630, 1k, 1.6k, 2.5k, 4k, 6.3k, 12kHz) | ±10 dB / Q = 1.5 to 2.5 |
| Filter | |
| LO-CUT, mono inputs | f = 80 Hz, 18 dB/oct. |
| VOICE FILTER, mono inputs | switchable |
| FEEDBACK FILTER, MON 1/2 | 70 Hz to 7 kHz, Notch, -9 dB |
| Speaker Processing | LPN, switchable |
| Effects | |
| Type | Dual stereo 24/48-bit multi effects processors |
| Effects presets | 100 Factory + 20 User, Tap-Delay |
| Remote control | Footswitch, MIDI |
| Display | 128 x 64 pixels, OLED |
| Digital Audio Interface | |
| Channels | 4 In / 4 Out |
| AD/DA Conversion | 24-bit |
| Sampling Rate | 44.1 / 48 / 88.2 / 96 kHz |
| PC Interface | USB2.0, Female Type B |
| Supported OS | See documentation |
| Peak Display | 6 dB before Clip |
| MIDI Interface | 5-pin DIN connector, In / Out |
| Output Power Control (Speaker Protection) | Adjustable longterm RMS Limiter |
| Protection | |
| Mixer Outputs (Relay controlled) | MON 1, MON 2, MASTER A |
| Amplifier | Audio Limiters, High Temperature, DC, HF, Short Circuit, Peak Current Limiters, Turn-on Delay, Back EMF |
| Switching Mode Power Supply (μC controlled) | Inrush Current Limiters, Mains Over/Undervoltage, Mains Over Current, High Temperature |
| Cooling | Continuous speed controlled Fans |
| Phantom Power, switchable in groups | 48 V DC |
| Power Requirements (SMPS with auto range mains input) | 100 V to 240 V AC, 50 Hz to 60 Hz |
| Power Consumption, at ⅛ maximum output power, 4 Ω | 450 W |
| Safety Class | I |
| Ambient Temperature Limits | +5 °C to +40 °C (40 °F to 105 °F) |
| Dimensions (W x H x D), mm | With lid: 510.5 x 164.5 x 571.5 Rack-mount: 483.0 x 135.0 x 443.7 |
| Weight | |
| Net Weight, without lid | 12.5 kg |
| Net Weight, with lid | 14 kg |
| Shipping Weight | 17 kg |
| Warranty | 36 months |
| Optional Accessories | |
| RMK-1000-3 (Rack Mount Kit for PowerMate 1000) | F01U161506 (DC-RMK1000-3) |
| Gooseneck Lamp, 12V/5W, 12”, XLR 4 pol. | F01U118983 (DC-LITLITE-4P) |
| FS 11 (Footswitch with LED) | F01U100598 (DC-FS11) |
Device in rated condition, unity gain (MIC gain 20 dB), all faders position 0 dB, all pots in mid position, master fader +8 dB, LPN HIGH, amplifier load 8 ohms, dual channel, mains voltage 230 V/50 Hz or 120 V/60 Hz, unless otherwise specified.
