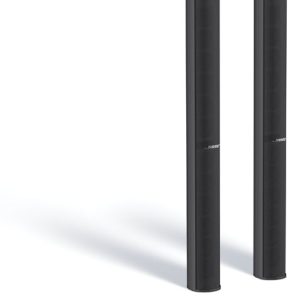

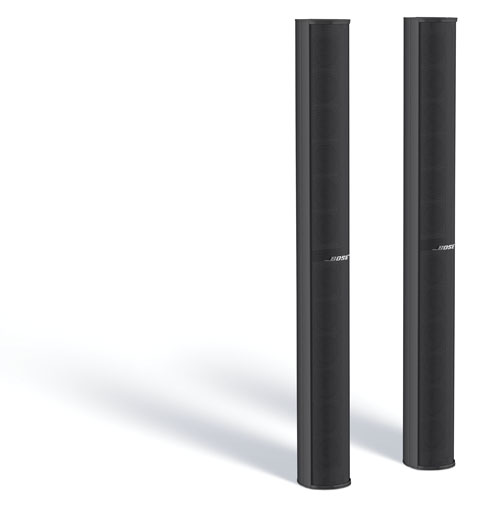

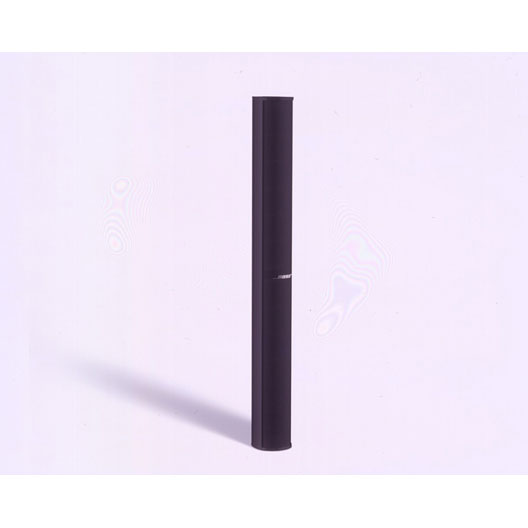

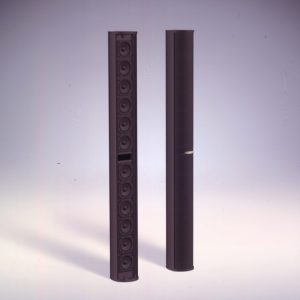

Bose Panaray MA12 column array speaker

The Bose Professional Panaray MA12 column array speaker is designed for indoor environments where vocal intelligibility and wide coverage are crucial. Its modular, slim design allows for flexible installation and configuration, making it suitable for a variety of spaces including houses of worship, multi-purpose venues, restaurants, and transportation facilities.



SKU: MA12 Category: Tag:

Product Overview

The Bose Professional Panaray MA12 is a mid/high-frequency column array speaker specifically engineered for delivering exceptional vocal clarity in acoustically challenging environments. Its design offers a sleek, slim profile that seamlessly integrates into any indoor setting, providing 145° of horizontal coverage to ensure broad sound dispersion. Ideal for a range of applications, this speaker enhances both the aesthetic and acoustic quality of spaces requiring clear audio.

Features

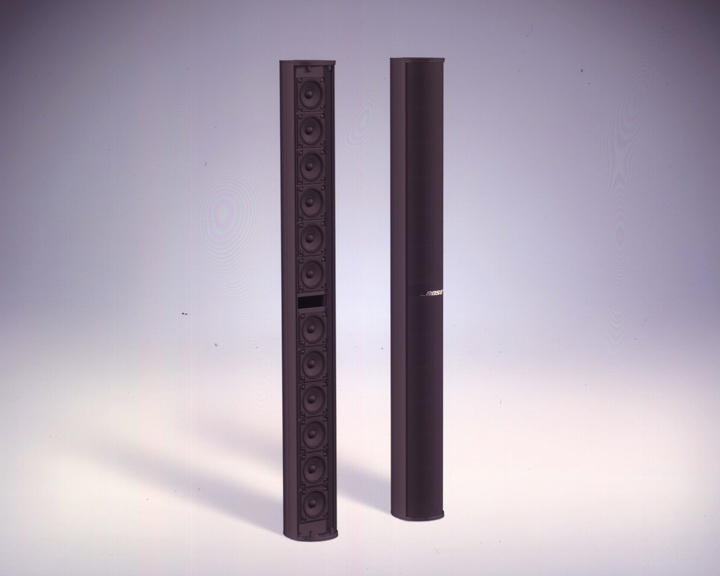

  • Driver Configuration: Equipped with twelve 2.25-inch (57 mm) drivers arranged in a vertical line array for wide horizontal coverage and controlled vertical pattern.
  • Modular Design: Offers the ability to stack multiple enclosures in a line array configuration, improving vertical pattern control and extending “throw” distance while minimizing floor/ceiling reflections.
  • Coverage: A single module provides 145° horizontal and 20° nominal vertical coverage, with vertical dispersion adjusted based on the number of modules stacked.
  • Mid/High Frequency: Optimized for mid/high frequency reproduction, providing flexibility for bass management when paired with Bose Professional MB4, MB12, or MB24 modular bass speakers.
  • Installation Flexibility: Optional brackets for easy installation of single, double, or triple-stack line array modules.

Technical Specification

PHYSICAL
  • Colors

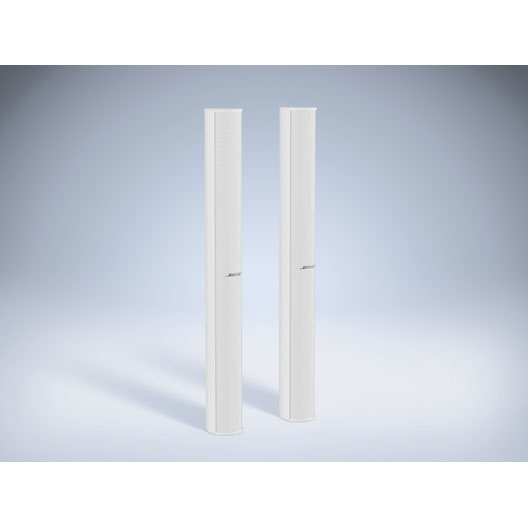

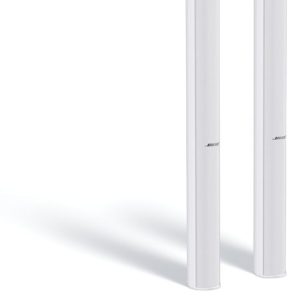

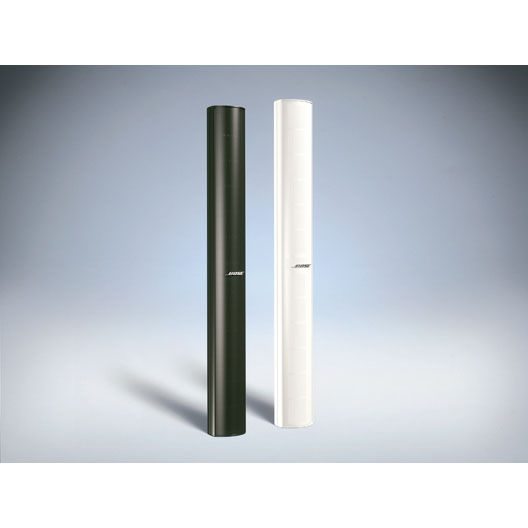

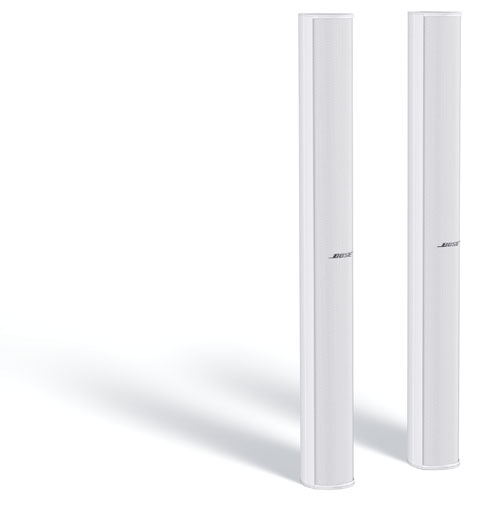

  • Black, white
  • Enclosure Material
  • Extruded-aluminum sidewalls with steel top & bottom endcaps, all powder-coated
  • Grille
  • Aluminum, powder-coated finish
  • Suspension/Mounting
  • 4 × M6 threaded inserts
  • Net Weight
  • 19.0 lb (8.5 kg)
  • Product Dimensions (H×W×D)
  • 38.8 in × 4.2 in × 5.0 in (984 mm × 105 mm × 128 mm)
COMPLIANCE
  • EN 54-24 Certified
  • No
PERFORMANCE
  • Frequency Range (-10 dB)
  • 100 Hz – 16,000 Hz
  • Coverage, Horizontal
  • 145°
  • Calculated Maximum SPL @ 1 m
  • 113 dB continuous, 119 dB peak
  • Nominal Impedance
  • 8 Ω
  • Power Handling, long-term continuous
  • 300 W
  • Power Handling, Peak
  • 1200 W
  • Recommended Signal Processing
  • Bose Professional loudspeaker EQ
  • Sensitivity (SPL/1 W at 1 m)
  • 88 dB
  • Transformer Taps, 100V
  • CVT-MA12 transformer available
  • Transformer Taps, 70V
  • CVT-MA12 transformer available
  • Coverage, Vertical
  • 20°
TRANSDUCERS
  • Driver Protection
  • Overload protection
  • Low-Frequency
  • 12 × 2.25 in (57 mm) high-excursion mid/high-frequency drivers

Mechanical Diagrams

MA12EX modular columnar array loudspeaker front view
Front View
mechanical diagram top view
Top View
mechanical diagram right view
Side View

Included in Packaging

  • (1) installation guide
  • (1) MA12 loudspeaker
