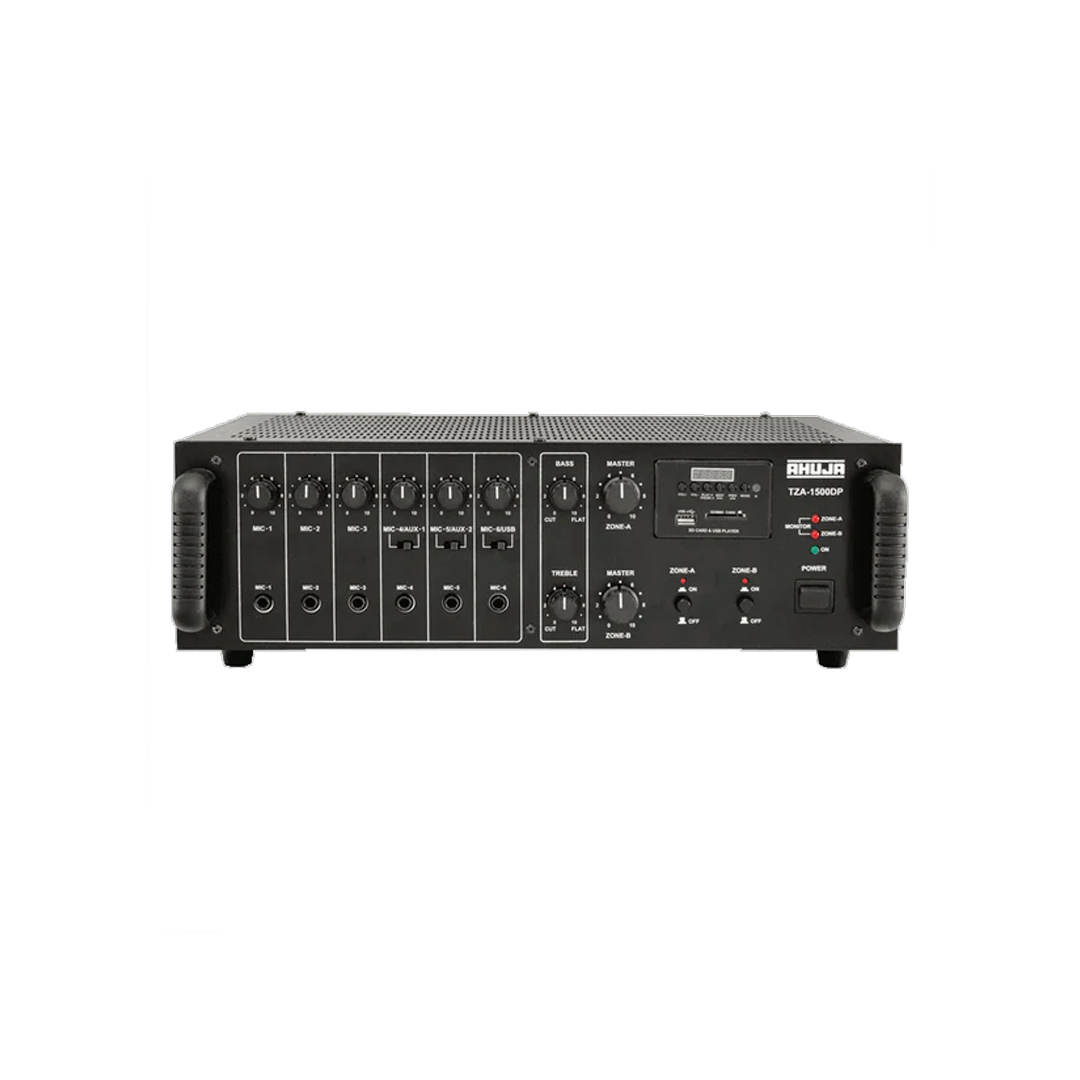

Ahuja TZA-1500DP Mixer Amplifier

Overview:

The Ahuja TZA-1500DP 2-Zone PA Mixer Amplifier is a reliable and versatile solution designed for medium-sized installations, such as places of worship, where multiple speaker zones need to be connected. This amplifier features a built-in MP3 player with remote control, offering easy access to music from USB, SD, or MMC cards. Additionally, it includes preamplifier and line outputs for connecting to booster amplifiers or recording purposes. It also provides seamless transition to DC power (car battery) in case of AC power failure, ensuring uninterrupted service.

Key Features:

• Inputs: 6 Mic and 2 Aux Inputs for flexible connection options.
• Built-in MP3 Player: Supports USB, SD, and MMC card readers with remote control for easy playback.
• Preamplifier and Line Output: Connects to booster amplifiers and allows for program recording.
• Dual Zone Connectivity: Ideal for installations requiring two separate groups of speakers. Can connect both zones to 100V speakers, a mix of 100V and low impedance speakers, or both zones to low impedance speakers.
• Power Backup: Instant transfer to DC power (car battery) if AC power fails, ensuring continuous operation.
• Design Flexibility: Custom design services available to tailor systems to specific needs.

Specifications:

• Power Output: 100W + 100W Max., 80W + 80W RMS at 10% THD, 70W + 70W RMS at 5% THD, 60W + 60W RMS at 2% THD
• Frequency Response: 65-15,000Hz ±3dB
• Signal-to-Noise Ratio: 60dB
• Speaker Output: 4Ω, 8Ω, 70V & 100V
• Power Supply: AC: 220-240V 50/60Hz; DC: 12V (12V Car Battery)
• Power Consumption: AC: 300VA; DC: 6A
• Dimensions: W460 × H155 × D310 mm
• Weight: 14.5 kg
